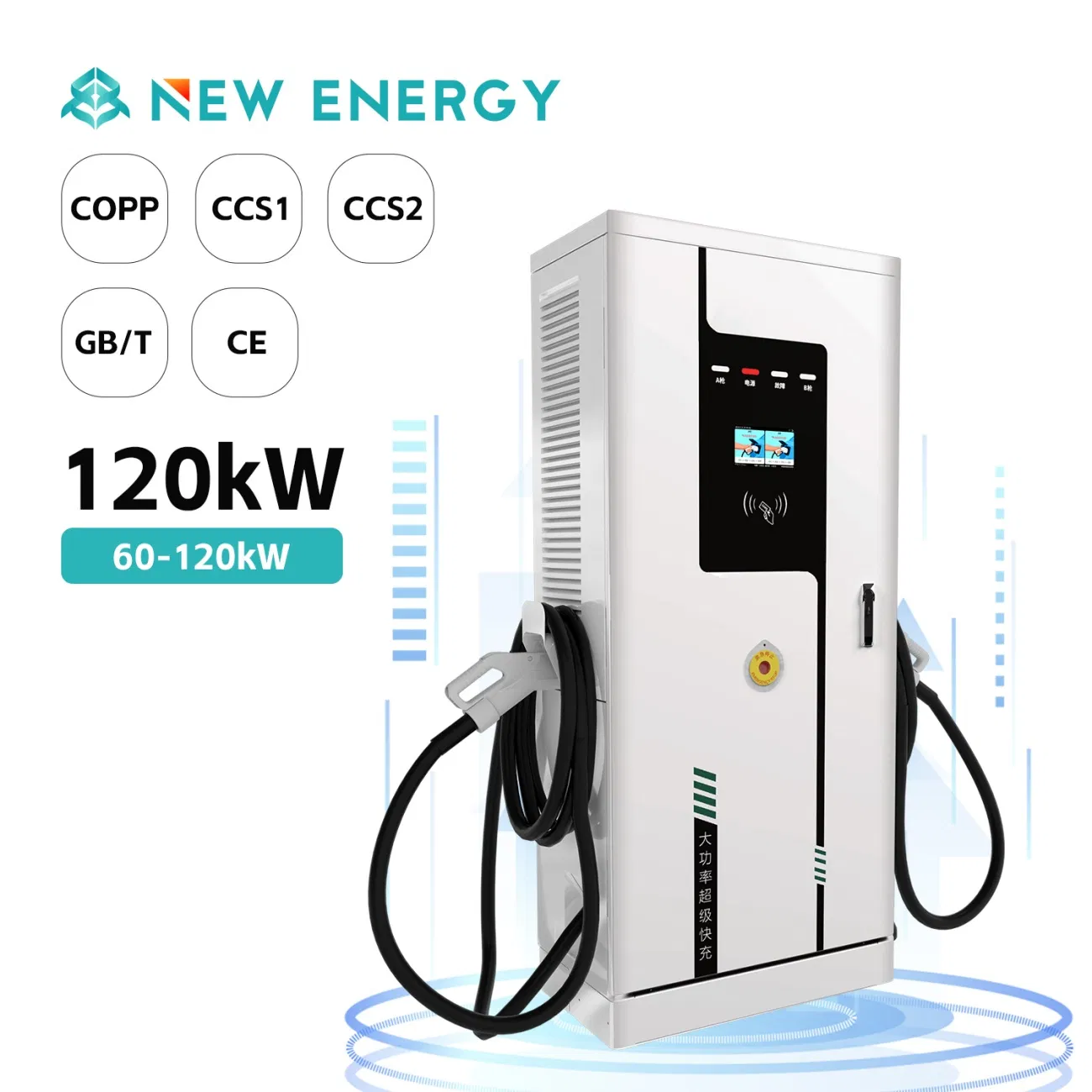

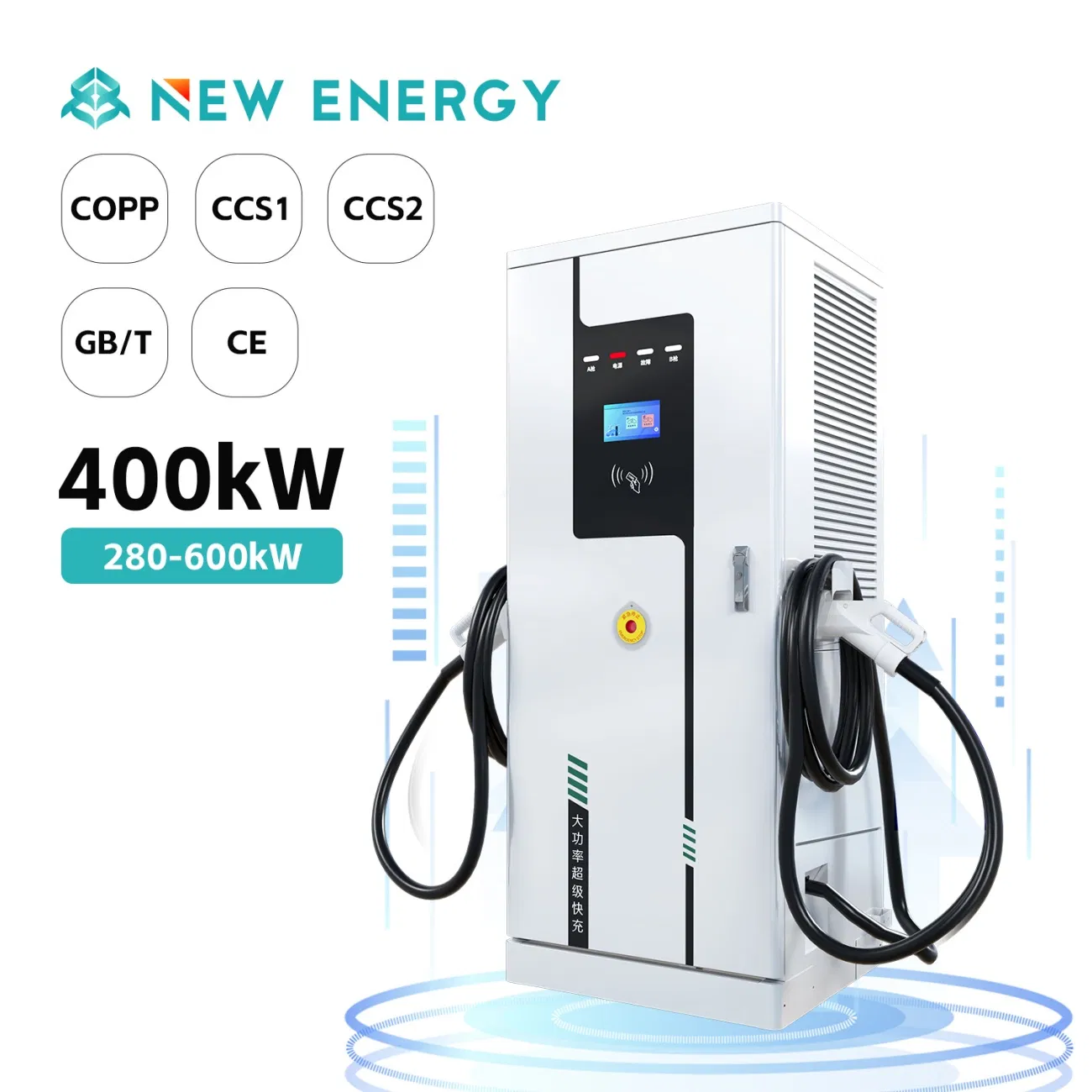

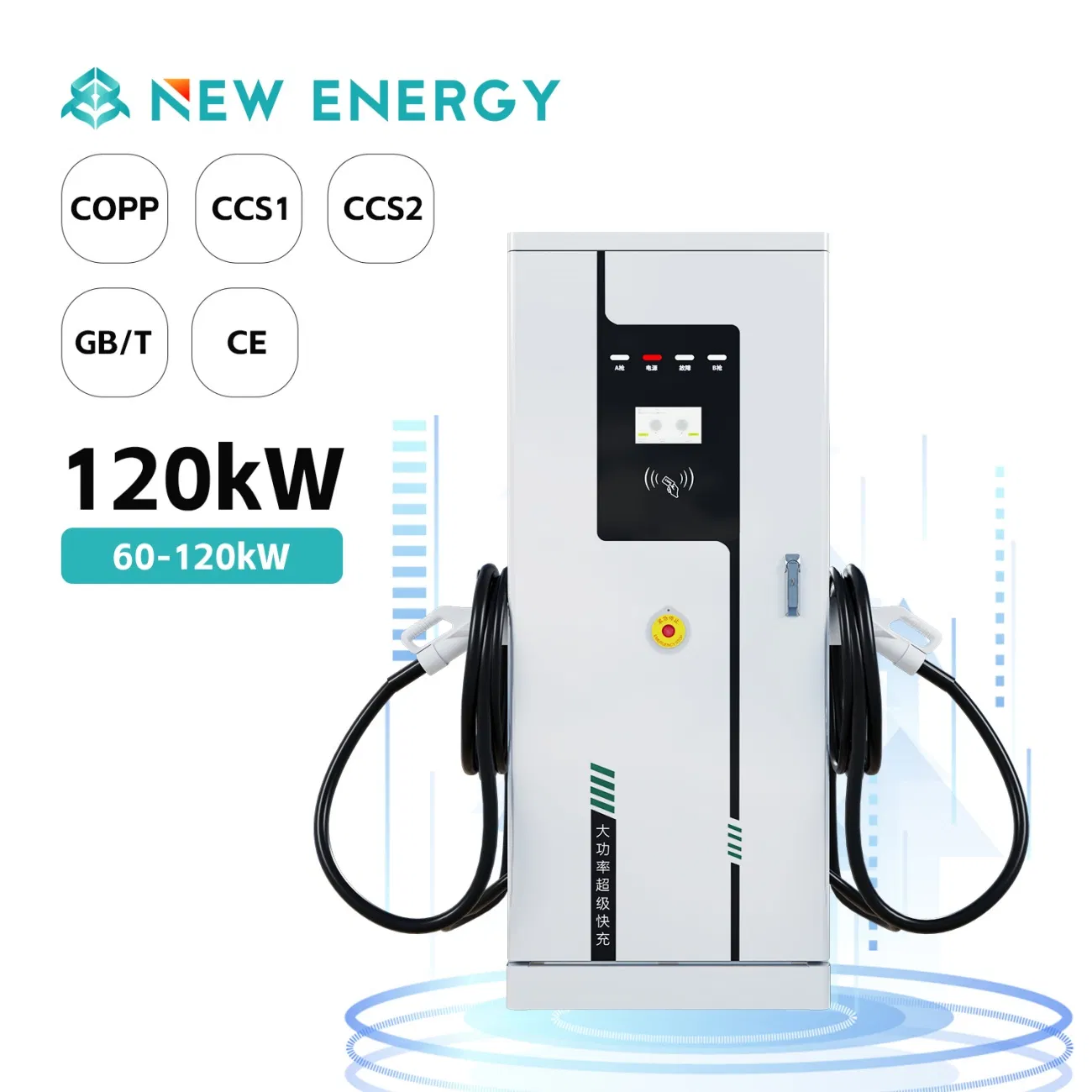

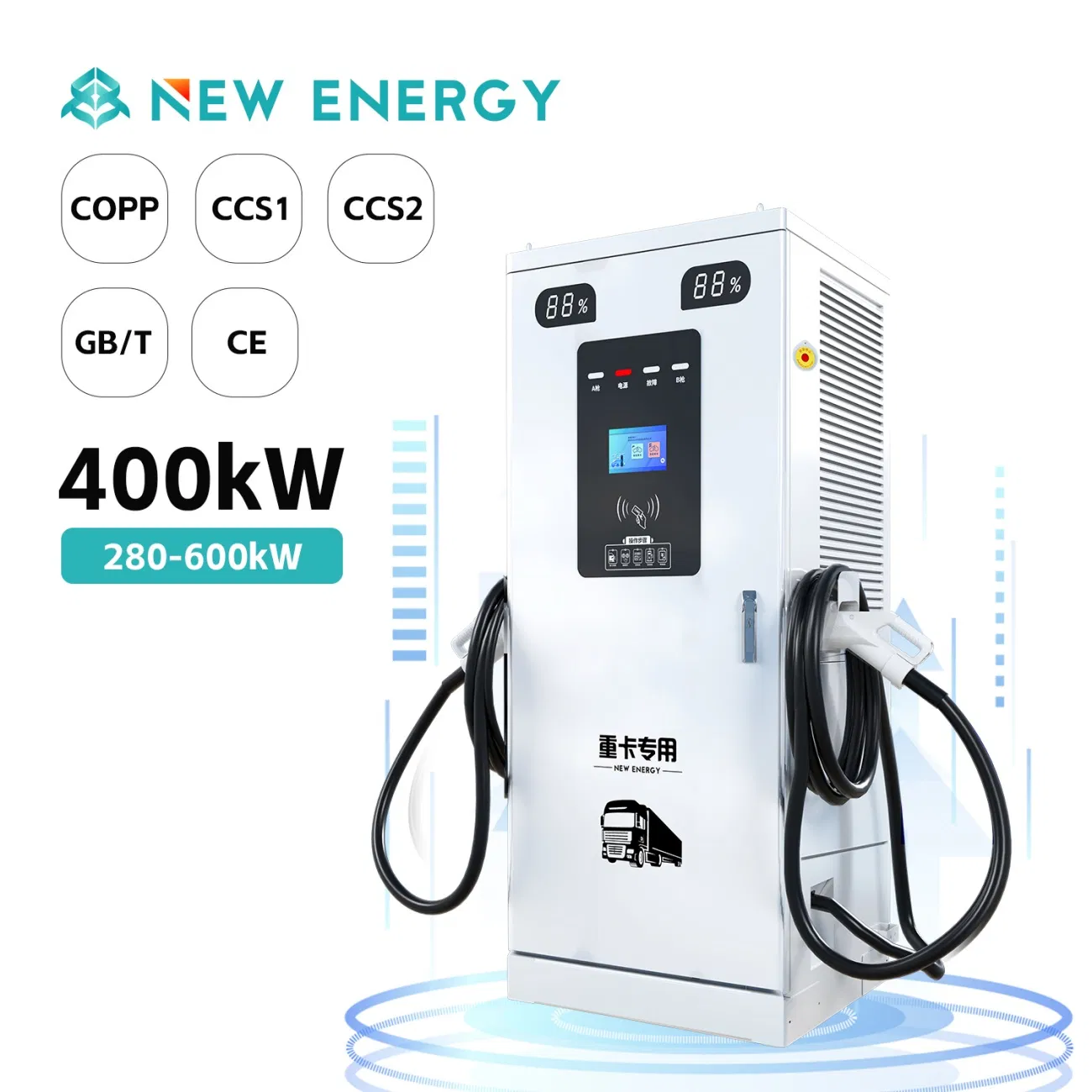

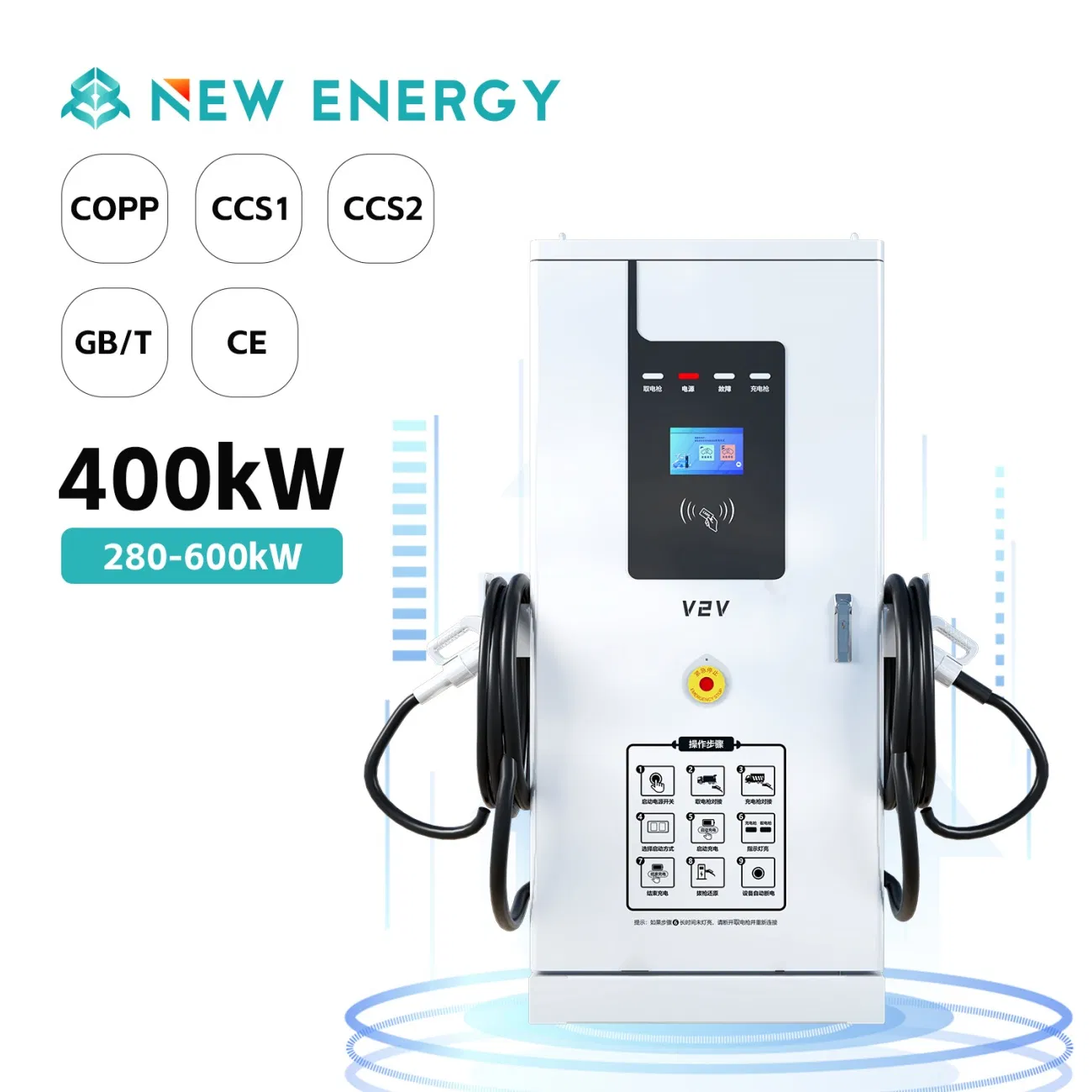

Effectively Extends Battery Life Remote Management Best Commercial EV DC Charging Station

Still deciding? Get samples of $ !
Order Sample

Product Description

i

Overview

Model NO.
80KW-600KW
Location
Public Use
Installation
Floor Type
Charge Method
Quick Charge
Rated Power
40kw To600kw
Weight
194kg-274kg
Gun Barrel Length
5 Meters
Number of Charging Guns
2 individual
Body Size
750X410X1700(mm)
Human-Computer Interface
7-Inch LCD Touch Screen + LED
Connection Method
4G All-Network Compatible / Ethernet
Origin
China
HS Code
85044099
Production Capacity
50,000 Units Per Year

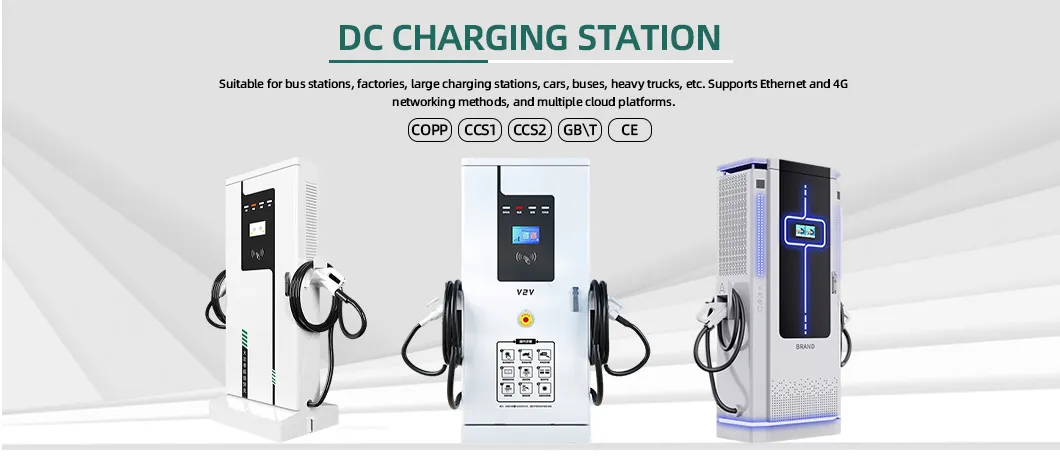

EV DC Charging Station
Remote Management Charging Station

Product Description

Product Introduction:
Power range from 40KW to 600KW. Supports OCPP protocol, CCS1, CCS2, and GB/T standards. Features IP54 waterproof rating, with a continuous adjustable voltage range of 50-1000V. Constant power voltage range is 200-1000V. Supports simultaneous charging with two guns. Suitable for bus stations, factories, large charging stations, cars, buses, heavy trucks, etc. Supports Ethernet and 4G networking methods, and multiple cloud platforms. Includes gun temperature monitoring, short circuit, over-temperature, over-current, leakage, over/under-voltage protection, and lightning protection. The charging station has been debugged before leaving the factory. Users can directly power on and use it without any secondary debugging. It adopts advanced DC fast charging technology, providing rapid energy replenishment, shortening charging time, and improving charging efficiency.
DC Charging Station Features

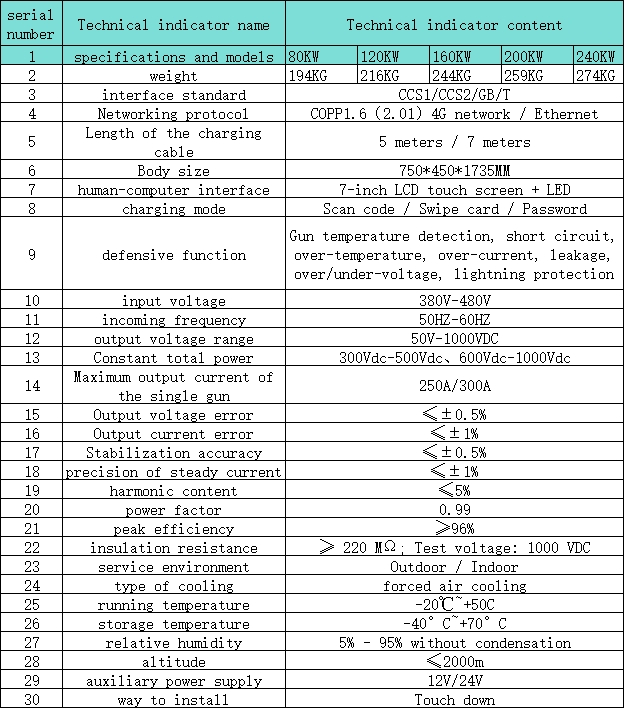

Charging Station View 1

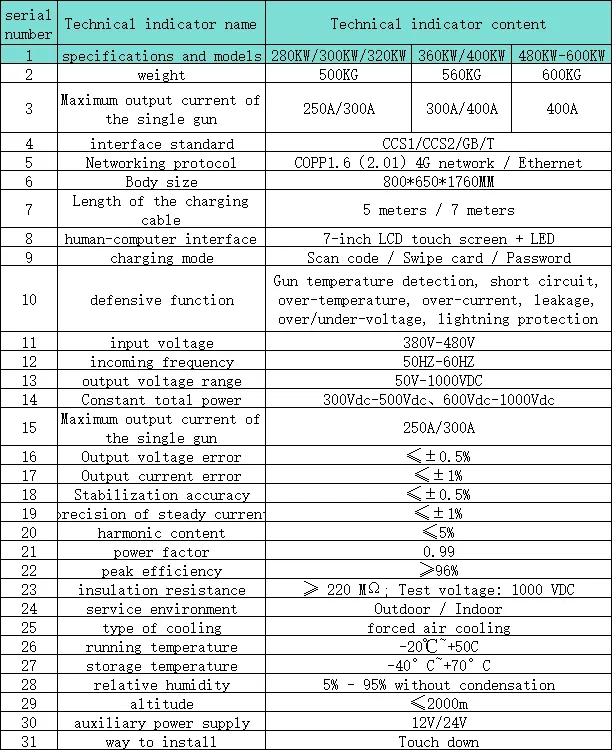

Charging Station View 2
Product model40KW-600KW External dimension750x410x1700(mm)
Rated power40KW-600KW Weight194KG-274KG
Design criterionCCS1, CCS2, GB/T Gun barrel length5 meters
Number of charging guns2 individual Interface7-inch LCD touch screen + LED
Protection LevelIP54 Connection4G / Ethernet
Charging modeScan code, swipe card, VIN code, password Cloud platformOCPP 1.6 (2.0.1)
Video Placeholder

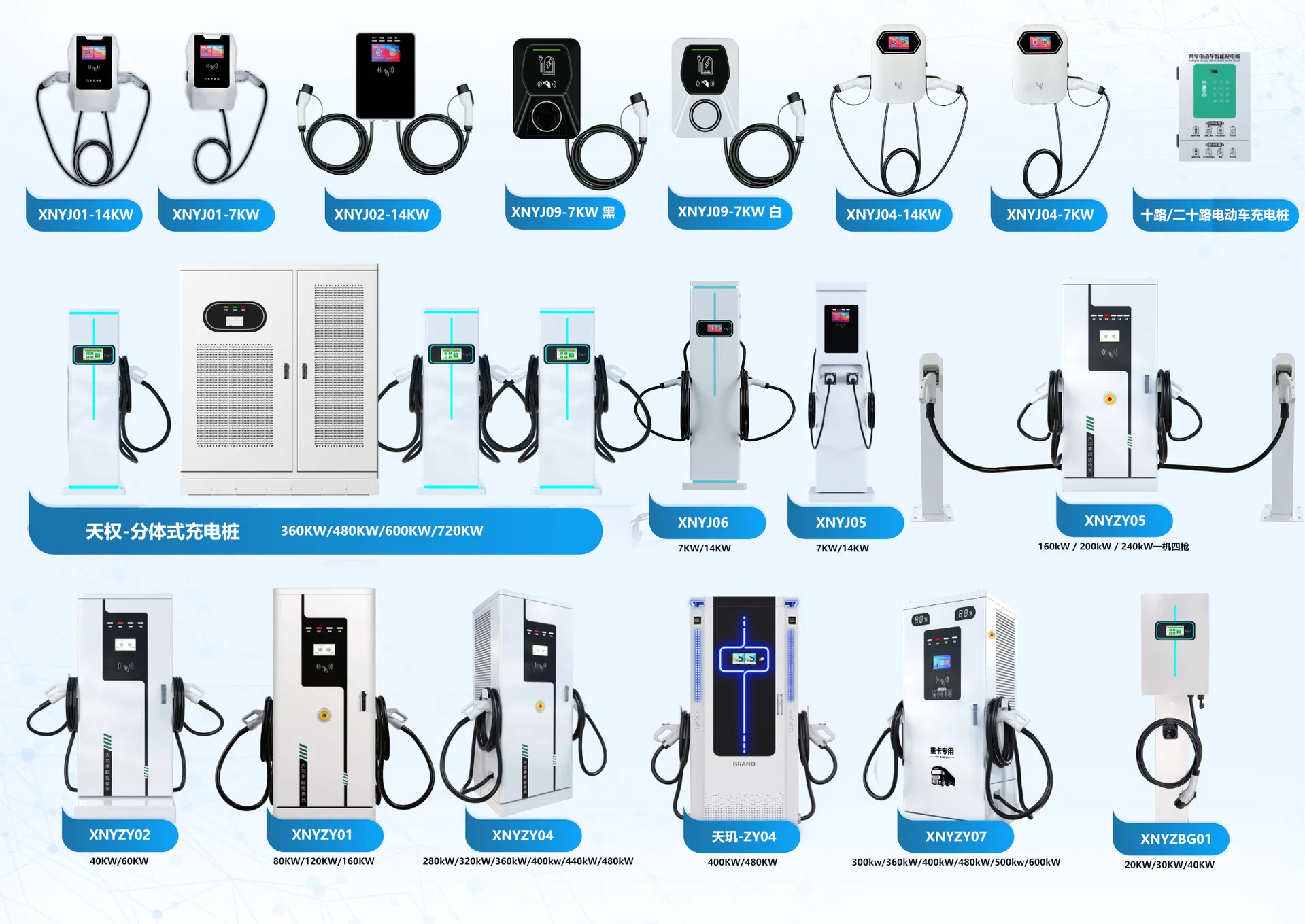

Versatile EV Charger

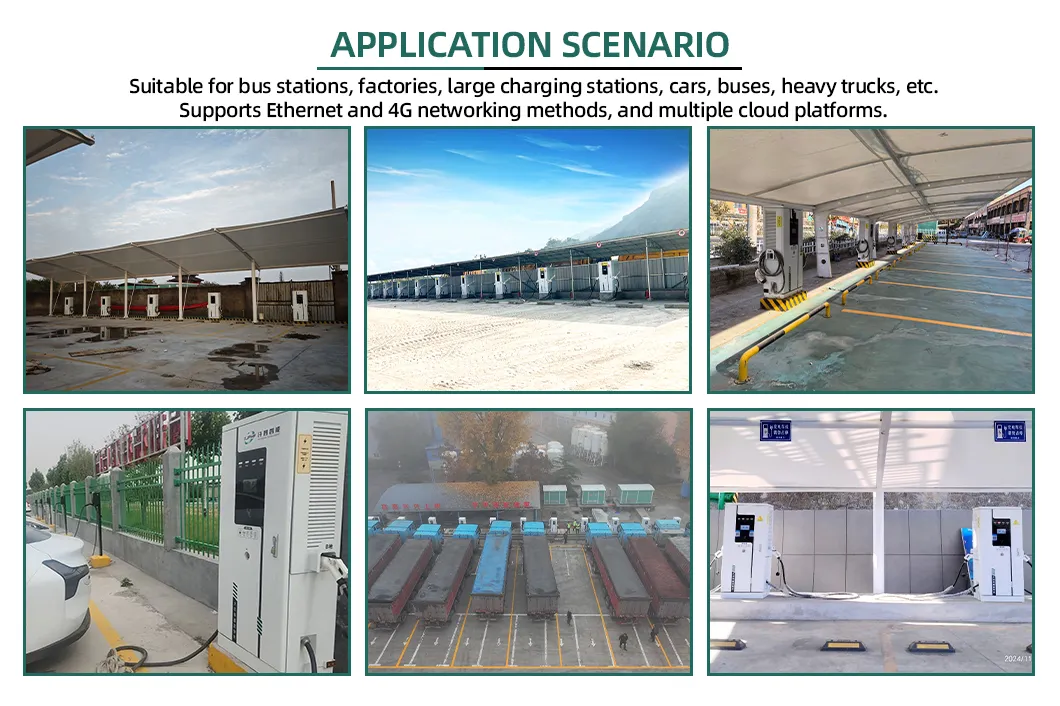

High Power EV Charging

Company Profile

Company Facility
We are an AAA-rated credit enterprise, holding ISO400, ISO900, ISO1400, ISO500, and ISO certifications. We also possess numerous software copyrights, certificates such as those for honest businesspeople, and various third-party inspection reports for our equipment. We actively participate in large-scale domestic and international exhibitions and have established partnerships with numerous renowned enterprises both at home and abroad.
Certificates and Partnerships
📦

Packaging & Shipping

Packaging Methods
We adopt packaging methods that are sufficient to protect the equipment, and they support sea transportation, air transportation and land transportation.
?

Frequently Asked Questions

Are you a factory or a trading company?
We are a manufacturer, welcome to visit our factory at any time!
What products can we buy from you?
We offer wallbox/Portable AC EV chargers (3.5kw-44kw), floor-mounted fast DC charging stations (30kw-480kw), mobile chargers with energy storage (3.5kwh-161kwh), and Solar System products.
Can you handle custom designs and logos?
Yes, we can produce based on your design and place your logo on the products.
What are your typical payment terms?
T/T 30% as deposit, 70% paid before delivery. We provide photos of products and packages before final payment.
What is the estimated delivery time?
Generally, it takes 7 to 35 days after receiving advance payment, depending on the item and order quantity.
Do you test all goods before delivery?
Yes, we perform a final thorough inspection of all goods before they are shipped.
