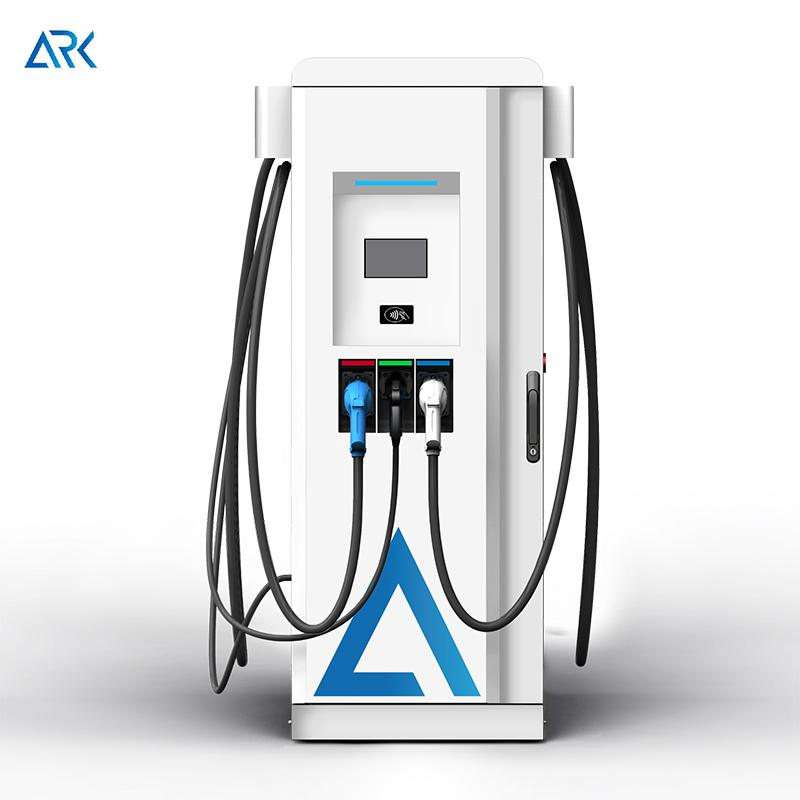

120kw Ultra Fast Commercial EV Charger Electric Vehicle Charging Station Mobile APP Pay

1 / 5

120kw Ultra Fast Commercial EV Charger Electric Vehicle Charging Station Mobile APP Pay

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Overview - Basic Info

Model NO.EF160

OcppOcpp1.6j Supported

Screen7 Inch Touch Screen

Protection GradeIP54, IK10

Charging TypeMode 4

StandardsIEC 61851-1, IEC 61851-23, Chademo

TypeFast EV Charging Station

CertificationCE, TUV

Warranty12 Months

Weight380kgs

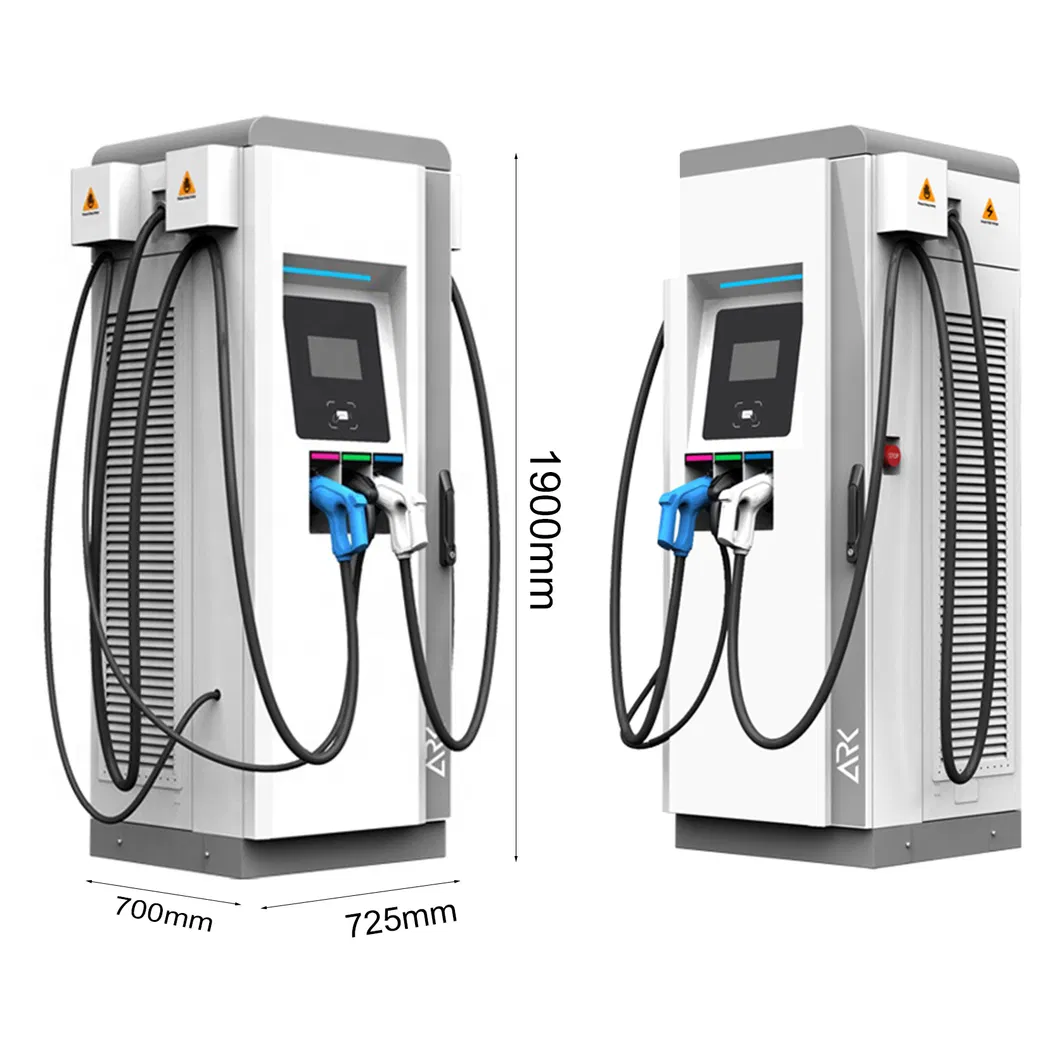

Specification1900 x 725 x 700mm

Production Capacity1000 Units Per Month

★

Product Description

⚙

Product Parameters

Basic	Model	EF160 CJ082
Electrical Specs	Input Voltage	400Vac 3-phase
	Input Frequency	50Hz/60Hz
	Rated Power	60kW or 120KW DC
	Output Voltage	CCS: 200 - 1000VDC, CHAdeMO: 200 - 500VDC
	Output Current	CCS: 0 - 200A, CHAdeMO: 0 - 125A
	Efficiency	≥ 94%
	Power Factor	≥ 0.99
Structure	Housing Material	Metal case
	Installation	Floor-stand type
	Cable Length	5m

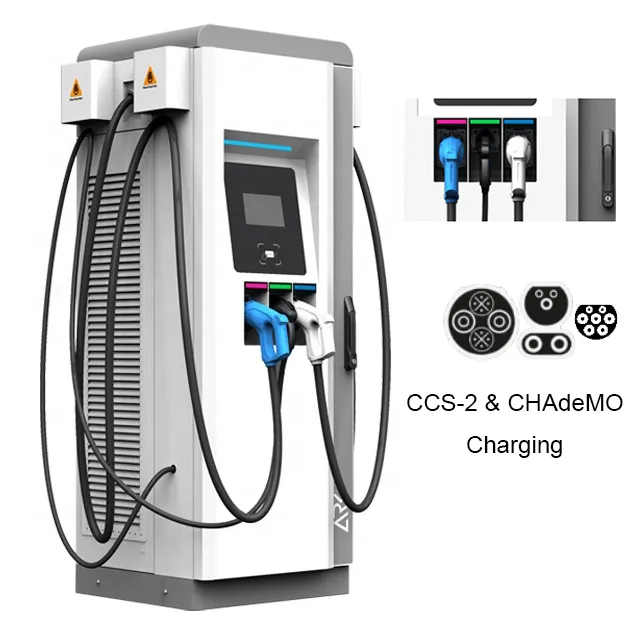

	Outlets	3 Connectors

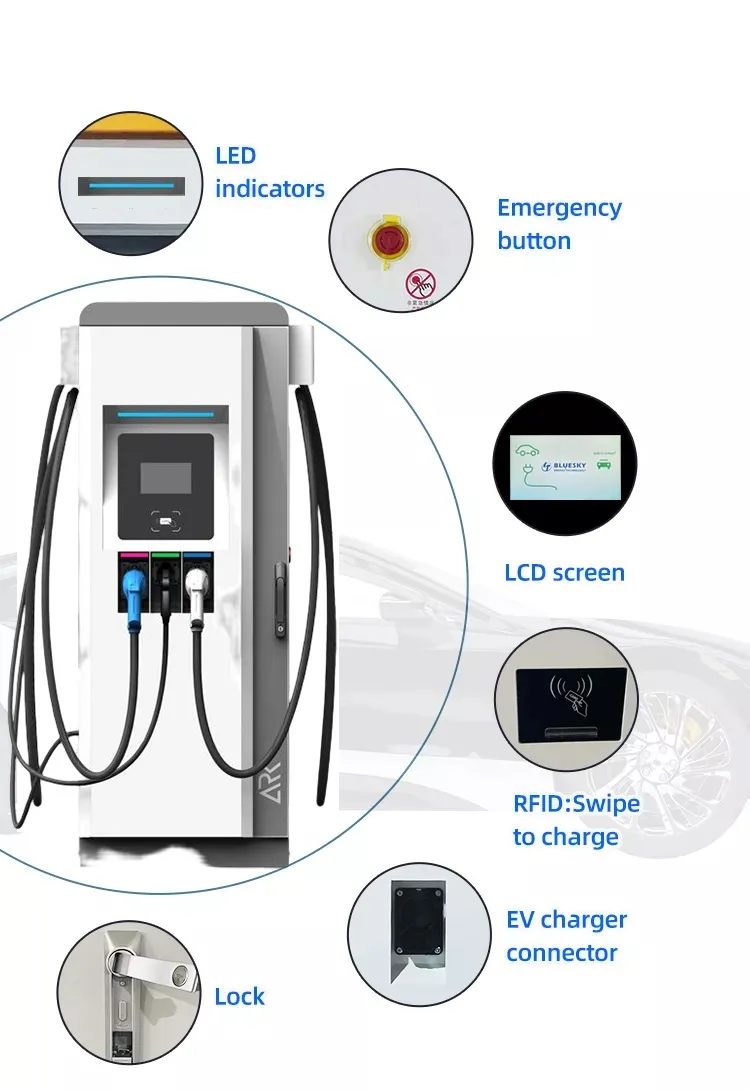

Function	User Interface	Emergency button, LED indicator, RFID, 7" Touch screen
Environment	Protection	IP54, Fan cooling, -30°C to +55°C Working Temp

🏢

Professional Standards

📦

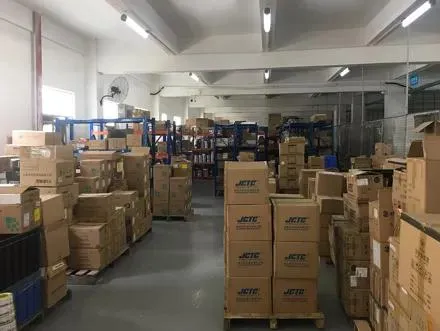

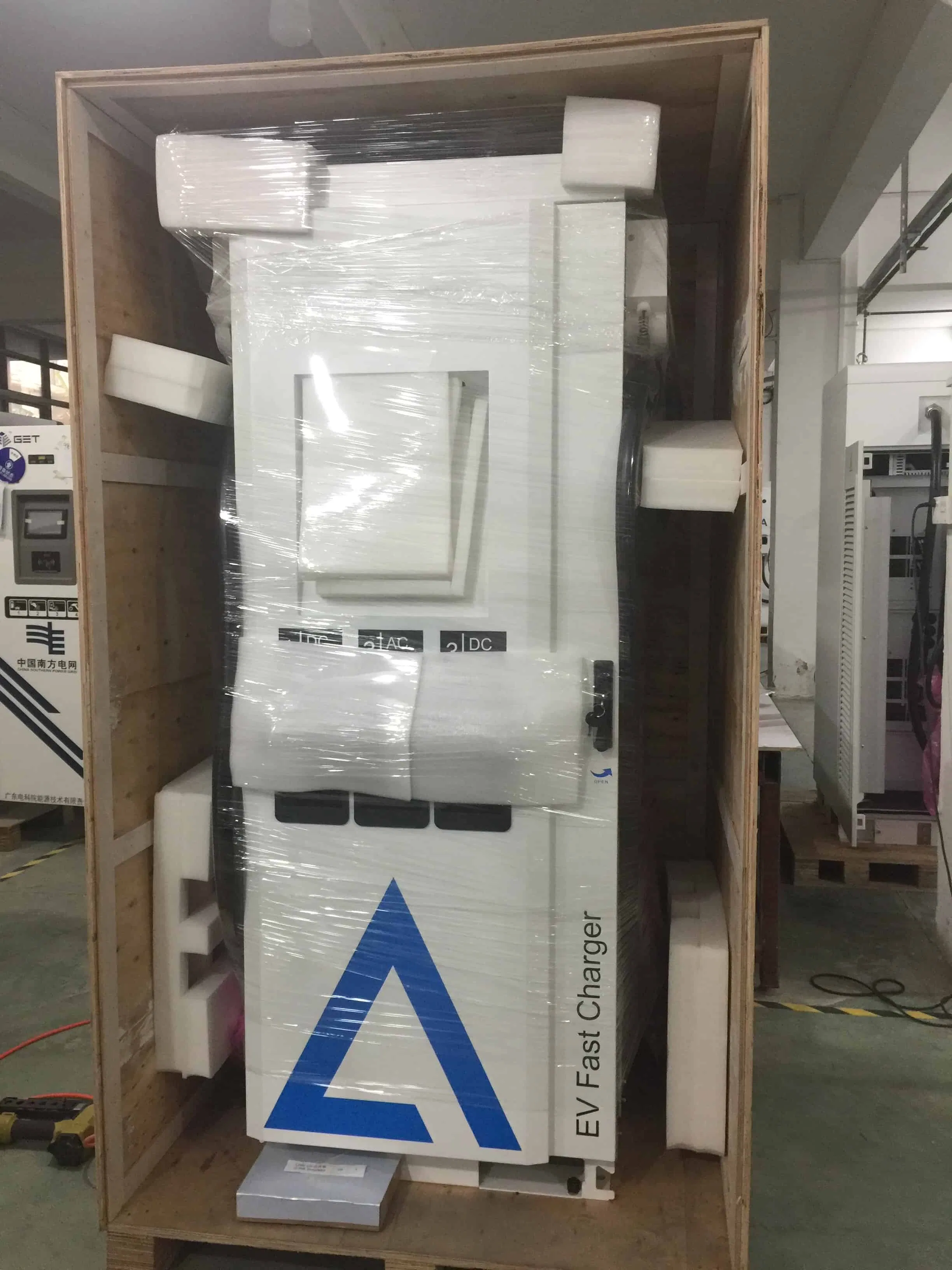

Packaging & Shipping

Frequently Asked Questions

1Why choose us as your preferred EV Charger supplier?

Our professional technical team and long-term vision ensure industry leadership. We offer a wide range of charging stations for various standards, international design, and smart services. Our products are lab-tested for reliability and represent the first batch of global standard EV DC Charger engineers in China.

2Is there any experience in implementing overseas projects?

Yes, we are pioneers in overseas projects. We have cooperated with UK power companies for PV integration, US operators for freeway fast charging stations (LA to San Francisco), and major automakers for DC fast charging fleet services.

3What are the advantages of your products?

We provide telecom-level design and support multiple standards (CCS-1/2, CHAdeMO, GB/T). Our chargers feature wider voltage ranges, better temperature adaptation, higher protection grades, and a forward-looking modular design.

4What are the differences in global DC fast charging standards?

There are 5 main standards: CCS-1 (North America), CCS-2 (Europe), CHAdeMO (Japan), GB/T (China), and Tesla. We offer chargers compatible with the first four major international standards.

5Does higher output power always mean faster charging speed?

Not necessarily. Charging speed is limited by the vehicle's battery power. However, high-power chargers are significant because they can support dual connectors to charge two vehicles simultaneously and provide future-proofing as battery technology improves.

6How do we receive after-sales support?

We provide comprehensive technical training via written materials and videos. For urgent situations, we also provide professional technician support to ensure mastery of maintenance and parts replacement.
