Greenvora Charger
1 / 5

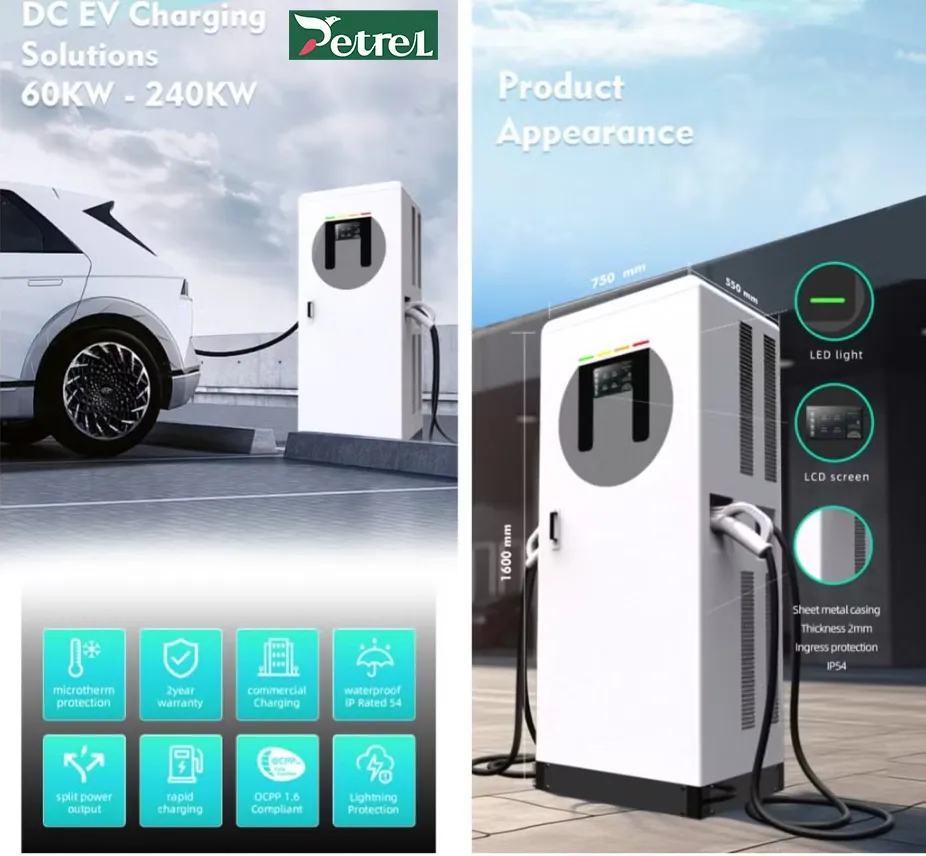

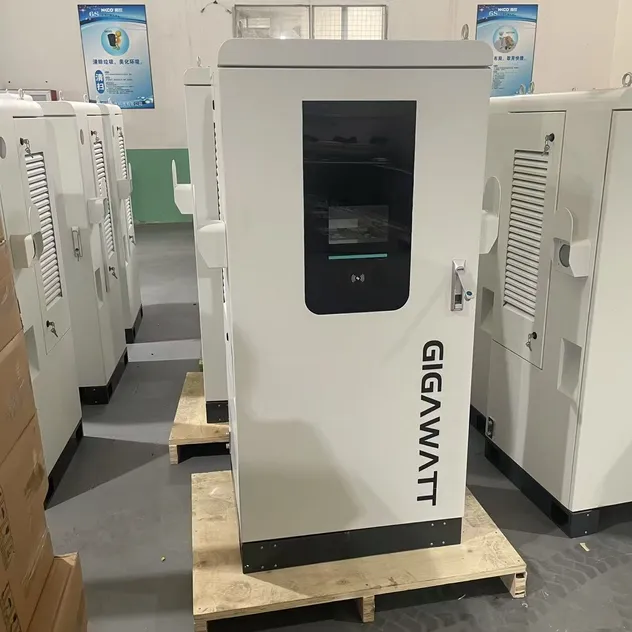

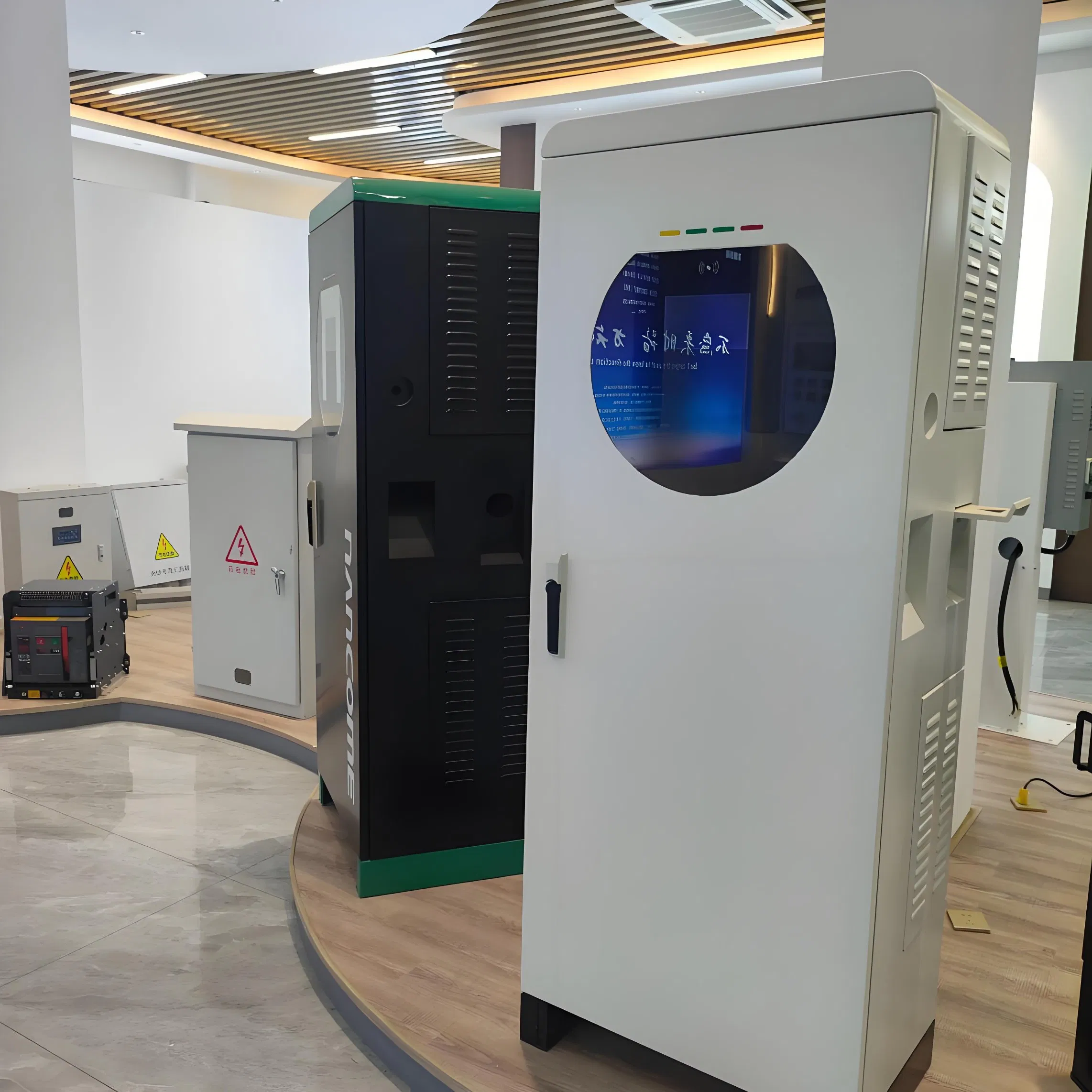

Boasting a versatile rated power range from a substantial 60kW to 240kW, this charger is built to service an assorted lineup of electric vehicles. Effortlessly matching power needs with its input voltage of AC380V±20% and catering to a wide breadth of charging requirements with an output of 200-1000VDC, it ensures that moments lost waiting for a charge are moments gained in movement.
The ability to deliver an output current from 0 to 200A through a single charging gun underscores its dedication to speed. The accompanying 5m cable provides the spatial freedom for EV drivers, allowing for a hassle-free connection regardless of parking constraints.
Class 1.0 measurement accuracy rating guarantees precision. Current limit protection at ≥110% rated value and stability accuracy within ≤±0.5%.
7-inch color touchscreen stands as the gateway to fully customizable sessions: automatic full charge, fixed power, fixed quantity, and time-based charging.
Temperature detection, overvoltage, undervoltage, overload, and short-circuit protections. Includes insulation monitoring and emergency stop.
| Specifications | Details | ||
|---|---|---|---|
| Rated Power | 60KW - 240KW | Output Current Range | 0-200A |
| Input Voltage | AC380V±20% | Input Frequency | 45-65Hz |
| Output Voltage | 200-1000VDC | Efficiency | ≥95% |

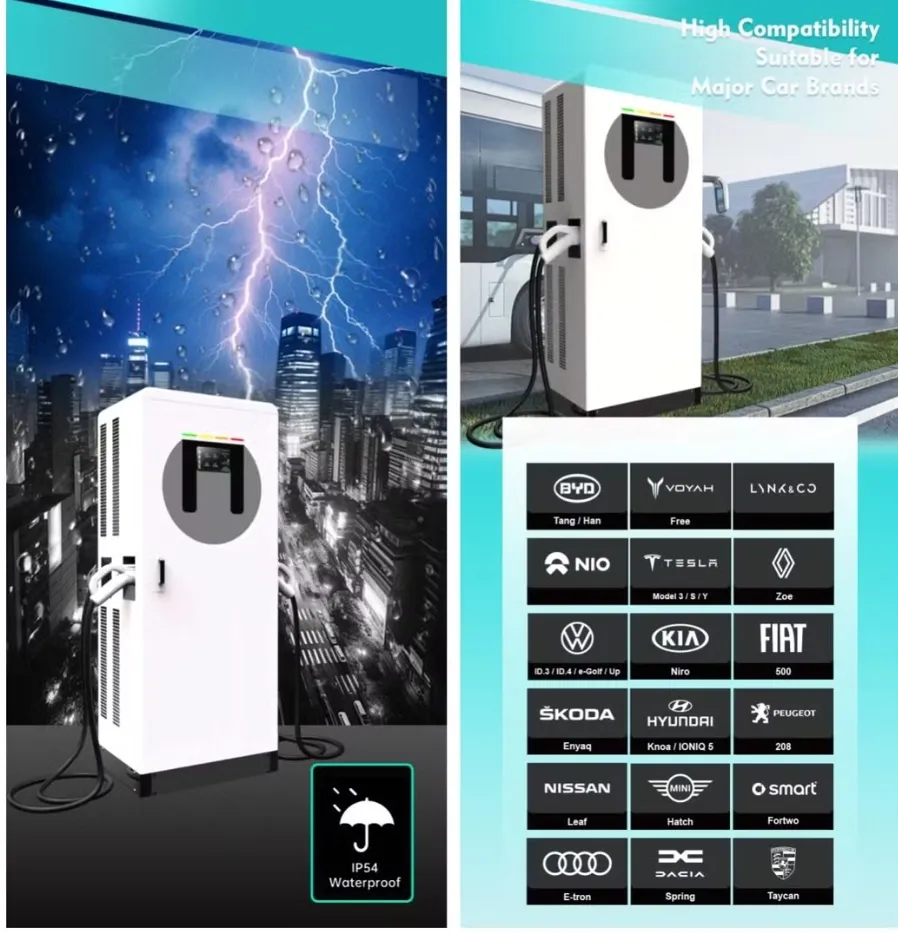

| HMI | 7-inch Color Touch Screen | IP Level | IP54 |
| Cable Length | 5m | Cooling Method | Air-cooled |
| Working Temperature | -20ºC~+50ºC | Operating Altitude | <2000m |

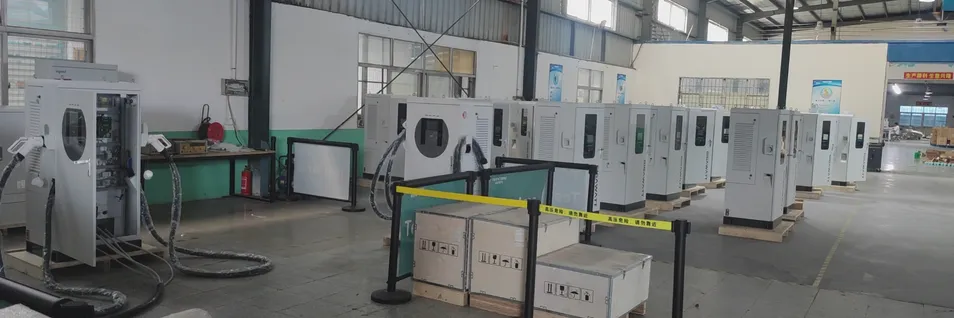

The electrical automation business provides core sectors including low and high voltage electrical control cabinets, distribution cabinets, and explosion proof cabinets. We provide integrated power distribution and automation solutions, covering PLC programming, equipment remote monitoring and control.
| Package Size | 103.00cm * 70.00cm * 202.00cm |
| Package Gross Weight | 350.000kg |
