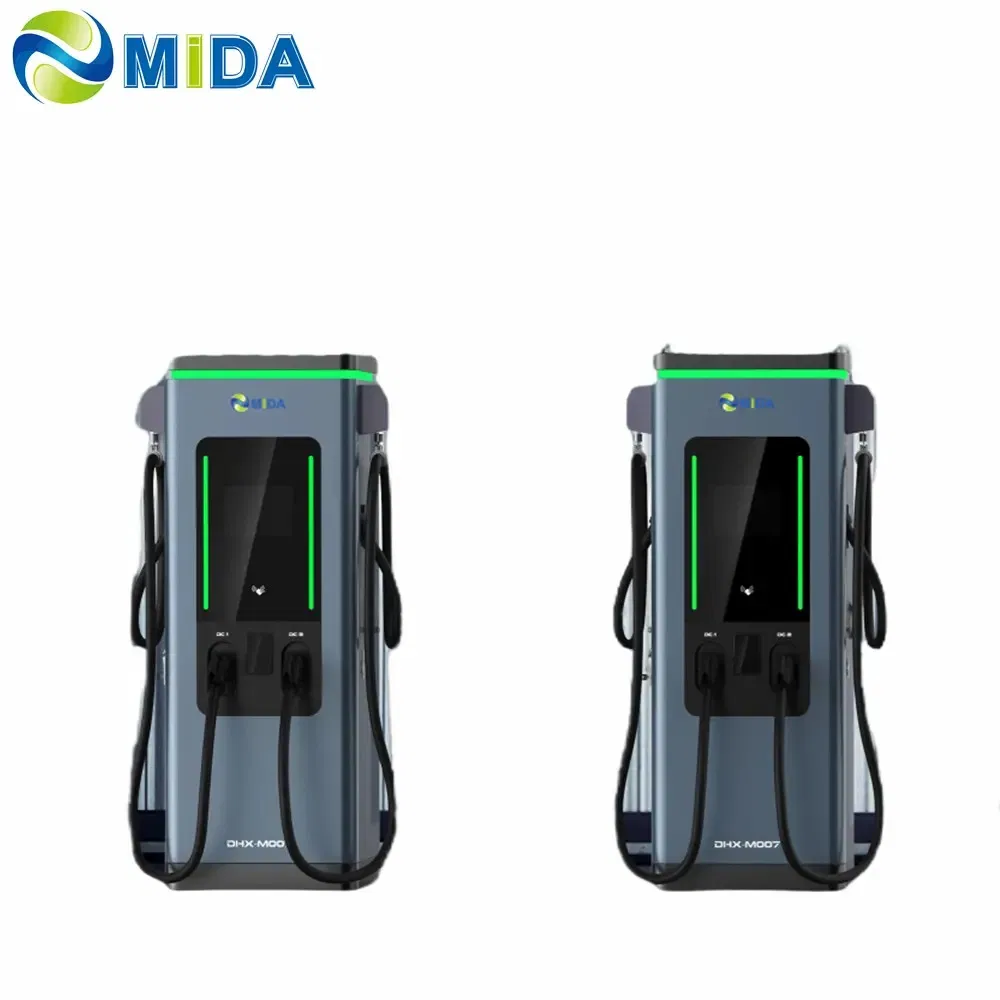

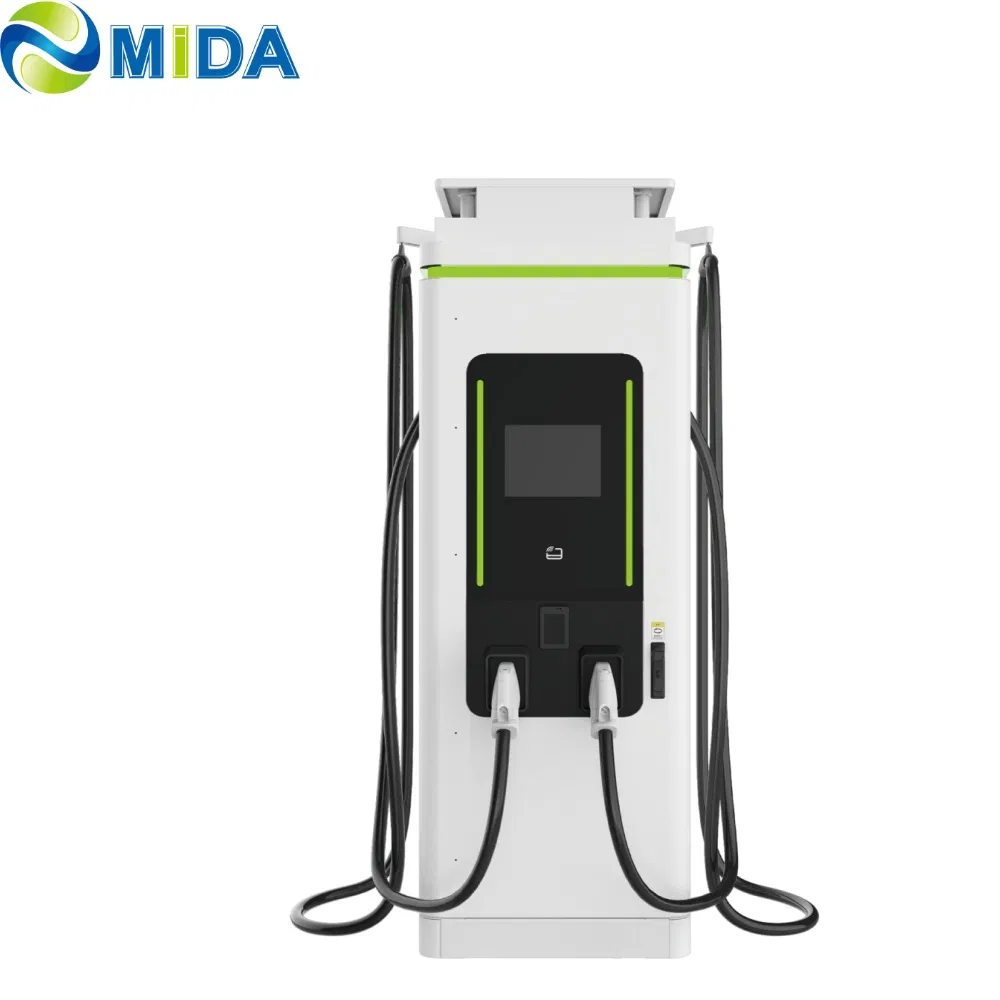

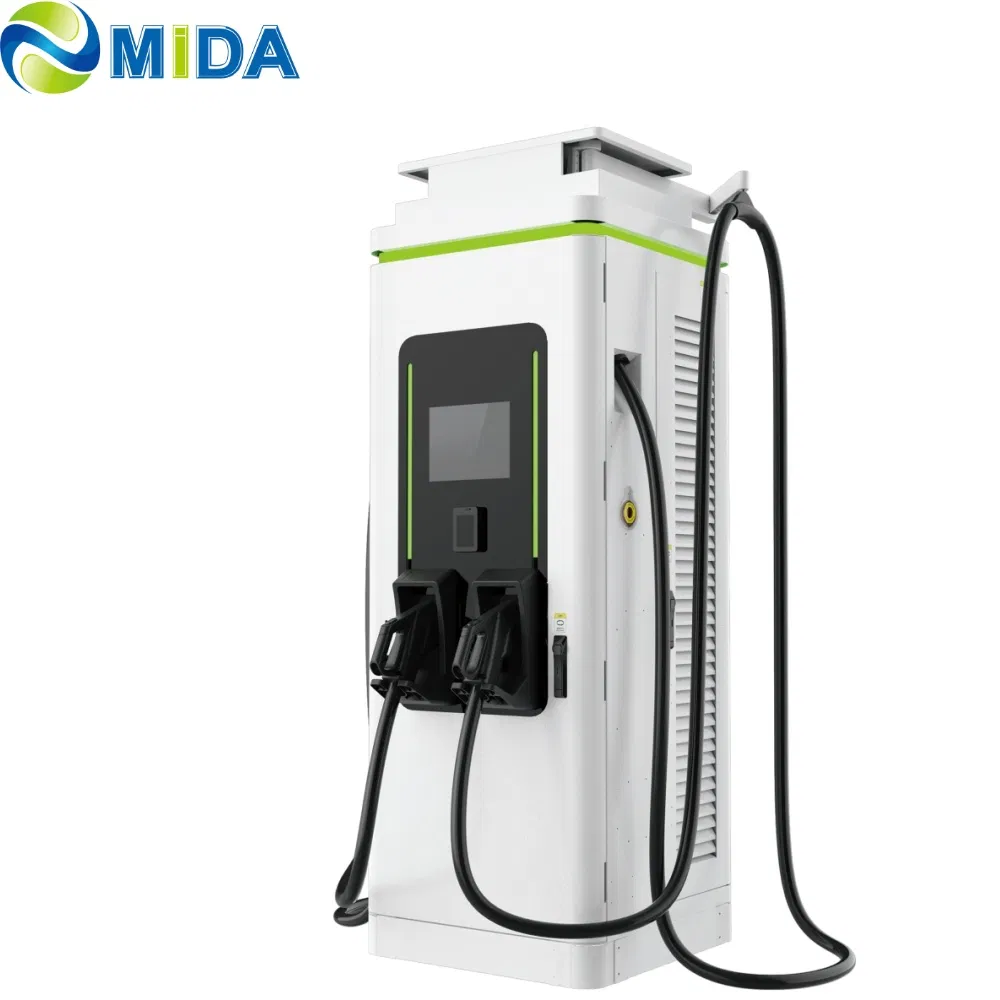

400kw Integrated DC Charging Station with 2 Connectors IP54 CCS1 CCS2 Gbt Chademo Standard

1 / 5

400kw Integrated DC Charging Station with 2 Connectors IP54 CCS1 CCS2 Gbt Chademo Standard

Customization:	Available
Connector Type:	CCS1, CCS2, CHAdeMO, GB/T
Installation:	Floor Type

Send Inquiry

Product Description

Basic Information

Model NO.:MD-EU-400KW

Location:Public Use

Charging Interfaces:One Pile with Multiple Charges

Start Mode:Credit Card, Mobile Remote, RFID

AC Input Range:AC260V~AC485V 3 Phase 5 Wires

DC Output Range:DC150~1000V

Output Power:400kw

Protection:IP54

Dimensions:700*1900*650 mm

Charger Modules:10PCS 40kw Modules

Monitor Interface:Ocpp1.6j

Communication:Standard Can, Ethernet, 4G, Wi-Fi

Product Description

400kW Integrated DC Charging Station with 2 Connectors IP54

Simultaneously charging up to 3 EVs

Supporting CCS, CHAdeMO, GB/T, and Type 2 AC charging

Smart charging supports dynamic load balancing

Ethernet, Wi-Fi, 4G connection OCPP 1.6J & OCPP 2.0

Material Specifications:
Shell Material: Thermo Plastic (Insulator inflammability UL94 VO)
Contact Pin: Copper alloy, silver or nickel plating
Sealing gasket: rubber or silicon rubber
TPE insulation, TPE Sheath EV Charging Cable

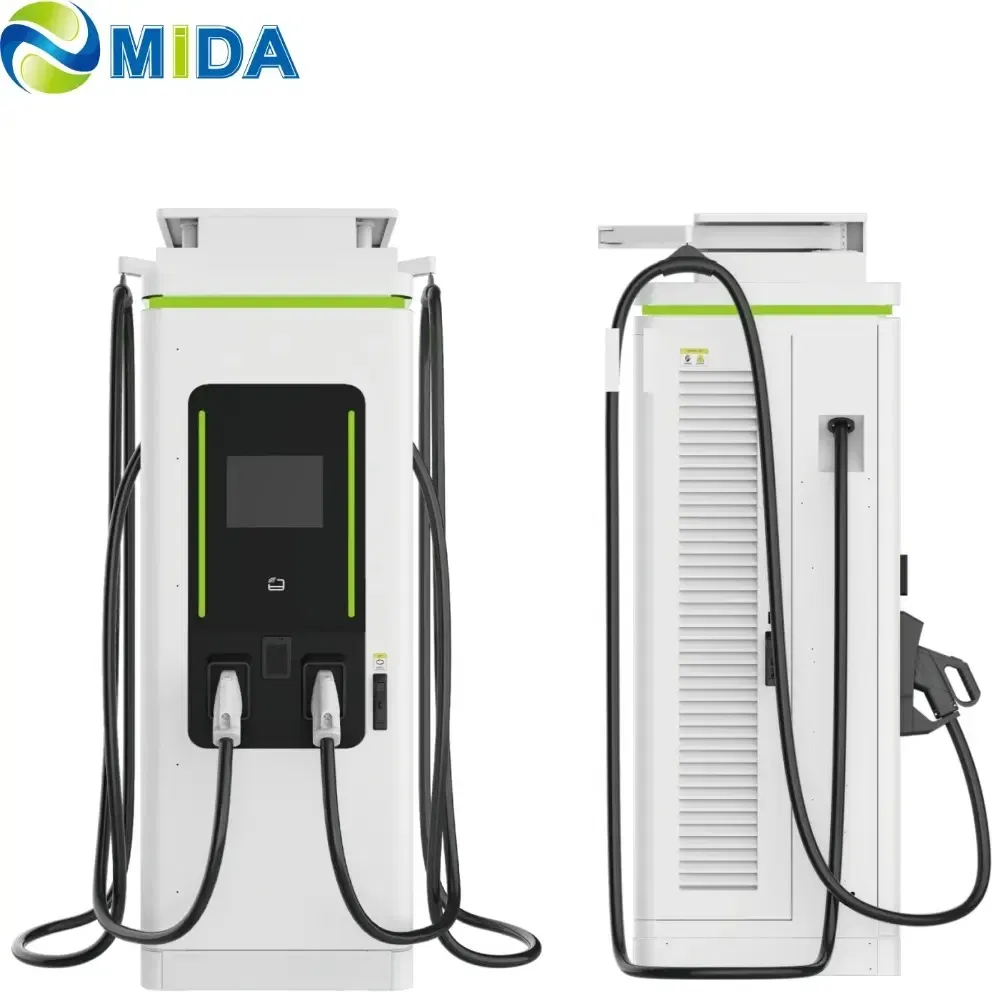

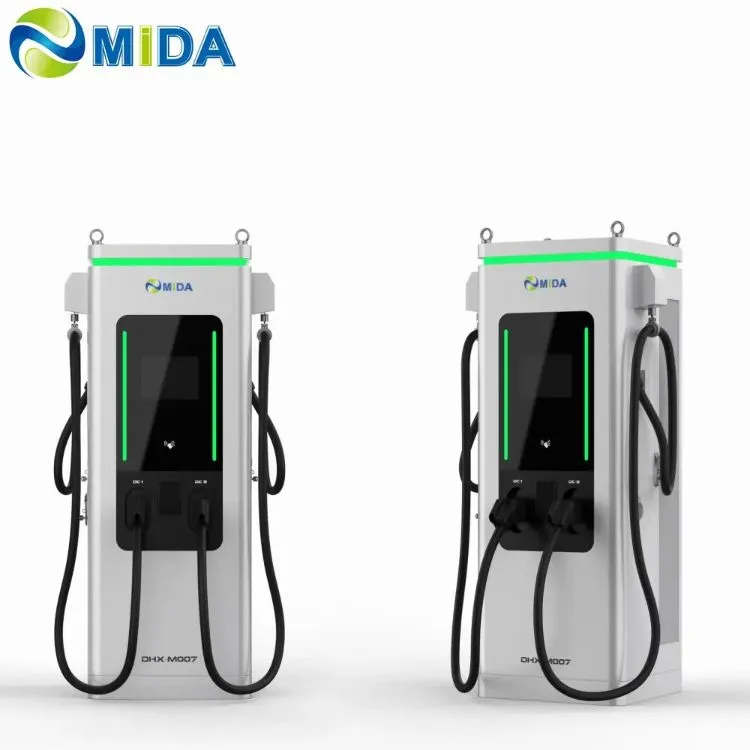

Detailed Photos

Technical Parameters

Parameter	Specification
Rated Power	400KW
Input Voltage	380/400V AC 3P+N+PE
Output Voltage	150-1000V DC
Output Current	0-250A
Efficiency	≥ 95.2% (Full load)
Protection Degree	IP54
Screen	10.1 inch Touch Display
Cooling	Forced air cooling
Communication Protocol	OCPP 1.6/2.0J
Connectivity Authorization	RFID Card, Plug and Charge, APP, Credit Card

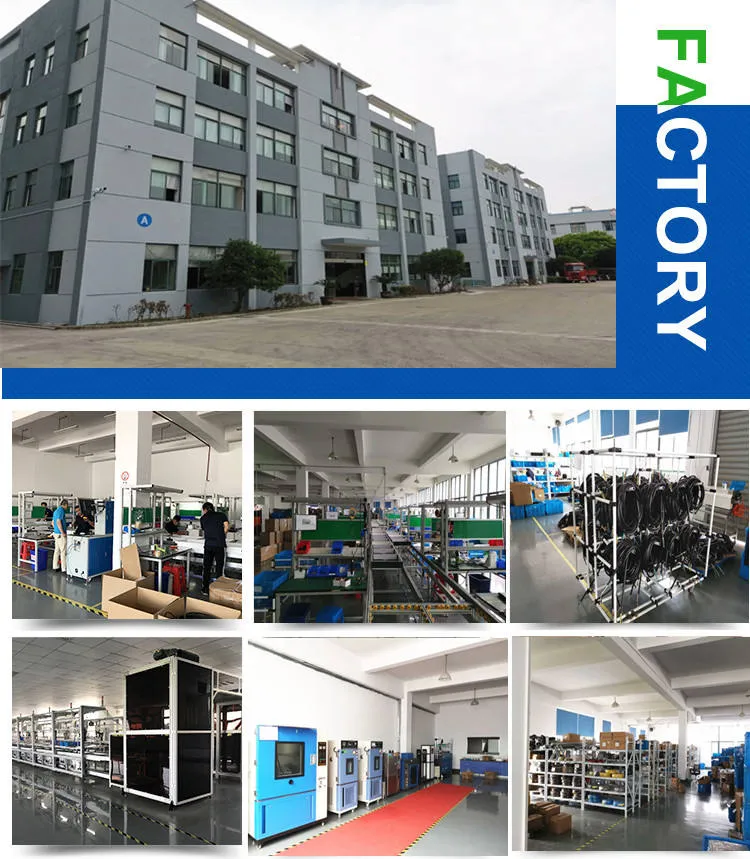

Manufacturing & Compliance

A professional supplier of electric vehicle components, including all kinds of EV plugs and sockets, EV cables, EV connectors, and EV charging stations. All products come with CE, PSE, TUV and UL certification.

Frequently Asked Questions

Q1: What is the maximum output power of this charging station? The station provides a maximum output power of 400kW, utilizing ten 40kW high-efficiency modules.

Q2: Which EV standards are supported? It supports multiple standards including CCS1, CCS2, GBT, CHAdeMO, and NACS to ensure compatibility with most electric vehicles.

Q3: Can it charge multiple vehicles at the same time? Yes, the system is designed to charge up to 3 electric vehicles simultaneously with smart dynamic load balancing.

Q4: Is the charger suitable for outdoor installation? Yes, the station has an IP54 protection rating, making it resistant to dust and water splashes in public outdoor environments.

Q5: What payment and authorization methods are available? Users can start charging via RFID cards, mobile APP scanning, Plug and Charge, or integrated Credit Card payment systems.

Q6: Does it support remote management? Absolutely. It supports OCPP 1.6J and 2.0J protocols via Ethernet, Wi-Fi, or 4G for remote monitoring and operation.
