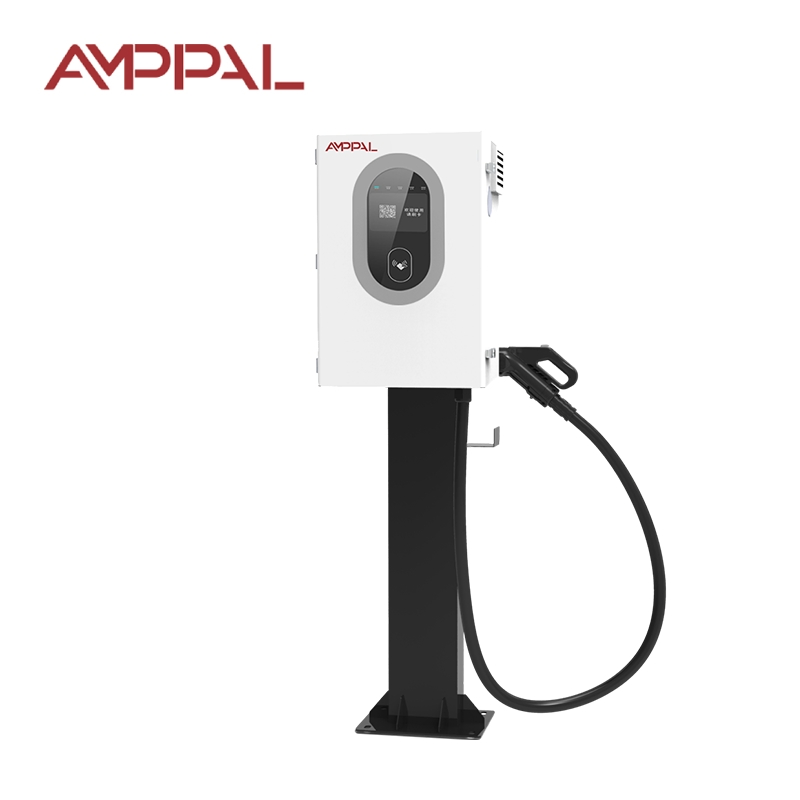

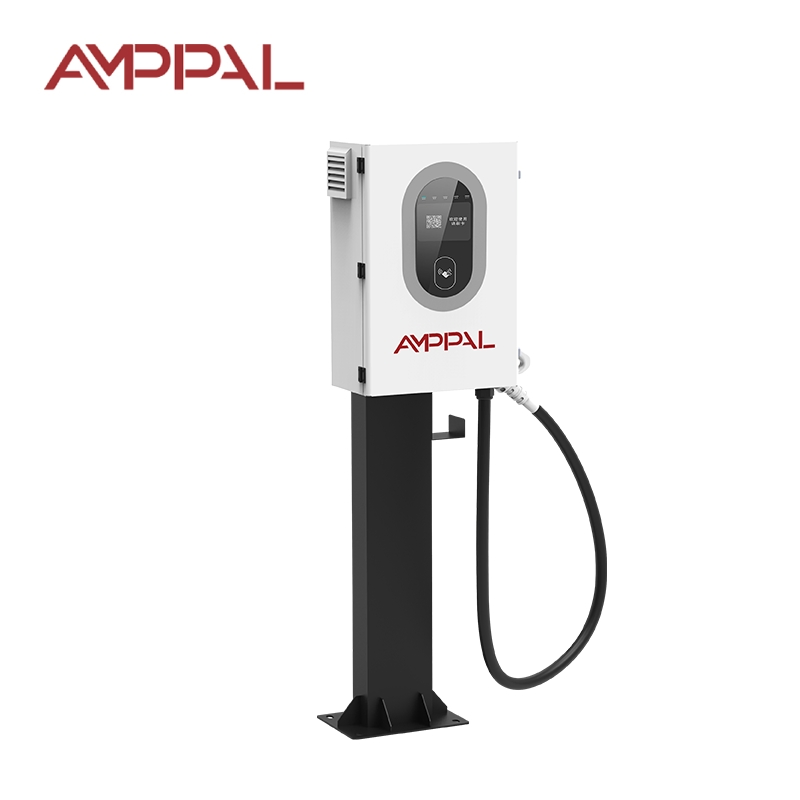

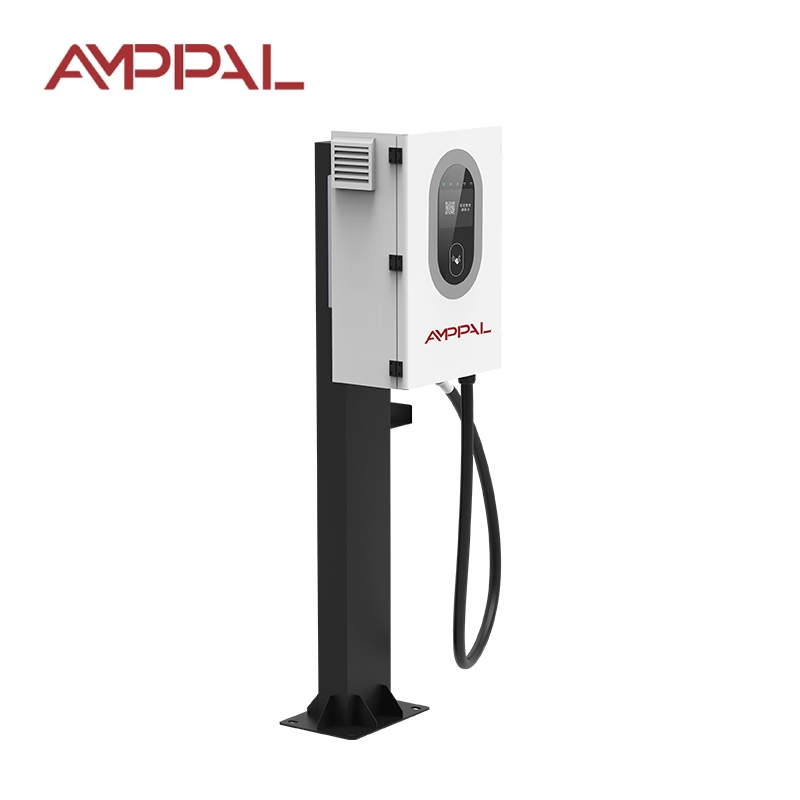

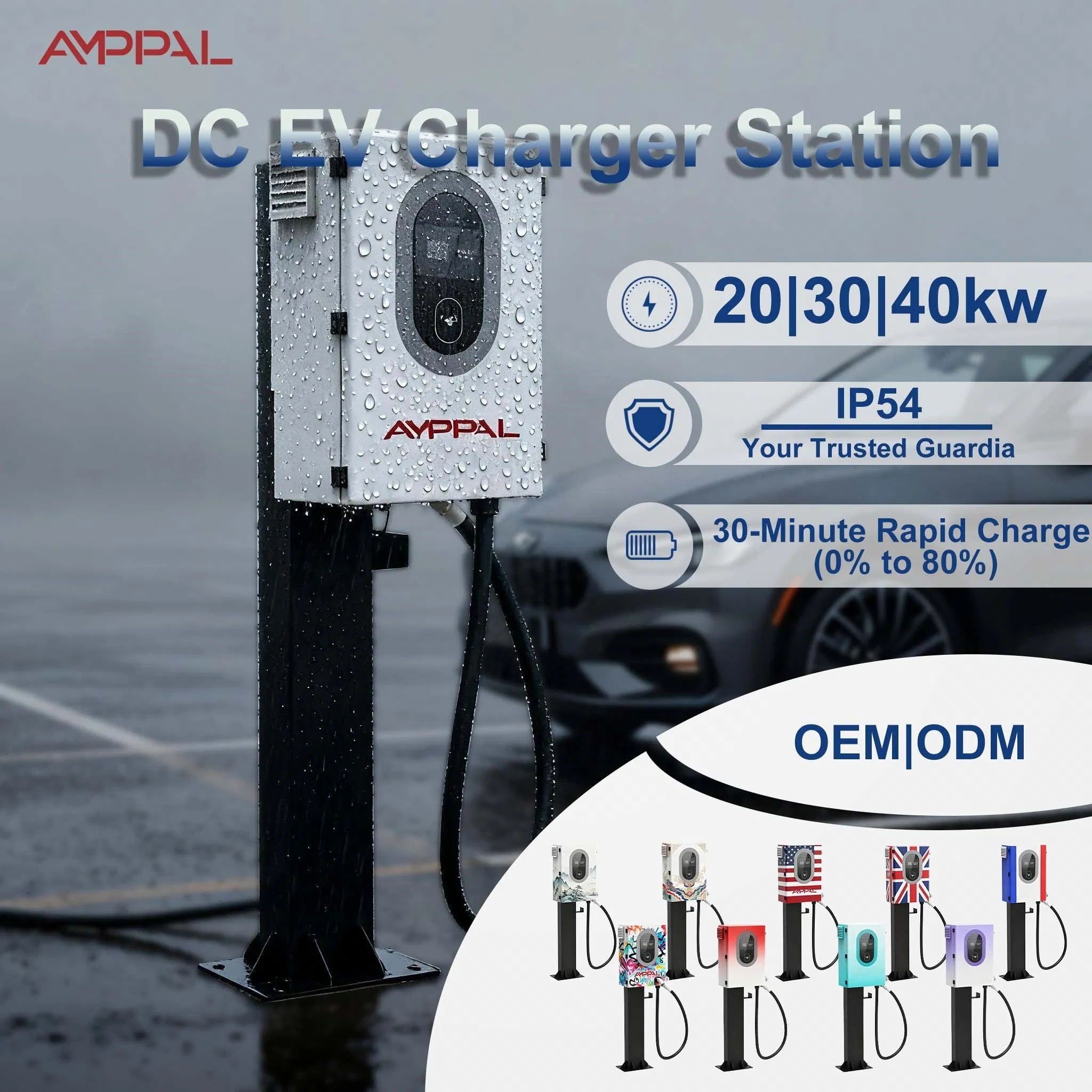

Amppal Networked 40kw Commercial Charging Station

1 / 5

Amppal Networked 40kw Commercial Charging Station

Customization:	Available

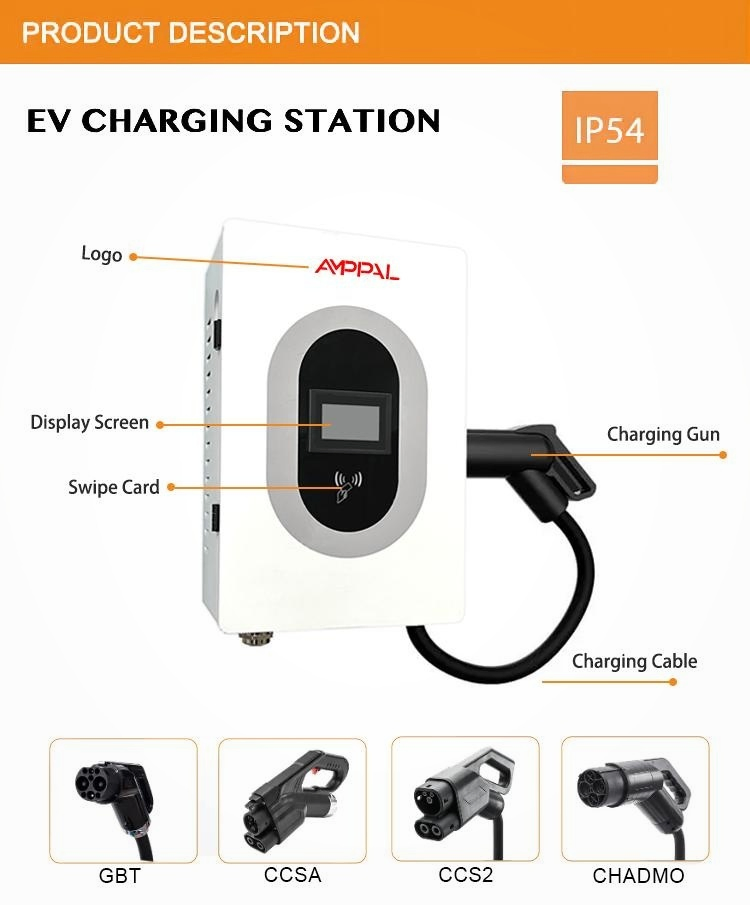

Connector Type:	CCS2
Installation:	Wall Mounted

Send Inquiry

Product Description

Basic Information

ModelAF-DC-020-B-A-O-2-H

TypeFast EV Charging Station

Rated Power20/30/40 KW

Input VoltageAC380V±15%

Output Voltage200-1000VDC

Protection LevelIP54

Efficiency≥95%

Warranty24 Months

InstallationFloor-Standing/Wall-Mounted

CertificationCCC, CE, TUV, RoHS

Product Description

Specification	AF-DC-020	AF-DC-030	AF-DC-040
Rated Power	20KW	30KW	40KW
User Interface	7 inch LCD color display touch screen
Input Voltage	AC380V±20%
Output Voltage Range	200-750VDC (Up to 1000V)
Max Output Current	67A	100A	133A
Communication	Ethernet / 4G (Optional)

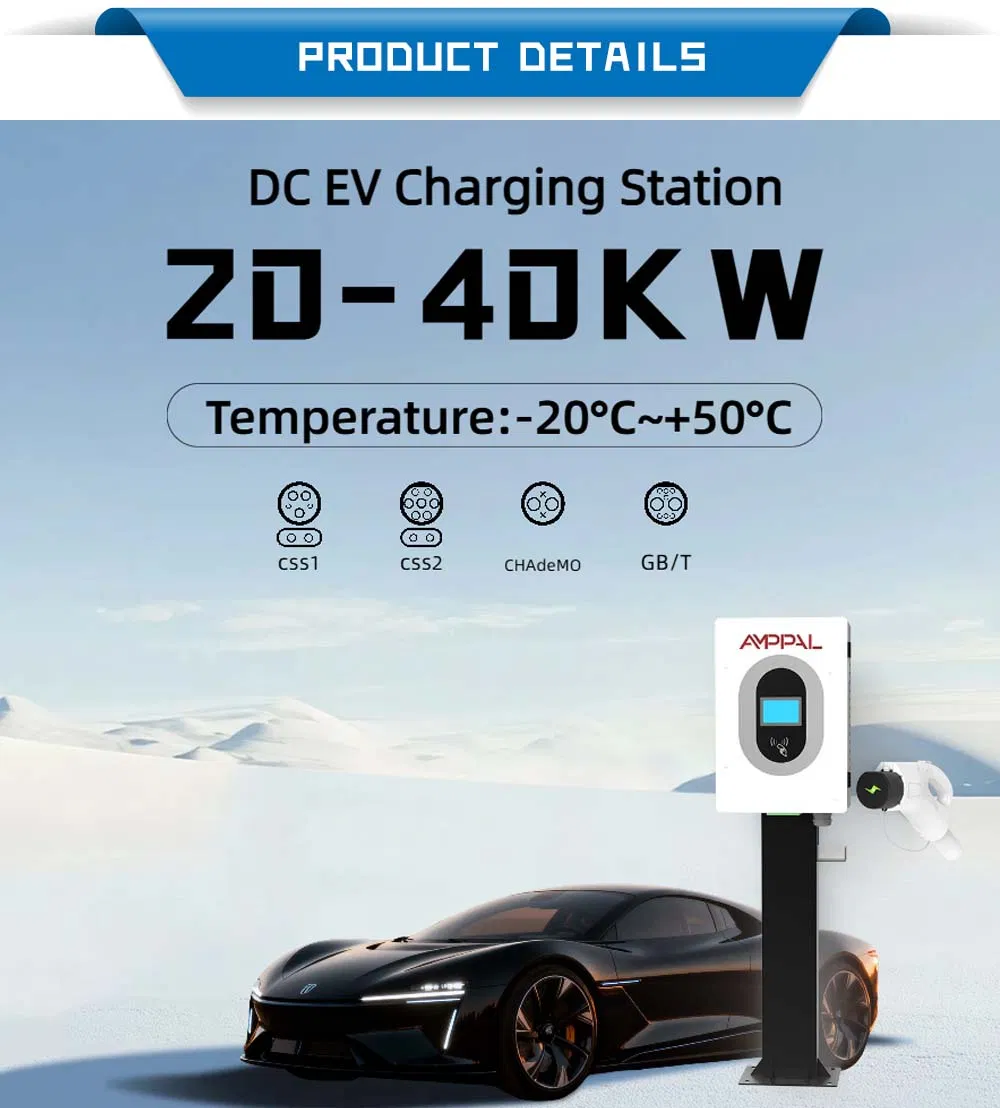

Operating Temp	-25°C ~ +50°C

Safety Design & Protection

Overvoltage ProtectionYes

Short Circuit ProtectionYes

Insulation MonitoringYes

Lightning ProtectionYes

Emergency StopYes

Leakage ProtectionYes

Frequently Asked Questions

Q1: What are your terms of payment?

A: We support online fast payment and T/T (Telegraphic Transfer).

Q2: Do you test all your chargers before shipping?

A: Yes, all major components are tested before assembly and each charger undergoes full functional testing before being shipped.

Q3: Can I order samples for evaluation?

A: Yes. Production usually takes 7-10 days, followed by 7-10 days for express delivery.

Q4: How long does it take to fully charge an electric car?

A: The charging time depends on the car's battery capacity and the charger's power. Formula: Hours = Battery (kWh) / Charger Power. For example, a 40kWh battery with a 7kW charger takes approximately 5.7 hours.

Q5: Are you a trading company or a manufacturer?

A: We are a professional EV charger manufacturer specializing in high-quality charging solutions.

Q6: What communication interfaces are supported?

A: The equipment supports Ethernet as standard, with optional 2G, 3G, or 4G connectivity for remote management.
