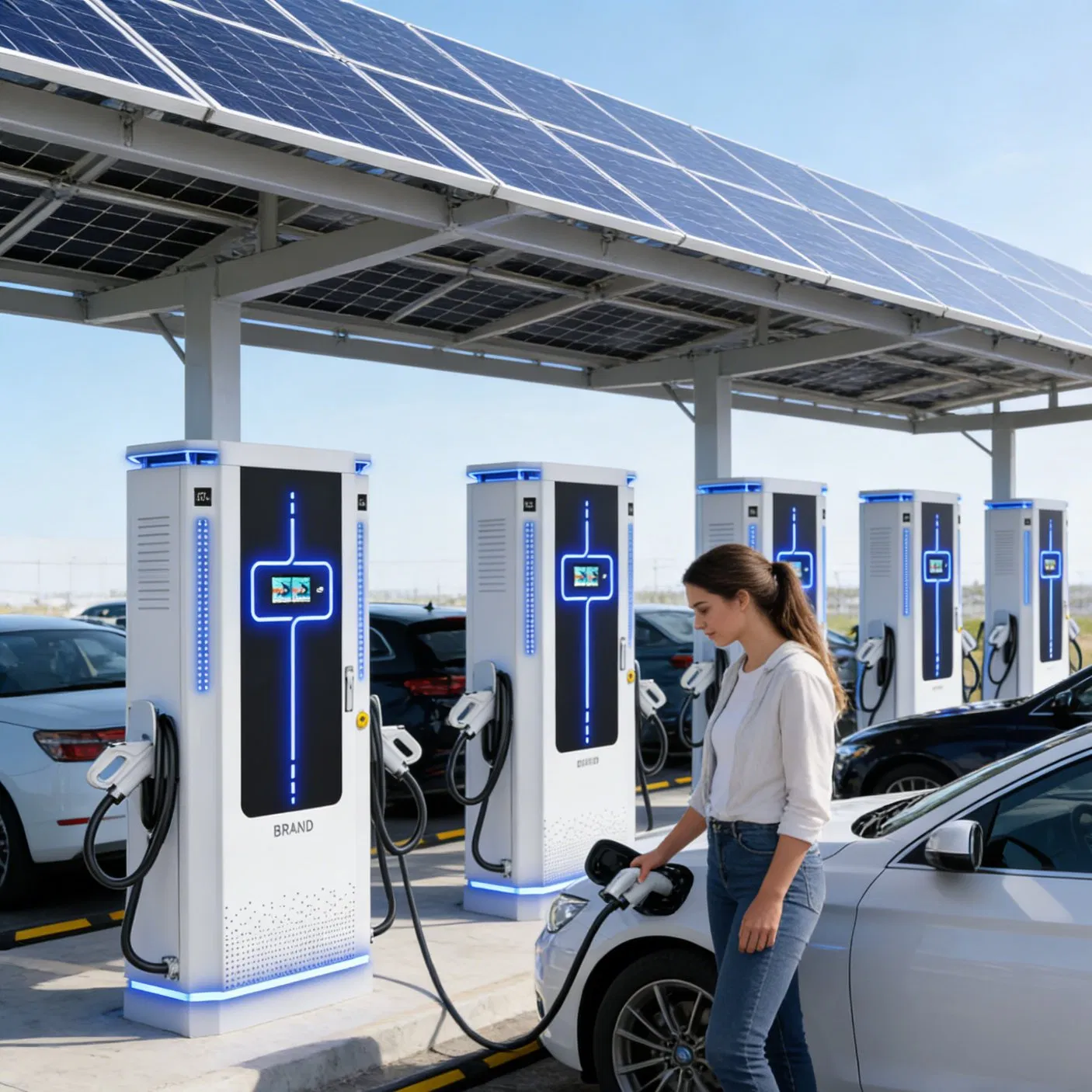

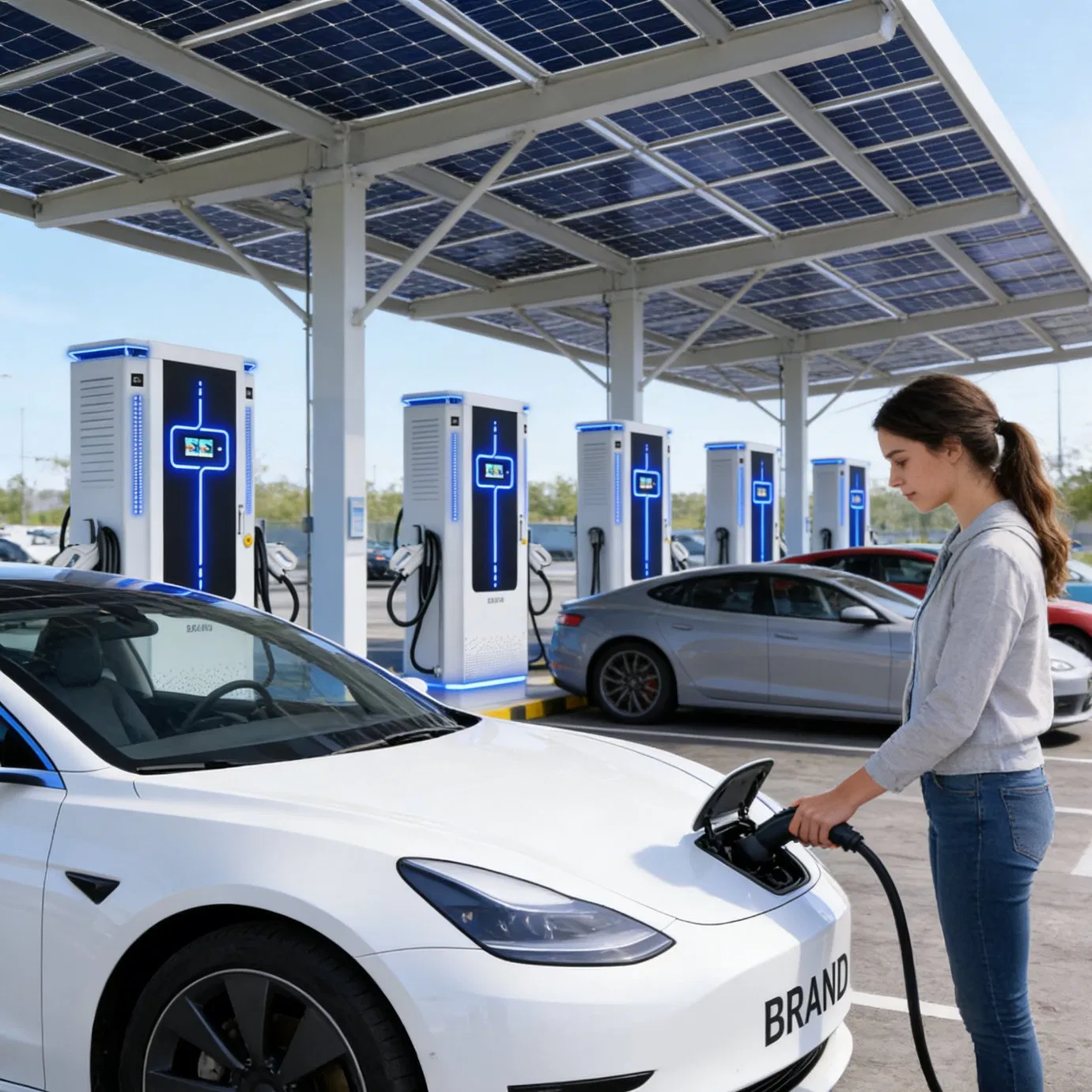

Nevi Compliant Level 3 Dcfc Station UL Listed CCS1 Chademo Ocpp Commercial EV Charger

Still deciding? Get samples of $ !
Order Sample

Product Description

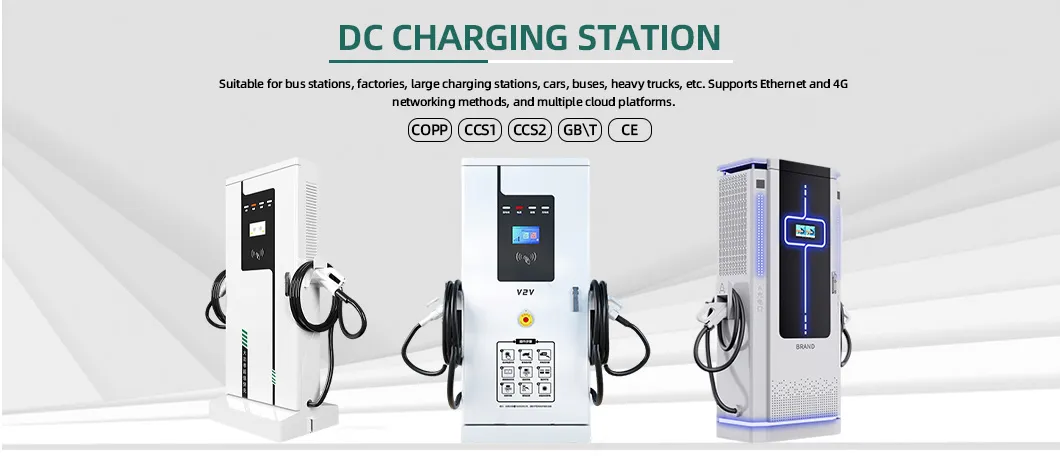

EV Charger Station Banner
Commercial EV Charger Banner
ℹ️

Basic Information

Model NO.
60KW-600KW
Location
Public Use
Rated Power
40kw To 600kw
Interfaces
Multiple Charging Guns
Start Mode
RFID, Credit Card, Mobile App
Body Size
750X410X1700(mm)
Interface
7-Inch LCD Touch Screen + LED
Connection
4G / Ethernet
🔋

Product Introduction

Power range from 40KW to 600KW. Supports OCPP protocol, CCS1, CCS2, and GB/T standards. Features IP54 waterproof rating, with a continuous adjustable voltage range of 50-1000V. Constant power voltage range is 200-1000V. Supports simultaneous charging with two guns. Suitable for bus stations, factories, large charging stations, cars, buses, heavy trucks, etc. Supports Ethernet and 4G networking methods, and multiple cloud platforms. Includes gun temperature monitoring, short circuit, over-temperature, over-current, leakage, over/under-voltage protection, and lightning protection. The charging station has been debugged before leaving the factory. Users can directly power on and use it without any secondary debugging. It adopts advanced DC fast charging technology, providing rapid energy replenishment, shortening charging time, and improving charging efficiency.

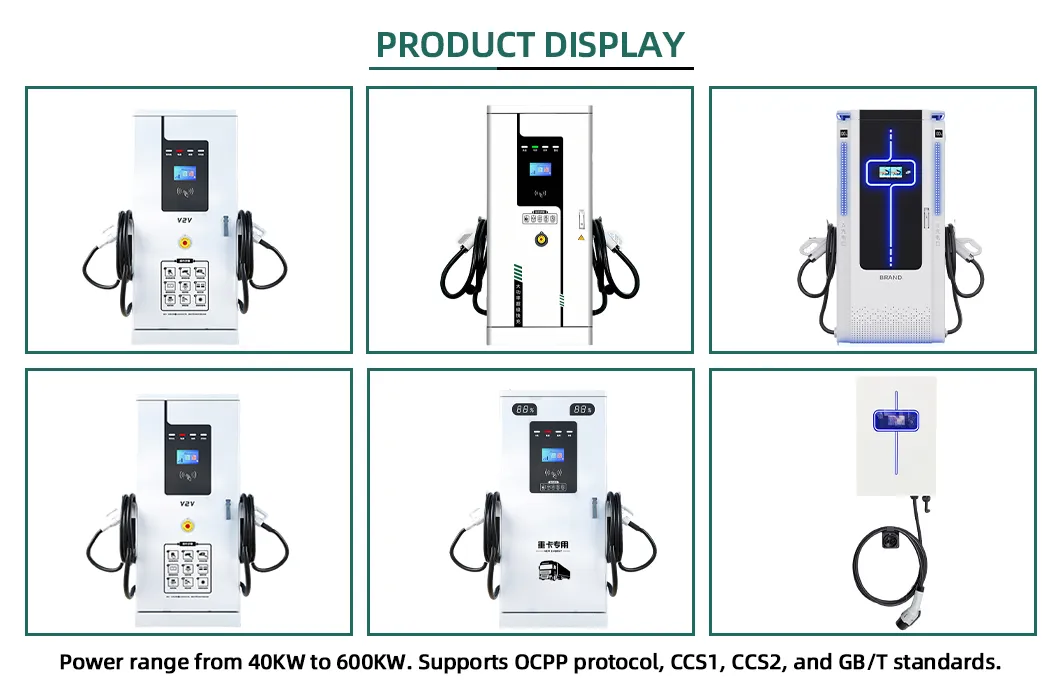

DC Fast Charging Station details
EV Charger side view
EV Charger internal view
📋

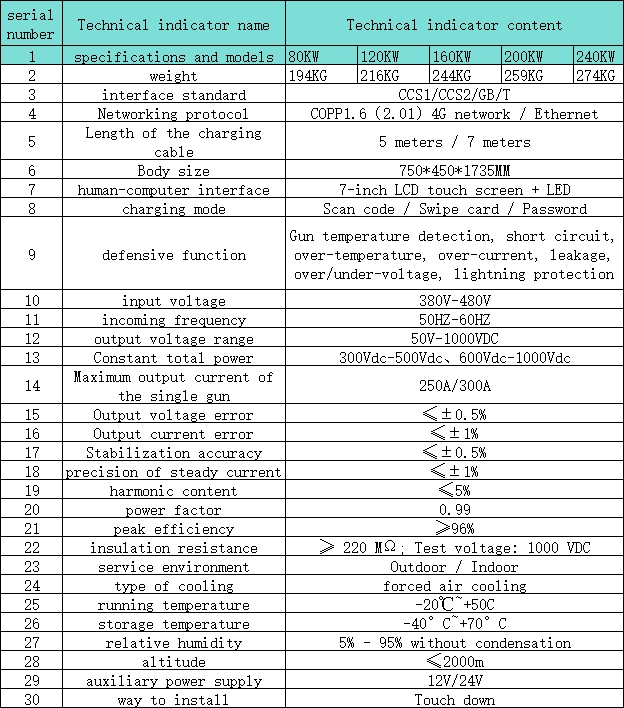

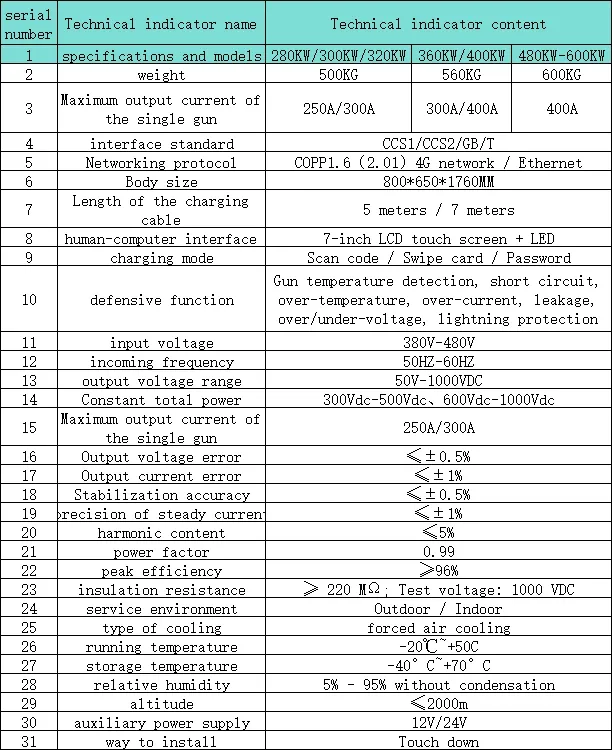

Technical Specification

Product Model40KW-600KW External Dimension750x410x1700 (mm)
Rated Power40KW-600KW Weight194KG-274KG
Design CriterionCCS1, CCS2, GB/T Gun Barrel Length5 Meters
Protection LevelIP54 Connection Method4G / Ethernet
Charging ModeScan Code, Swipe Card, VIN, Password Cloud PlatformOCPP 1.6 (2.0.1)
Defensive FunctionsGun temperature detection, short circuit, over-temperature, over-current, leakage, over/under-voltage, lightning protection
Video Placeholder

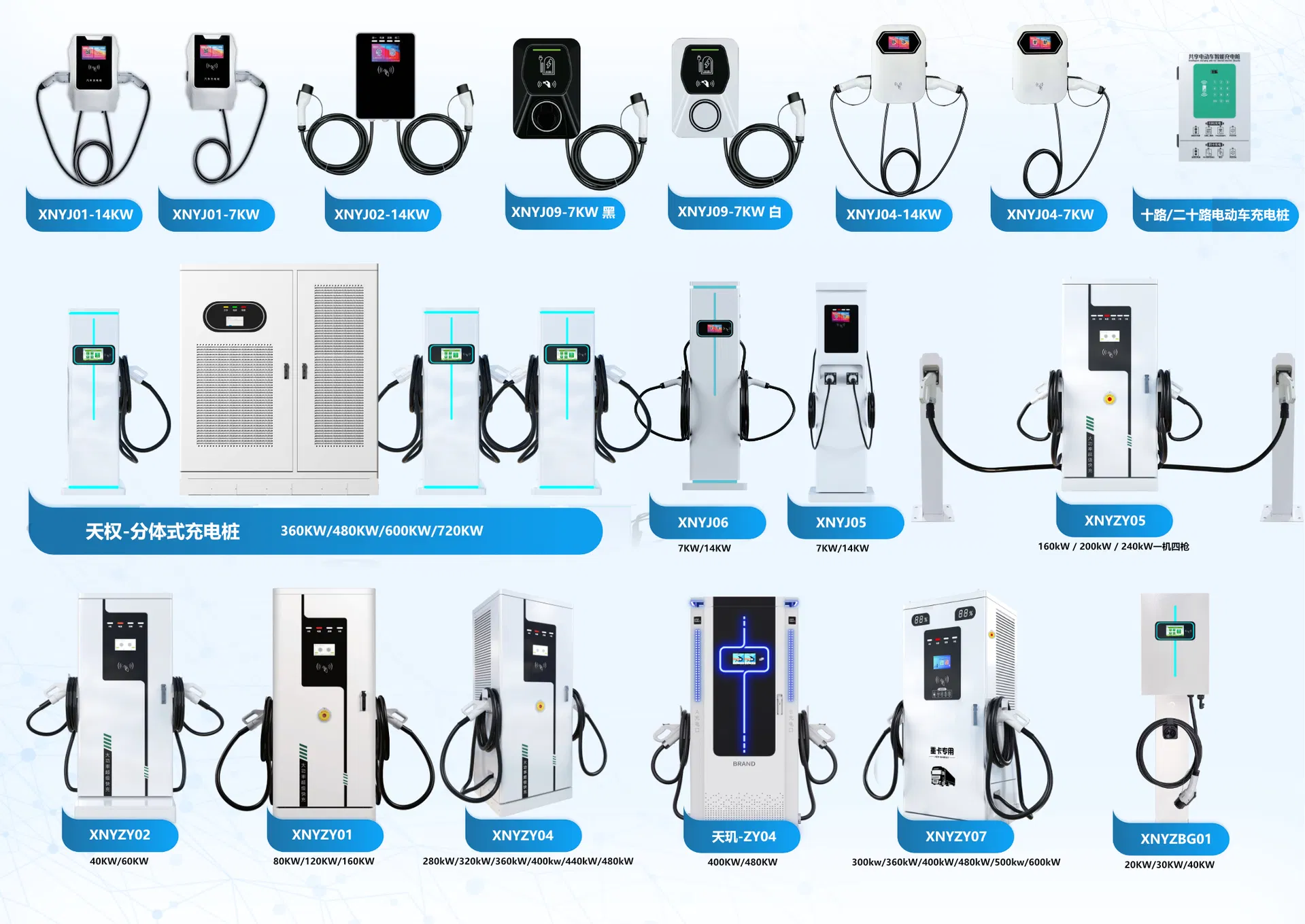

EV Charging Station Showcase

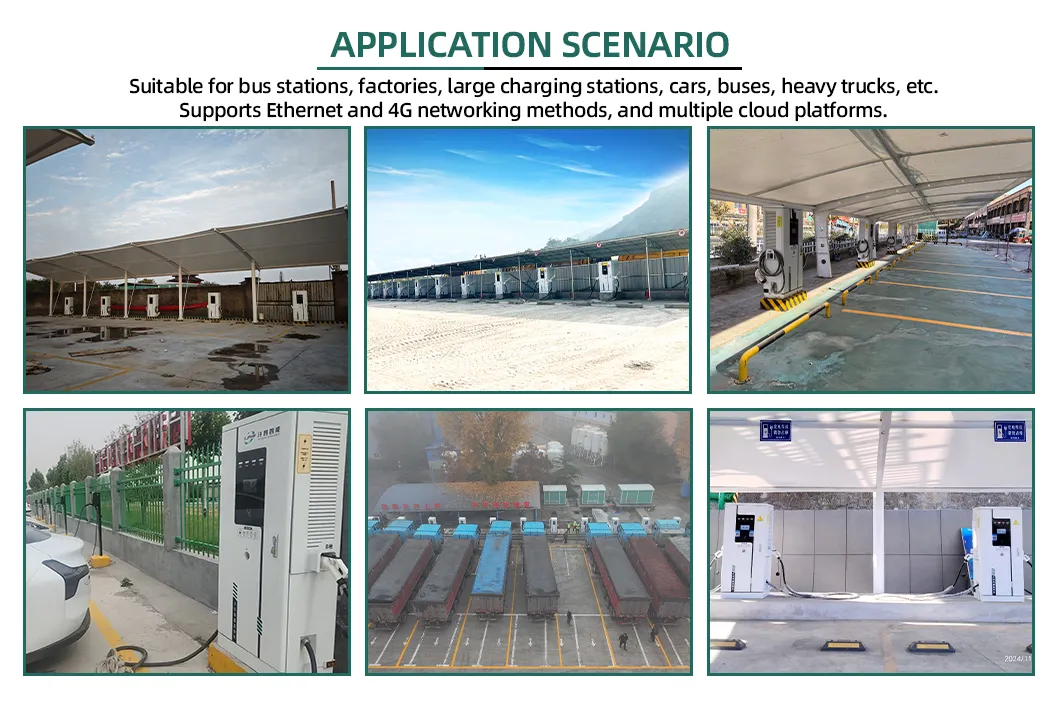

Charging Station Interface
🏢

Professional Excellence

We are an AAA-rated credit enterprise, holding ISO400, ISO900, ISO1400, ISO500, and ISO certifications. We also possess numerous software copyrights and various third-party inspection reports for our equipment. We actively participate in large-scale domestic and international exhibitions and have established partnerships with numerous renowned enterprises both at home and abroad.
Certifications and Awards
Exhibition and Partnerships
📦

Packaging & Shipping

We adopt packaging methods that are sufficient to protect the equipment, and they support sea transportation, air transportation and land transportation.
Secure Packaging Solution

Frequently Asked Questions

What types of EV chargers do you provide?
We mainly offer Wallbox/Portable AC EV chargers (3.5kw-44kw), integrated floor-mounted fast DC Charging stations (30kw-480kw), and mobile chargers with energy storage batteries.
Can I customize the products with my own logo?
Yes, we provide OEM services. We can incorporate your design and place your logo on the products and packaging.
What is the typical delivery lead time?
Generally, it takes 7 to 35 days after receiving advance payment. The specific time depends on the items and order quantity.
Do you test all products before shipping?
Yes, we conduct a rigorous final inspection and testing of all goods before delivery to ensure optimal performance.
What payment methods are accepted?
We accept various payment methods including T/T (Bank Transfer), Credit Card, PayPal, and Western Union.
What are the trade terms for international orders?
We support multiple trade terms including EXW, CFR, CIF, FOB, DDP, and DDU.
