Technical Specifications
Application
Standard Battery
Charger Style
Intelligent Charger
Input Voltage
Three Phase 50-60Hz
Battery Type
Lead Acid Battery
Product Overview

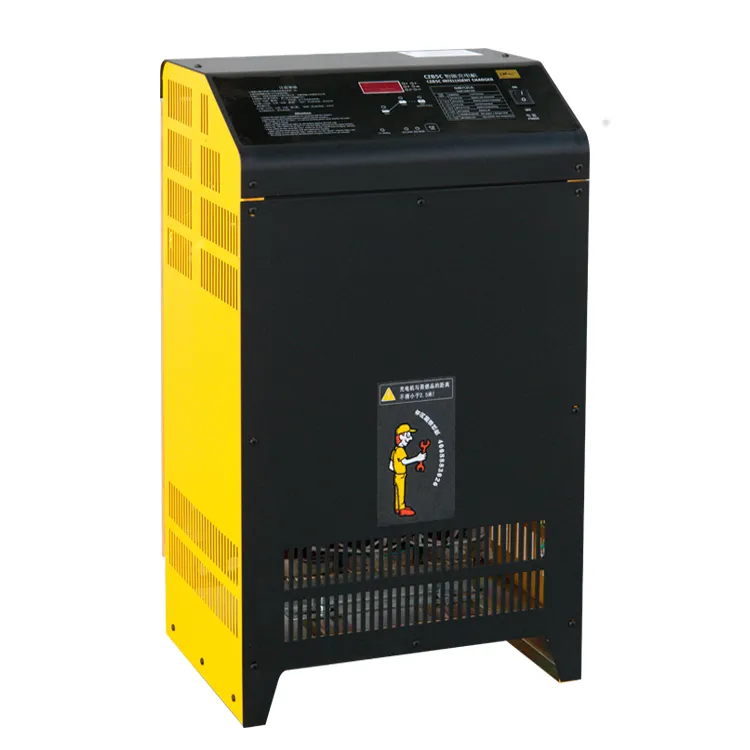

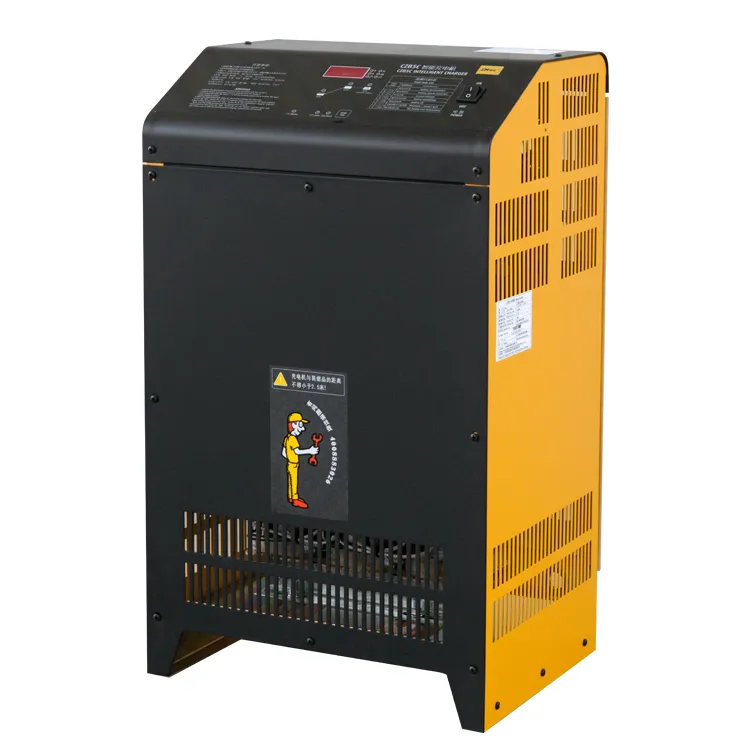

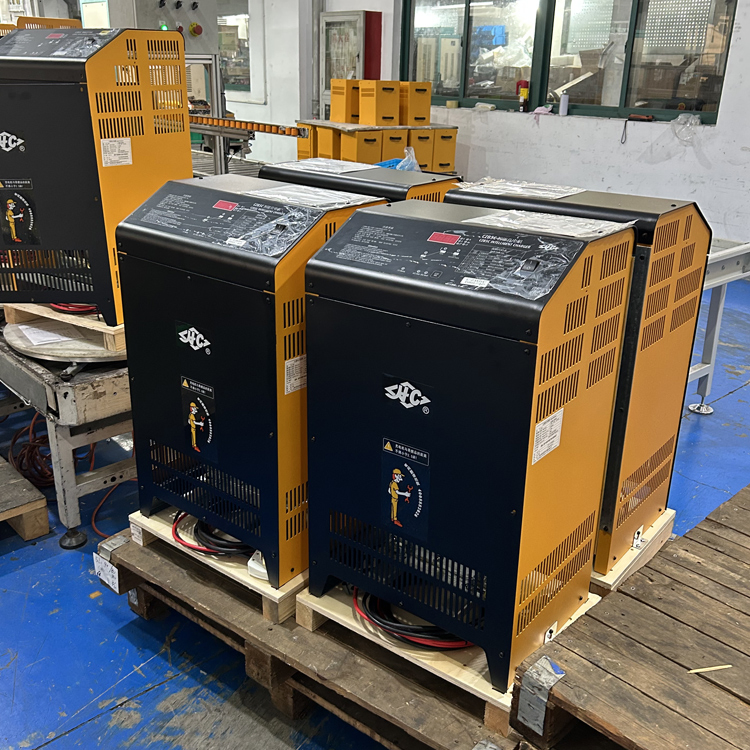

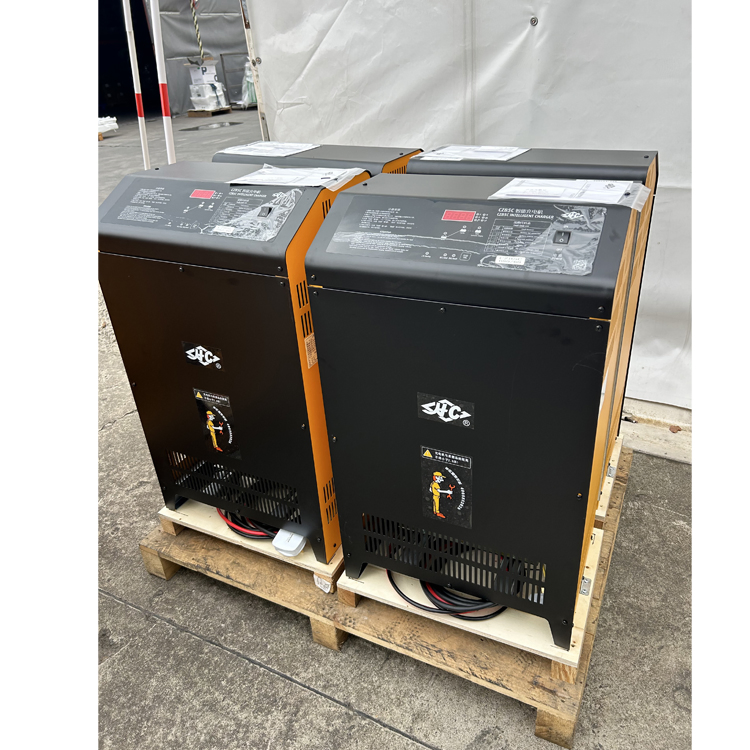

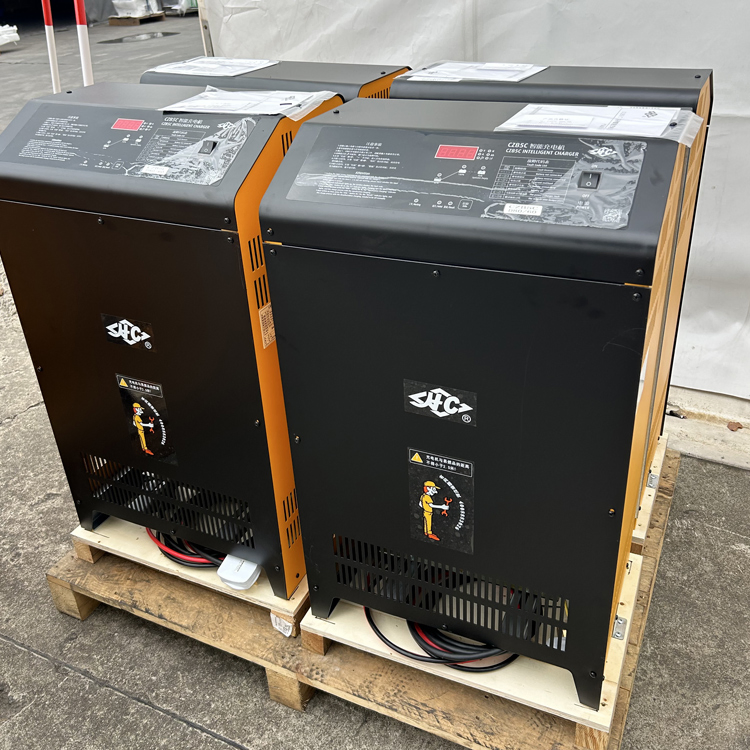

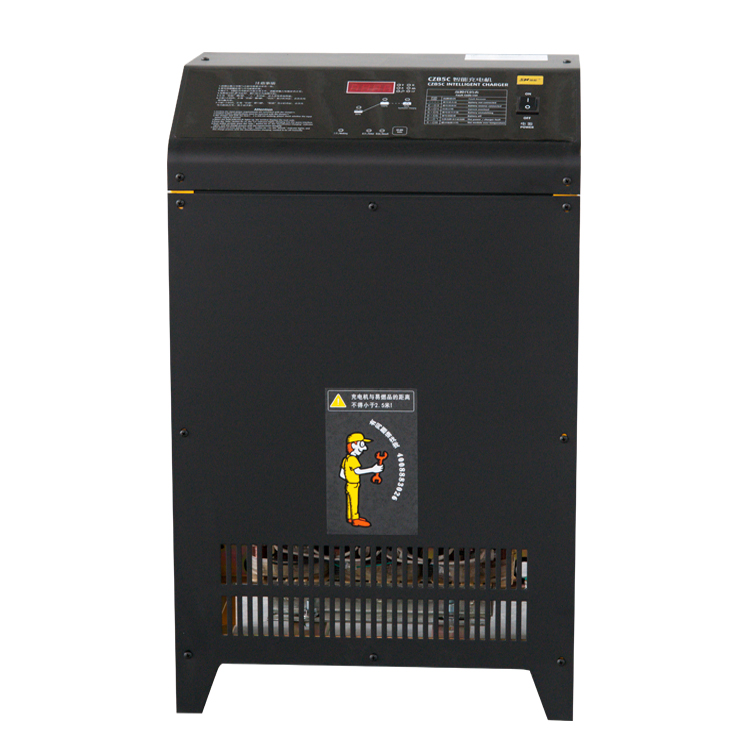

DC Battery Charger Lithium Ion Battery Charger CZB5C 48 Volt Industrial Battery Charger for Forklift
Key Features
✓
Combines leakage transformer, silicon-controlled rectifier technology, and Micro-computer control to optimize the Wsa+Pulse charging curve.
✓
Significantly prolongs battery life by performing pulse charges before gas emissions and during the late stages of recharge.
✓
Dynamic tracking and automatic adjustment of charging parameters via advanced PID control technology.
✓
Includes automatic detection, delaying, soft-start, and temperature compensation when voltage reaches the gas emission tipping point.
✓
Comprehensive protection and alarm functions for open circuits, reverse connection, overload, and short circuits.
✓
Equipped with initial charging and desulfuration functions for new or long-unused batteries.
Technical Parameters
| Type (V/A) |
Main Power |
Input Power (KVA) |
Input Current (A) |
Output Current (A) |
Battery Range (V/AH) |
Size (mm) |
Weight (Kg) |
| CZB5C-E24V/20A | Single Phase | 0.75 | 3.4 | 20 | 24V/115-160AH | 240*350*260 | 21.0 |
| CZB5C-E24V/50A | Single Phase | 1.9 | 8.5 | 50 | 24V/290-400AH | 240*350*260 | 25.5 |
| CZB5C-E48V/30A | Single Phase | 2.3 | 10.2 | 30 | 48V/175-240AH | 240*350*260 | 28.0 |
| CZB5C-D48V/55A | Three Phase | 4.1 | 6.3 | 55 | 48V/320-440AH | 466*360*785 | 62.0 |
| CZB5C-D48V/65A | Three Phase | 4.9 | 7.4 | 65 | 48V/375-520AH | 466*360*785 | 65.0 |
| CZB5C-D80V/100A | Three Phase | 12.5 | 19.0 | 100 | 80V/580-800AH | 526*360*883 | 95.0 |
Frequently Asked Questions
Are you a trading company or a factory?
We are a professional battery manufacturer with a history dating back to 1984, providing over 30 years of industry expertise.
Does the battery charger come with a warranty?
Yes, all products include a one-year warranty, and we provide ongoing technical support to our customers.
What certifications do your products hold?
Our products are CE and ISO certified. We can also apply for other specific certificates if required for your market.
What types of batteries are these chargers compatible with?
These chargers are designed for various battery types, including lead-acid and lithium batteries, commonly used in industrial equipment.
How do you ensure product quality?
We have a dedicated technical team that tests product stability and inspects every unit before delivery. New designs undergo thousands of tests before release.
What applications are these chargers suitable for?
They are ideal for electric pallet trucks, forklifts, lift trucks, electric tour buses, and other industrial vehicles.
