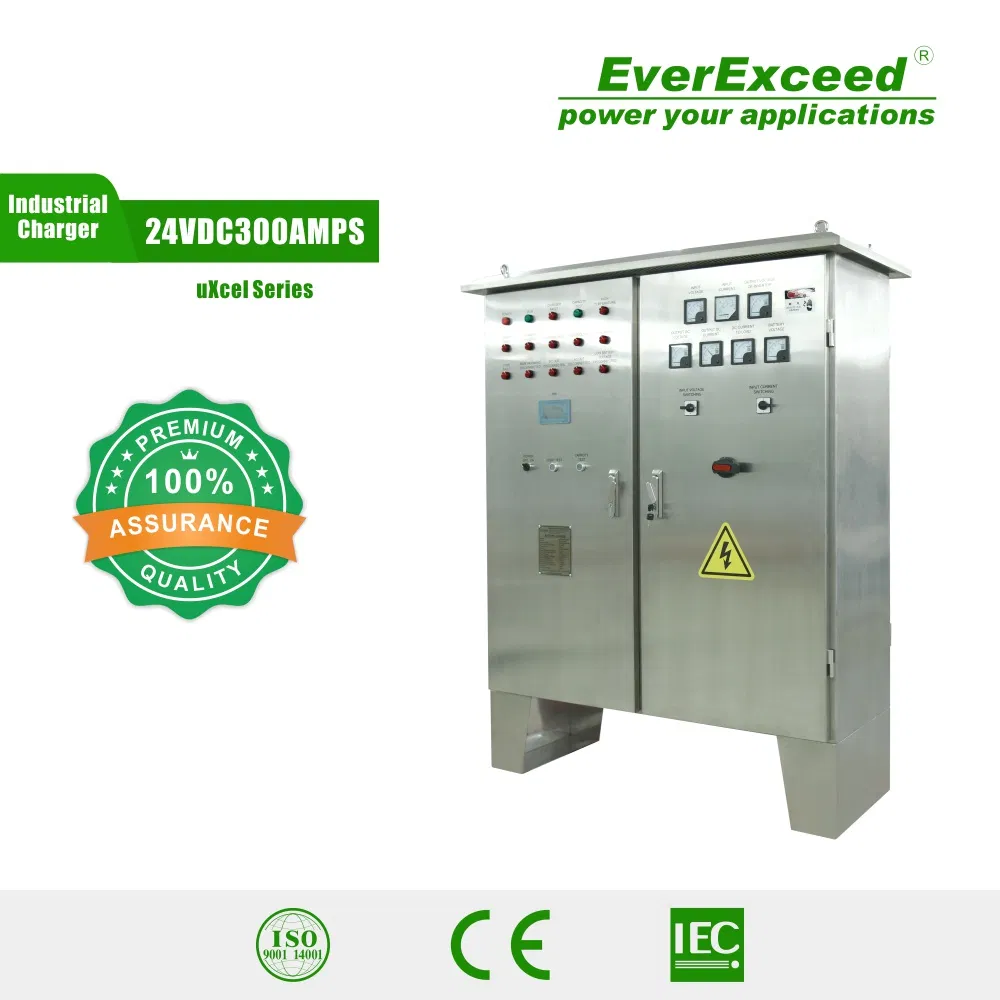

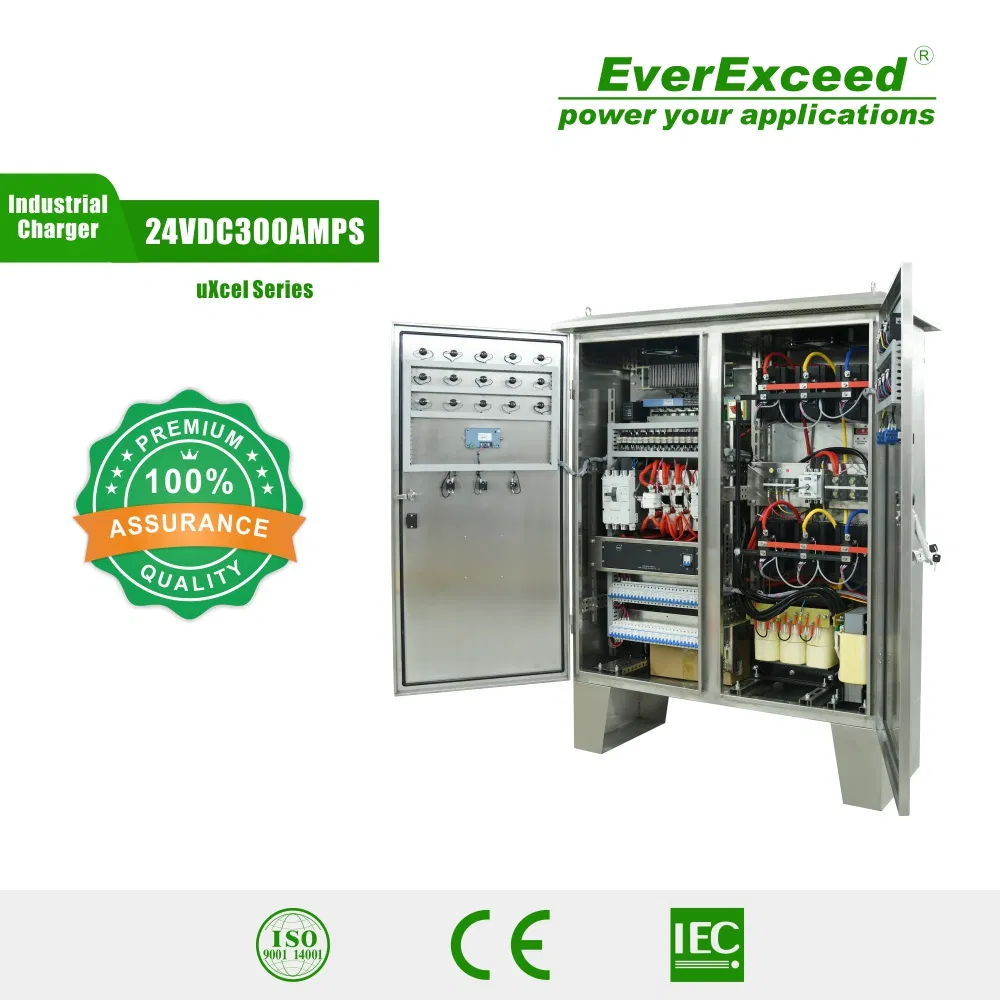

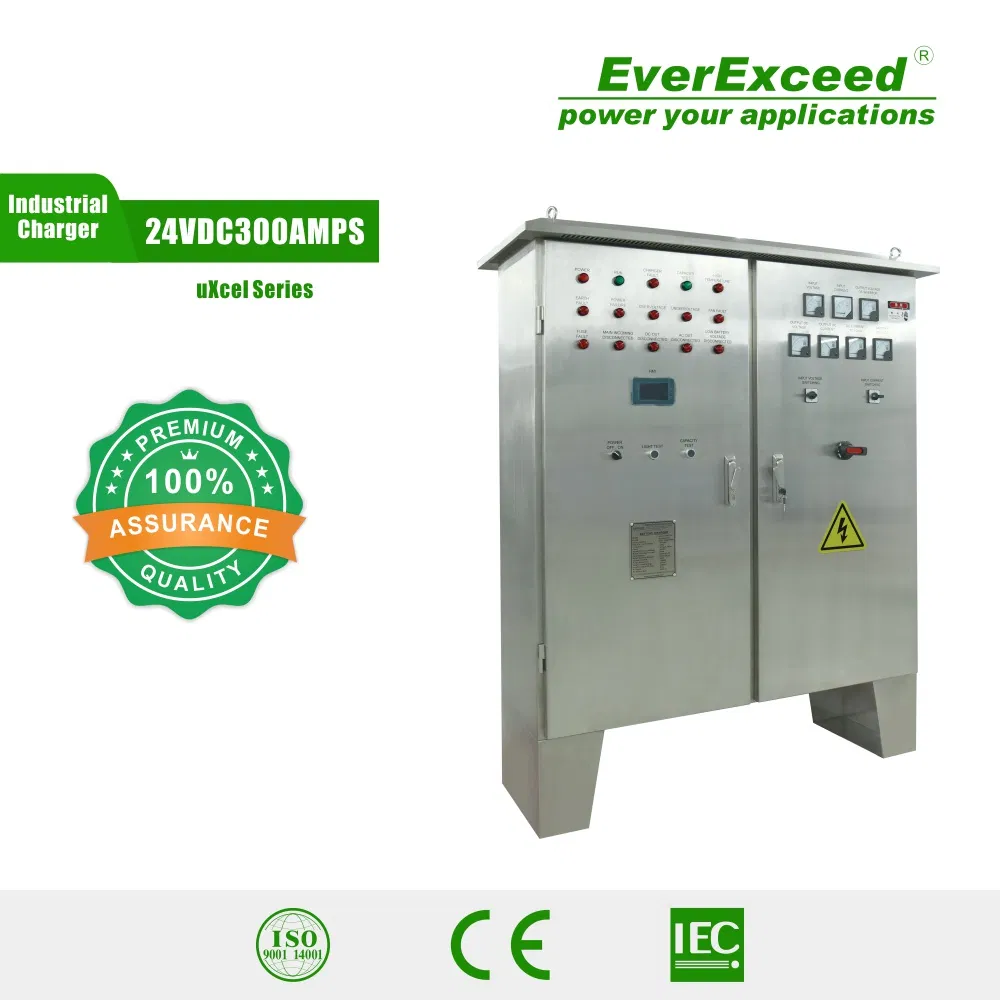

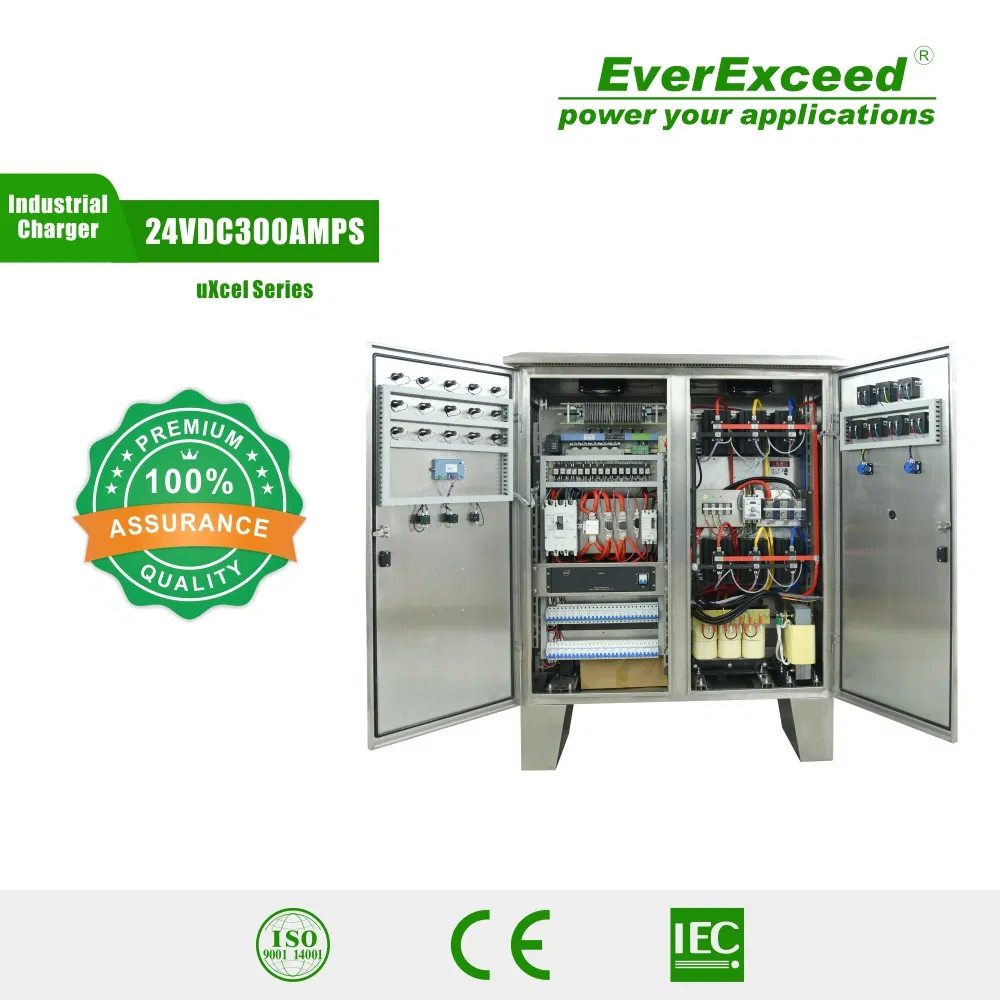

Everexceed 240V25A Uxcel Series Industrial Battery Charger with Thyristor Rectifier/ DC UPS

1 / 5

Everexceed 240V25A Uxcel Series Industrial Battery Charger with Thyristor Rectifier/ DC UPS

Customization:	Available
Type:	Battery Charger
Charger Type:	Grid/PV

Send Inquiry

Product Description

Basic Specifications

Model NO.

uXcel 240V25A

Application

Industrial Battery Charger

Nominal Voltage

240V

Charger Style

Pulse Charger

Compatible Battery

Lead Acid / NiCd / Lithium

Size

1600*600*600 mm

Certification

RoHS, TUV, CE, Toby

Nominal DC Current

10-1500A

Lead Time

4-6 Weeks

HS Code

8504409992

Packaging & Delivery:
Package Size: 80.00cm * 80.00cm * 180.00cm
Gross Weight: 136.000kg

Product Description

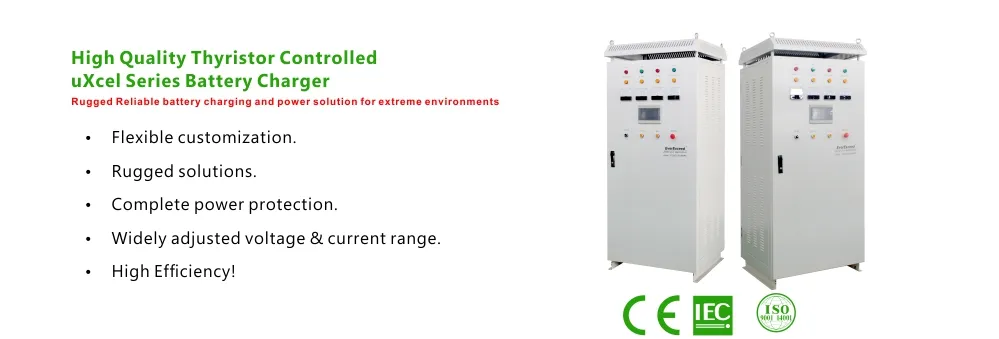

This Series Industrial Battery Charger is a highly reliable and rugged solution designed with Thyristor Rectifier technology for demanding DC Power Supply applications. It integrates a proven design topology with the latest advanced digital control technology to manage the 6-pulse thyristor bridge rectifier, ensuring trouble-free performance in harsh electrical and industrial environments.

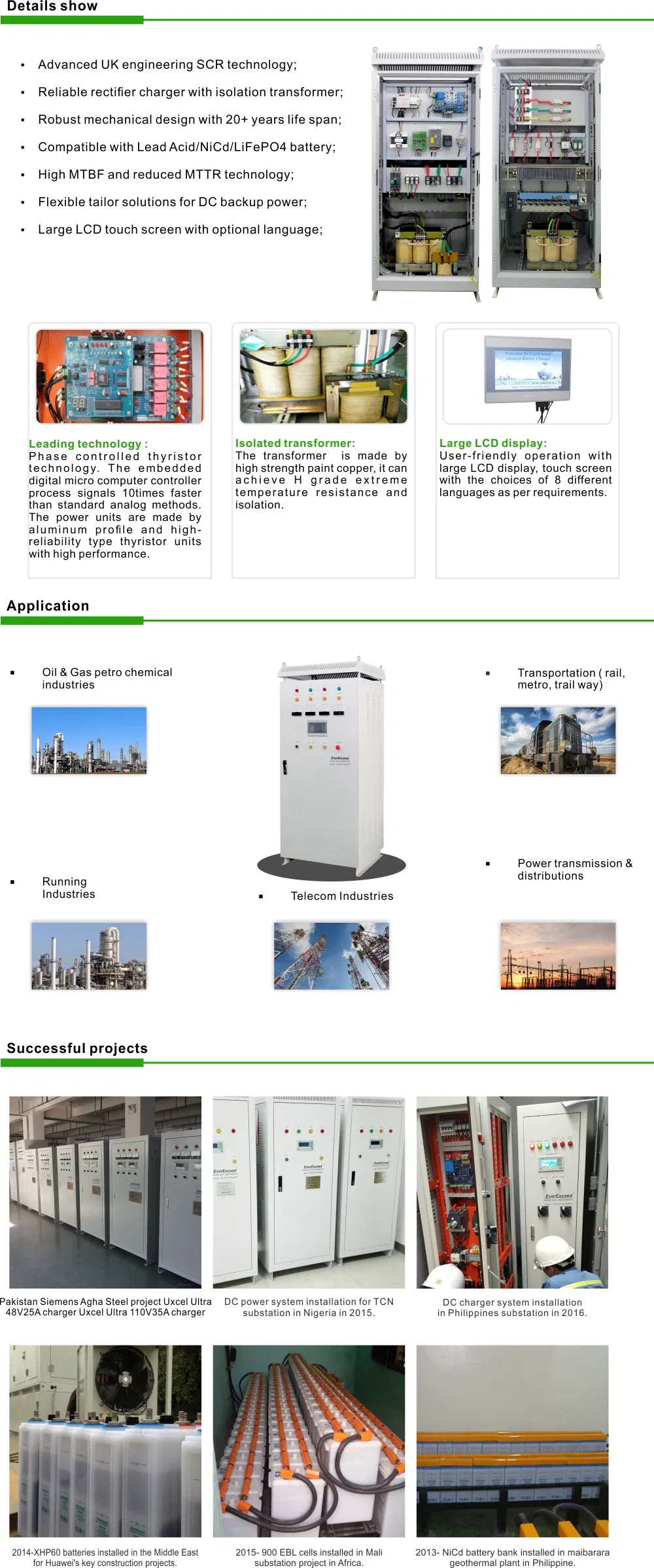

Key Features

High Reliability and MTBF: Robust design allows continuous operation at full load at 40°C ambient temperature.
Versatile Modes: Supports both constant voltage and constant current charging modes.
Enhanced Robustness: Designed to withstand vertical and horizontal acceleration stress up to 0.5g.
Leading Technology: Phase-controlled Thyristor technology with micro-computer controllers processing signals 10x faster than analog.
Long Service Life: System design life exceeding 20 years under appropriate maintenance conditions.
User-Friendly Interface: Large LCD display with multilingual support and smart communication via RS232, RS485, and Ethernet.

Industrial Applications

• Oil & Gas (Offshore & Onshore)

• Refining & Petrochemicals

• Telecommunications

• Transportation (Rail & Aeronautic)

• Power Generation & Distribution

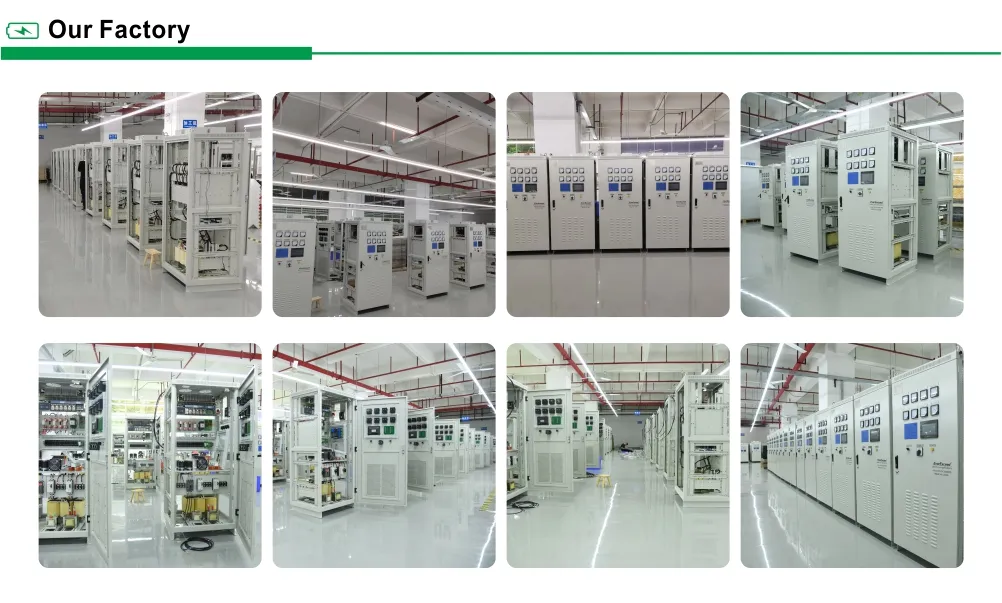

Certifications & Manufacturing

Why Choose This Solution?

Category	Details
Service	RMA (24/7 support), OEM, ODM availability
Quality	Guaranteed by advanced production equipment and European raw materials
Warranty	Standard 2 years, with 5+ years options available
Professionalism	Over 30 years of power supply manufacturing experience
Global Reach	Coverage in over 65 countries with 100+ global offices

Shipping & Payment

Payment Terms	T/T, L/C, Cash, Western Union (Flexible terms available)
Shipping Port	Major Sea Ports via China
Transportation	Sea, Air, Train, or Truck transportation
Packing	Secure carton box on wooden pallets or wooden crates

Frequently Asked Questions

1. What types of batteries is this charger compatible with?

The system is fully compatible with Lead-Acid (vented or sealed), Nickel-Cadmium (NiCd), and Lithium battery types.

2. Can it operate in high-temperature environments?

Yes, the robust design allows for continuous operation at full load in ambient temperatures up to 40°C, with natural ventilation and adjustable temperature compensation.

3. What is the expected lifespan of the unit?

The unit is engineered for industrial longevity, with a system design life of over 20 years under appropriate maintenance.

4. Does the charger support remote monitoring?

Yes, it features smart communication capabilities through isolated RS232, RS485, and Ethernet ports for full data logging and remote monitoring.

5. Is it resistant to mechanical vibrations or seismic stress?

Yes, the standard mechanical design is built to withstand vertical and horizontal acceleration stress up to 0.5g.

6. What certifications does this product hold?

The product is certified according to CE, RoHS, TUV, EN61000, and IEC60146 standards, ensuring international quality compliance.
