Uxcel Ultra Series Industrial Battery Charger with Thyristor Rectifier/ DC UPS

1 / 5

Uxcel Ultra Series Industrial Battery Charger with Thyristor Rectifier/ DC UPS

Customization:	Available
Type:	Battery Charger
Charger Type:	Grid/PV

Send Inquiry

Product Description

Overview & Basic Info

Model NO.

uXcel Ultra 220V500A

Application

Standard Battery

Nominal Voltage

220V

Charger Style

Pulse Charger

Battery Type

Lead Acid/NiCd/ Lithium

Size

800*800*2000

Certification

RoHS, TUV, CE, Toby

Lead Time

4-6 Weeks

Output voltage

33-330V

Capacity

10000

Product Description

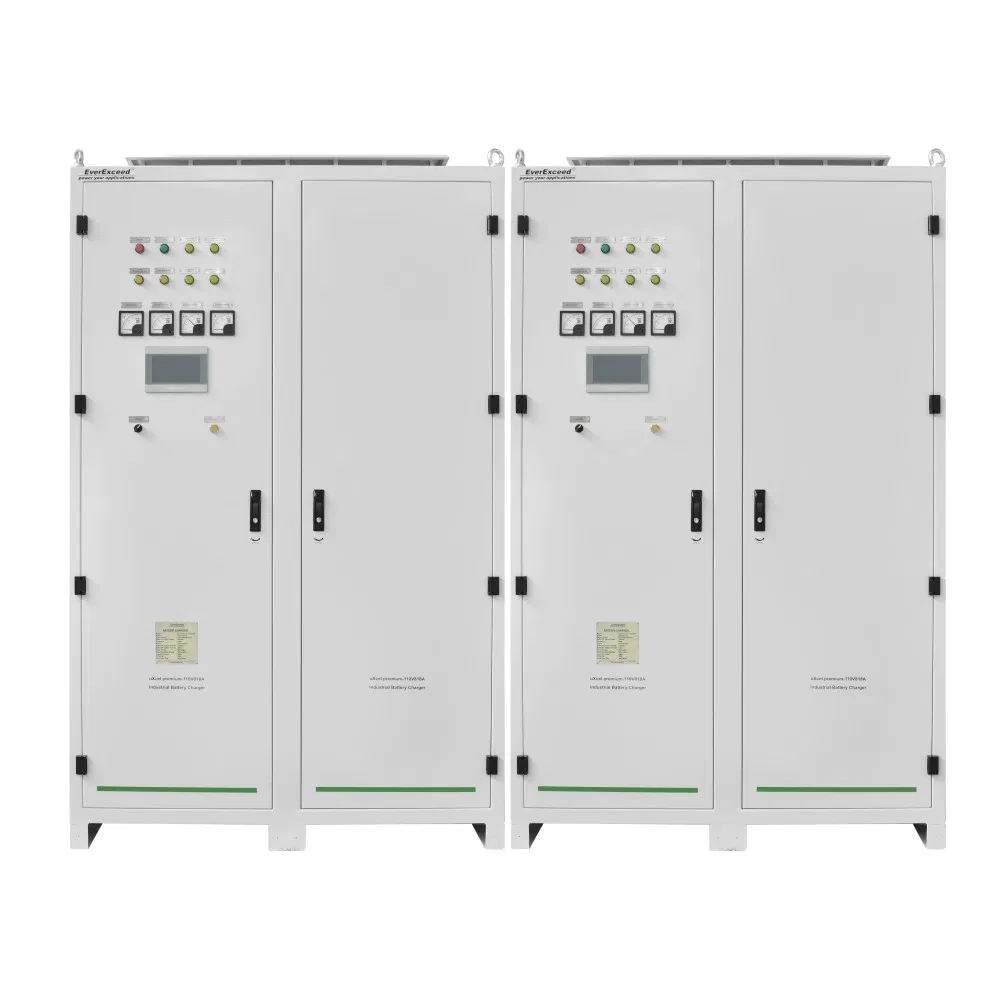

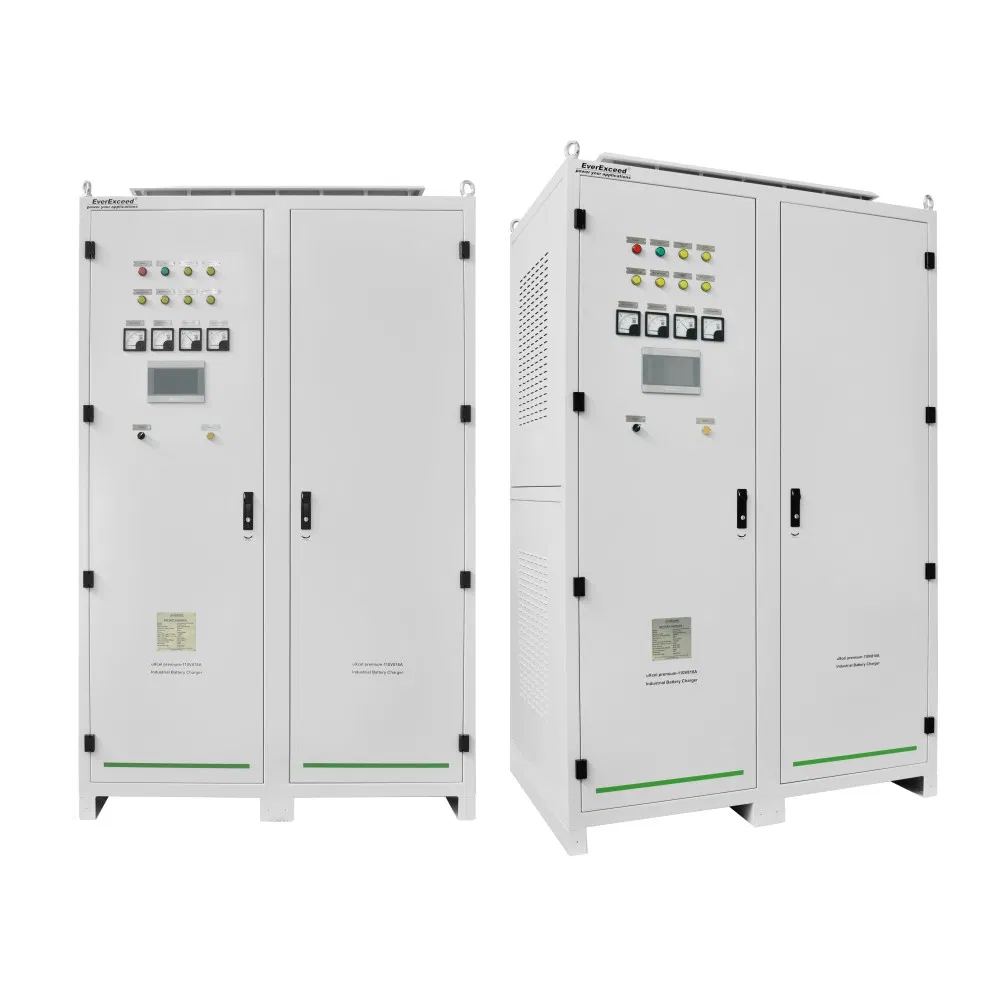

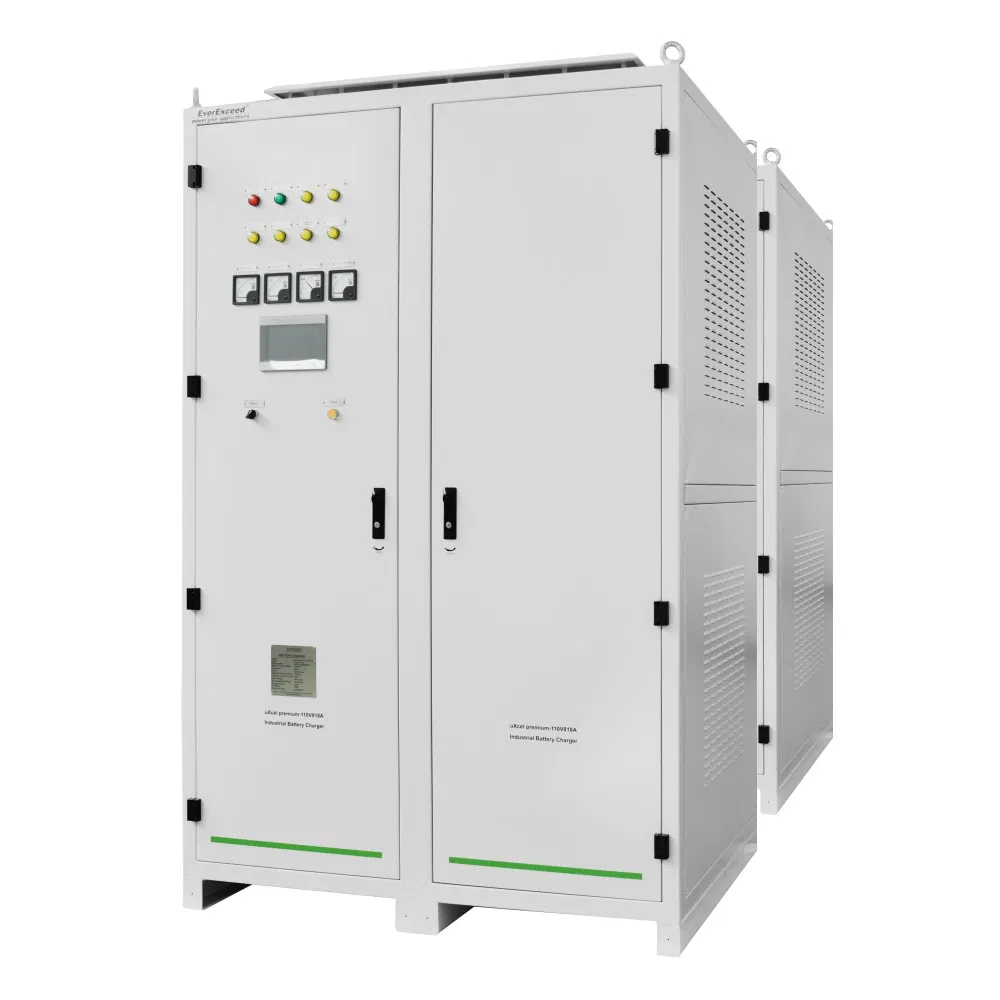

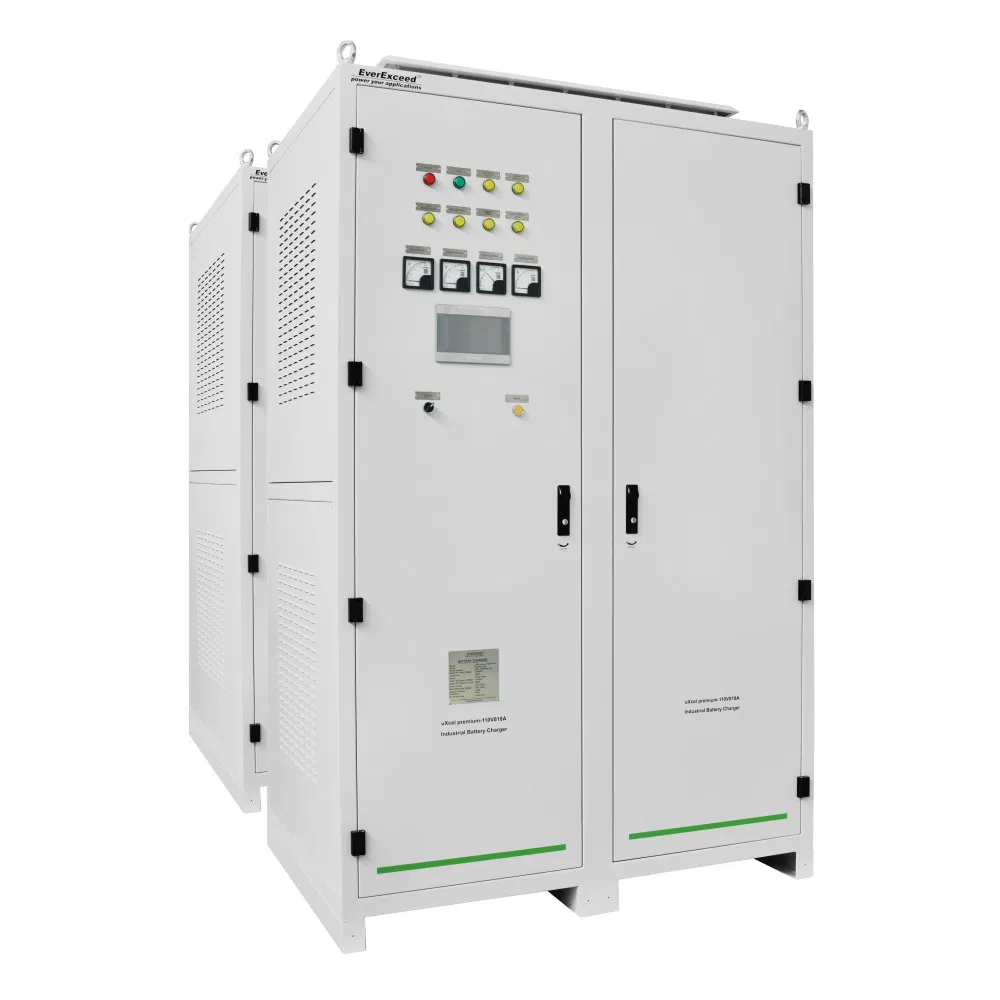

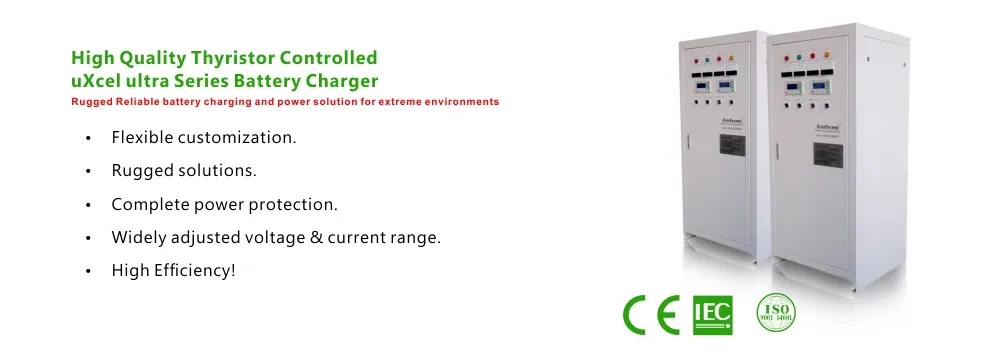

220V500A Uxcel Ultra Series Industrial Battery Charger with Thyristor Rectifier/ DC UPS

We offer highly reliable and rugged Thyristor Industrial Battery Charger solutions for all DC Power Supply applications. The uXcel Ultra redundancy charger (DC UPS) is a new type charger for battery. This charging system is made by two independent charging loops in parallel; it can carry out the redundancy charge function. This system is controlled by digital intelligent with multi charge mode, simple operation and reliability.

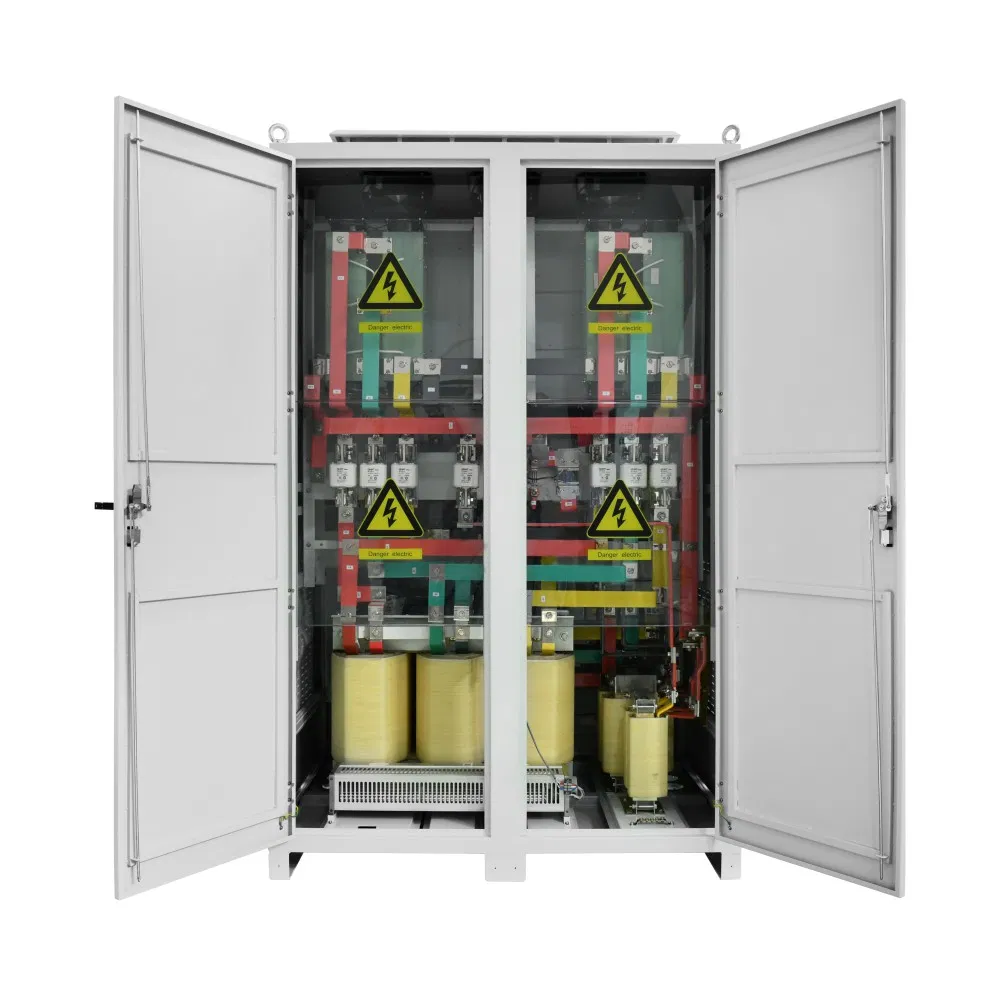

The transformer is made by high strength paint copper; it can achieve H grade high temperature resistance and isolation, the power units are made by aluminum pole and high-power disc type thyristor units with high performance and reliability. Available in single and three phase up to 220kW, and using ultra rugged phase controlled technologies, this series is ideal for all industrial applications including substation battery systems and DC UPS.

Core Features

Redundant Operation: Structured by two independent charging loops in parallel. It can carry out the redundancy charge function without interrupting each other, ensuring continuous backup.
High Reliability: Robust design allows continuous operation at full load at 40°C ambient temperature with precise temperature compensation.
Leading Technology: Phase-controlled Thyristor technology with an embedded micro-computer processing signals 10 times faster than analog methods.
Versatile Modes: Supports constant voltage and constant current charging modes.
Mechanical Robustness: Designed to withstand vertical and horizontal acceleration stress up to 0.5g.
Long Design Life: System design life up to 20+ years in continuous operation with appropriate maintenance.
User Interface: User-friendly operation with a large LCD display and multilingual support.
Remote Monitoring: Smart communication through isolated RS232, RS485, and Ethernet with full data logging.

Industrial Applications

Oil & Gas Refining Petro Chemicals Telecom Transportation (Rail & Aeronautic) Power Generation & Distribution

Certifications & Standards

Key Advantages	Details
Service	RMA (24/7 pre-sales and after-sales support), OEM, ODM
Quality	Highly reliable quality guaranteed by advanced production equipment and European raw materials
Warranty	Standard 2 years, 5+ years upon request
Shipping	By sea/air/train/truck transportation with professional wooden box packing

Frequently Asked Questions

What is the advantage of the Redundant Operation feature?

The system utilizes two independent charging loops in parallel. If one loop fails, the other continues to provide a charge without interruption, ensuring maximum uptime for critical DC UPS applications.

Which battery types are compatible with this charger?

This industrial charger is fully compatible with Lead Acid, Nickel Cadmium (NiCd), and Lithium batteries, including both sealed and vented types.

How long is the expected design life of the system?

With appropriate maintenance, the uXcel Ultra series is designed for a continuous operation life of 20+ years.

Can the charger be monitored remotely?

Yes, it features smart communication options including isolated RS232, RS485, and Ethernet ports for full data logging and remote monitoring.

What are the environmental operating limits?

The robust design allows the charger to operate continuously at full load even in ambient temperatures up to 40°C, featuring natural ventilation in most models.

Is the system protected against physical stress?

Yes, the mechanical design is built to withstand vertical and horizontal acceleration stress up to 0.5g as a standard specification.
