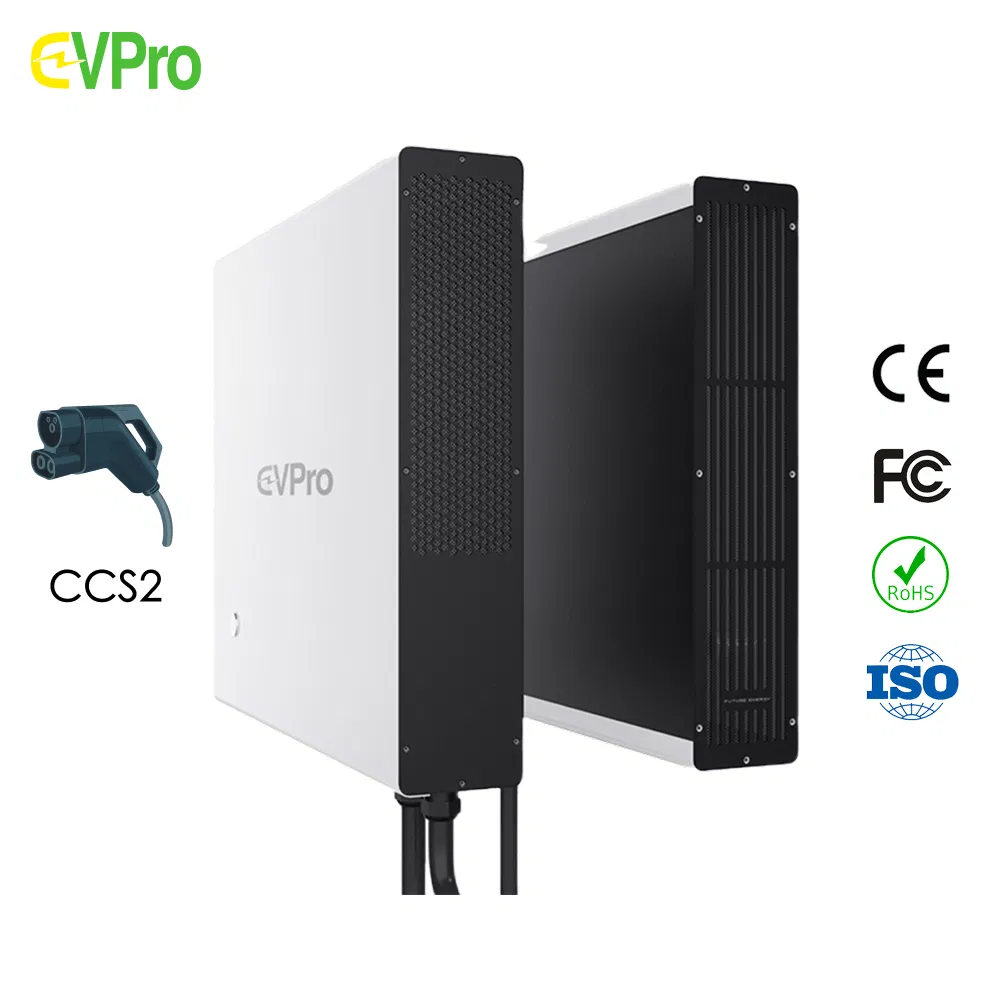

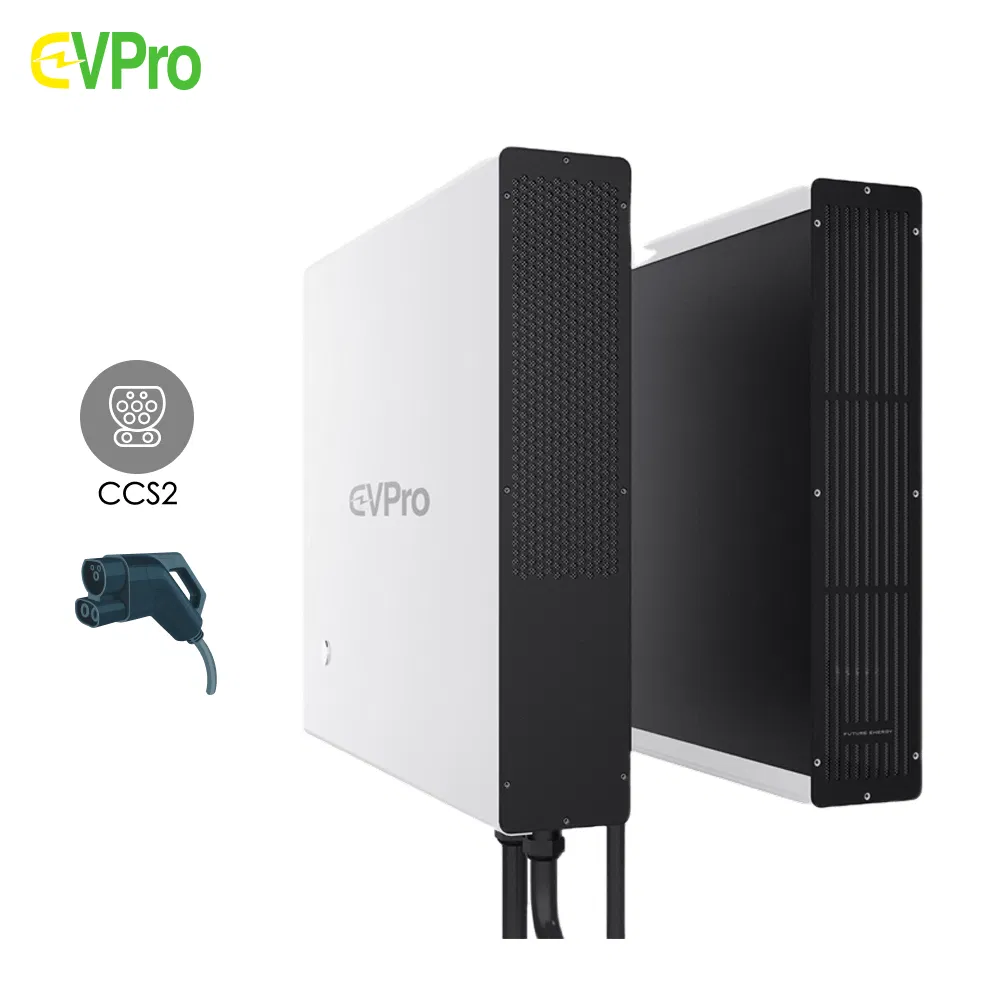

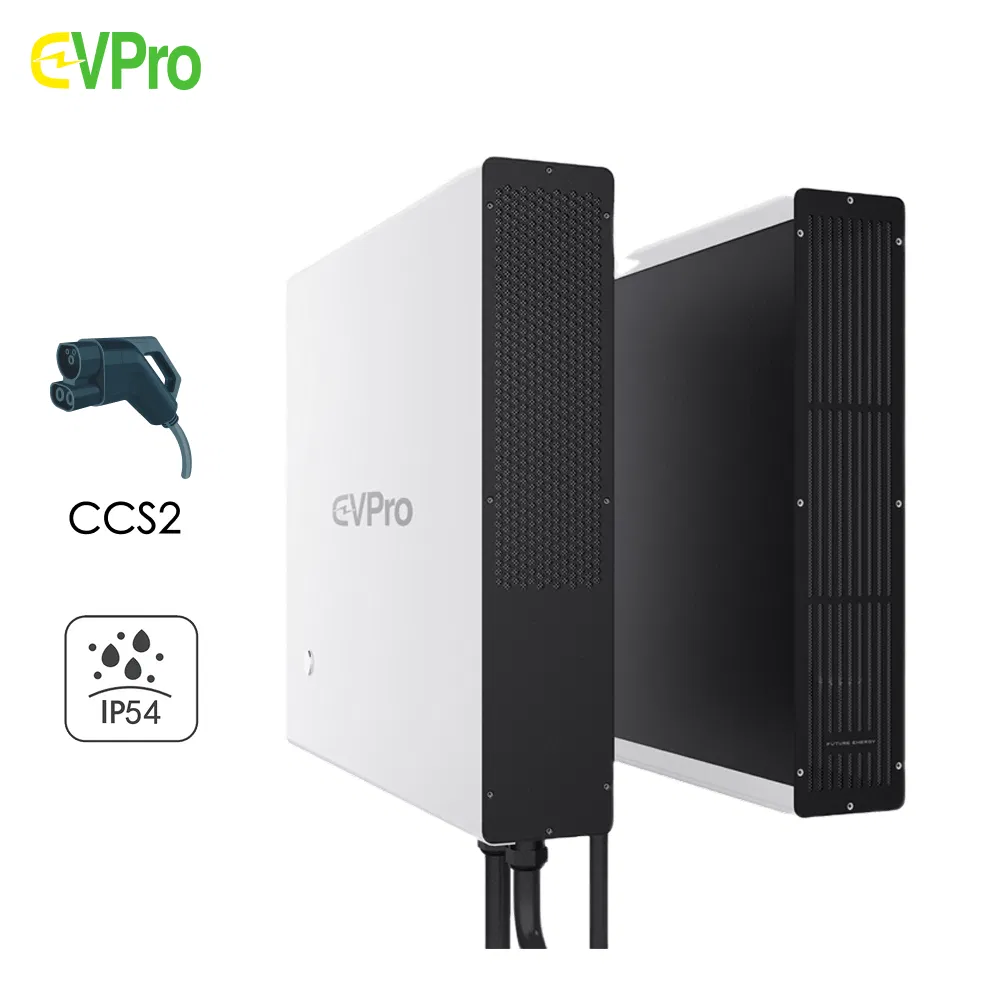

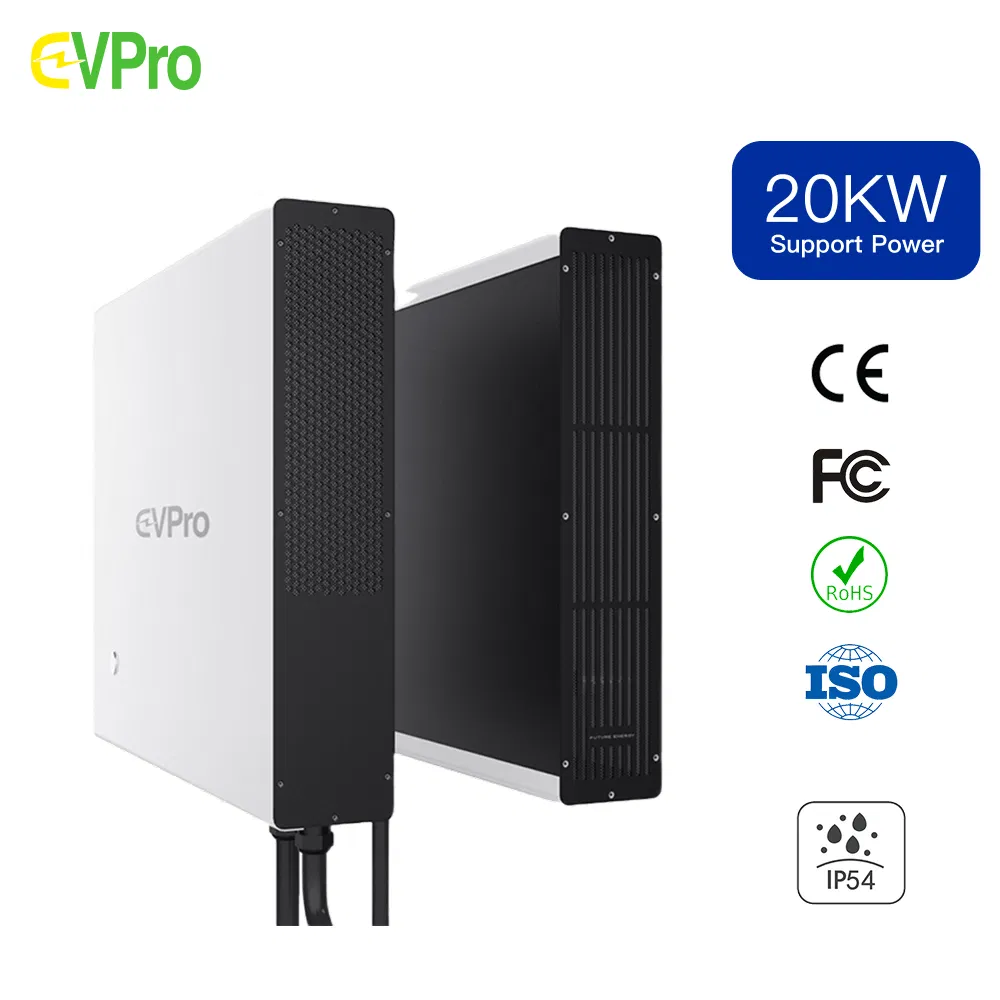

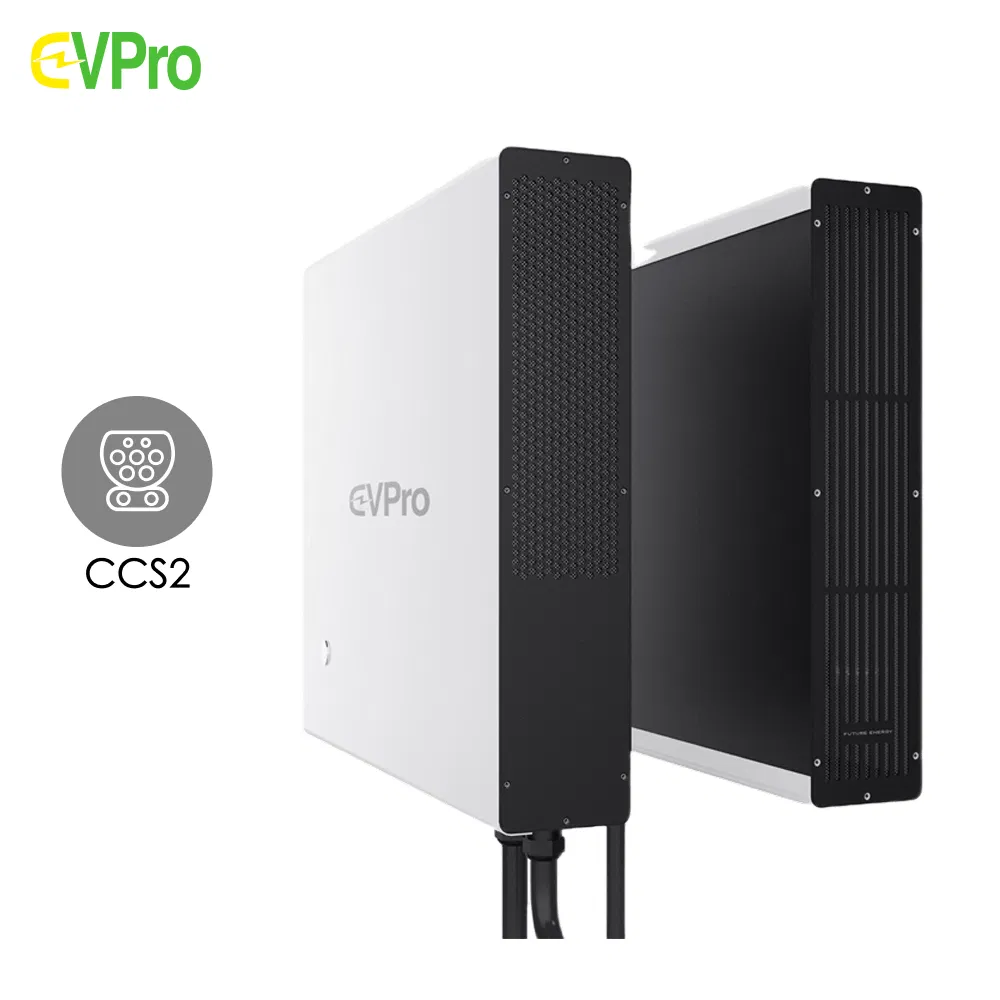

Evp 2300 20-30kw Series Commercial/Home Use CCS Ocpp Fast DC Electric Car/Vehicle/Battery EV Piles Charger

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Information
Model NO.
EVP2300
Location
Public Use
Charging Interfaces
One Pile with Multiple Charges
Start Mode
Credit Card, Mobile Remote, RFID
Input Voltage
400VAC (3p+N+PE) 50/60Hz
Output Voltage
200 - 750VDC
Output Current
80A
Charging Module
20 - 30 Kw
Efficiency
≥94%
Power Factor
>0.98
Protection Standard
ISO 15118
Weight
40kg
Product Description
Series DC EV charger banner
20-30kW Series DC EV charger
This is a small wall mounted DC charger, simple and elegant, without any complicated details. The operation is very simple and suitable for use by all groups of people. 20kw and 30kw are optional for the module.

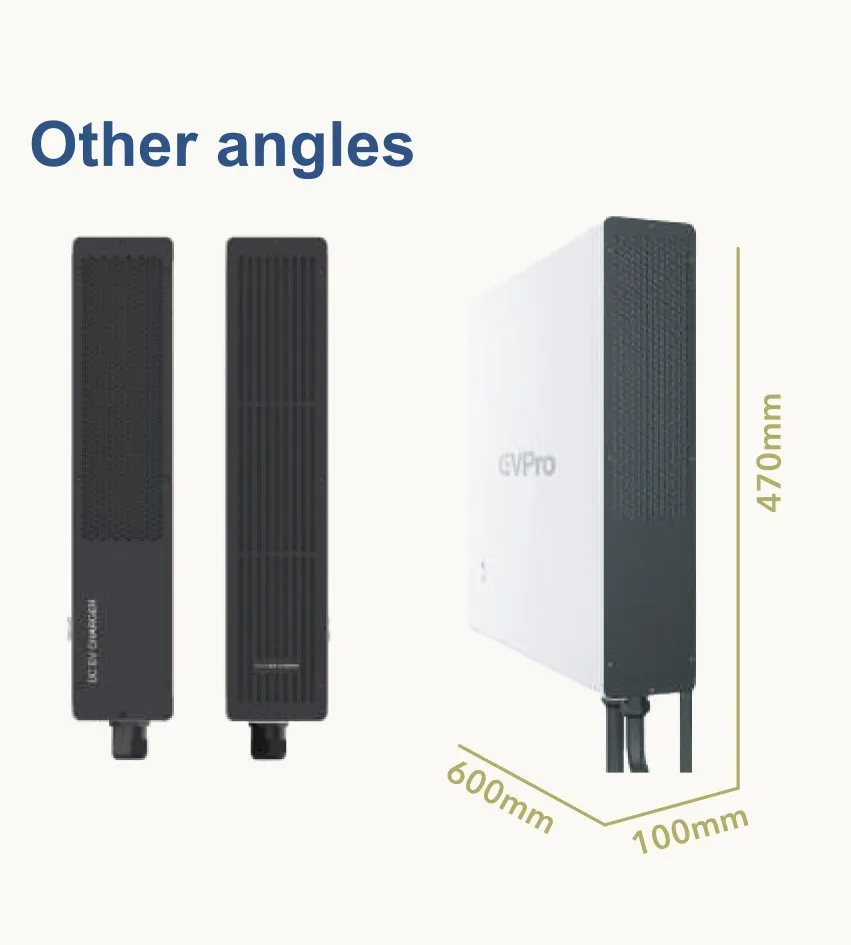

DC Charger Detail 1

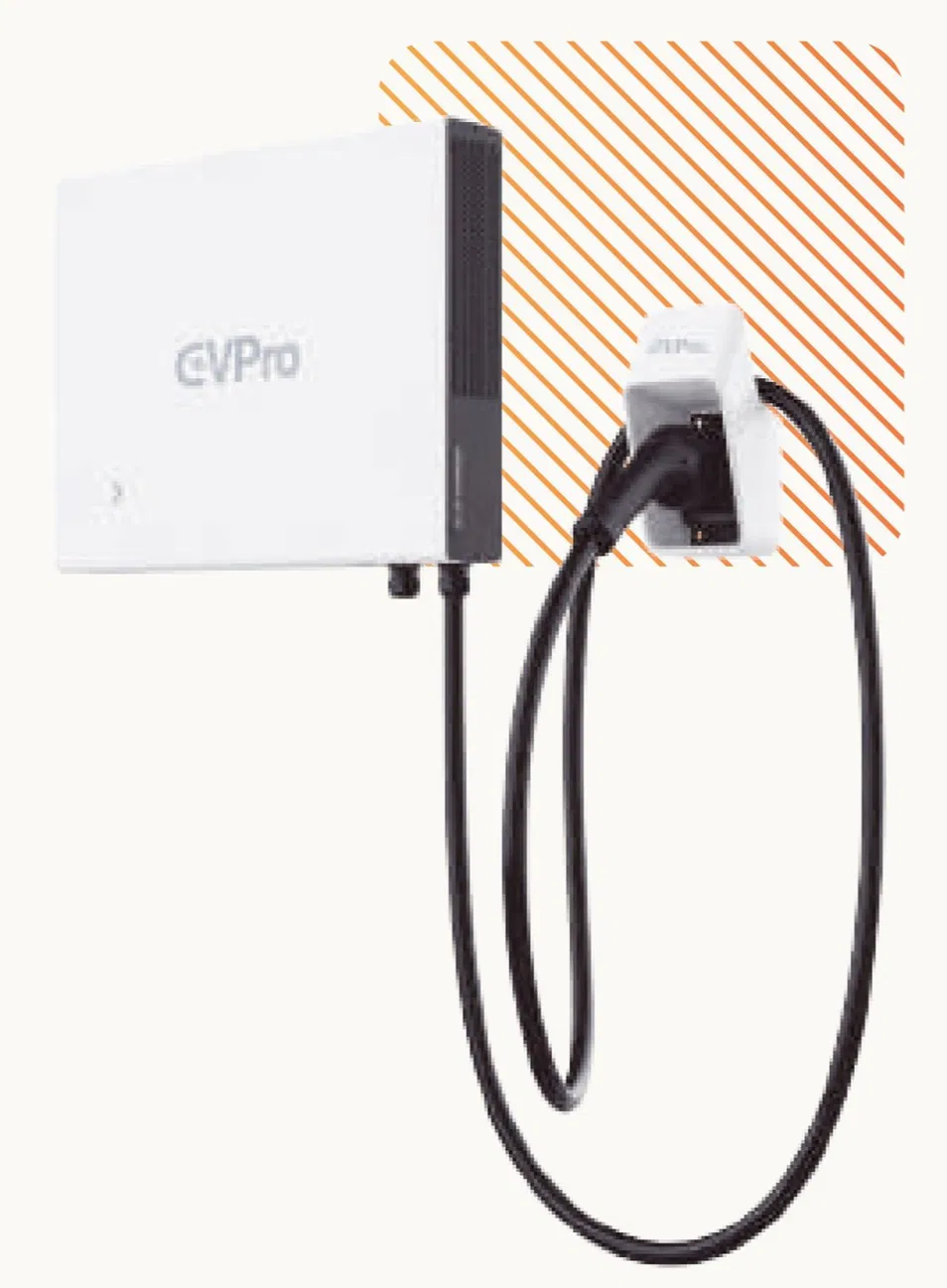

DC Charger Detail 2
Key Features
80A Cable
30kw Charging Module
One-Click Start
Minimalist Installation
Low Failure Rate
Technical Specifications
CategoryData Parameters
Input Voltage400VAC (3P+N+PE) 50/60Hz
Output Voltage200 - 750VDC
Output Current80A
Charging Module20 - 30 kW
Efficiency≥94% at nominal output power
Operating Temp-30℃ to 75℃
Dimensions600mm × 470mm × 300mm (Shell)
Ingress ProtectionIP30
Electrical SafetyOver/Under-voltage, Short-circuit, Over-current protection
Internal Structure
Installation View
Professional Manufacturing

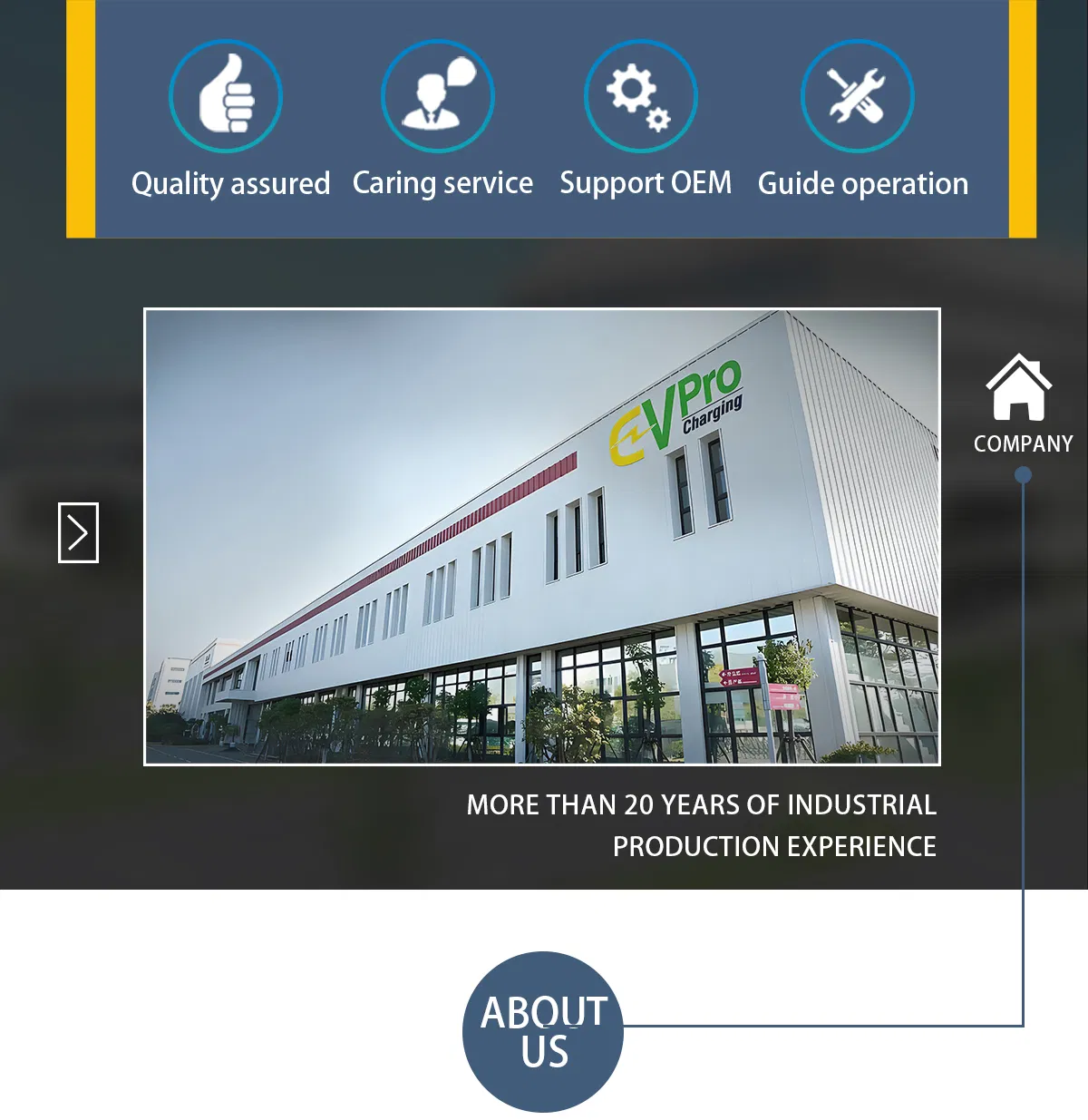

Manufacturing Facility
As a fully integrated provider, we control every stage of the EV charging ecosystem to deliver superior quality and cost-competitive solutions. We operate our own manufacturing facility producing both AC and DC chargers with custom hardware configurations and rigorous quality control standards compliant with IEC 61851 and IEC 62196 standards.

Our platform actively harnesses solar energy during daylight hours while utilizing artificial intelligence to dynamically manage power flows between solar panels, the electrical grid, and electric vehicle batteries. The V2G capabilities transform EVs into mobile energy storage units that can feed power back into buildings or the grid when needed most.

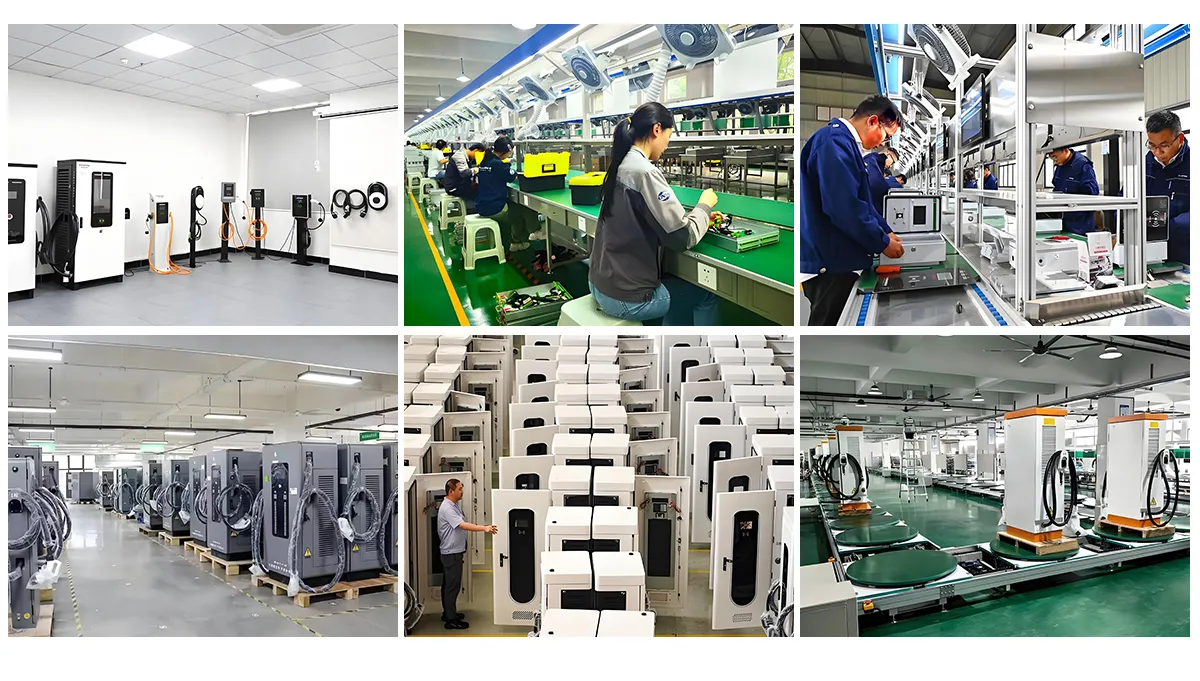

Production Line
Quality Control
Testing Lab
Frequently Asked Questions
What makes your EV charger solutions different from others?
We are a fully integrated provider with our own manufacturing facility, controlling every stage from production to delivery. We ensure superior quality, cost competitiveness, and custom hardware configurations for both AC and DC chargers.
Are your chargers certified for international markets?
Yes. Our chargers comply with international standards IEC 61851 and IEC 62196, making them suitable for most global markets.
Can you customize hardware or software for specific needs?
Absolutely. We offer custom hardware configurations and software adaptations, including branding, tailored user interfaces, and integration with local energy management systems.
How does the smart energy management system work?
Our platform uses AI to dynamically optimize power flow between solar panels, the grid, building loads, and EVs to maximize solar utilization and reduce grid dependency.
Do your chargers support Vehicle-to-Grid (V2G) functionality?
Yes. Our V2G-enabled chargers allow EVs to feed energy back into buildings or the grid, turning EVs into mobile energy storage units to support grid stability.
What after-sales support do you provide?
We offer comprehensive support including warranty, technical assistance, remote diagnostics, and software updates. Our team can guide installation and system optimization.
