Adopting advanced DC fast charging technology, it greatly shortens charging time and improves user experience. The charger supports multiple protection functions including over-voltage, under-voltage, over-current, leakage, over-temperature and short-circuit protection, ensuring safe and reliable operation.

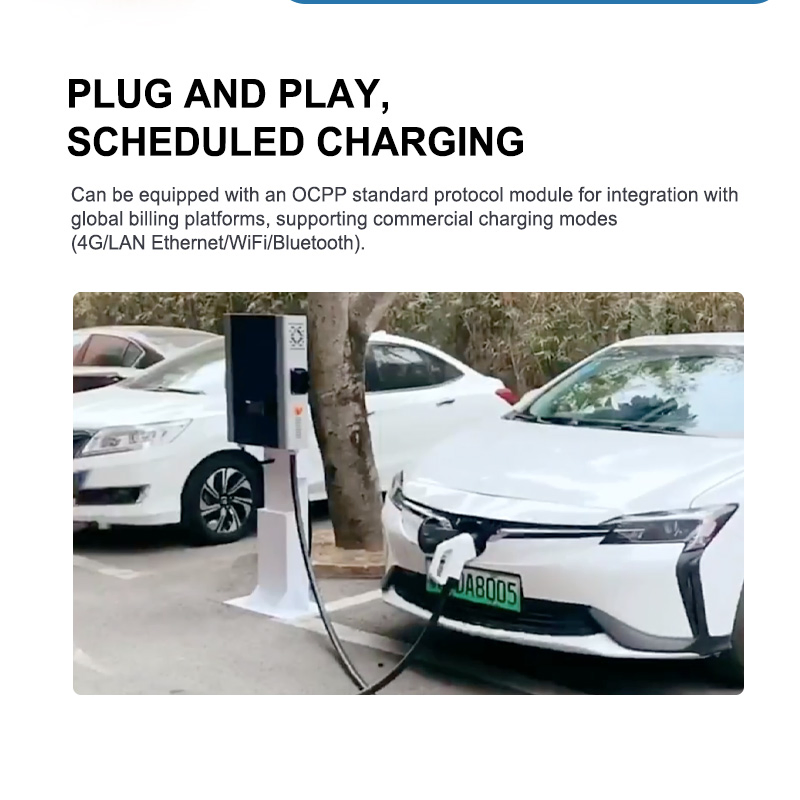

With compact structure, elegant appearance and easy installation, it is widely applied in residential communities, parking lots, commercial buildings and charging stations. It supports standard communication protocols and can be equipped with OCPP for remote monitoring and management.

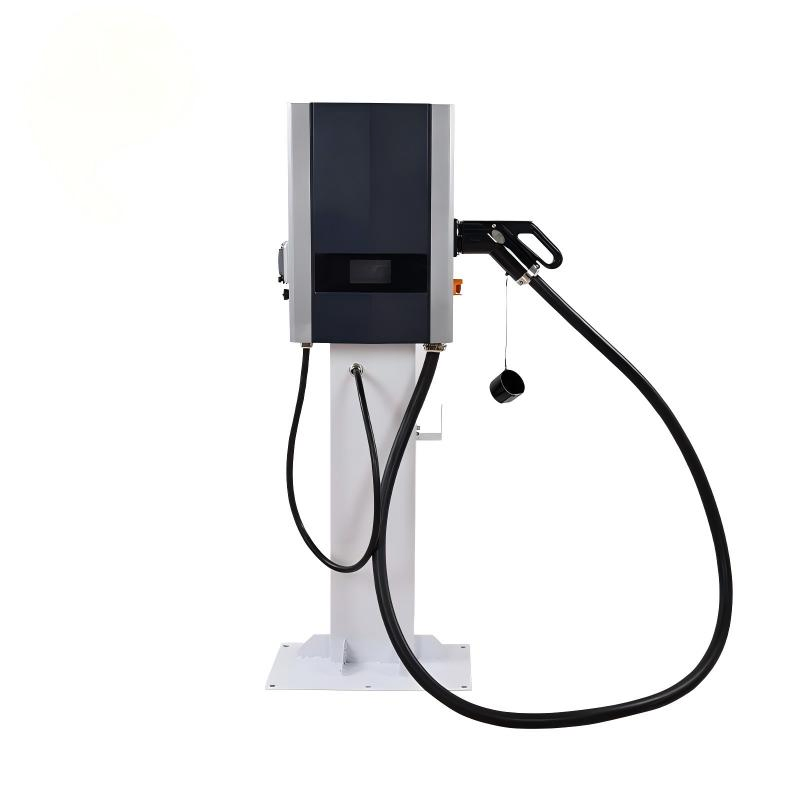

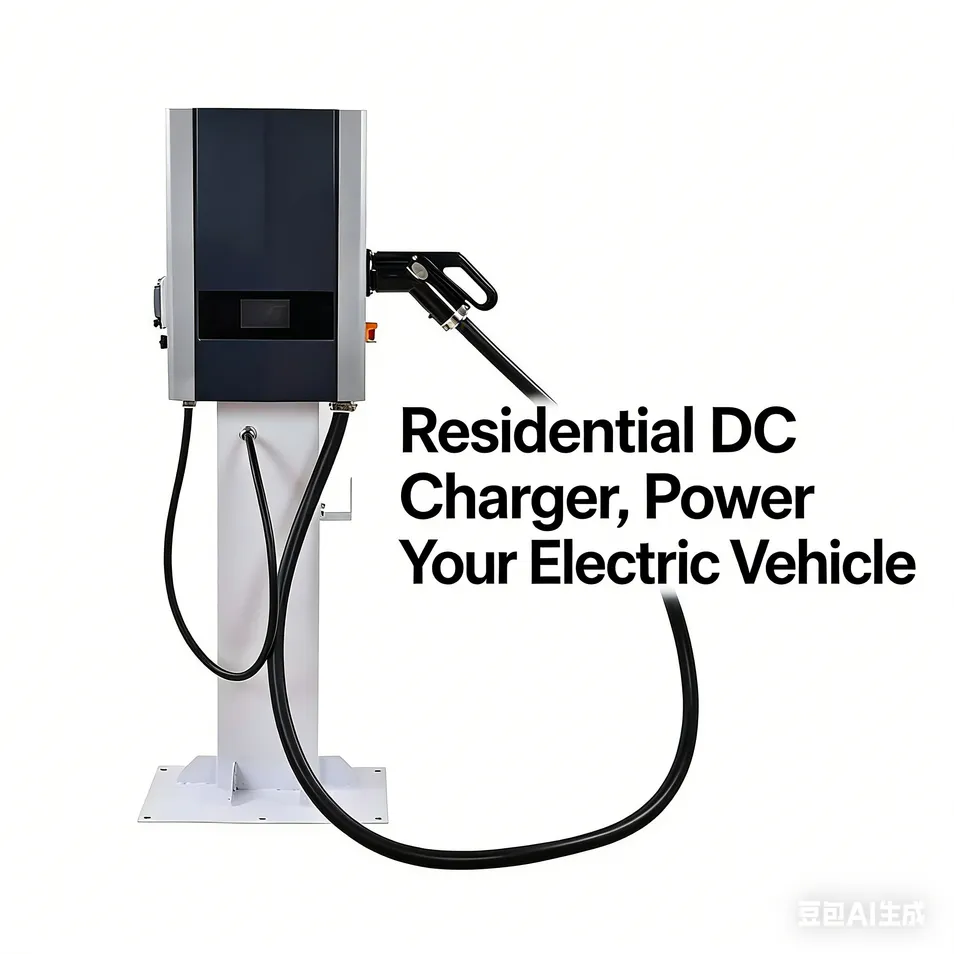

Our Level 3 DC EV Charger is a cost-effective and high-performance solution for new energy vehicle charging, specifically designed for home and commercial environments that require rapid power delivery.

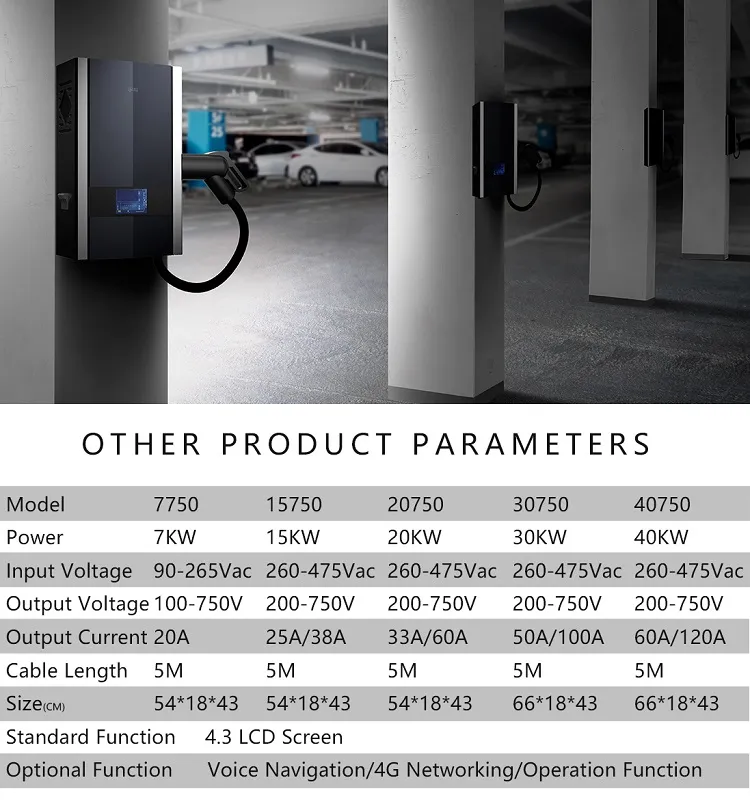

| Specification | SC07750 | SC15750 | SC20750 | SC30750 | SC40750 |
|---|---|---|---|---|---|
| Output Power | 7KW | 15KW | 20KW | 30KW | 40KW |
| Input Voltage | 90-265V | 260-475V/480V 3 Phase Optional | |||
| Output Voltage | 200-750V (200-1000V optional) | ||||
| Efficiency | 95% | ||||
| IP Level | IP54 | ||||
| Dimension(mm) | 545*380*170 | 545*380*170 | 545*380*170 | 645*545*170 | 721*457*232 |
| Weight | 20KG | 25KG | 28KG | 44KG | 60KG |

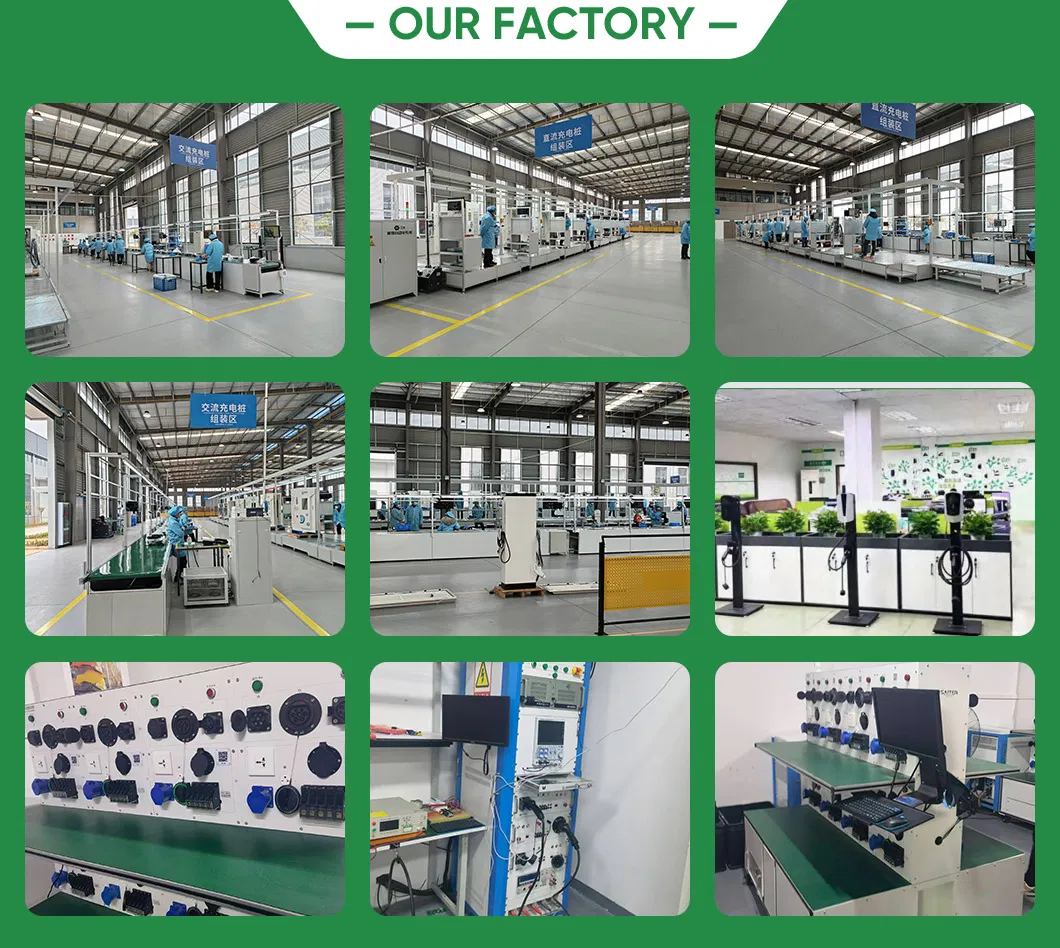

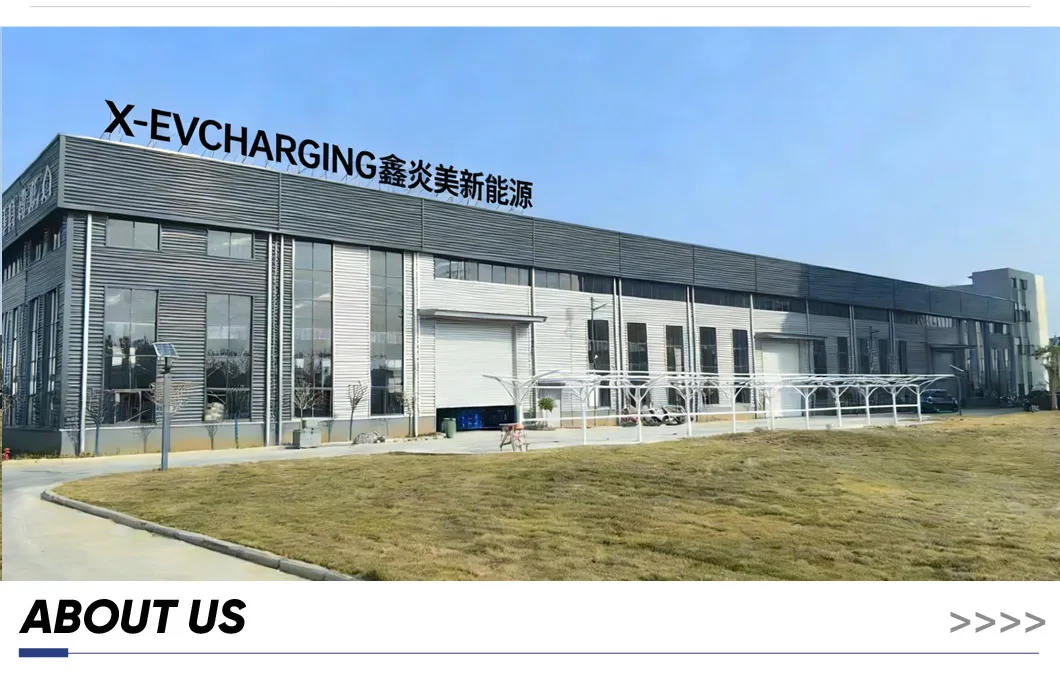

As a high-tech enterprise focused on charging, discharging, and energy storage solutions for electric vehicles, we integrate R&D, independent production, OEM/ODM manufacturing, and export trade. Our facility is ISO9001 certified and our products comply with domestic MA and CNAS certifications, as well as EU CE, RoHS, UKCA, FCC, and UL certifications.
