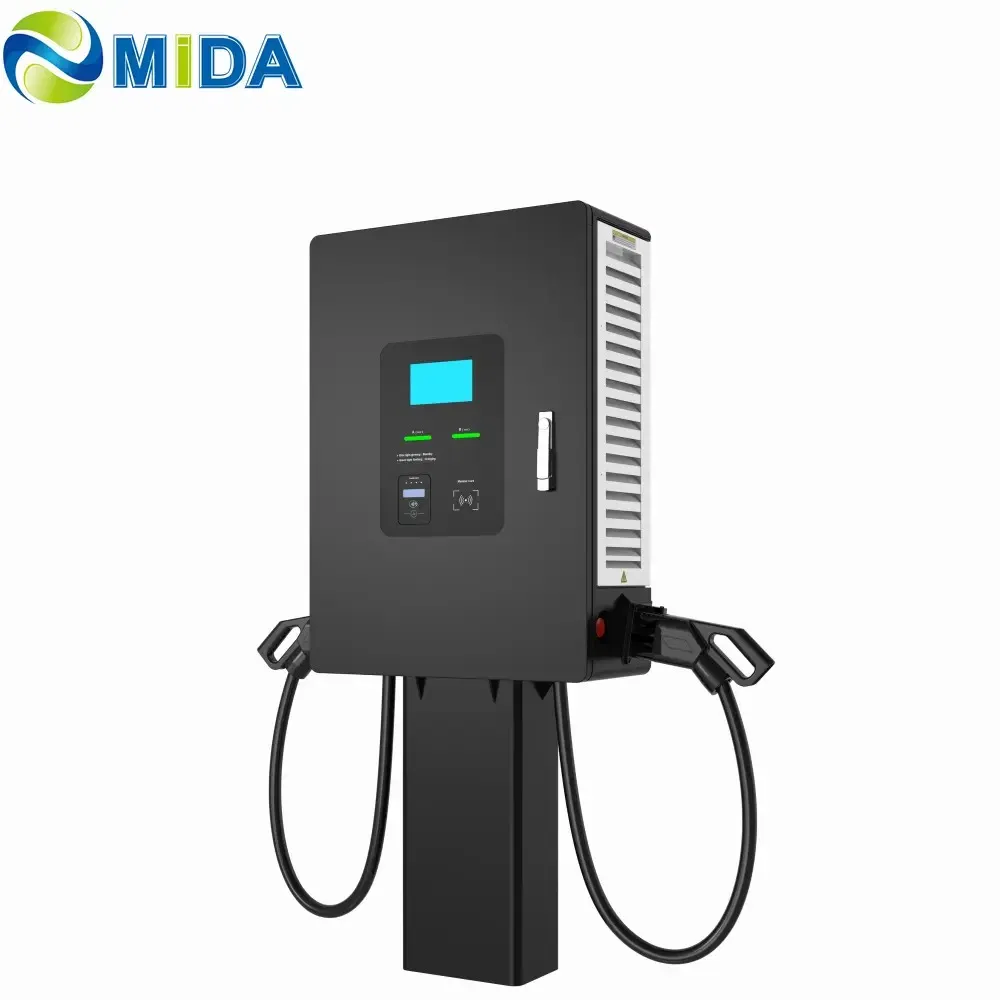

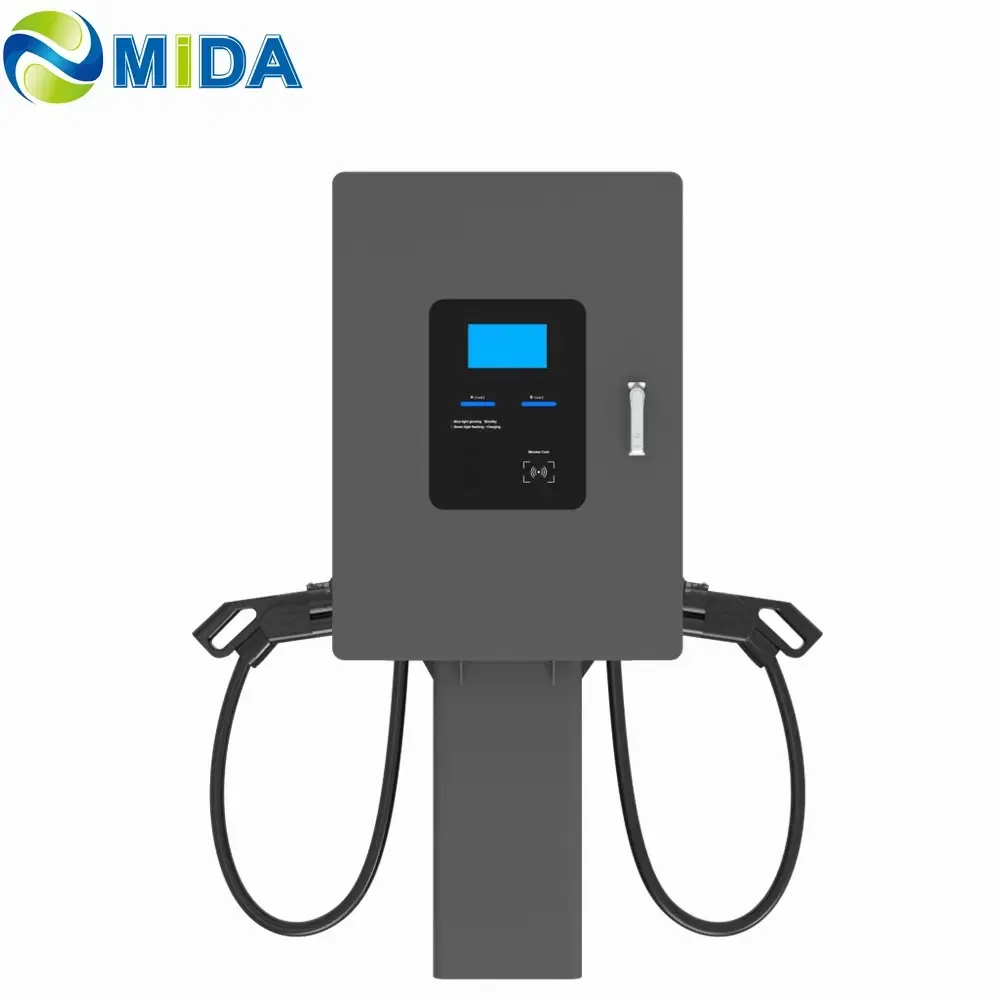

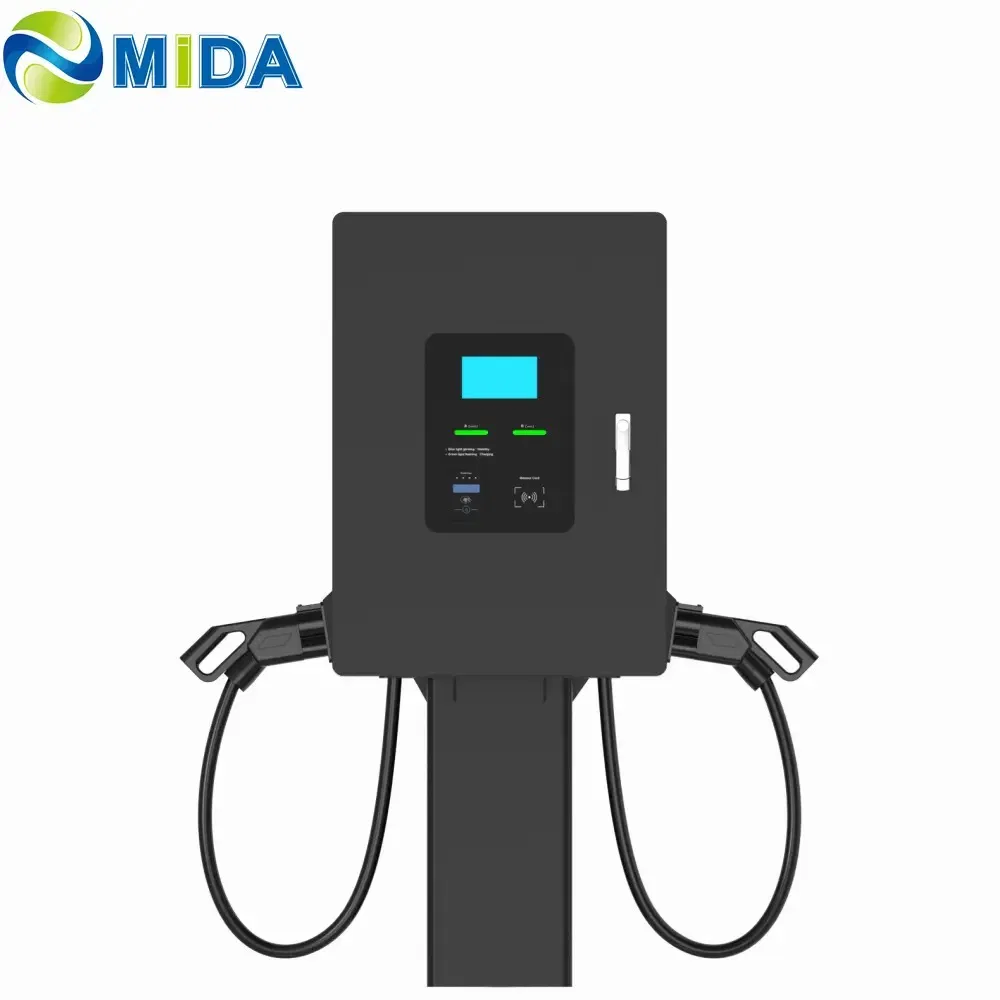

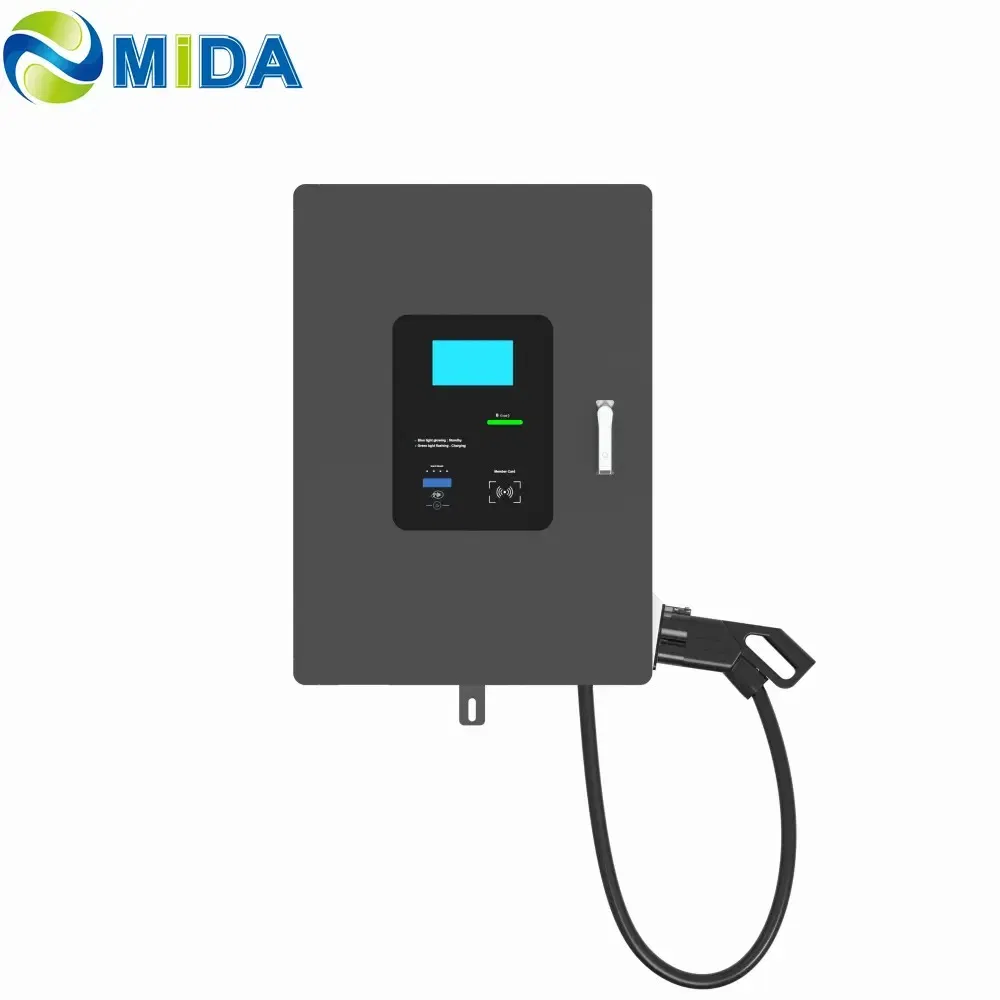

20kw 30kw 40kw Wall-Mounted EV DC Fast Charger Home or Commercial Use

1 / 5

20kw 30kw 40kw Wall-Mounted EV DC Fast Charger Home or Commercial Use

Customization:	Available
Connector Type:	CCS1, CCS2, CHAdeMO, GB/T
Installation:	Wall Mounted

Send Inquiry

Product Description

Basic Specifications

Model NO.

MD-ME-20KW/30KW/40KW

Location

Public/Commercial/Home Use

Charging Interfaces

Single or Dual Interface

Start Mode

RFID, Mobile App, Credit Card

Rated Power

20kW / 30kW / 40kW / 60kW

Input Voltage

400V±15% AC

Output Voltage

150-1000V DC

Protection Rating

IP54 Waterproof

Wall-Mounted Commercial EV DC Charging Station

Guaranteed Security

🛡️ IP54 protection rating: Waterproof, dust-proof, flame retardant.
🛡️ Multi-protection: Over temperature, overload, short circuit, and leakage protection.
🛡️ Safety: Emergency stop function included.

Flexible Installation

🏗️ Wall-mount or Pedestal-mount options.
🏗️ Small footprint suitable for any location.
🏗️ Robust components designed for indoor & outdoor use.

Easy to Use

📱 8'' LCD touch screen with multi-language interface.

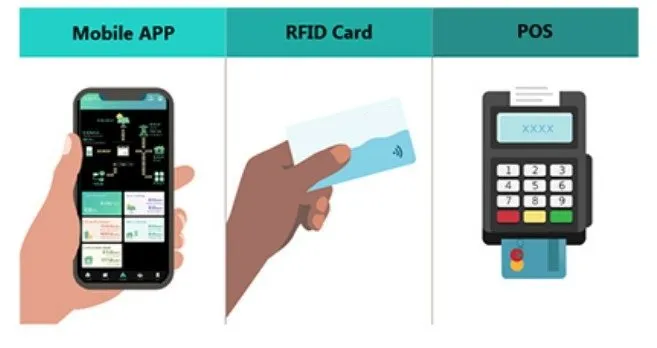

📱 Secure authentication through RFID, mobile Apps, or POS.
📱 Plug & Charge optional for seamless experience.

General Specifications

Category	Item	20KW Parameter	40KW Parameter
Input	Input Voltage	3-phase 400V ± 15% AC
	Working Frequency	45~65Hz
	Power Factor	≥0.99
Output	Efficiency	≥94%
Output	Max Output Current	66A	132A
Interface	Display	8'' LCD Touchscreen
Interface	Payment	Mobile APP / RFID / POS
Environment	Protection	IP54 / Forced Air-Cooling
Mechanical	Dimension	690mm584mm1686mm (±20mm)

Service & Support

Warranty Period: 2 years comprehensive coverage.

Pre-Sales Service: Professional advice on configuration, installation, and investment planning.

After-Sales Service: Free installation instructions, troubleshooting support, and free replacement parts within the warranty period.

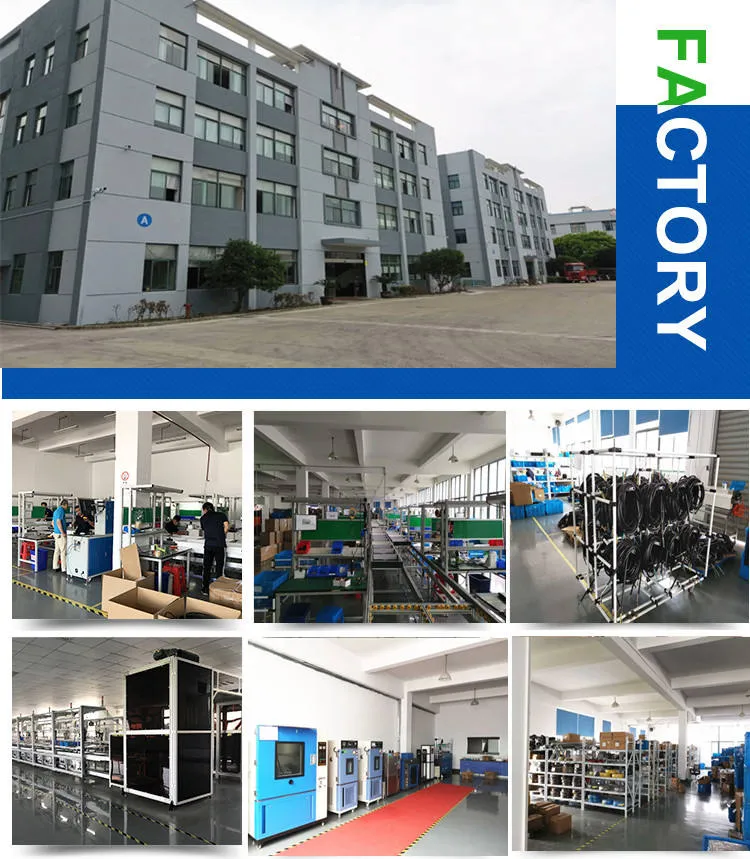

Manufacturing Excellence

As a leading supplier of electric vehicle components, we provide a full range of EV charging solutions including plugs, sockets, cables, and high-power DC charging stations. All products carry international certifications such as CE, TUV, and UL, ensuring the highest safety standards for global markets.

Frequently Asked Questions

Q1: Can this charger be used outdoors? A: Yes, the station features an IP54 protection rating, making it waterproof and dust-proof for both indoor and outdoor commercial environments.

Q2: What charging standards does the station support? A: Our stations support major global standards including CCS, CHAdeMO, and GBT, with output voltages up to 1000V DC.

Q3: How can users pay for the charging service? A: The system supports multiple payment and authentication methods, including RFID cards, mobile applications, and POS terminal payments.

Q4: Is the charging station compatible with network management? A: Yes, it supports OCPP 1.6J or OCPP 2.0 protocols and can connect via 4G (GSM/CDMA) or Ethernet for remote monitoring and management.

Q5: What is the lead time and warranty? A: We offer a 2-year warranty. Production status is tracked throughout the process to ensure timely delivery and quality control.

Q6: Does it support dual-cable charging? A: Yes, models are available in both single-cable and dual-cable configurations to meet different site requirements.
