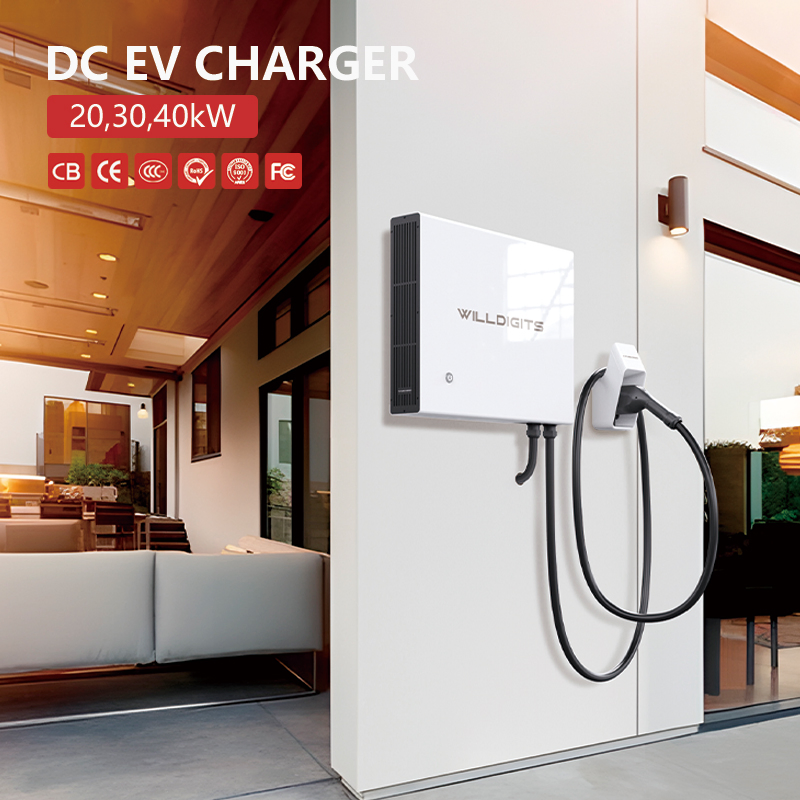

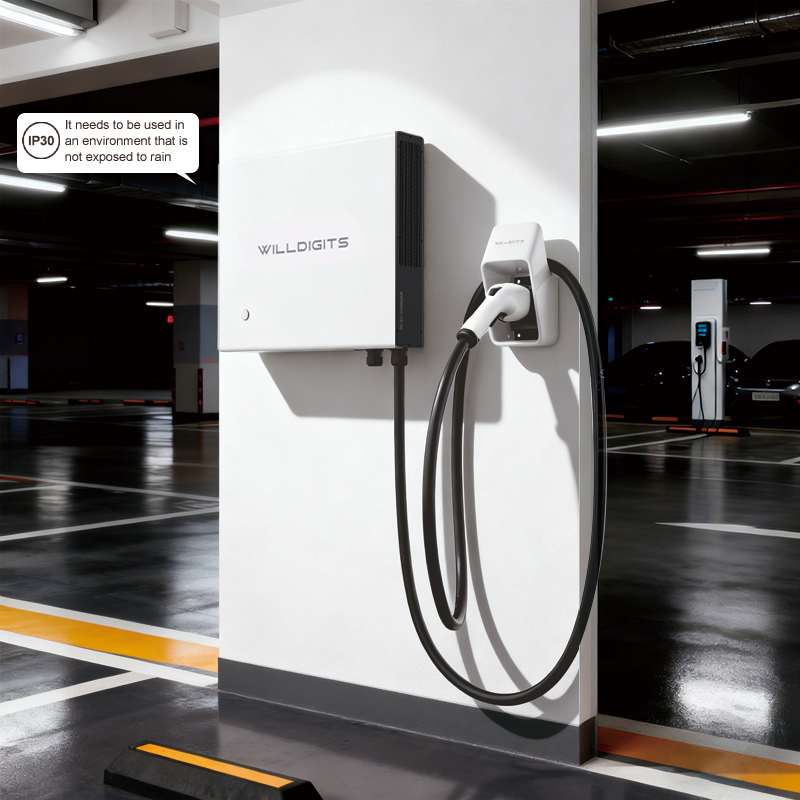

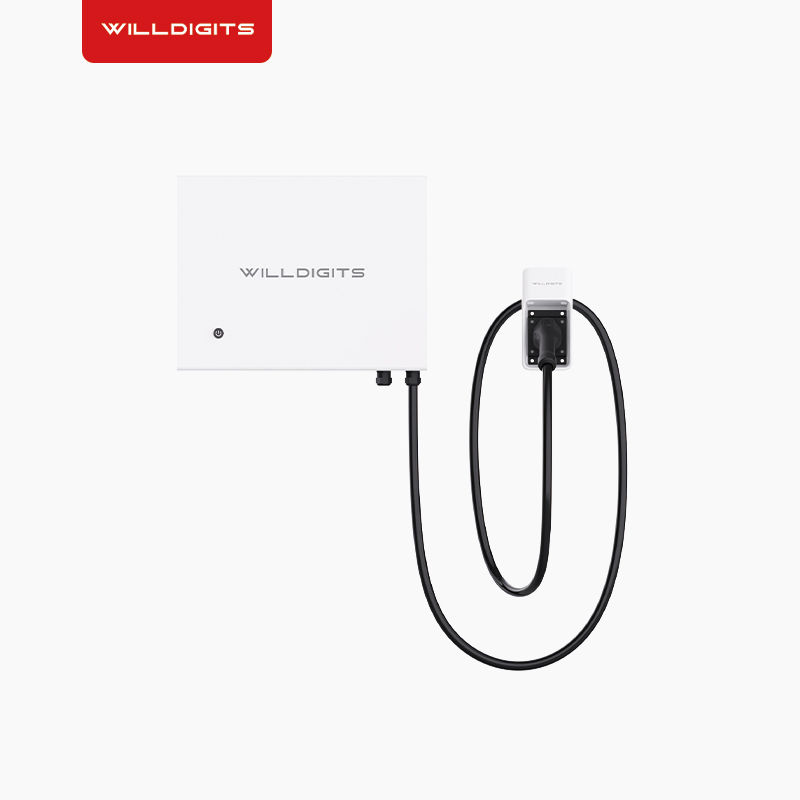

WY02A 20kW-40kW Wall-Mounted DC Charging Station

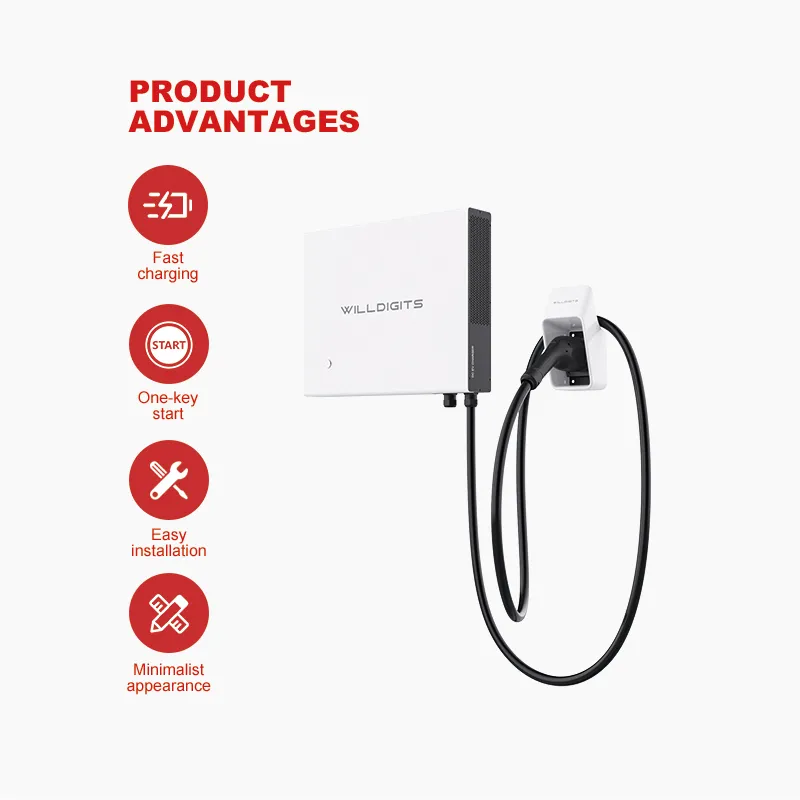

This wall-mounted DC charging station is designed with a "minimalist-first" philosophy, featuring a classic black-and-white color scheme. Through distinct functional zones and bold color contrasts, it achieves a clean, sharp aesthetic with a distinctly modern feel. We deliberately eliminated redundant decorative elements, allowing the product to return to its core charging function.
For human-machine interaction, we've significantly streamlined the operation process. After inserting the charging cable, users simply press the physical button on the side of the station to initiate charging with a single press—no complex settings or multiple screen taps required. Combined with high-brightness LED status indicators, charging progress and any abnormalities are immediately apparent.
Technical Specifications
Category
Parameter
Details
Appearance
Dimensions
600mm x 470mm x 100mm
Weight
40kg (wall-mounted)
Cable Length
3m

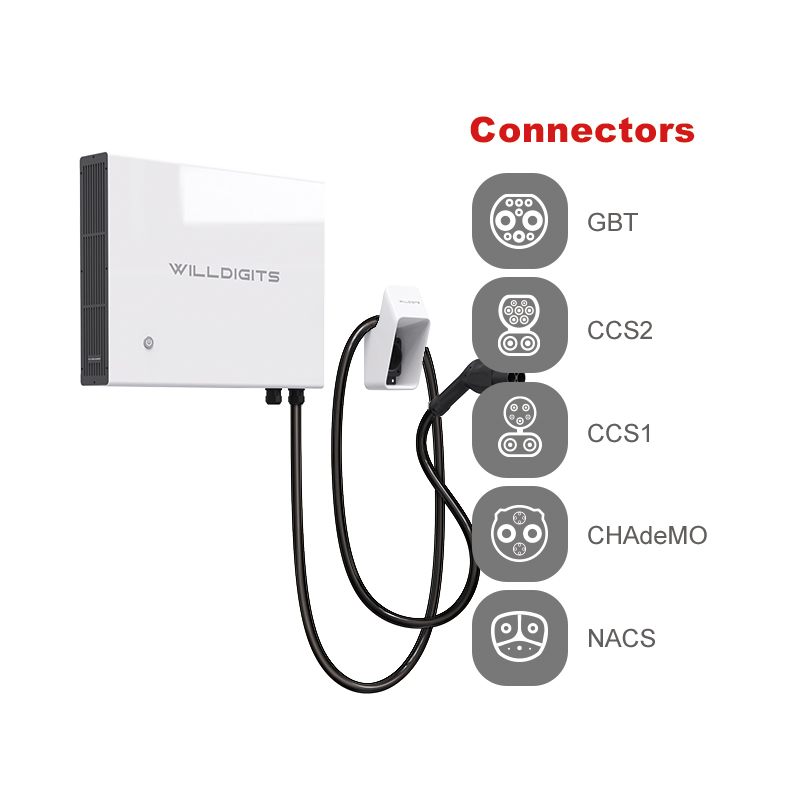

Connectors
GBT, CCS2, CCS1, CHAdeMO, NACS
Electrical
Input Voltage
400VAC / 480VAC (3P+N+PE)
Output Voltage
200 - 1000VDC
Output Current
1-125A
Rated Power
20-40kW
Environment
Temperature
-30°C to 75°C
Protection
IP54 || IK10
Altitude
< 2000m
Manufacturing & R&D
We are a high-tech enterprise dedicated to providing comprehensive energy solutions. Our team consistently prioritizes technology as our foundation, integrating R&D, design, manufacturing, sales, and service under one roof. With R&D at its core, our technical team has provided support to dozens of charging pile manufacturers worldwide through independently developed products such as CCU, PCU, and SECC.
Packing & Certifications
Frequently Asked Questions
Are you a factory or trading company?
We are a professional manufacturer of new and sustainable energy applications for over 5 years.
What is the warranty period for the chargers?
The warranty ranges from 12 to 60 months. During this period, we provide technical support and replace parts free of charge.
What is your typical delivery time?
Generally, it takes 5 to 25 working days after receiving advance payment, depending on the order quantity and items.
Do you test all goods before delivery?
Yes, we perform 100% testing on all products before they are dispatched.
What is the difference between a Movable Charger and a Wallbox?
The main difference is the application: Portable chargers are for mobility and temporary top-ups, while wall-mounted chargers are fixed installations for regular use.
Can you produce based on specific samples?
Yes, we can manufacture products according to your physical samples or technical drawings.
