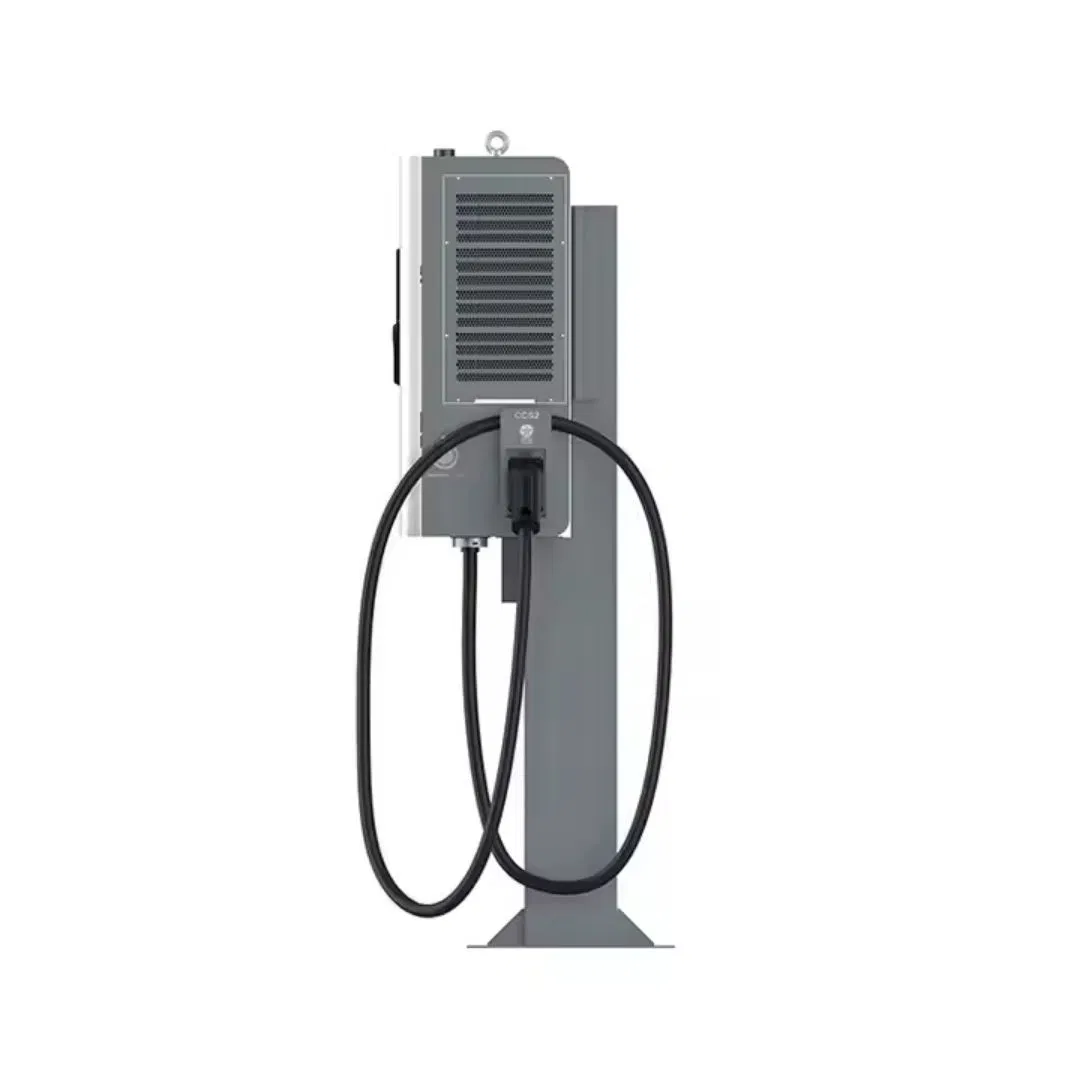

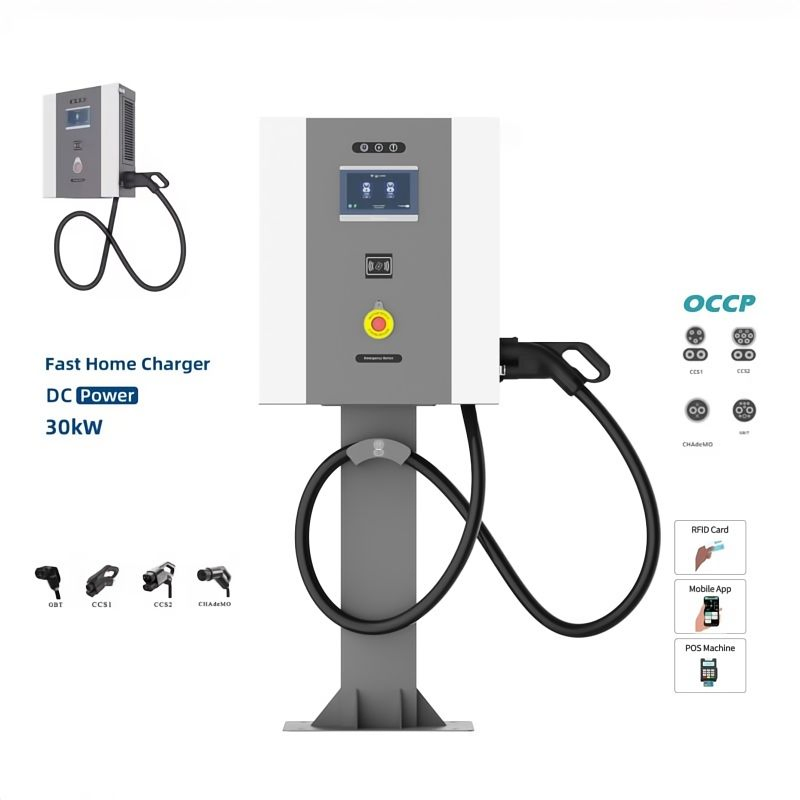

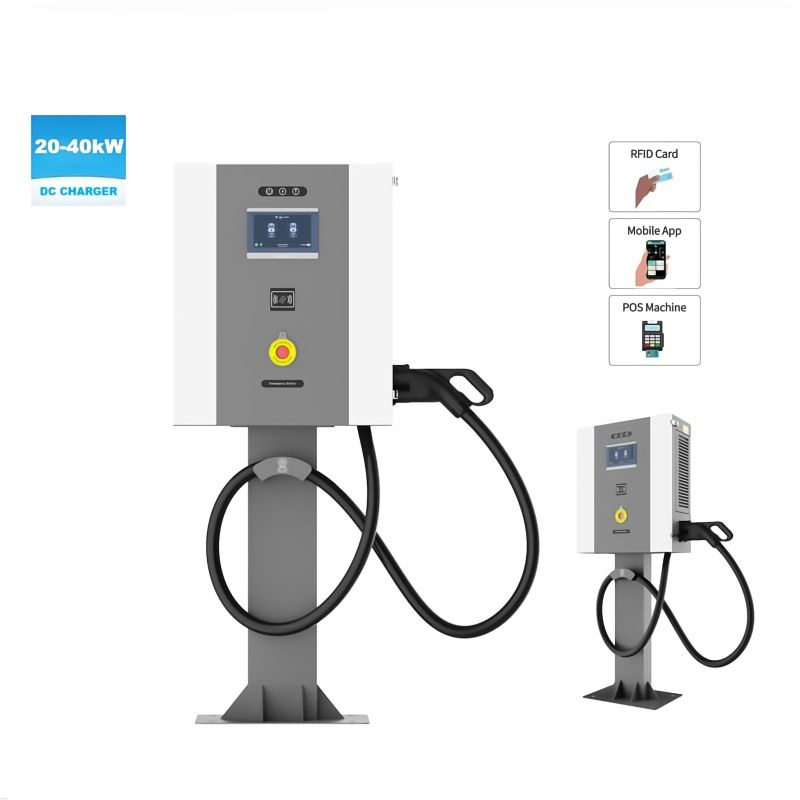

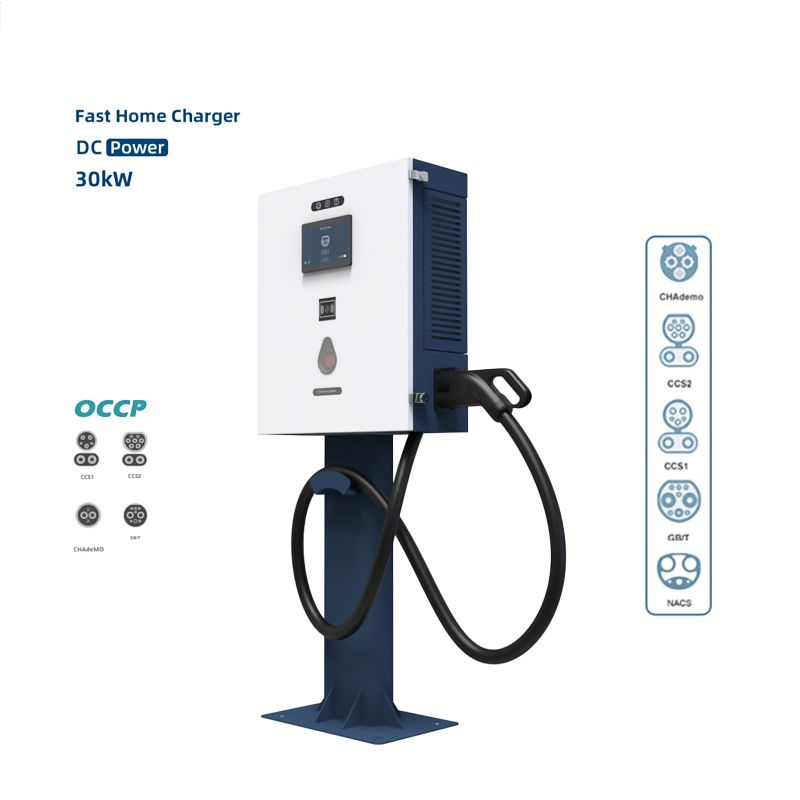

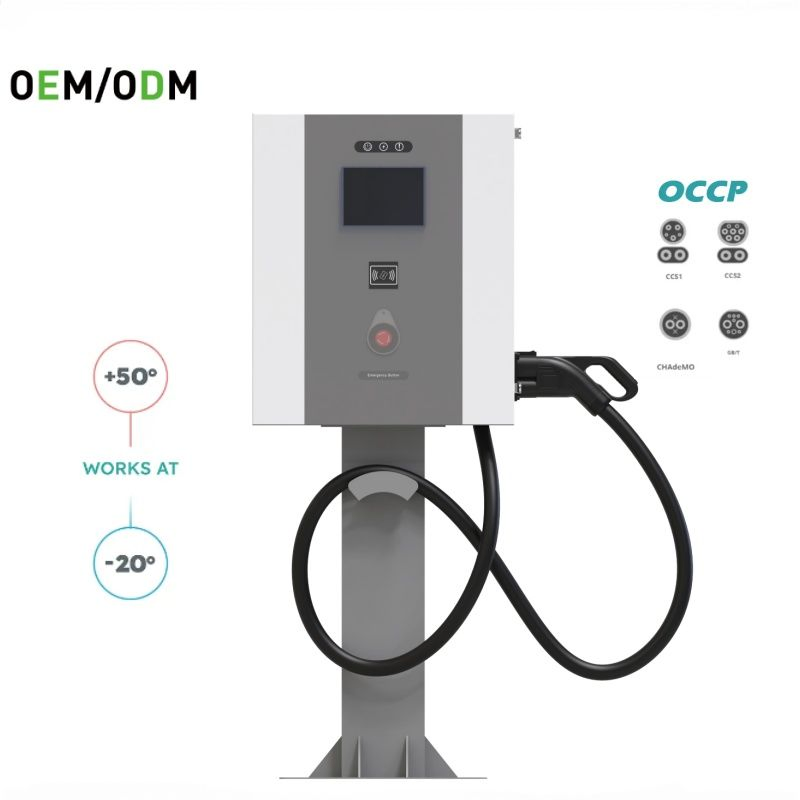

Residential Type 2 Wallbox Charging Station Pile DC PV Powered EV Charger

Basic Information

Model NO.

WHY

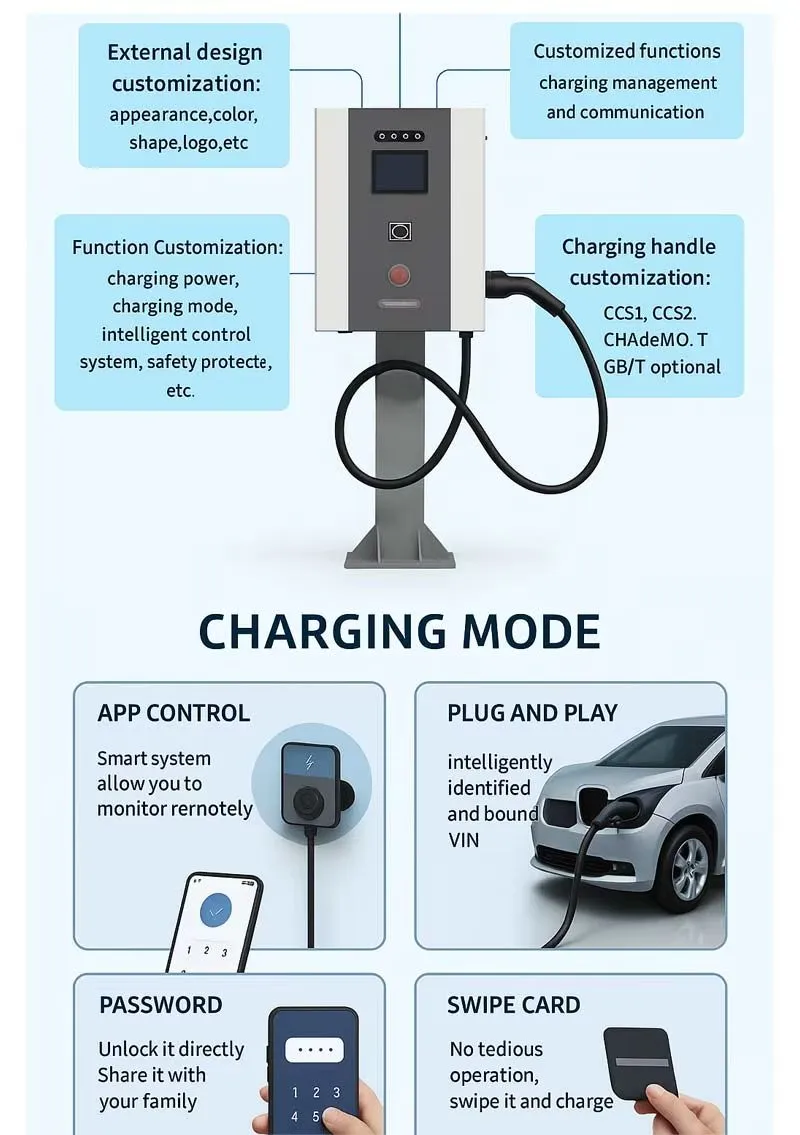

Start Mode

Mobile Remote, RFID, APP/Plug-and-Charge

Rated Power

20-60kw

Rated Voltage

200-1000V/DC

Maximum Efficiency

≥96% (100% Loading)

Gun Type

CCS1, CCS2, CHAdeMO

Communication

OCPP 1.6j/LAN/4G

I.P. Protection

IP54

Product Description

This factory-supplied DC EV Fast Charging Station is designed for electric vehicles requiring rapid power delivery. Available in 20KW, 30KW, and 40KW configurations, it supports multiple standards including CCS1, CCS2, GBT, and CHAdeMO, making it a versatile solution for commercial and private fast-charging needs.

High-efficiency power conversion (up to 96%)
Multiple charging interface options for global compatibility
Robust IP54 protection for outdoor and indoor installation
Integrated smart communication via OCPP 1.6j

Technical Parameters

Specifications	Model WHY-20kW	Model WHY-30kW	Model WHY-40kW
Input Voltage	400VAC / 480VAC (3P+N+PE)
Input Frequency	50/60Hz
Output Voltage	200 - 1000VDC
Max Output Power	20KW	30KW	40KW
Max Output Current	60A	100A	130A
Efficiency	≥94% at nominal output power
Operating Temp	-30°C to 55°C
Protection	Over/Under Voltage, Overload, Short Circuit, Over-temp, Surge
Housing	Galvanized Steel, IK10 Impact Resistance

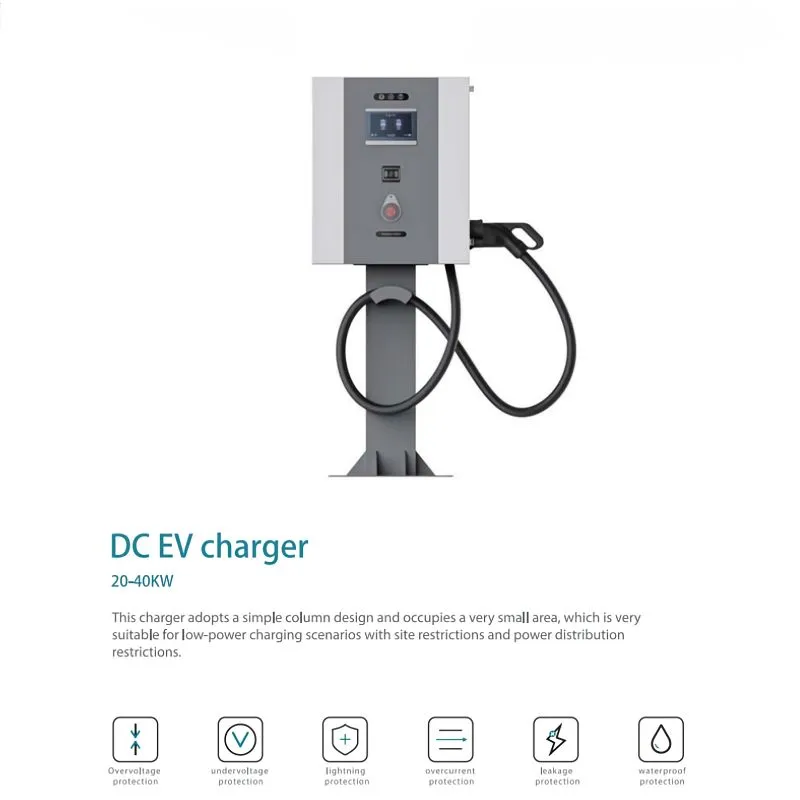

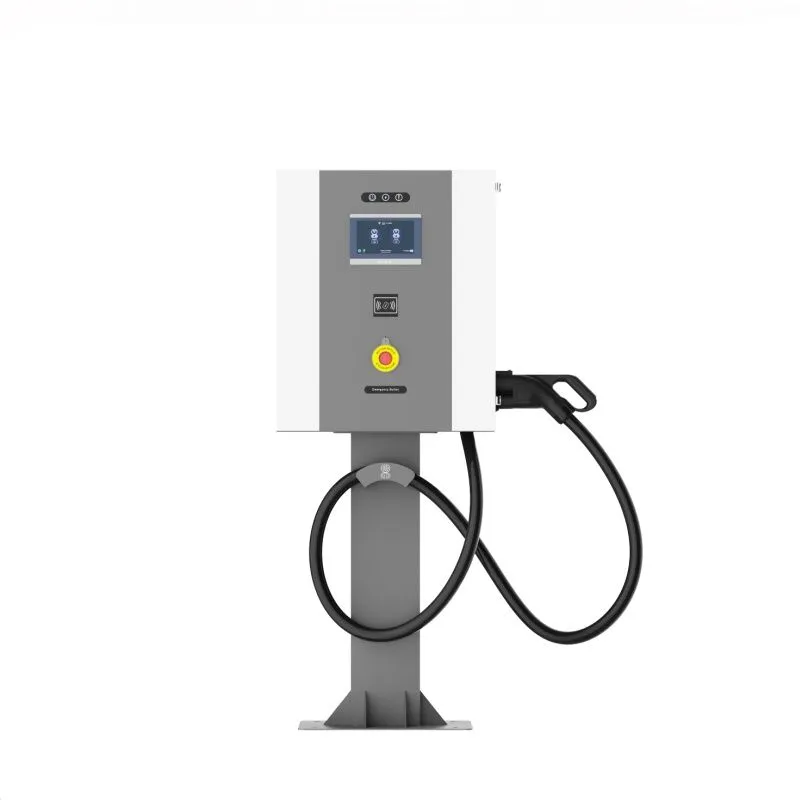

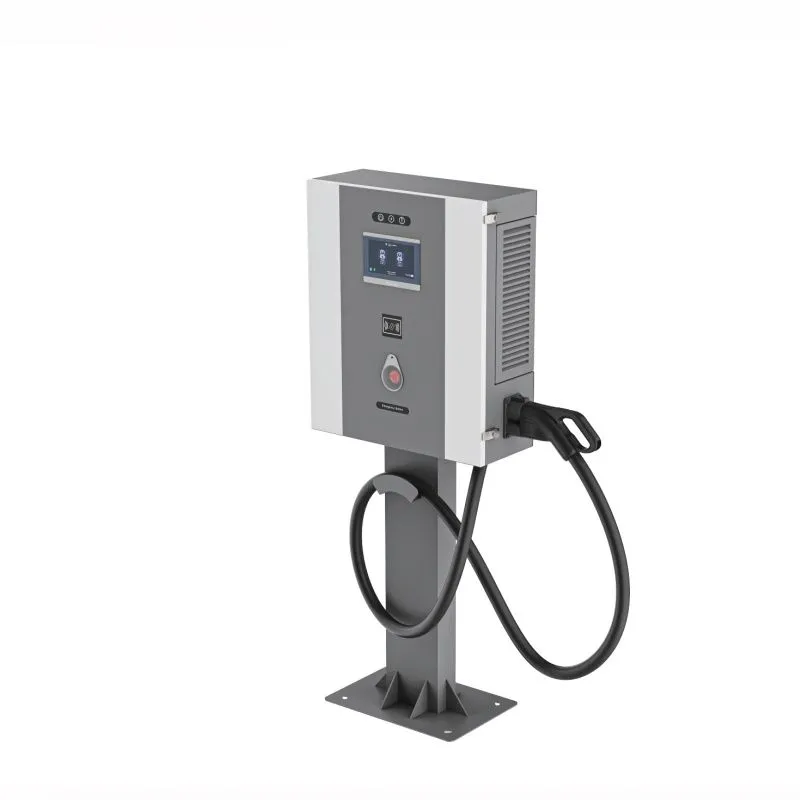

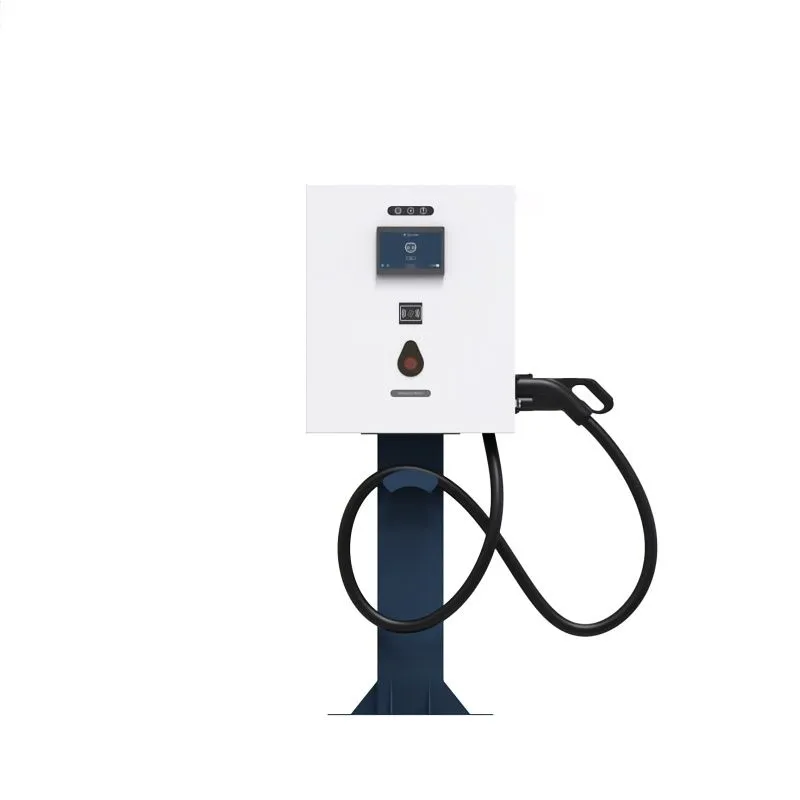

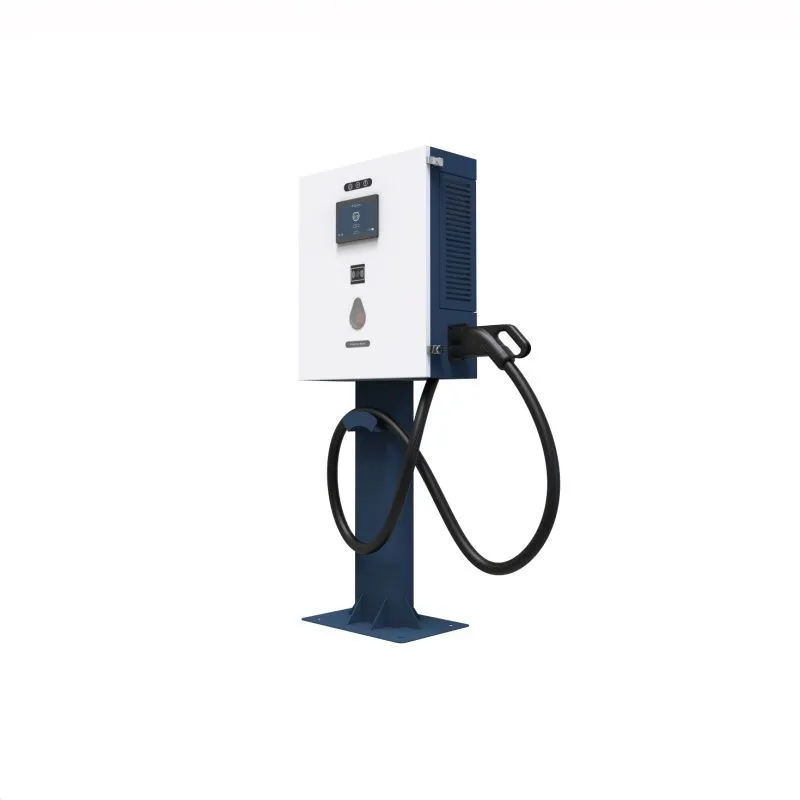

Detailed Photos

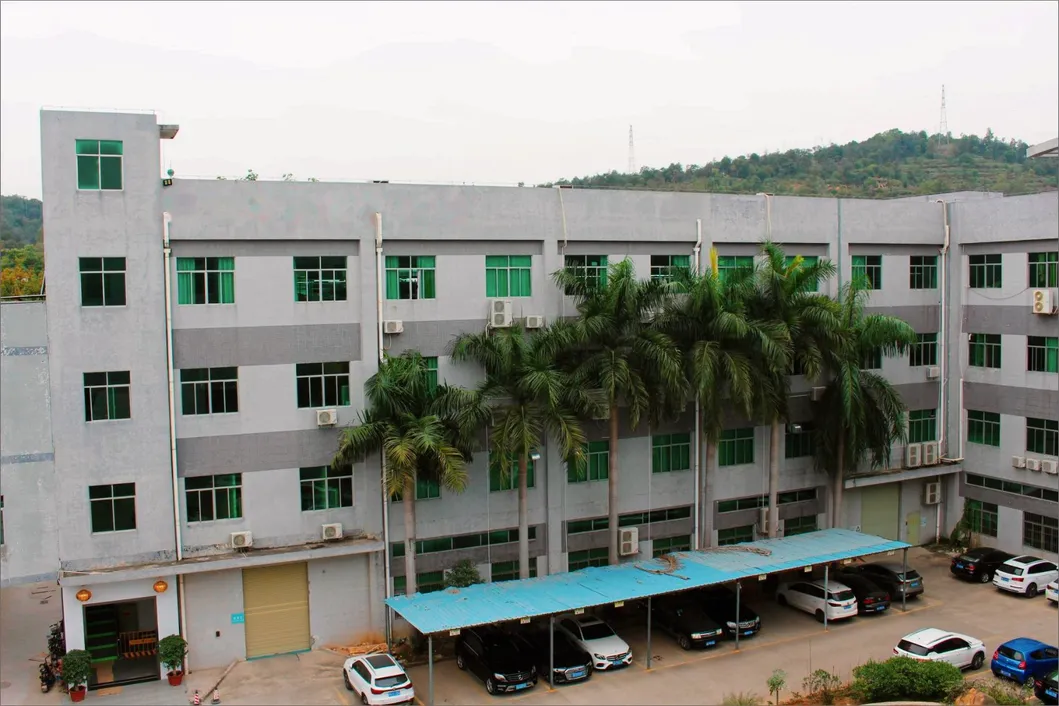

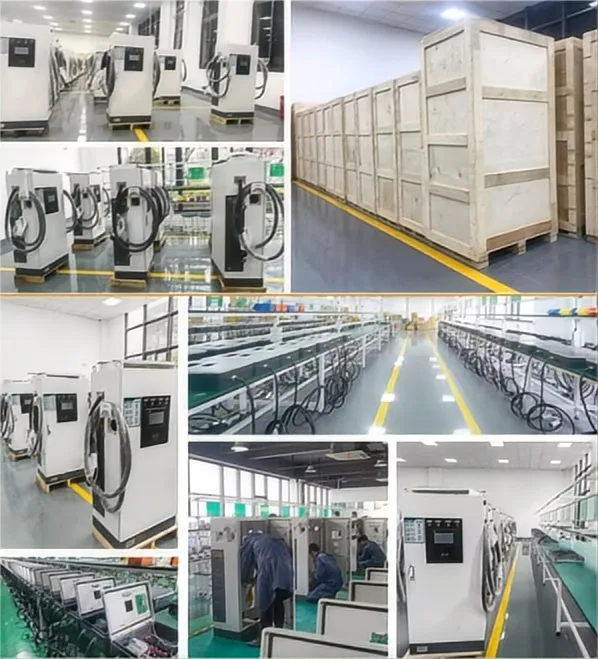

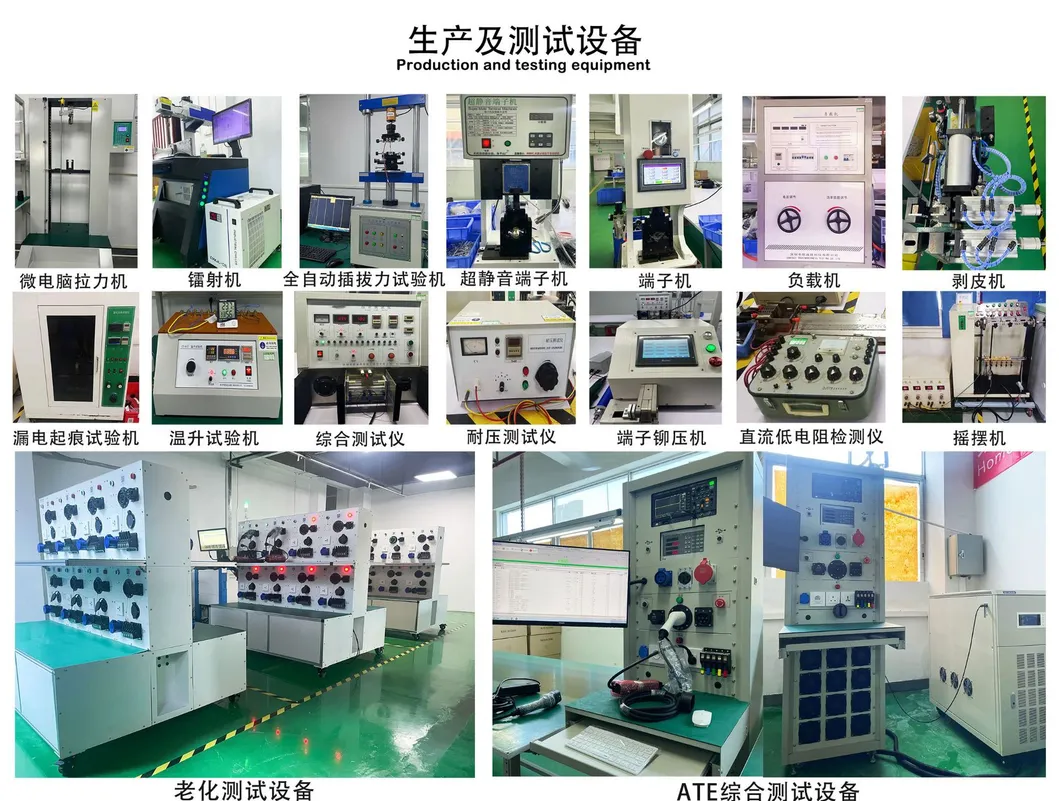

Company Profile & Capability

The company is a dedicated provider of renewable energy systems, focusing on creating energy-efficient and low-pollution solutions. With a comprehensive industrial chain integrating R&D, design, and manufacturing, we specialize in green energy products including high-performance EV chargers.

Certifications & Packaging

Frequently Asked Questions

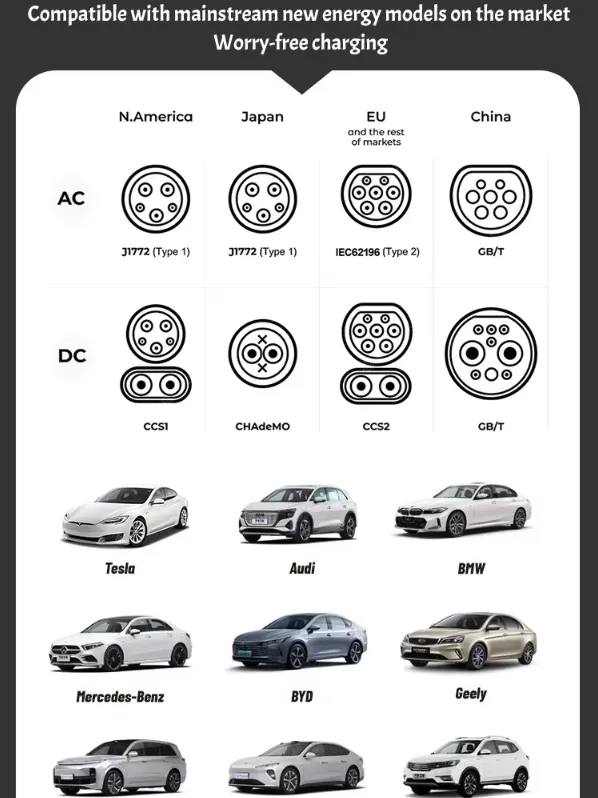

1. Which EV models are compatible with this DC charger?

This charger supports CCS1, CCS2, GBT, and CHAdeMO standards, making it compatible with almost all modern electric vehicles including Tesla (with adapter), BMW, Volkswagen, Nissan, and more.

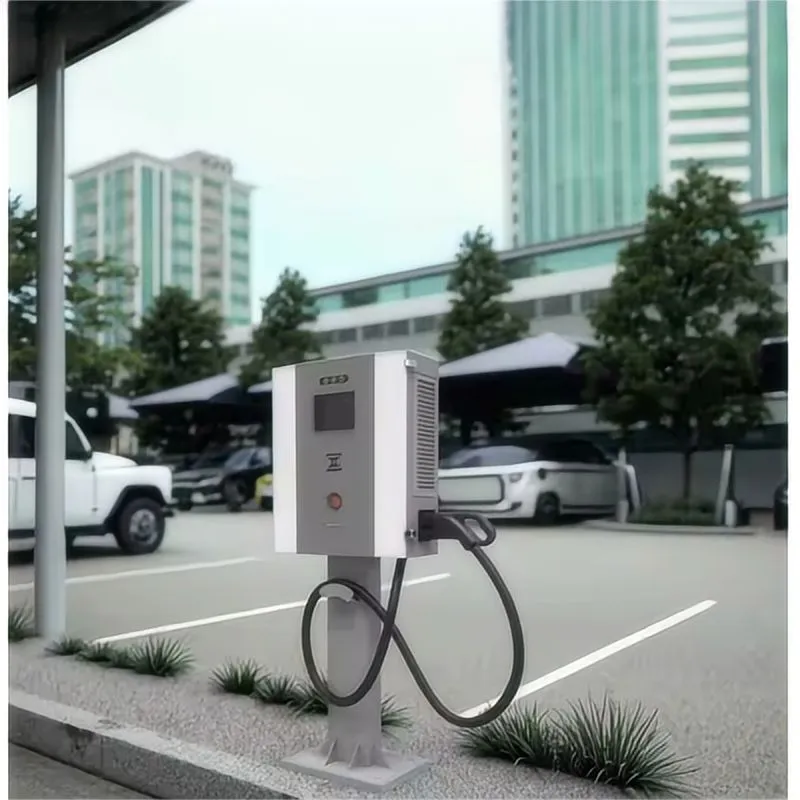

2. Can this charging station be installed outdoors?

Yes. The station has an IP54 protection rating, which means it is protected against dust and water splashes, and the galvanized steel housing offers IK10 impact resistance, making it suitable for outdoor environments.

3. How long does it take to charge a vehicle?

Charging speed depends on the vehicle's battery capacity and the charger's power rating (20kW-40kW). Generally, these DC fast chargers can provide an 80% charge in 30 to 90 minutes for most standard passenger EVs.

4. Does the charger support remote management?

Yes, it supports OCPP 1.6j protocol, allowing it to connect to LAN or 4G networks for remote operation, monitoring, and firmware updates through mobile apps or management platforms.

5. What safety protections are built into the device?

The charger includes comprehensive safety features: over-voltage and under-voltage protection, overload protection, short-circuit protection, over-temperature protection, and surge protection to ensure both vehicle and user safety.

6. What are the installation requirements?

The station requires a 400V/480V AC three-phase power supply (3P+N+PE). It can be mounted on a wall or installed as a floor-standing unit using a pillar.
