Solar Powered DC EV Charging Station 7kw 11kw 22kw Car Battery Charger Fast Charging

1 / 5

Solar Powered DC EV Charging Station 7kw 11kw 22kw Car Battery Charger Fast Charging

Customization:	Available
Connector Type:	CCS1/CCS2/Chademo/GB
Number of Charging Interfaces:	One Pile with Multiple Charges

Send Inquiry

Product Description

📋 Basic Product Information

Model

EV Charger AC 3.5-22KW

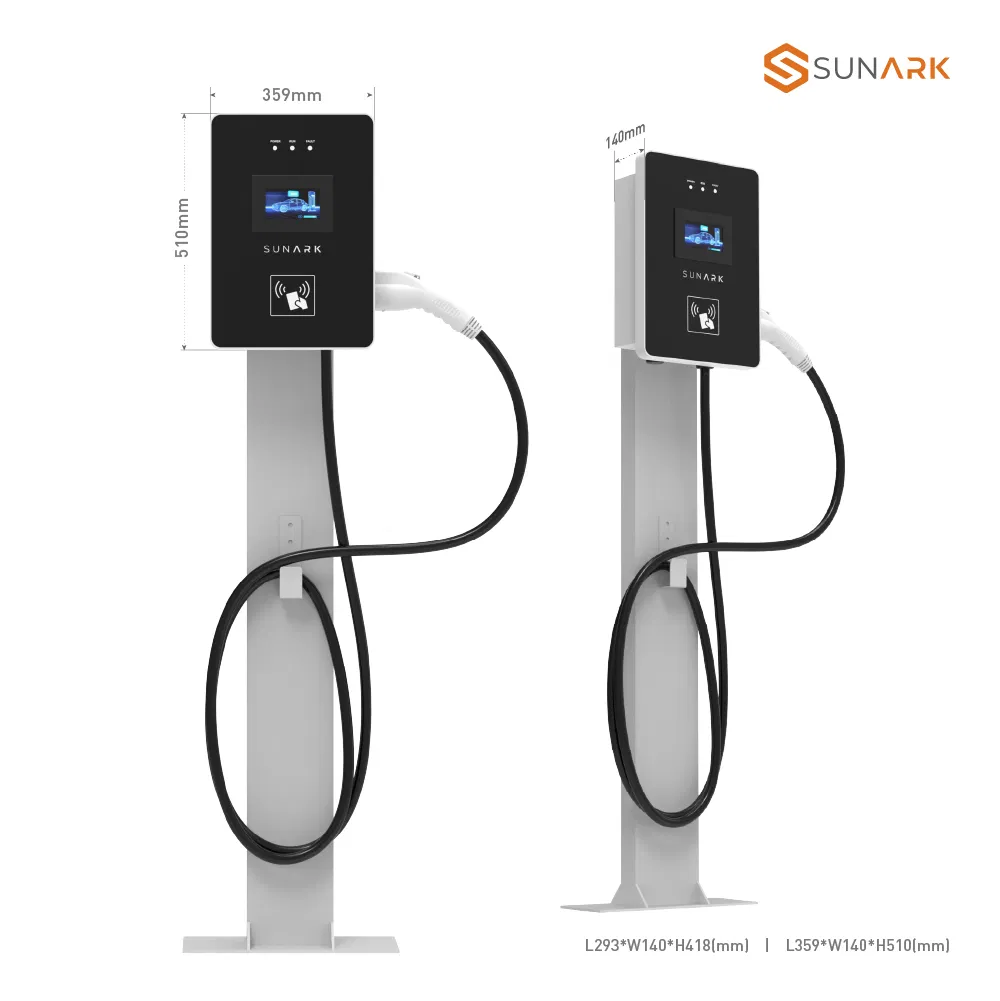

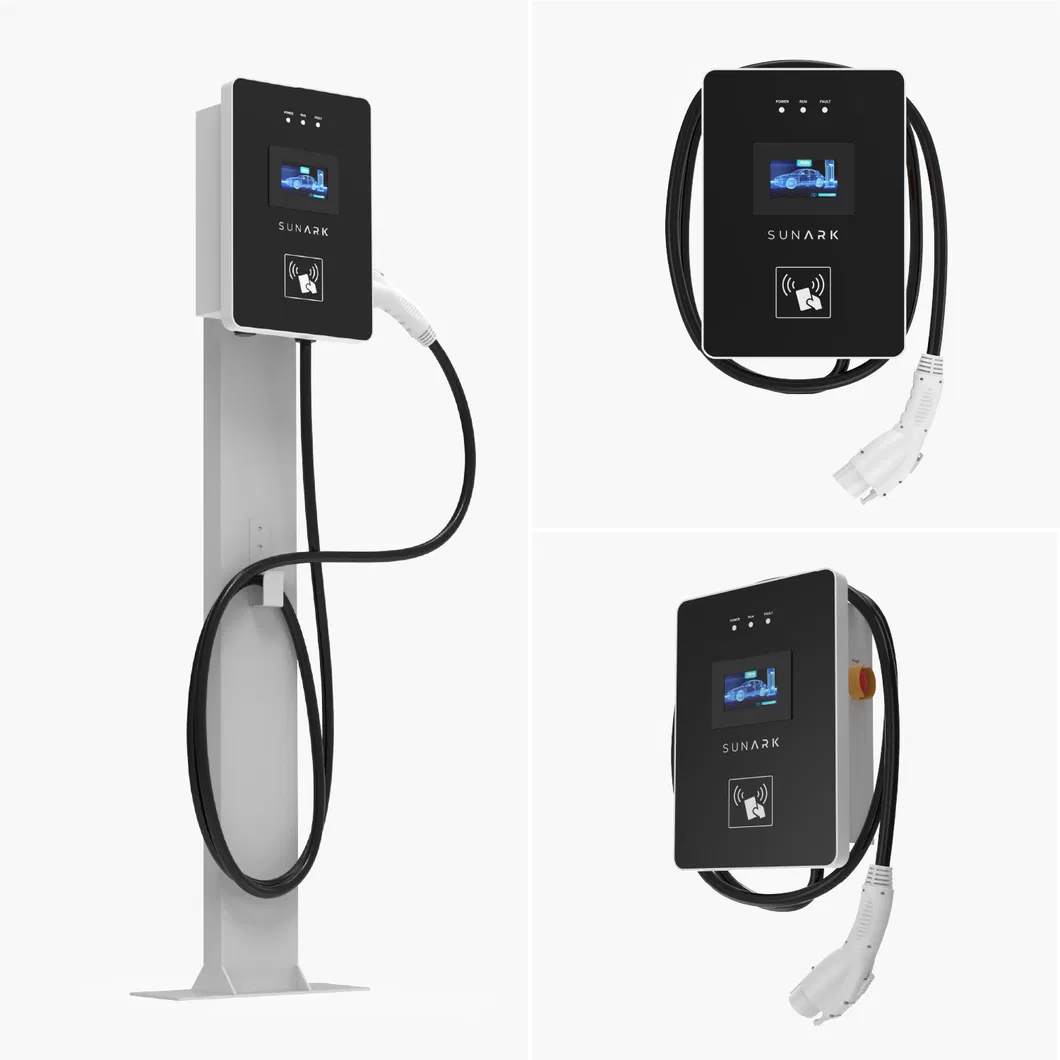

Installation

Wall Mounted / Column Type

EV Charger Type

Capacity

3.5/7/11/22kw

IP Ratings

IP 54

Cooling

Natural Cooling

Display

4.3 Inch Touch Screen

Authentication

APP, QR Code, RFID Card, Password

Protocol

OCPP 1.6J (Optional)

Interface

Ethernet/3G/4G/WiFi (Optional)

Product Description

Technical Requirements
Parameters	Requirements
Capacity	3.5KW	7KW	11KW	22KW
Nominal Input Voltage	AC220V±15% / AC240V±15%		AC380V±15% / AC240V±15%	AC380V±15%
Input Frequency	50±3Hz
Ambient Temperature	-25 to 55°C
IP Ratings	IP 55
Safety Protection	Over Current, Under Voltage, Over Voltage, Residual Current, Surge Protection, Leakage Protection, Short Circuit, Over Temperature

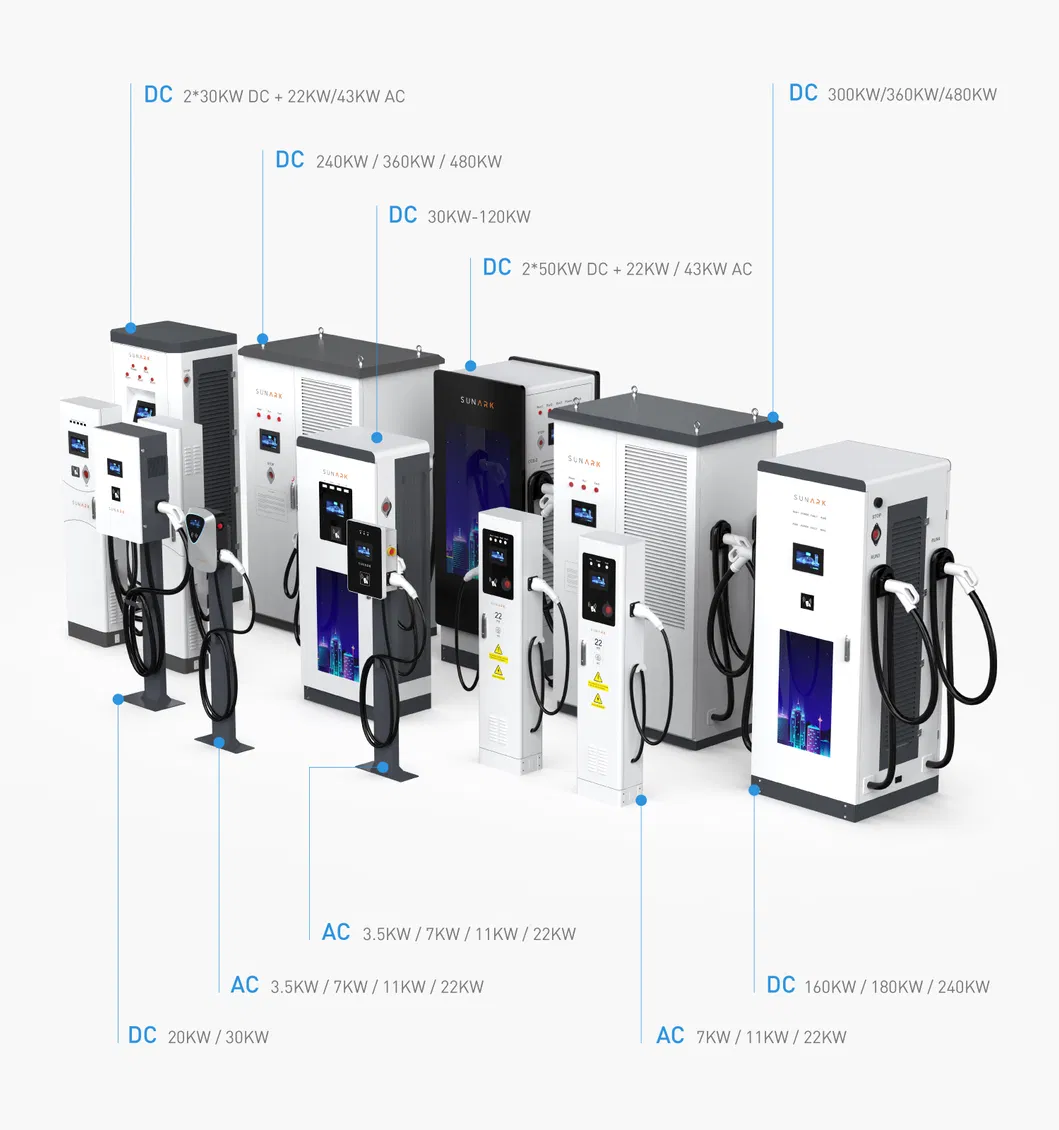

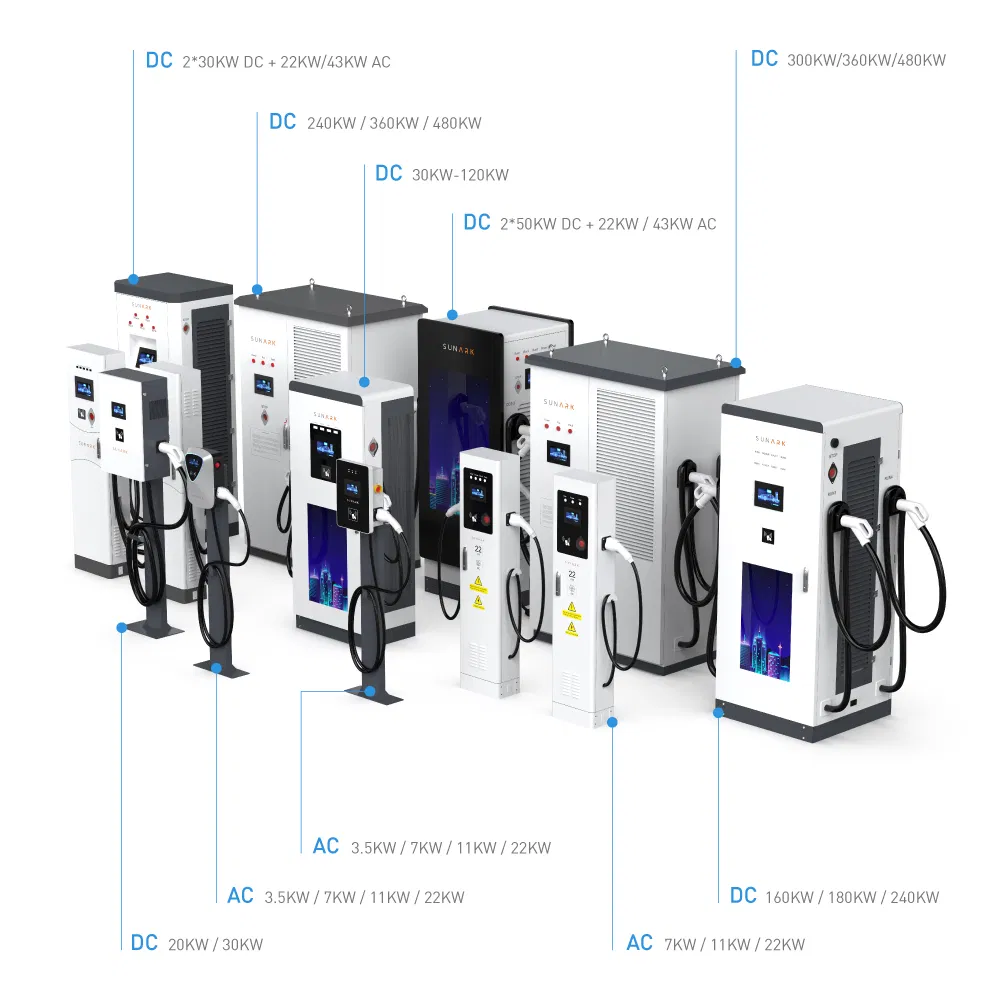

Product Series Overview

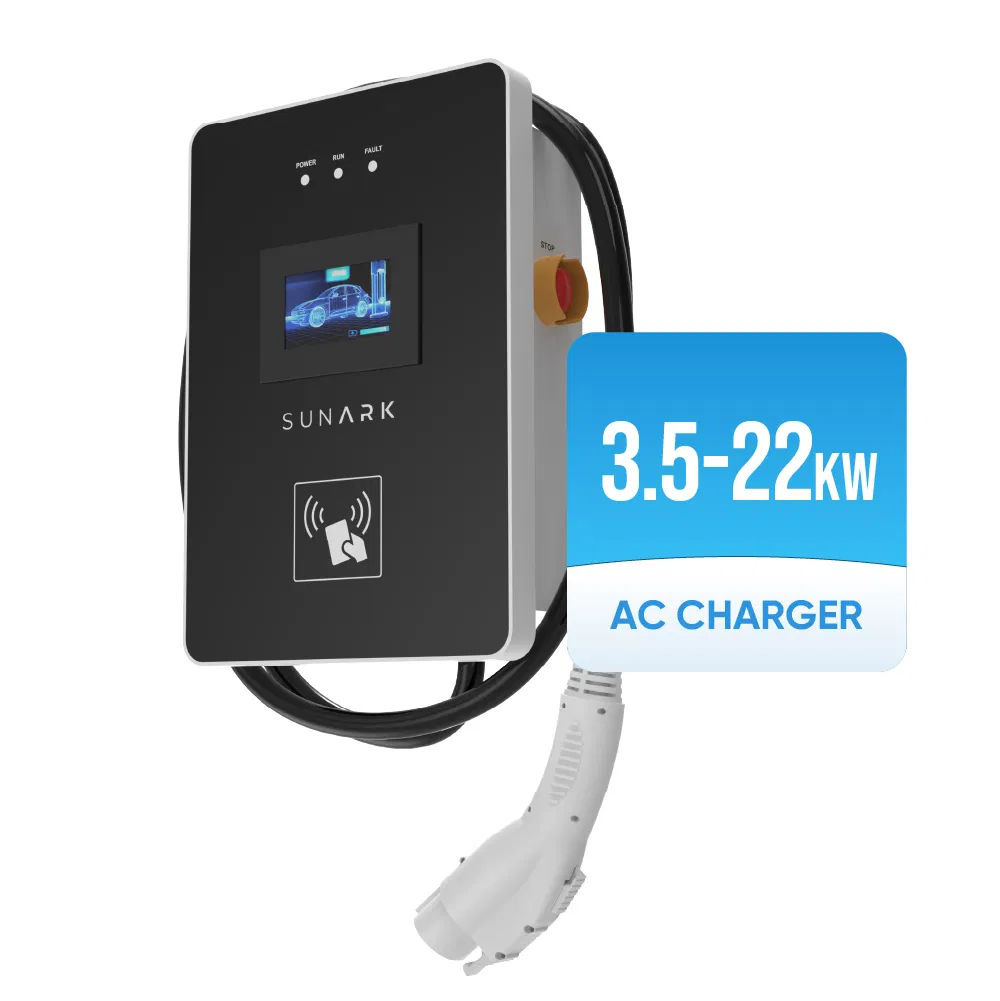

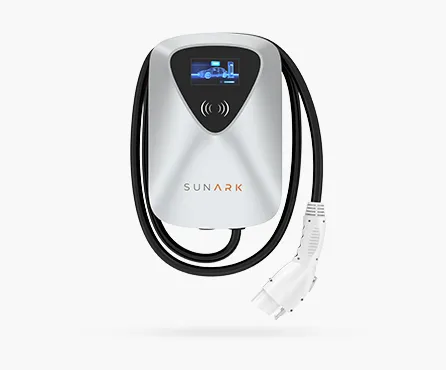

AC 3.5-22KW Series

Rated Power: 3.5/7/11/22KW

Output Current: 16/32/50A

Output Voltage: 220~240V, 380-415V

Connector: CCS1/2, CHAdeMO

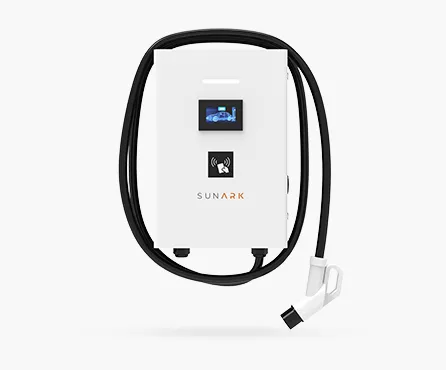

DC 20-30KW Series

Rated Power: 20/30KW

Output Current: 80/125A

Output Voltage: 200~750V, 150-500V

Connector: CCS1/2, CHAdeMO

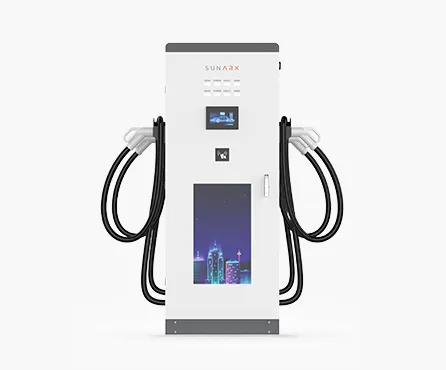

DC 90-240KW High Power

Rated Power: 90/120/180/240KW

Output Current: 200A*2

Output Voltage: 200~750V, 150-500V

Connector: CCS1/2, CHAdeMO

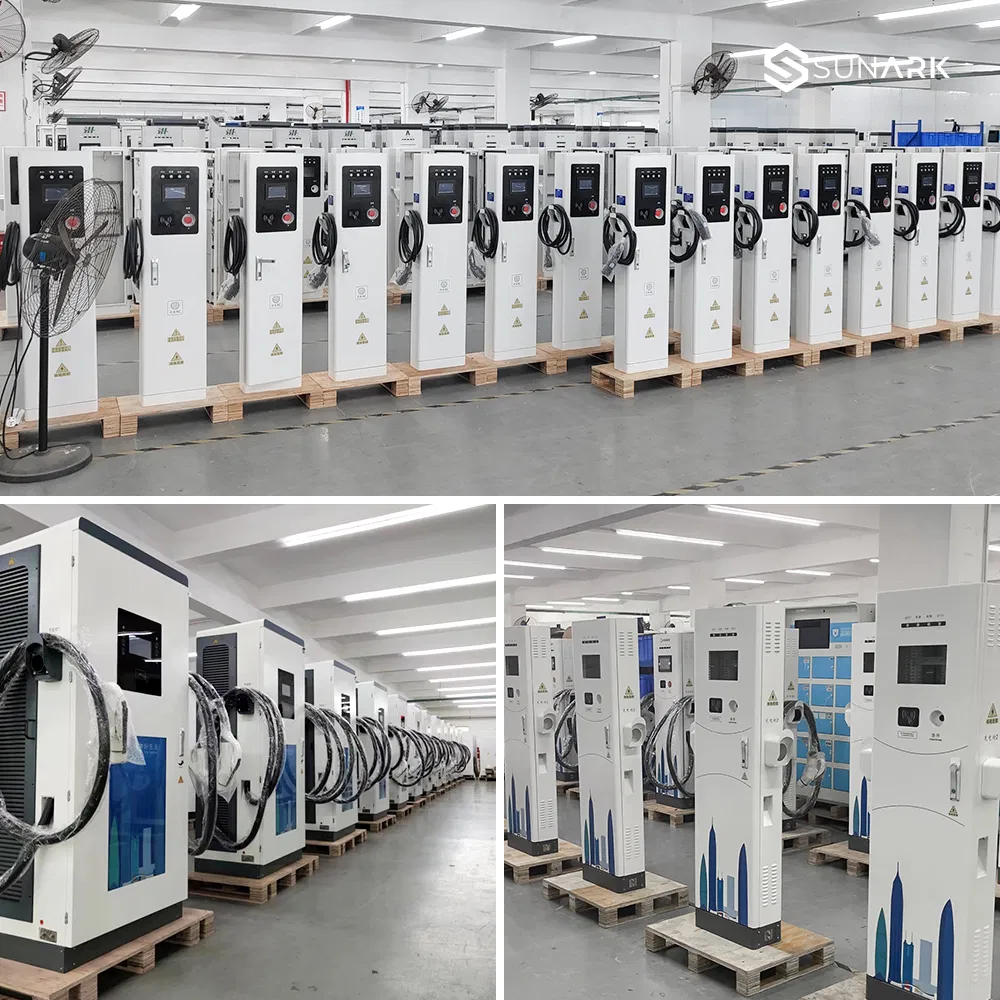

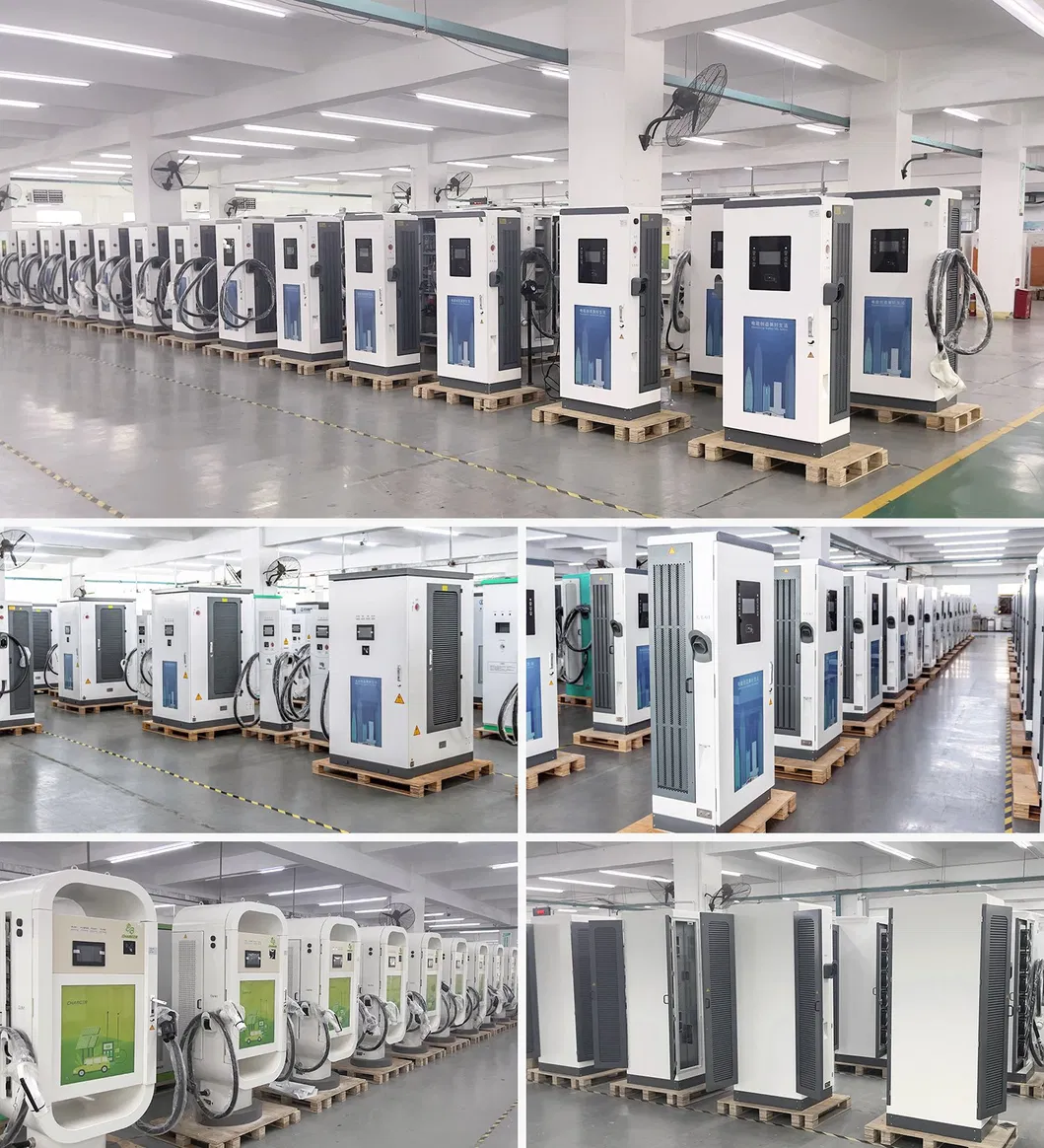

Our Manufacturing Facility

Our facility introduces and develops advanced technology, adopting the world's most advanced production equipment and testing measures to ensure long product life and high energy density. With a dedicated team of research engineers and professors, we focus on high-tech energy solutions that meet and exceed international standards.

❓ Frequently Asked Questions

What is the range of power capacities available for these chargers?

We offer a wide range of charging solutions from 3.5KW for residential use up to 480KW for ultra-fast public charging stations.

Are the chargers suitable for outdoor installation?

Yes, our chargers are IP54 or IP55 rated, providing protection against dust and water, making them ideal for both indoor and outdoor environments.

How can users authenticate and start a charging session?

Users can start charging via a dedicated mobile APP, RFID cards, QR codes, or by entering a password on the interface.

Do your chargers support the OCPP protocol?

Yes, our chargers support the OCPP 1.6J protocol as an optional feature, allowing for seamless integration with various Central Management Systems (CMS).

What safety protections are built into the equipment?

The units include comprehensive safety features such as over-current, over-voltage, under-voltage, leakage, short circuit, surge, and over-temperature protection.

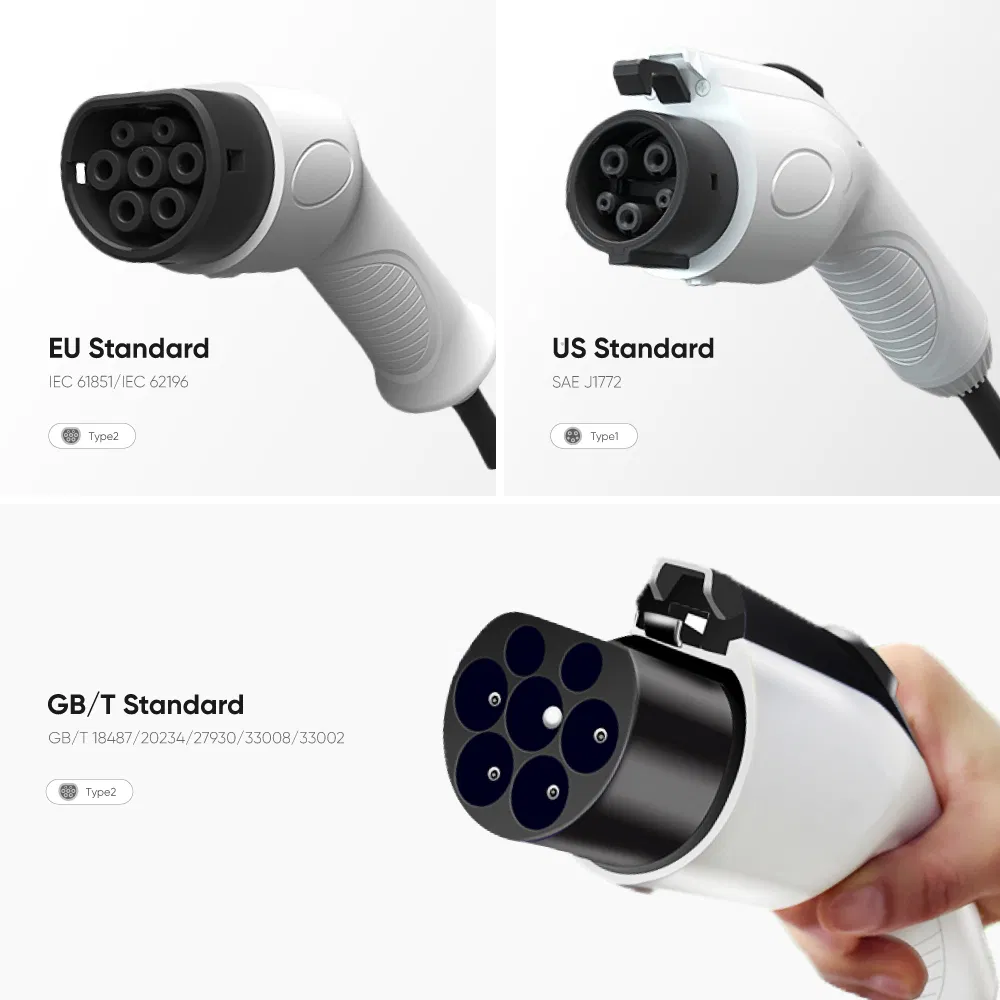

What types of charging connectors are supported?

Our equipment is compatible with major international standards including CCS1, CCS2, and CHAdeMO, as well as Type 1 and Type 2 AC connectors.
