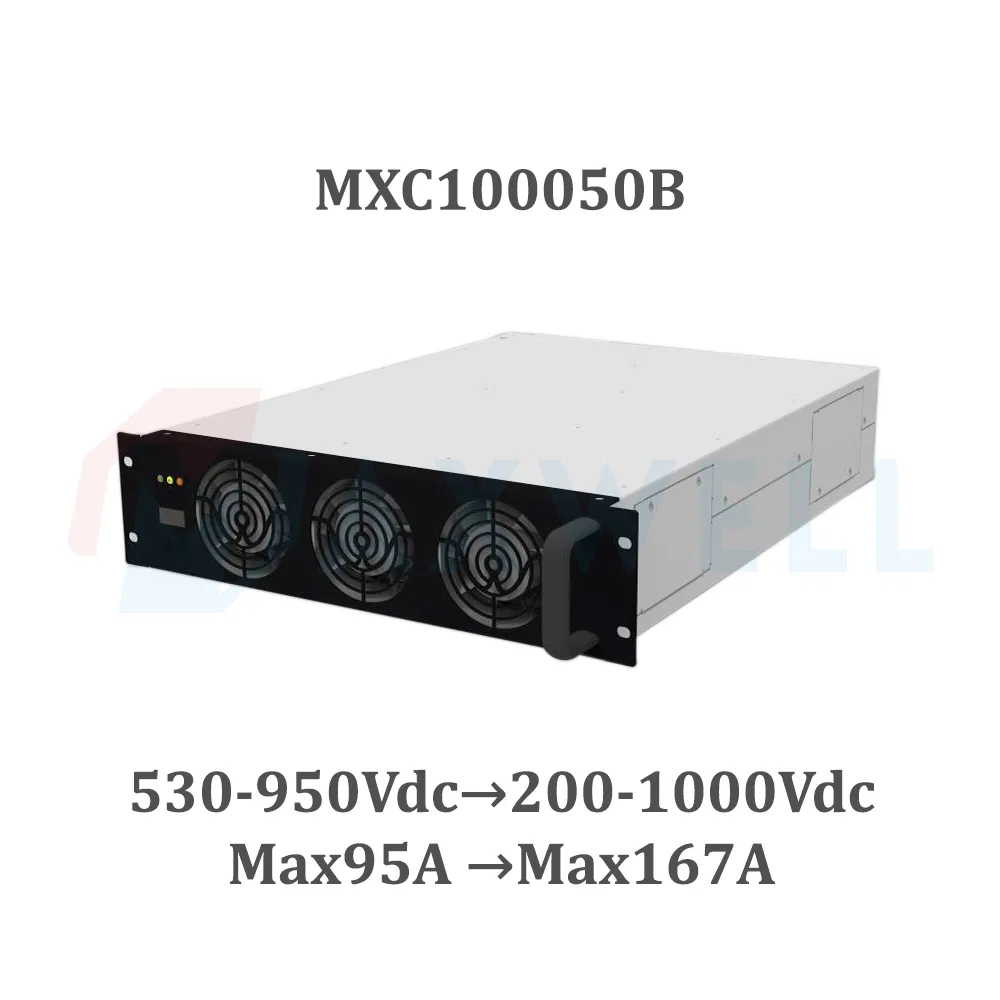

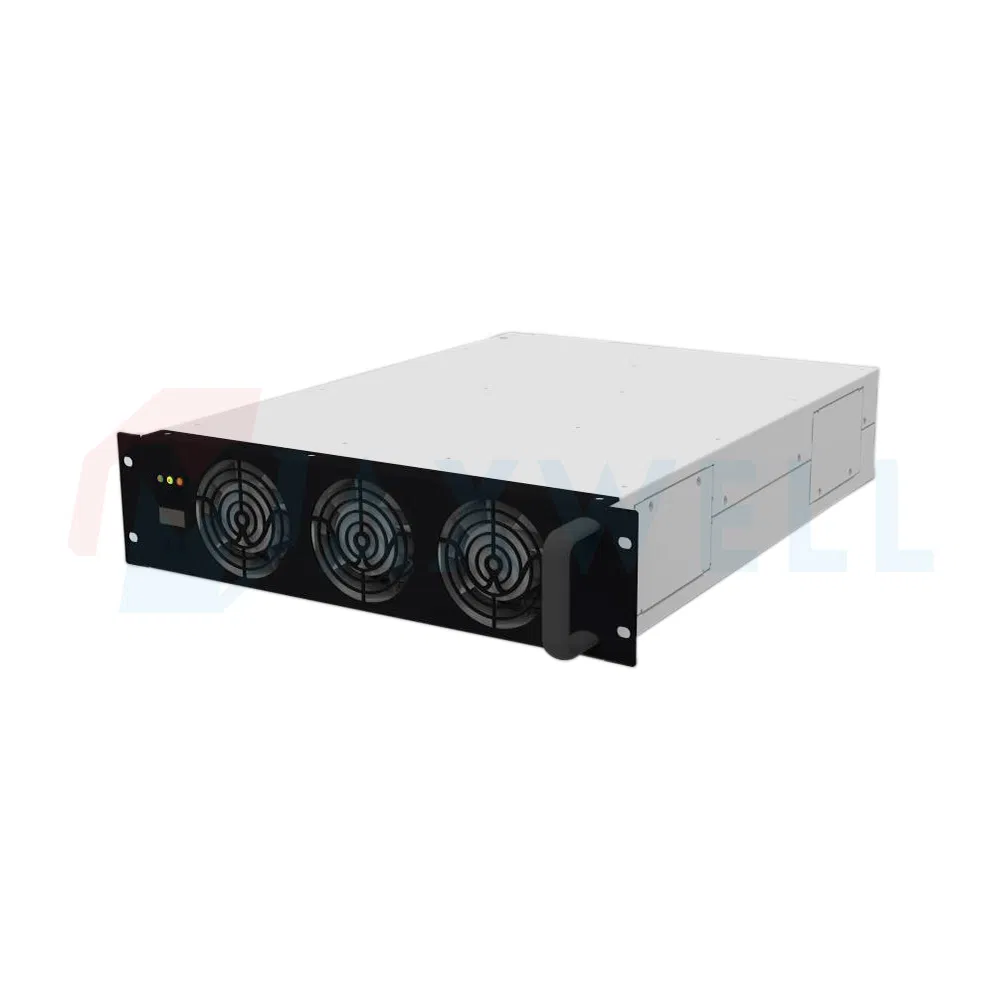

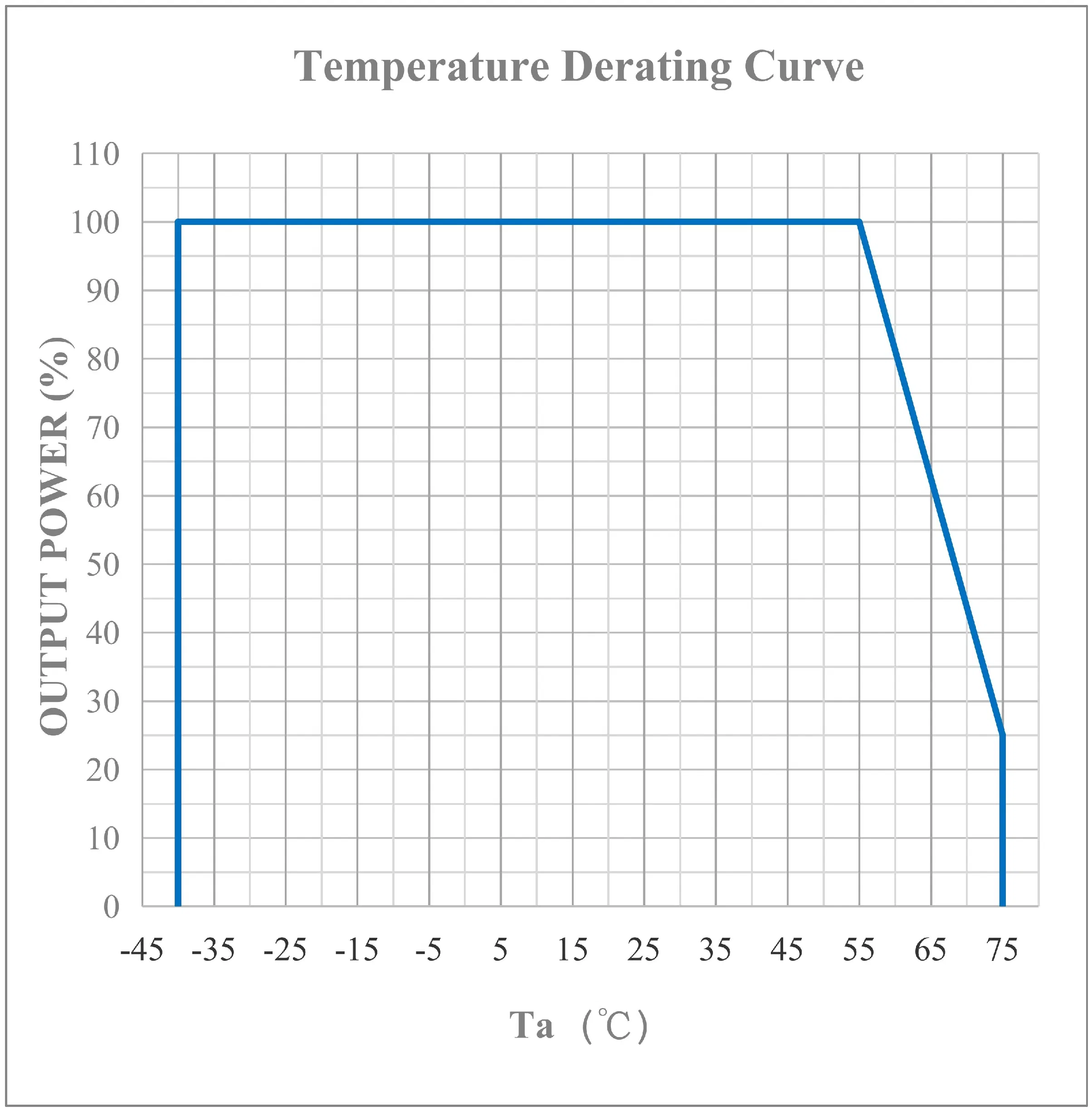

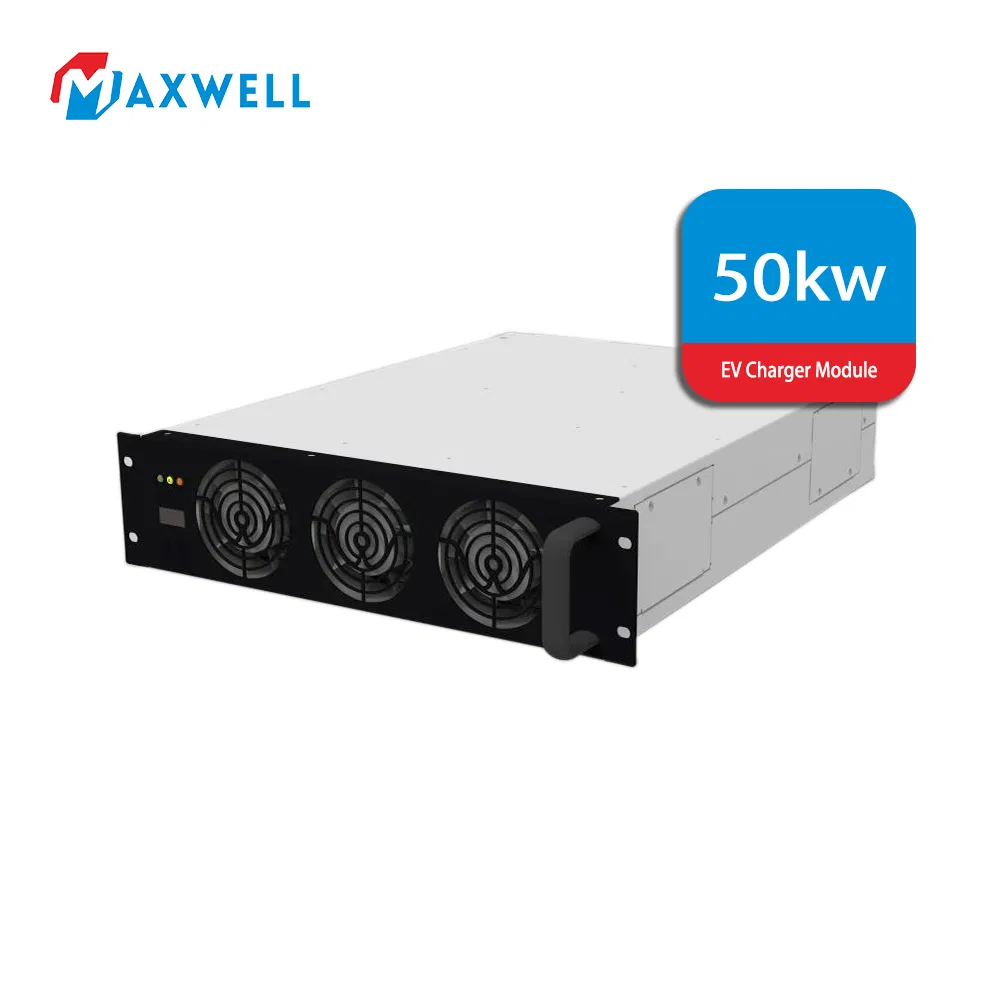

MXC100050B is a high-frequency isolated bi-directional DC-DC module with core advantageous performance such as ultra-wide voltage range, ultra-high full-load operating temperature and ultra-high efficiency. The strong protection and high power density are also the main features of the module.
MXC100050B can be widely used in interaction between DC bus side and battery side, such as energy storage, PV, ESS and charging, battery cascade utilization, data center and other multi-energy complementary scenarios.
| Module Specifications | |
|---|---|
| Dimensions | 87mm(H)×330mm(W)×450mm(D) |
| Weight | ≤20kg |
| Efficiency (Full Load) | >99% |
| Cooling Mode | Forced air cooling |
| Communication Protocol | CAN Bus |
| Parallel Capacity | ≤60 pcs |
| Indicators | Green: Normal; Yellow: Alarm; Red: Fault |

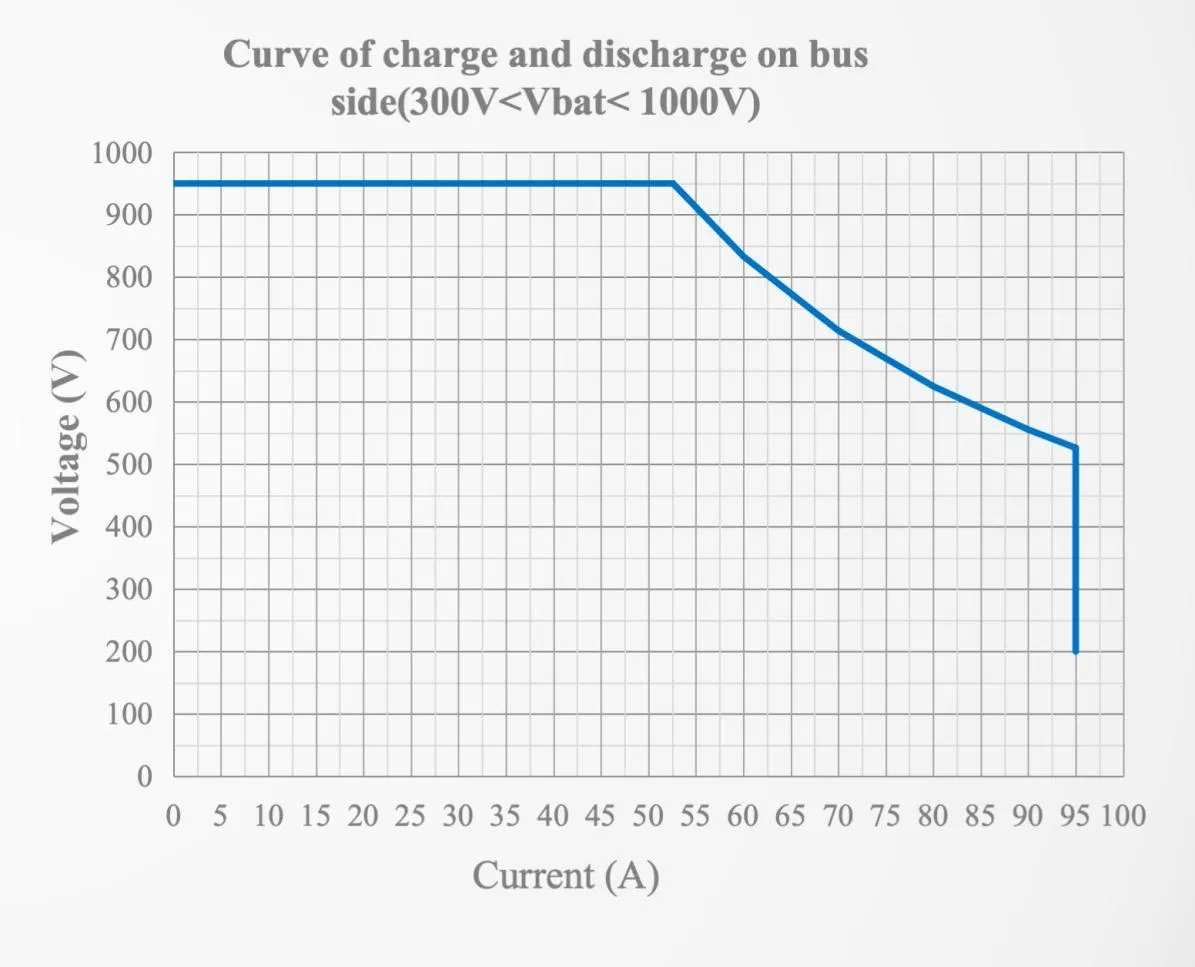

| DC Bus Side | |
| Voltage Range | 530Vdc~950Vdc |
| Current Range | 0A~95A |
| Voltage Precision | ≤±0.5% |
| Battery Side | |
| Voltage Range | 200Vdc~1000Vdc |
| Current Range | 0A~167A |
| Current Sharing Imbalance | ≤±5% |
The company is a state-level high-tech enterprise and one of the leading enterprises of new energy and energy internet. We focus on the research and development, production and sales of power electronic products, positioning services for mid-to-high-end DC power supply system manufacturers. Based on owning independent intellectual property rights, we insist on independent research and development and technological innovation, providing customers with equipment supporting services that realize corporate and customer value together.
With more than ten years of experience, the company has built a high-quality R&D team, actively serving as an explorer and practitioner of technological innovation in the power supply industry. Our products are widely used in automotive, electric power, railway, metallurgy, communications and other fields. We offer more than 20 models of products including 15kW, 20kW, 30kW, 40kW and 50kW series, enjoying a high reputation in the field of new energy vehicle charging stations.
