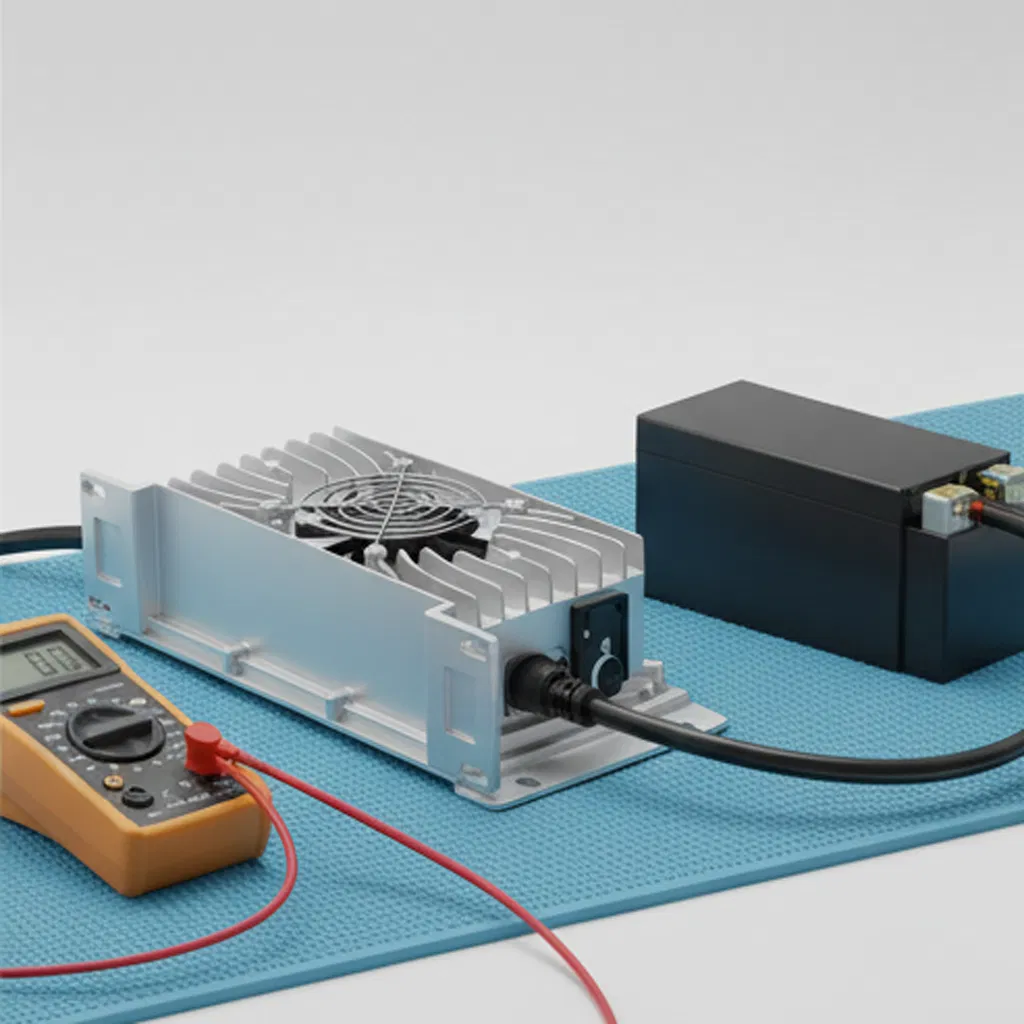

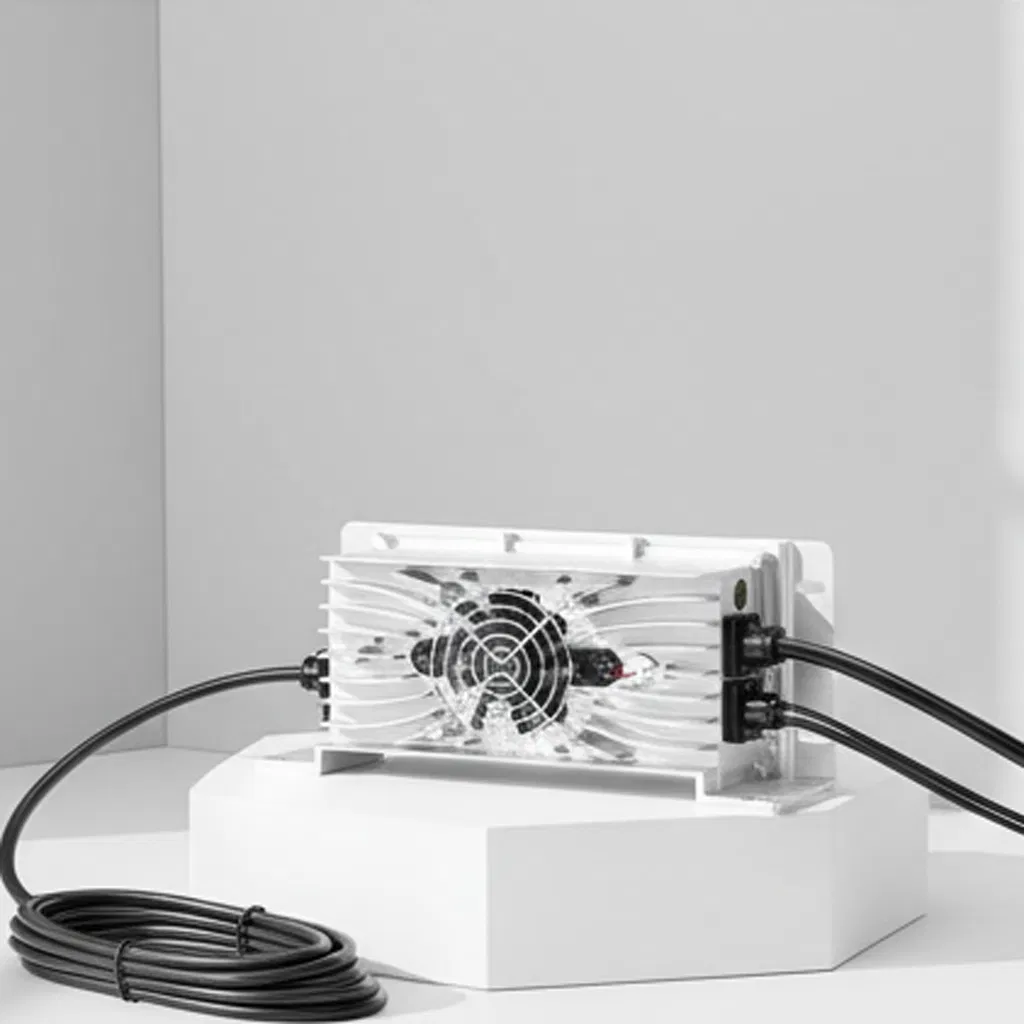

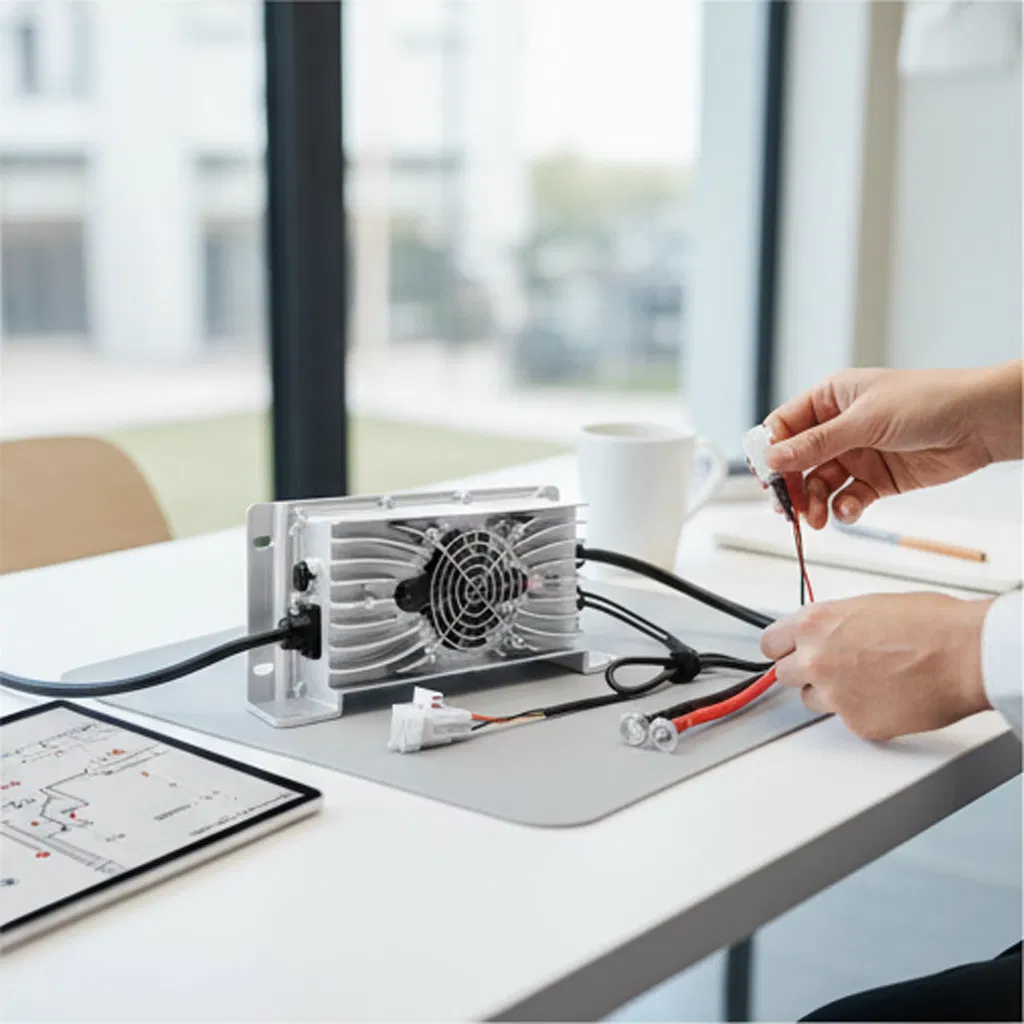

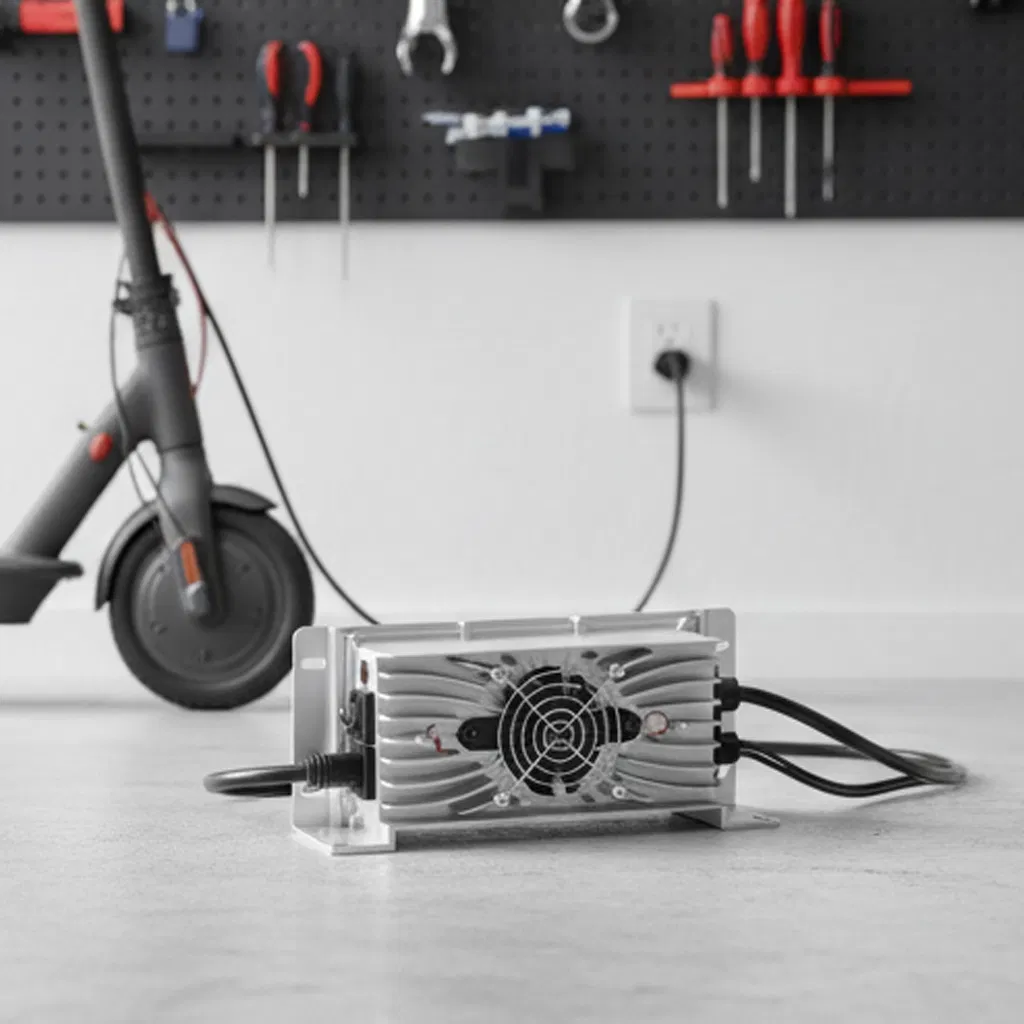

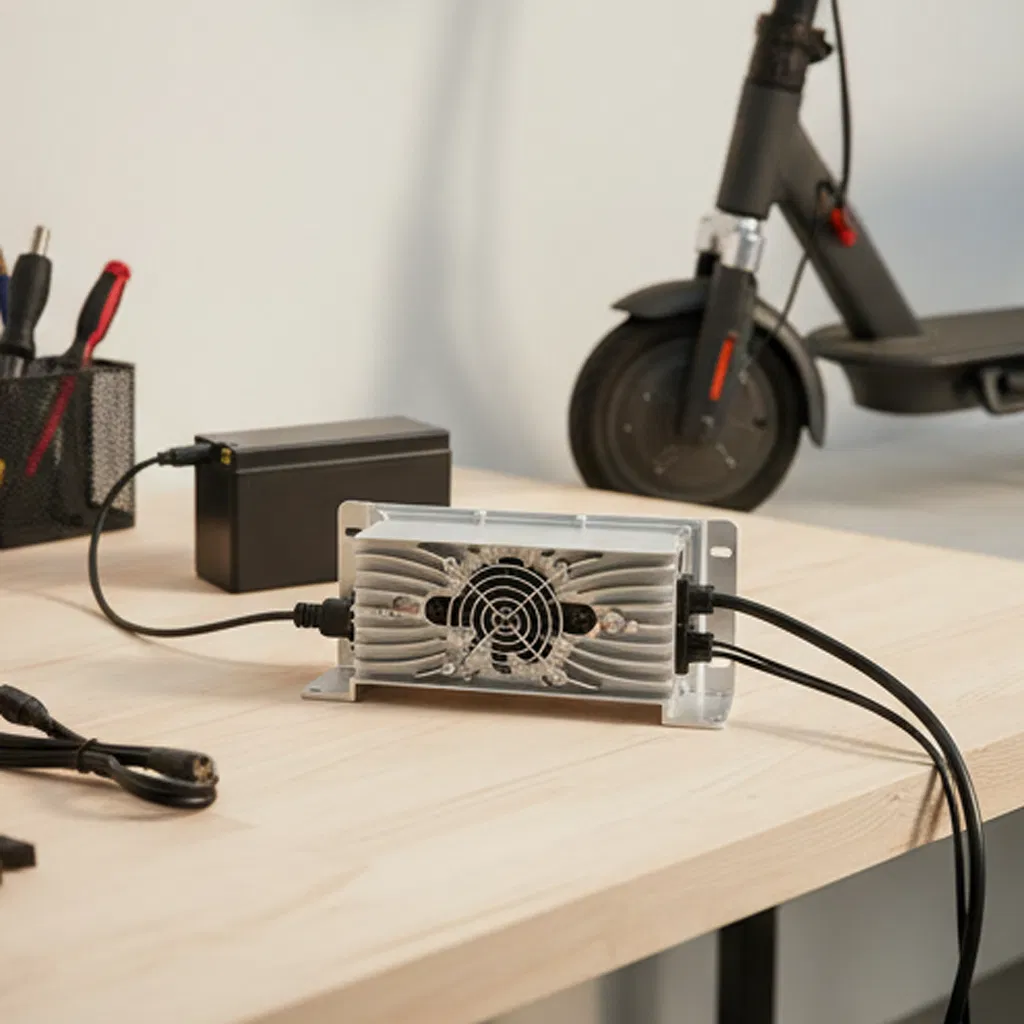

Ultra-Durable Fast-Charging Unit for Golf Carts and Evs

Basic Information

Model NO.

QX1200

Application

Standard Battery, Lithium/Li-ion/LiFePO4/Lead Acid

Nominal Voltage

12V/24V/36V/48V/60V/72V

Style

Intelligent Charger

Certification

RoHS, CE, CB

IP Rating

IP67 Waterproof

Efficiency

≥ 93% (Full Loading)

Warranty

24 Months

Product Description

Intelligent Battery Chargers are specifically engineered for lead-acid, LiFePO4, and lithium battery packs. These units are ideal for electric cars, forklifts, sightseeing vehicles, patrol cars, golf carts, and electric dining vehicles.

Key Features:
• Fully enclosed aluminum alloy shell for superior heat dissipation.
• Intelligent temperature-controlled fan for stable long-term operation.

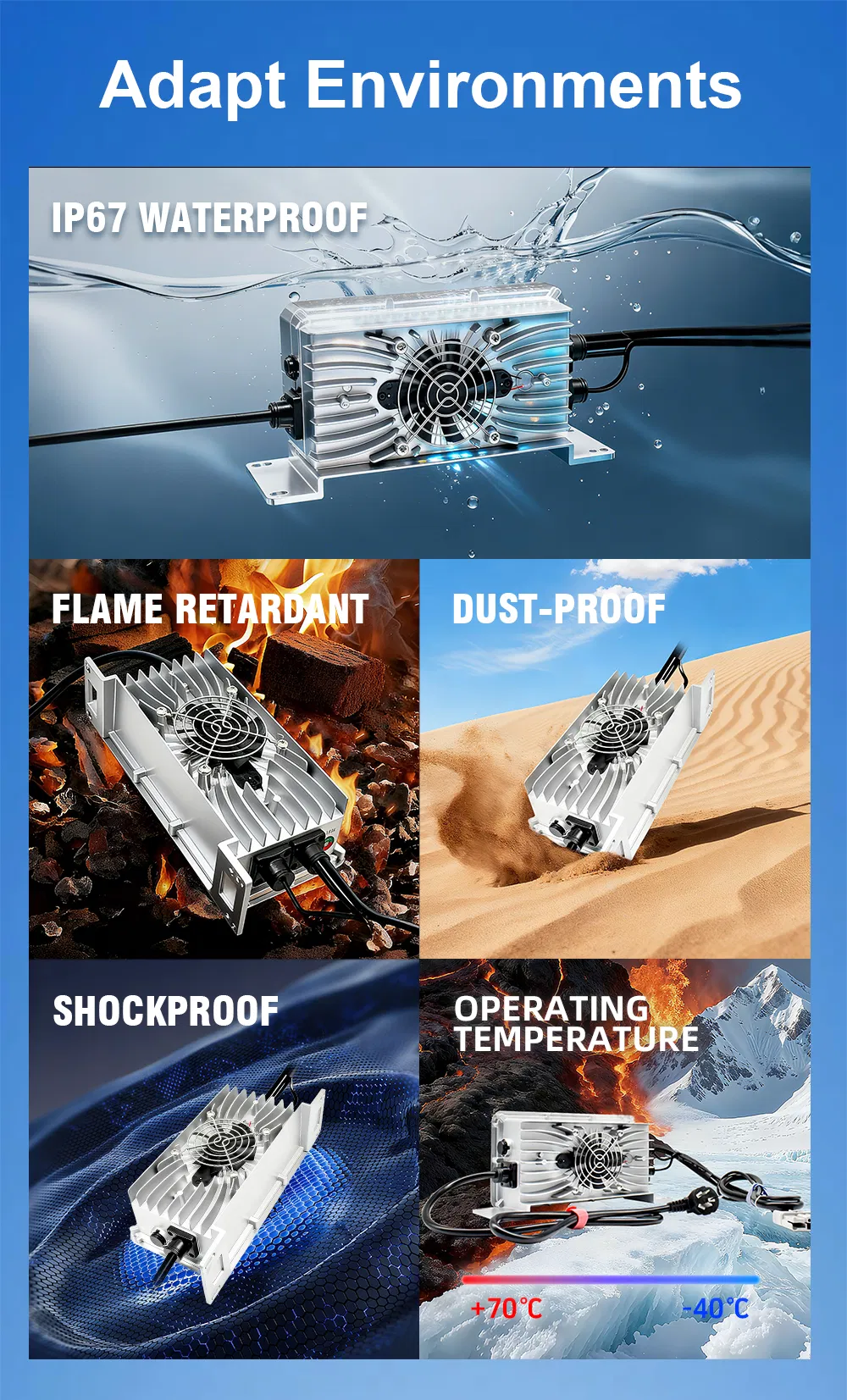

• IP67 waterproof rating, making it splash-proof and rain-proof for outdoor reliability.

Technical Specifications

QX1200 Battery Charger Parameters (Input: 90VAC~260VAC)
Rated Voltage	Lead Acid (CV)	Li-ion (CV)	LiFePO4 (CV)	CC @220Vac	CC @110Vac	Weight (kg)	Size (mm)
12V	14.7V	16.8V	14.6V	30A	30A	3.0	28112880
24V	29.4V	33.6V	29.2V	30A	18A
36V	44.1V	42V	43.8V	30A	18A
48V	58.8V	54.6V	58.4V	25A	15A
60V	73.5V	71.4V	73V	20A	12A
72V	88.2V	84V	87.6V	18A	11A

*Note: Cut-off point for Lithium battery is 5% of CC (adjustable between 3-10%).

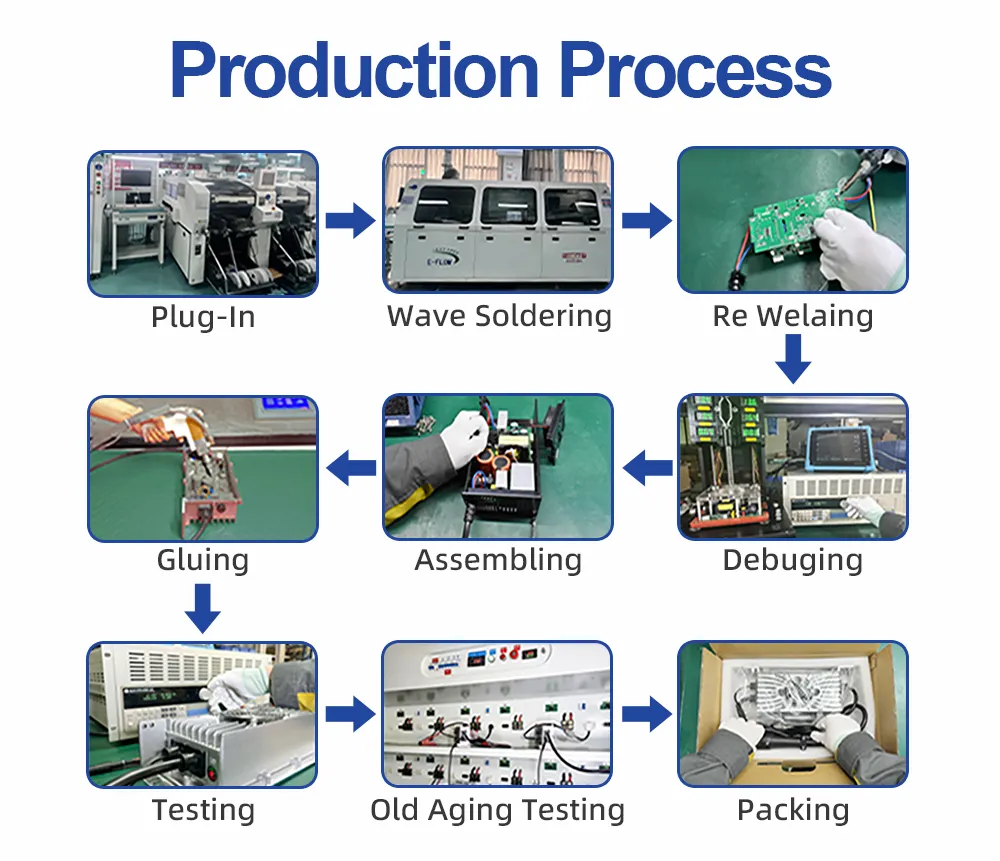

Production Process

Step 1: SMTPrecision mounting of electronic components onto the PCB.

Step 2: Wave SolderingHigh-temperature soldering for stable electrical connections.

Step 3: DebuggingInitial functional testing to ensure circuit performance.

Step 4: Glue FillingCore sealing for waterproof, shockproof, and thermal performance.

Step 5: Aging TestSimulated long-term operation to ensure durability.

Step 6: PackingShockproof and dust-proof packaging for safe transport.

Quality & Certifications

Our commitment to excellence is backed by global standards including CE, RoHS, CB, and ISO 9001. We utilize a "Five-Dimensional Quality Assurance System" featuring 26 distinct inspection processes.

Frequently Asked Questions

What types of batteries are compatible with these chargers?

Our chargers are designed for Lead-Acid, Lithium-ion (Li-ion), and LiFePO4 battery packs.

Is the charger suitable for outdoor use?

Yes, the charger features an IP67 rating, which provides excellent waterproof and dust-proof protection for outdoor environments.

How do I choose the right charger for my vehicle?

Please confirm your battery type, nominal voltage, required output current, and the specific input/output plug specifications.

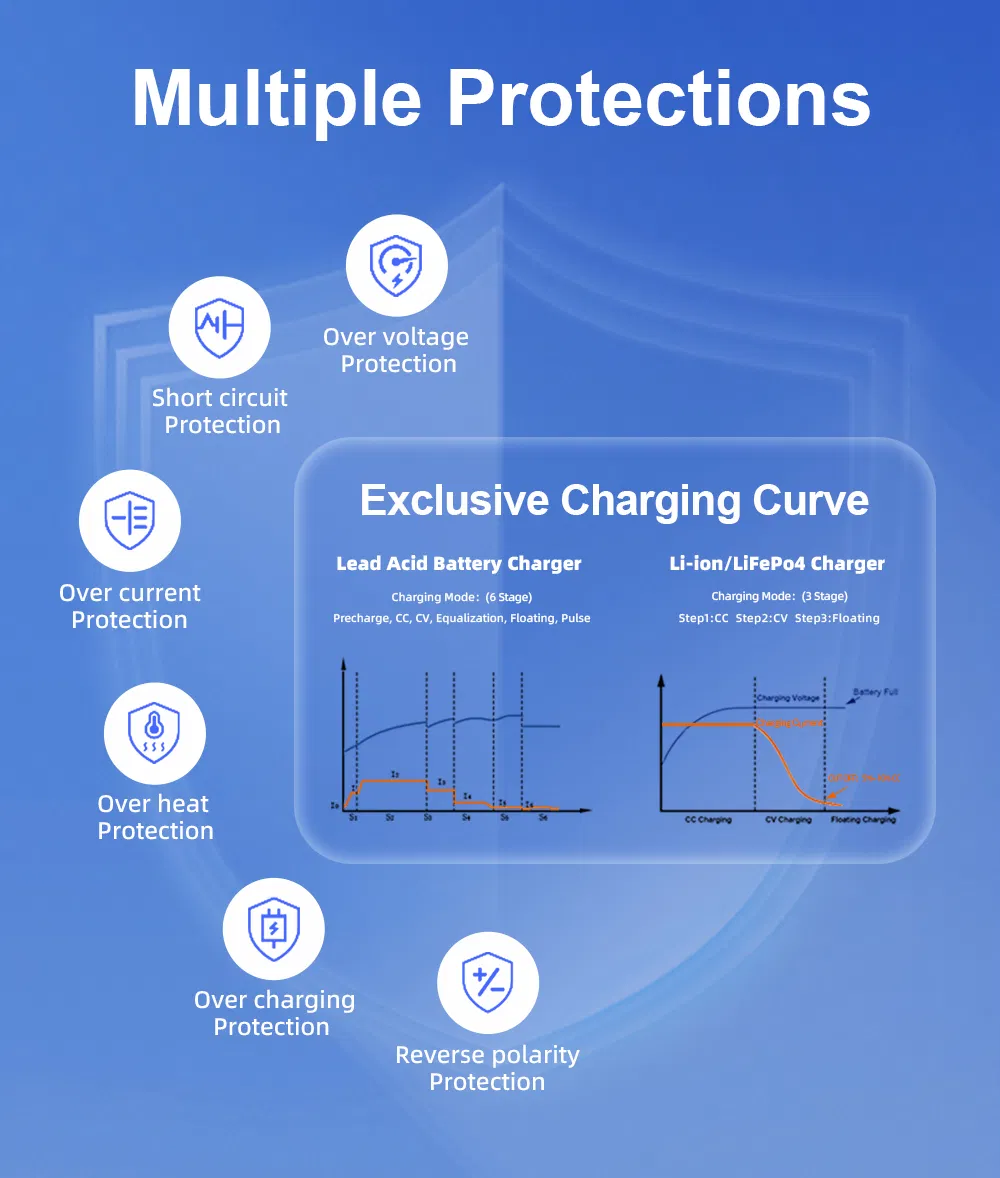

Does the charger include safety protection features?

Absolutely. It includes short circuit protection, over-charging protection, and intelligent temperature control.

What is the standard lead time for an order?

Small orders (1-2 pieces) typically take 15 days. Larger batches range from 20-25 days depending on the quantity.

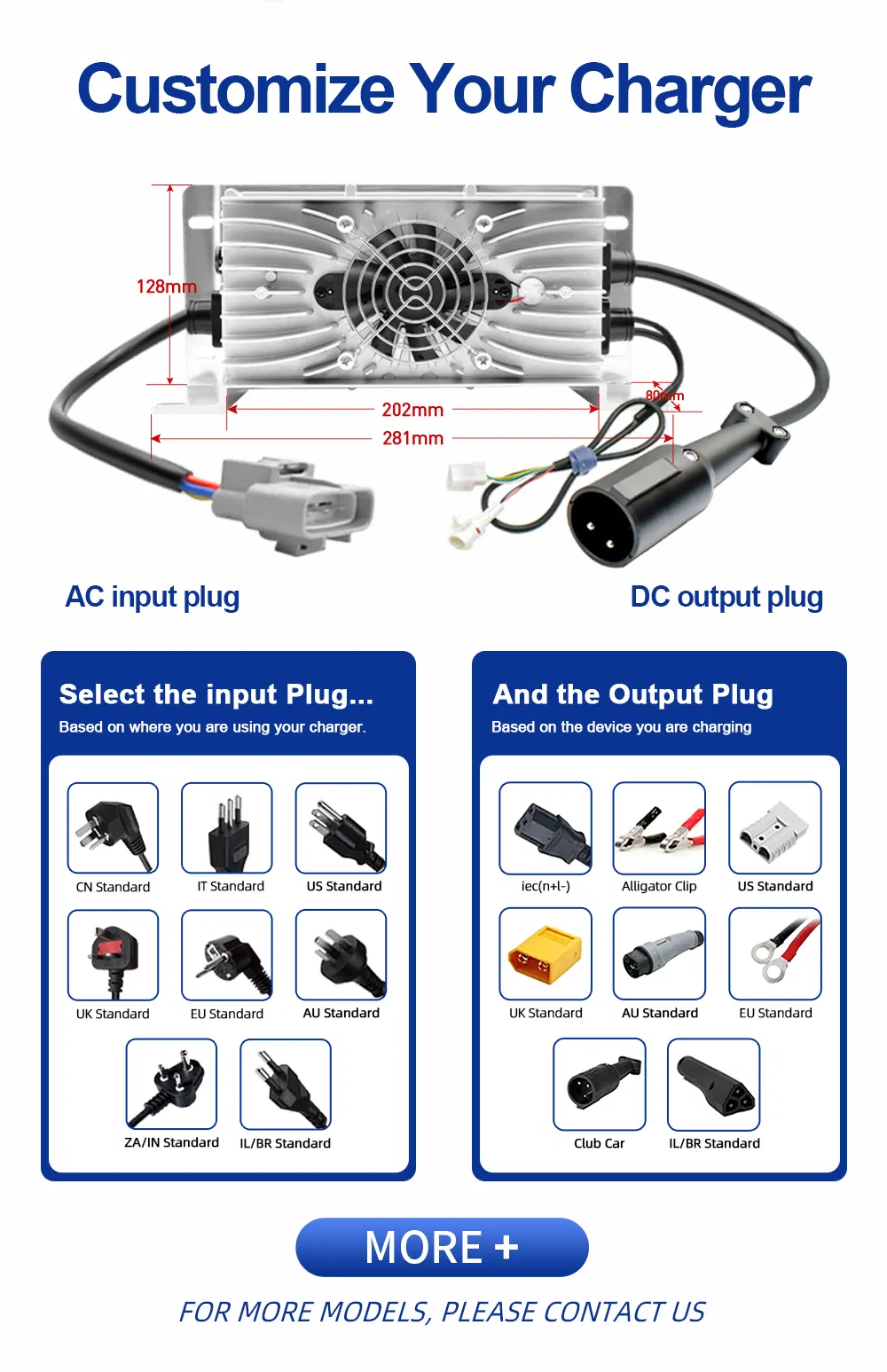

Are OEM and ODM services available?

Yes, we accept customized logos, special socket types, and tailored packaging to meet your branding needs.
