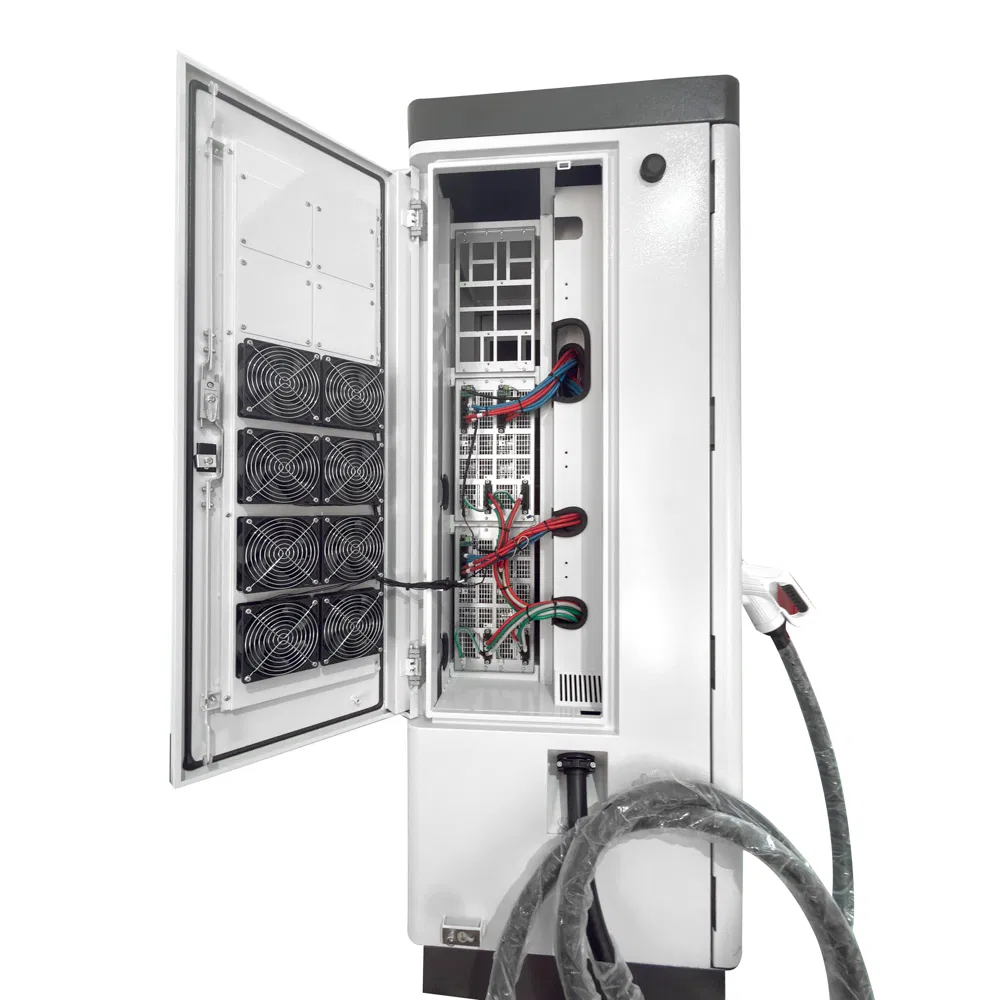

K072 120kw High-Power EV Charging Unit with Dual Output Configuration

1 / 5

K072 120kw High-Power EV Charging Unit with Dual Output Configuration

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

ℹ️

Basic Information

Model NO.

K072 DC-120kw Double Guns

Location

Public Use

Start Mode

Credit Card, RFID, Scanning Codes

Input Voltage

AC 380V±20% 3 Phase

Output Voltage

DC 60-320kw

Protection Level

IP54

Network

4G/Ethernet/RFID

Certification

CCC, CE, ISO, TUV

📦

Packaging & Delivery

Package Size

120.00cm * 110.00cm * 227.00cm

Gross Weight

400.000kg

Transport Package

Wood Carton

🚀

Product Description

High-Efficiency Fast Charging: Charges most EVs to 80% in 30 minutes or less—4x faster than standard Level 2 chargers.
Optimized Energy Conversion: Adopts three-phase PFC topology (power factor ≥0.99) and full-bridge soft-switching technology, minimizing energy loss.

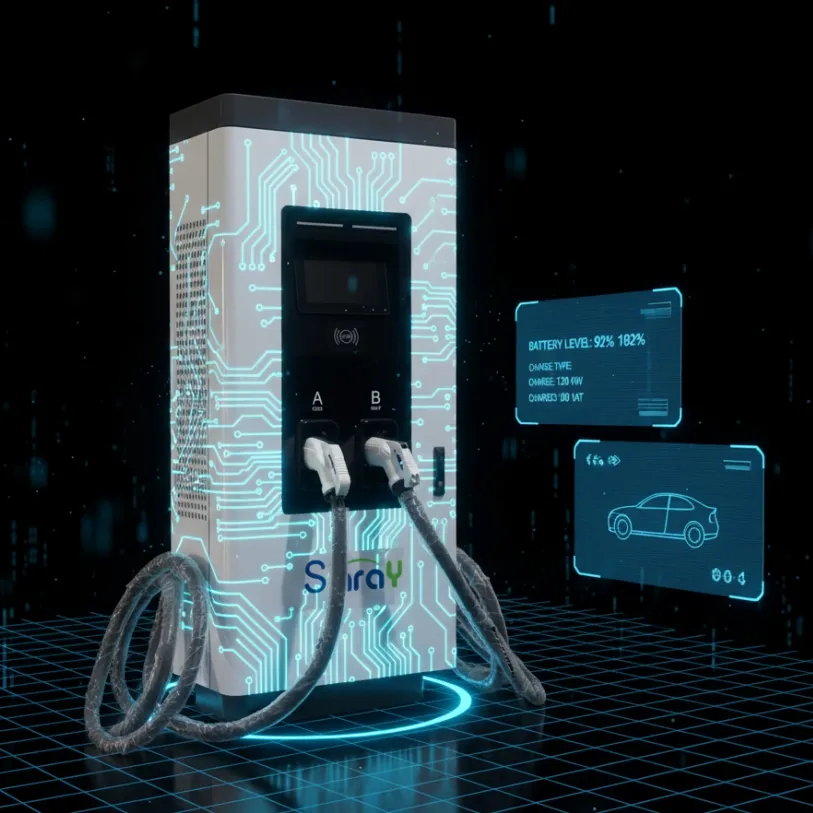

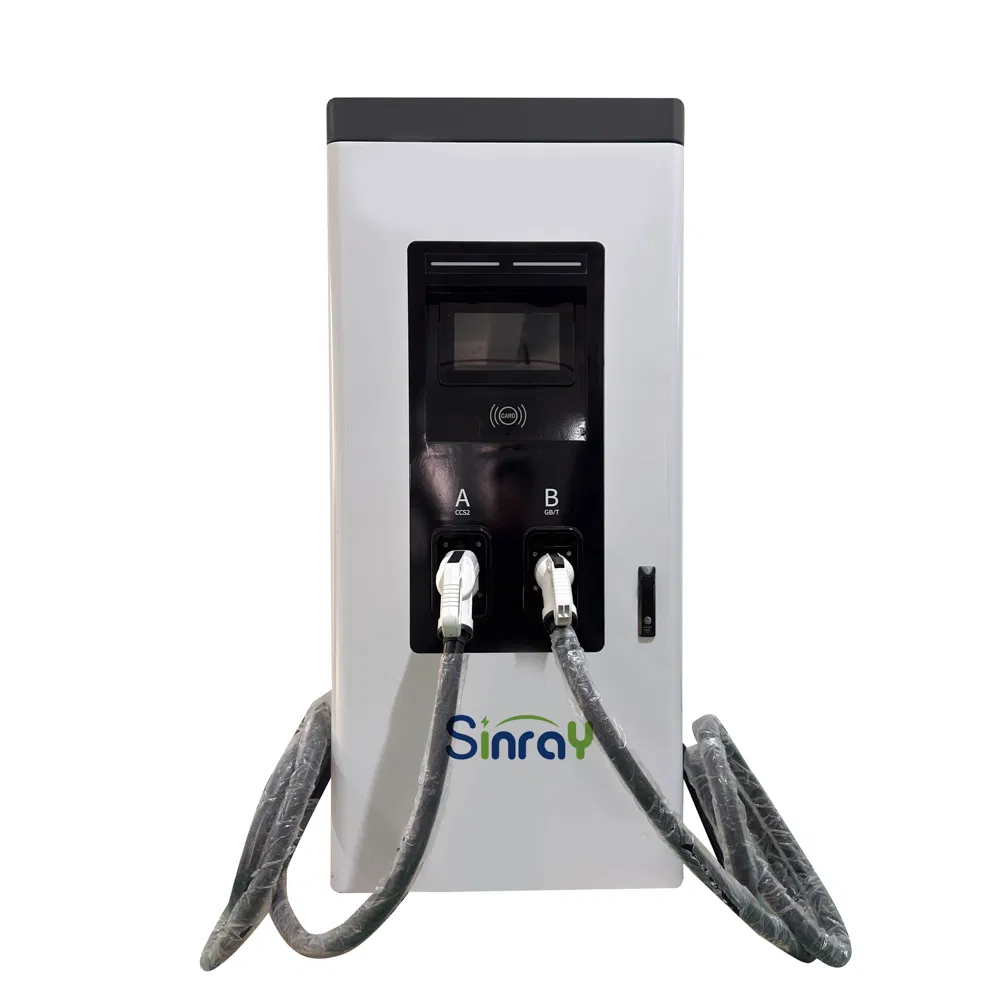

Dual-Gun Configuration: Equips 2 independent charging guns (CCS standards), enabling simultaneous charging for 2 vehicles.
Smart Operation: 7-inch touchscreen display with real-time monitoring and OCPP communication protocol for remote management.
Extreme Adaptability: IP54 protection rating and operating temperature range of -30°C to +60°C.
Safety First: Built-in safeguards against over-voltage, current, heat, and ground faults.

📊

Technical Specification

Power	DC 60-320KW
Input Voltage	AC 380V±20% 3 Phase
Rated Output Voltage	DC 150-1000V
Frequency	50-60Hz
Communication Protocol	OCPP 1.6J
HMI	10-Inch touch screen
Cable Length	5m
Connector Type	CCS1 / CCS2 / CHADEMO / GBT
Protection Level	IP54
Operating Temp	-30°C to +60°C
Product Size	1000 × 925 × 1950 mm
Net Weight	320KG

🖼️

Industrial Display

❓

Frequently Asked Questions

How fast can this 120kw unit charge an electric vehicle?

The 120kw High-Power unit can charge most standard electric vehicles to 80% capacity in approximately 30 minutes or less, depending on the vehicle's battery management system.

Does the station support simultaneous charging for two cars?

Yes, this model features a dual-gun configuration, allowing two vehicles to be charged at the same time, making it ideal for busy public or commercial charging hubs.

Is this charging station suitable for outdoor installation?

Absolutely. With an IP54 protection rating and an operating temperature range of -30°C to +60°C, it is designed to withstand harsh outdoor environments, including rain and extreme temperatures.

What communication protocols and payment methods are supported?

The station supports the OCPP 1.6J protocol for remote management and offers multiple user authentication and payment options, including RFID, scanning codes, and mobile payments.

What safety protections are integrated into the system?

It includes comprehensive protection features such as over-voltage, over-current, heat protection, and a ground fault circuit interrupter to ensure total safety during high-frequency usage.

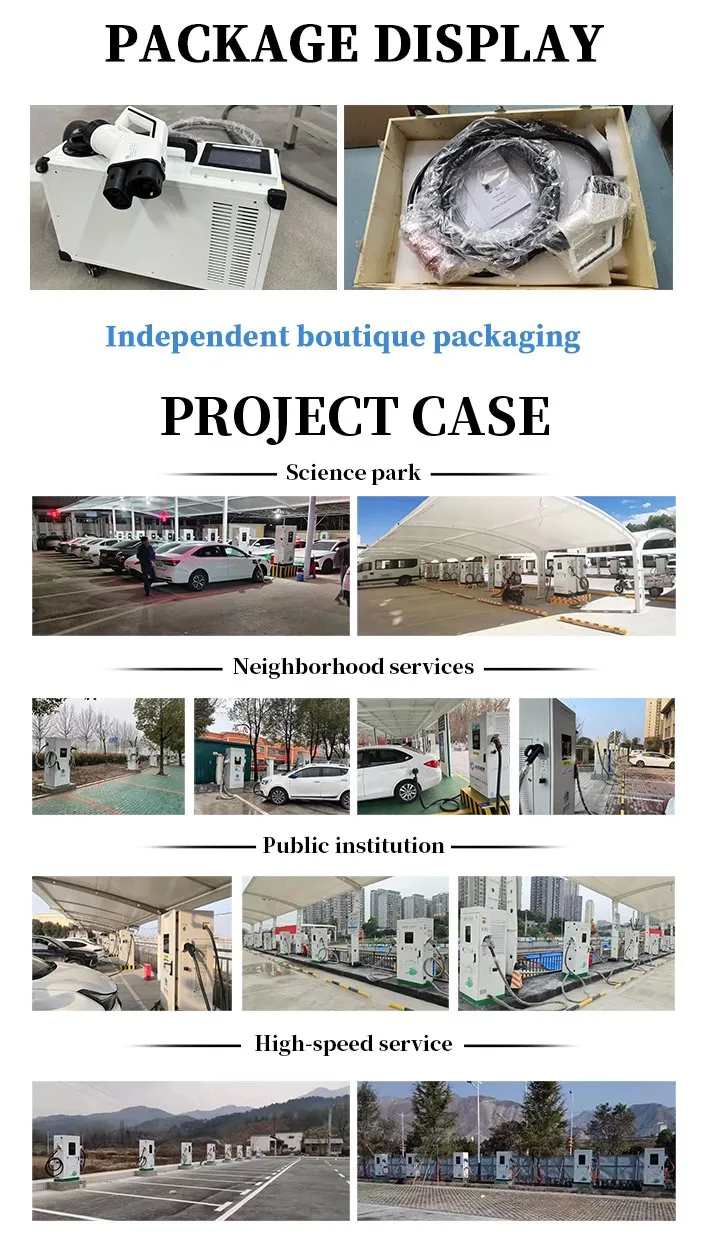

What are the standard packaging and shipping terms?

Products are typically secured with cardboard shells and wooden stakes/cartons for safe transport. We accommodate various delivery terms including sea freight and air freight based on requirements.
