🔹 Basic Information
Charging Interfaces
One Pile with Multiple Charges
Start Mode
Credit Card Payment
After-Sales Service
1 Year Warranty
Specification
87mm*360mm*500mm
📊 Technical Specifications
| Parameter |
Detail |
| Model | MXR150050B-DC |
| Efficiency (Full Load) | ≥98.5% |
| Communication Protocol | CAN bus |
| Dimensions | 87mm(H) * 360mm(W) * 500mm(D) |
| Input Voltage | 1050 Vdc ~ 1500 Vdc |
| Output Voltage | 200 Vdc ~ 920 Vdc |

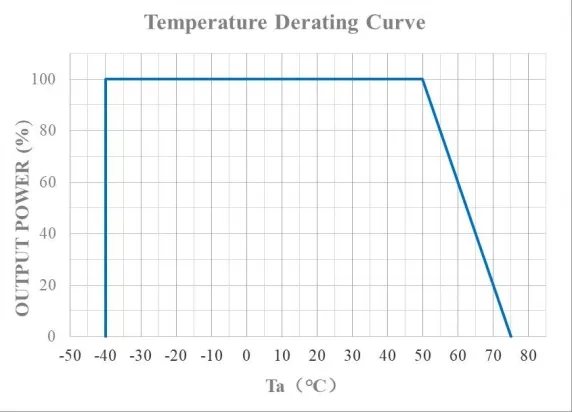

| Output Derating | Above 50ºC |

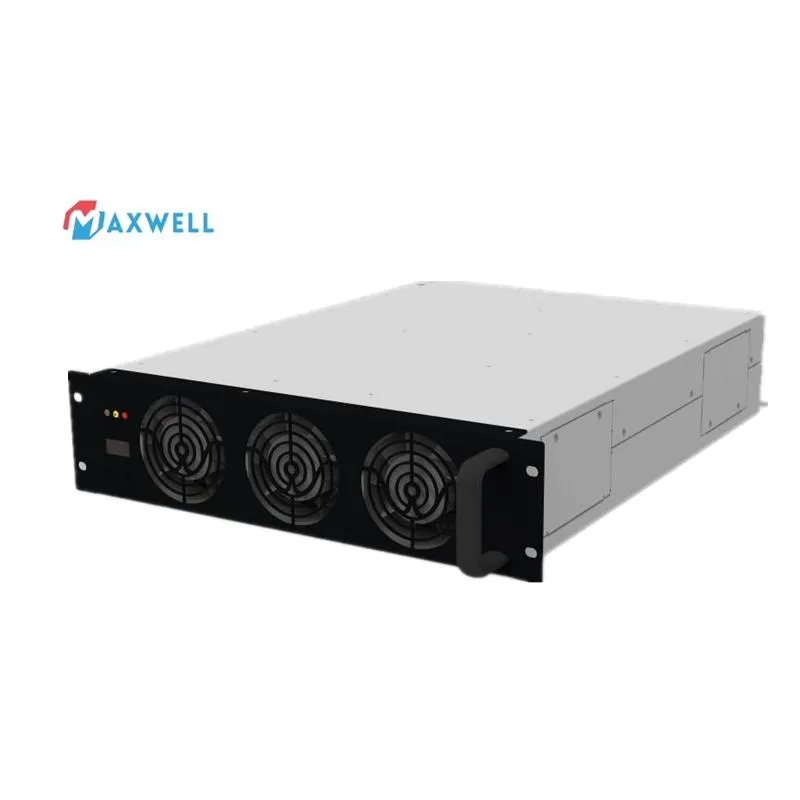

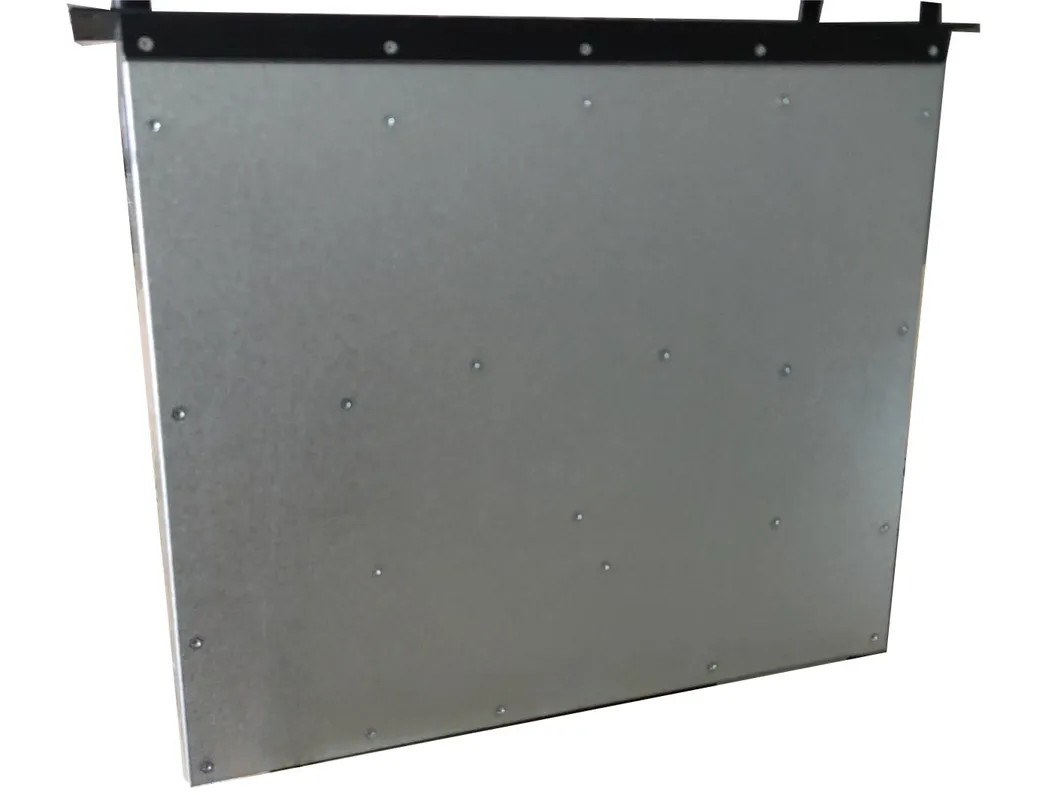

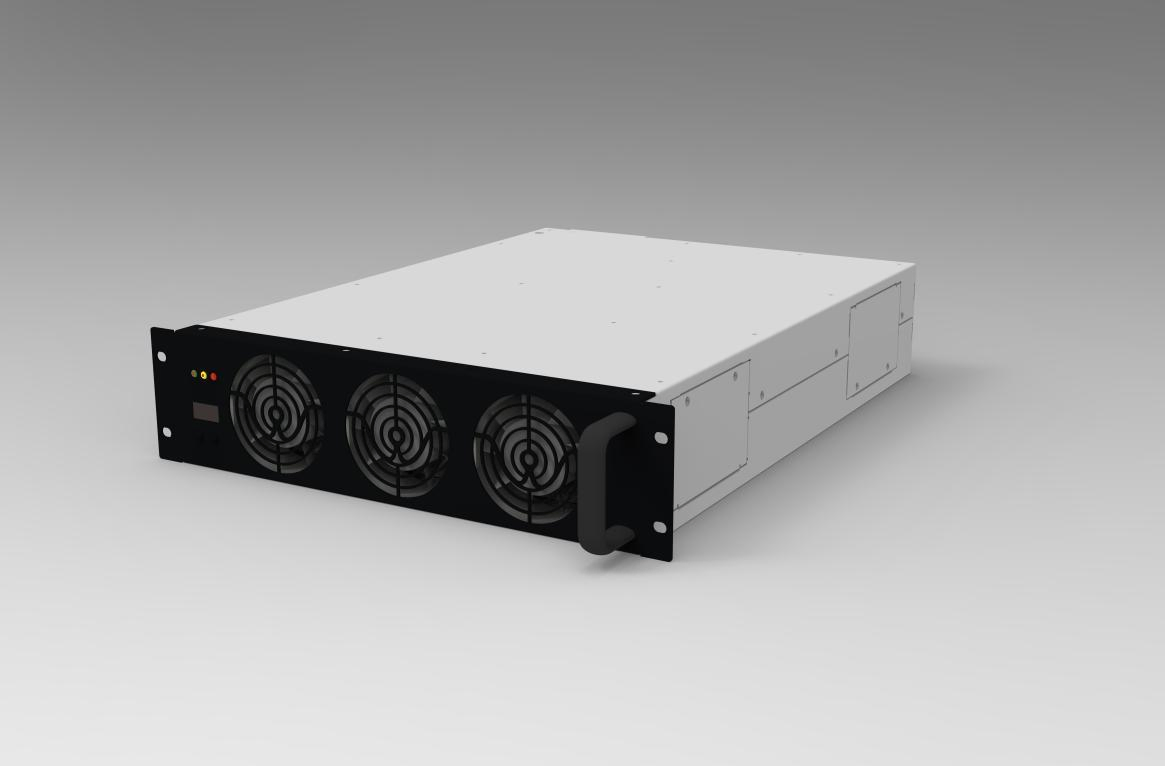

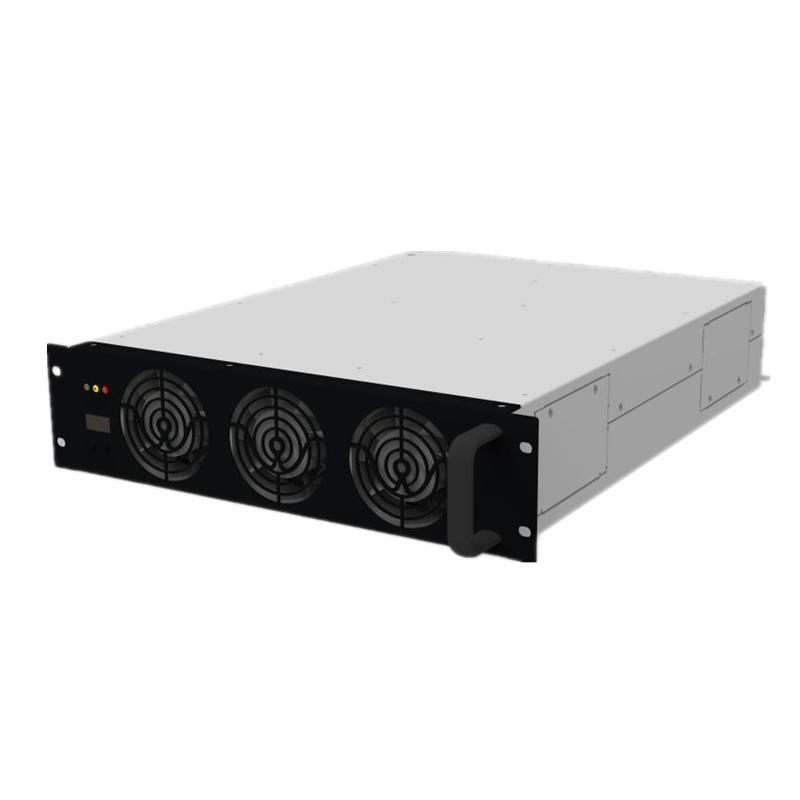

📷 Detailed Product Showcase
⚙️ Product Features & Functions
1. Function Details:
• Hot Swap: Adopts plug-in technology for convenient installation and maintenance.
• Current Sharing: Automatically shares current with unbalance degree less than 5%.
• Output Adjustment: Continuously adjustable current (0A to 112A) and voltage (200V to 920V) via host computer control (0.1V/0.1A steps).

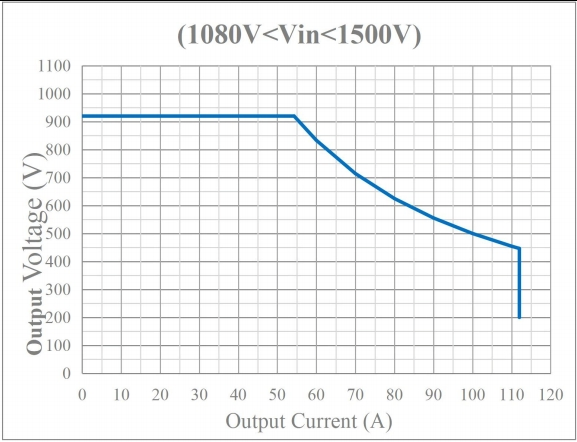

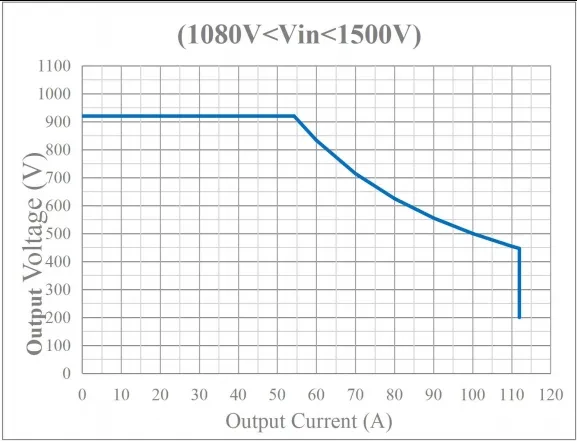

2. Output Constant Power Control:
At rated input voltage, the allowable output power is 50kW.

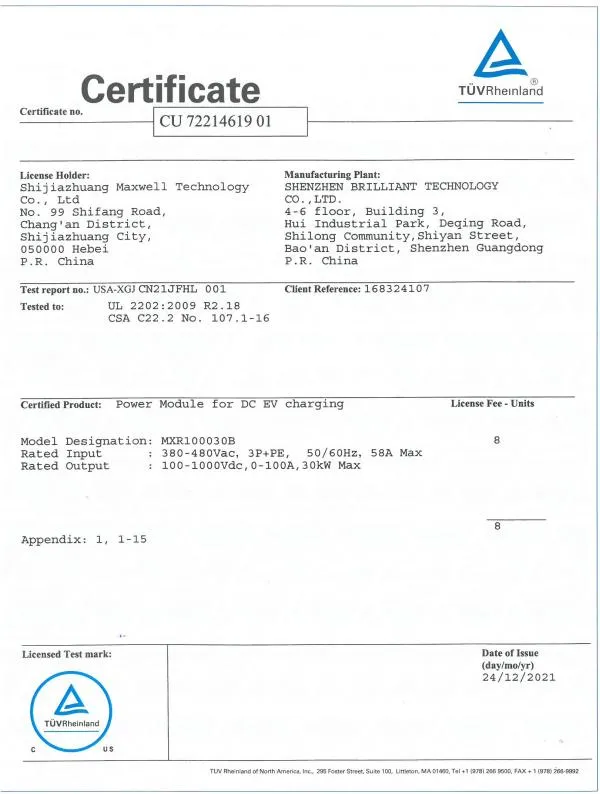

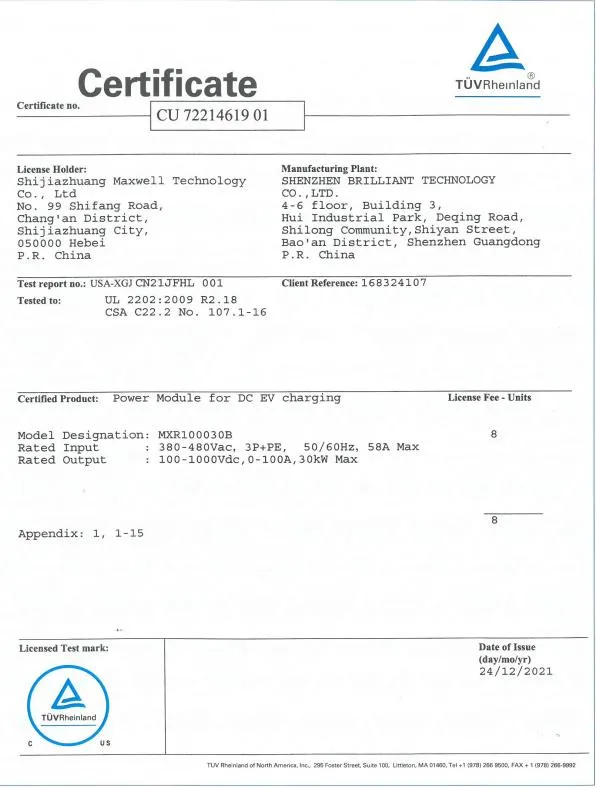

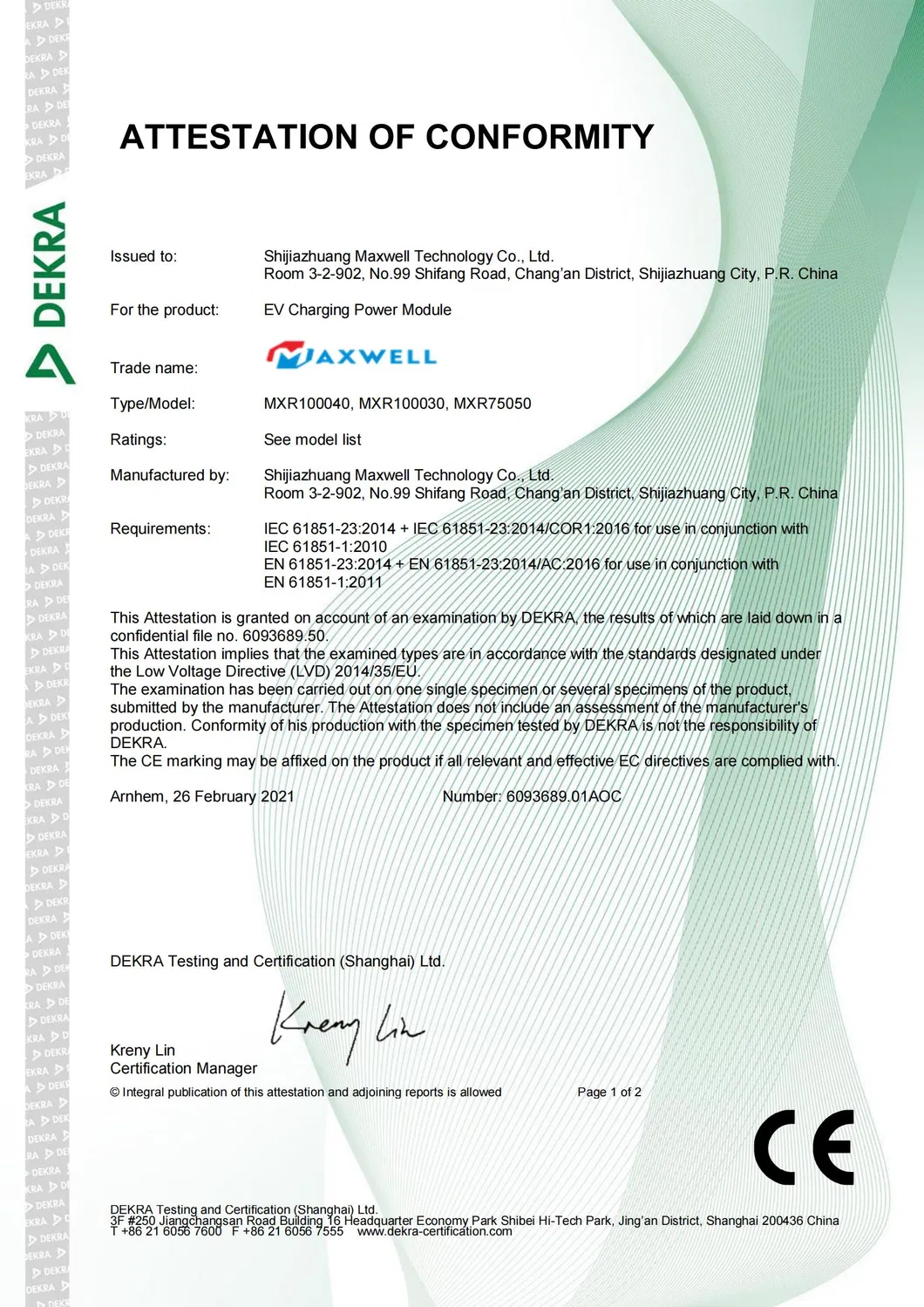

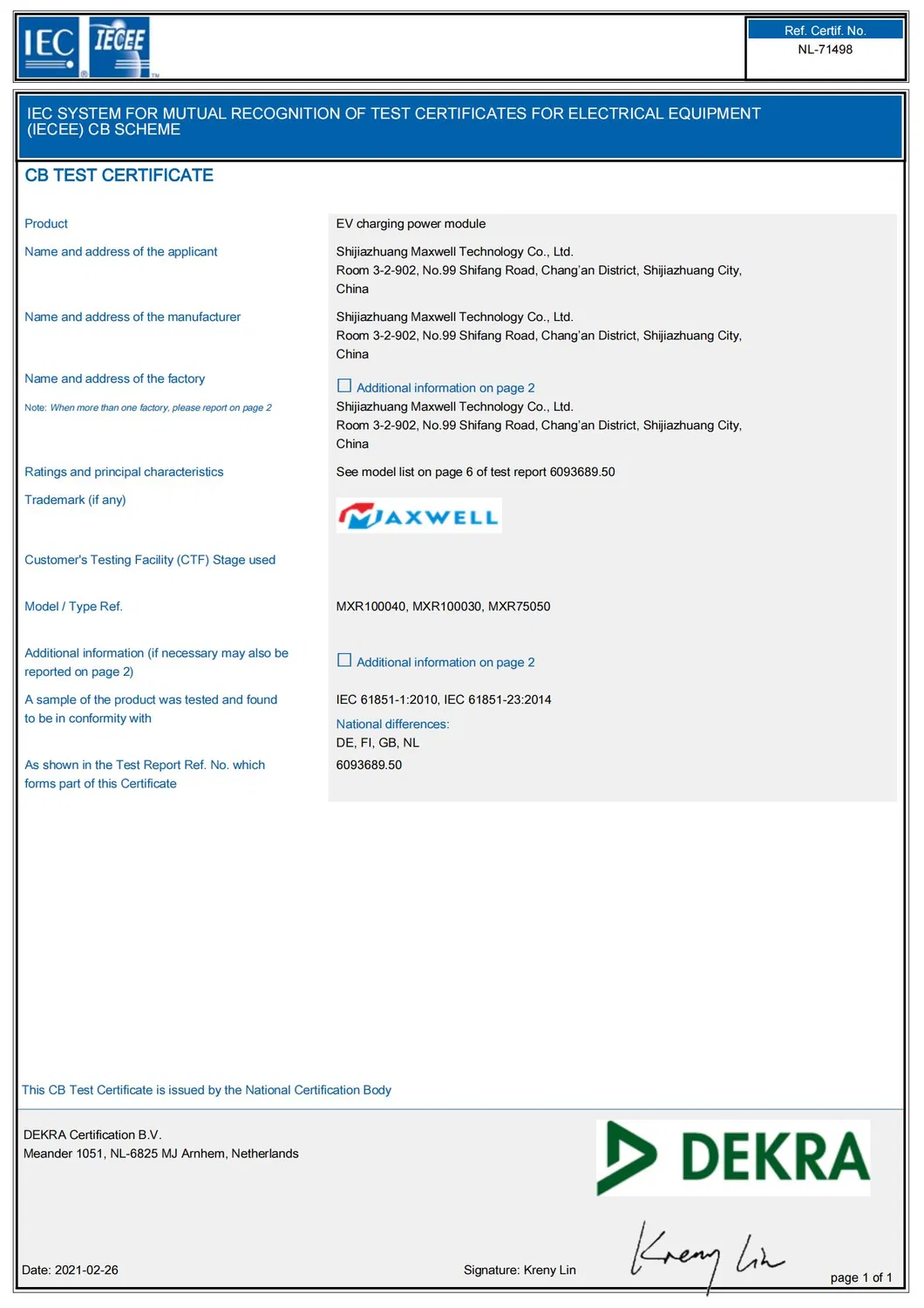

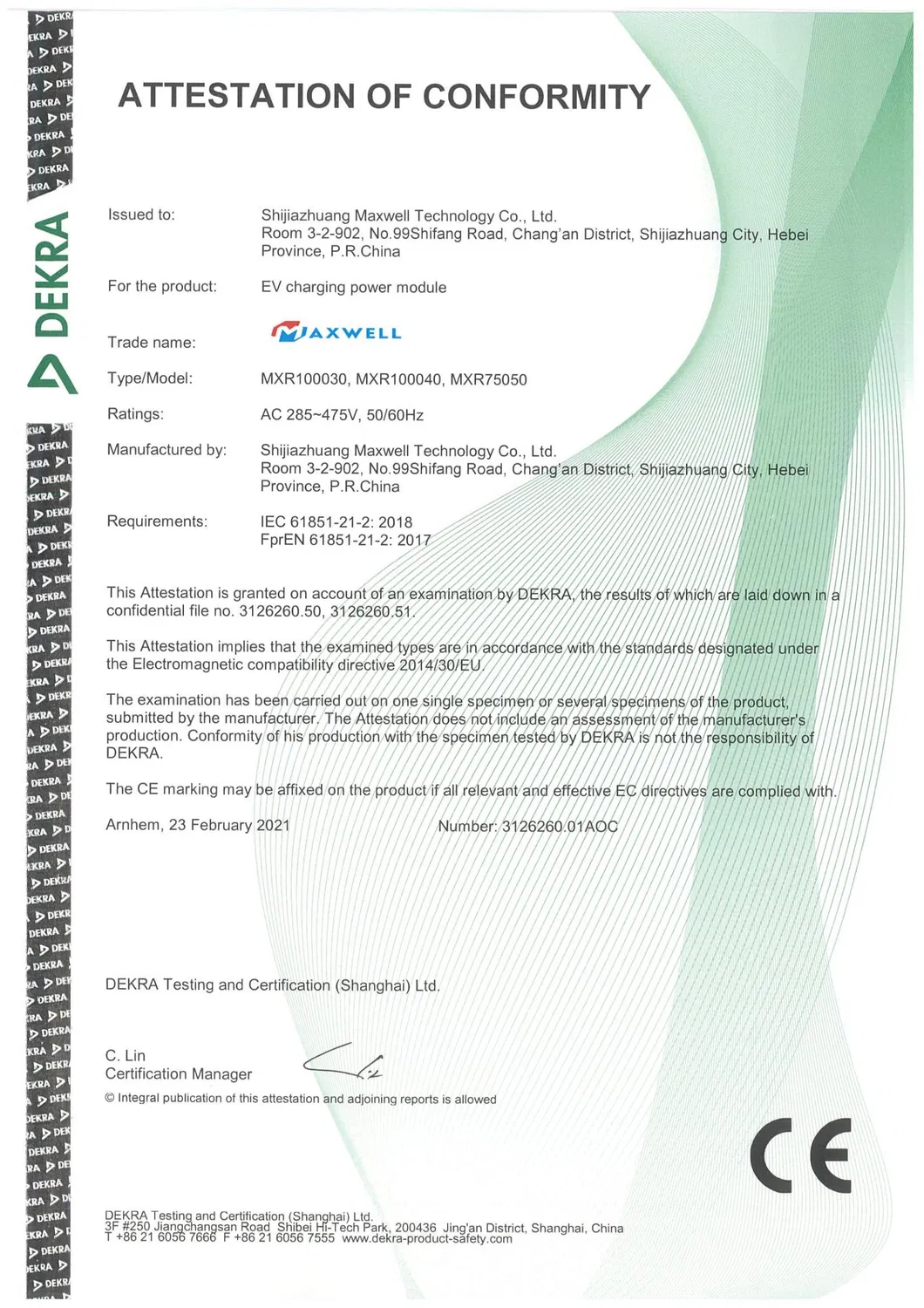

📜 Compliance & Certifications
| CE / TUV / EMC |
EN IEC 61000-6-1:2019, EN IEC 61000-6-2:2019, EN IEC 61000-6-3:2021, EN IEC 61000-6-4:2019, EN IEC 61851-21-2:2021 |

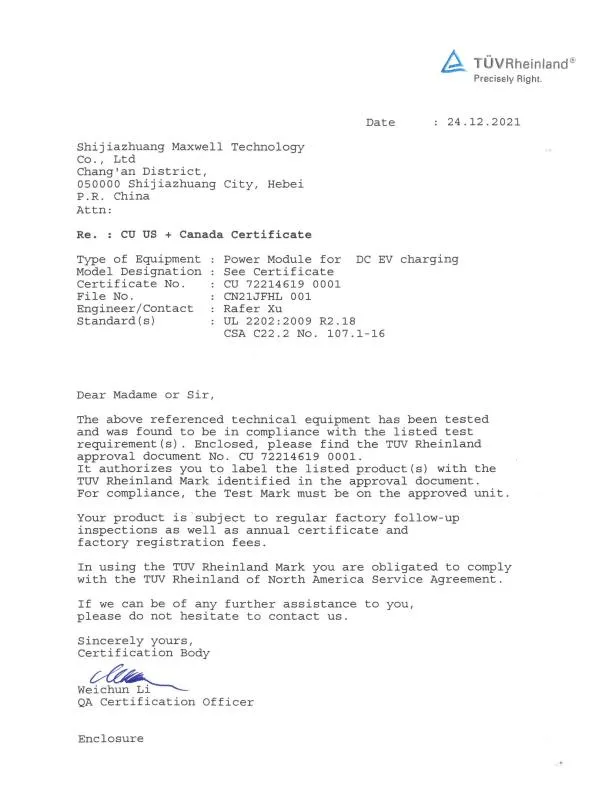

| cTUVus |
UL 2202:2009 R2.18; CSA C22.2 NO.107.1-16 |
🏢 Industry Experience
Established in 2009, our focus began in power electronics and converters. Since 2014, we strategically transitioned to photovoltaic, energy storage, and new energy solutions. Currently, our portfolio includes high-capacity charging modules (20KW to 50KW) and V2G energy storage products like the MXR and MXC series. We aim to continue leading the new energy industry by iterating core products to meet evolving market demands.
🏭 Production Process
1. Material Management: Strict procurement from qualified suppliers with environmental and category-based storage.
2. Production Stages: SMT, manual plug-in, wave soldering, anti-spray coating, assembly, debugging, aging tests, and final packaging.
3. Delivery: Integrated office management system to track customer and product information via optimized channels.
4. Traceability: End-to-end data entry from raw materials to finished goods ensures complete product history.
🛠️ After-Sales Support
• Warranty: 1 Year.
• Policy: For non-human damage within the first 6 months, we offer free replacement (shared freight). During the remaining 6 months, we offer free repair services.
• Technical Support: Our engineers provide comprehensive assistance during your testing and integration processes.
❓ Frequently Asked Questions
1. What is the maximum efficiency of the MXR150050B-DC module?
The module achieves a high efficiency of ≥98.5% at full load, ensuring minimal energy loss.
2. Can this module be used for V2G (Vehicle-to-Grid) applications?
While this specific DC/DC unit is optimized for high-power charging, we offer dedicated V2G products like the MXR80025 and MXC75050B.
3. Is the output voltage adjustable?
Yes, the output voltage can be continuously adjusted from 200 Vdc to 920 Vdc with a minimum step of 0.1V.
4. How does the module handle maintenance?
The unit supports hot-swapping technology, allowing for easy installation and rapid maintenance without shutting down the entire system.
5. What safety certifications does the product hold?
The product is compliant with CE, TUV, and cTUVus standards, including EN IEC 61851 and UL 2202.
6. What type of cooling system is utilized?
The module uses an efficient forced fan cooling system to maintain optimal operating temperatures.
