260-650VAC Input 50kw Power Module Acdc Converter Power Supply Unit for EV Charging Station
260-650VAC Input 50kw Power Module Acdc Converter Power Supply Unit for EV Charging Station
260-650VAC Input 50kw Power Module Acdc Converter Power Supply Unit for EV Charging Station
260-650VAC Input 50kw Power Module Acdc Converter Power Supply Unit for EV Charging Station
260-650VAC Input 50kw Power Module Acdc Converter Power Supply Unit for EV Charging Station
1 / 5
260-650VAC Input 50kw Power Module Acdc Converter Power Supply Unit for EV Charging Station
260-650VAC Input 50kw Power Module Acdc Converter Power Supply Unit for EV Charging Station
260-650VAC Input 50kw Power Module Acdc Converter Power Supply Unit for EV Charging Station
260-650VAC Input 50kw Power Module Acdc Converter Power Supply Unit for EV Charging Station
260-650VAC Input 50kw Power Module Acdc Converter Power Supply Unit for EV Charging Station

260-650VAC Input 50kw Power Module Acdc Converter Power Supply Unit for EV Charging Station

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📊 Basic Info.
Model NO.
MXR100050B-SE
Installation
Floor Type
Charge Method
Quick Charge
Cooling Mode
Fan Cooling
Weight
28kg
Parallel Modules
60PCS
Mtbf
500, 000 Hours
Input Current
100A
Output Current
167A
Power Factor
0.99
Input Frequency
45Hz~65Hz
Warranty
12 Months
Origin
Hebei
HS Code
8504409999
📝 Product Description

The MXR100050B is a high-power AC/DC charging module specially designed for high-end charging scenarios of electric vehicles. Rated output power is 50 kw, and supports 260VAC~530VAC three-phase four-wire system (A/B/C +PE) input.

The output voltage range is 200VDC~1000VDC, the maximum output current is 167 A, and it supports silent mode setting (noise less than 55dB).

The charging module uses the isolated controller area network (CAN) communications port to communicate with the system monitoring module through the CAN protocol. The output voltage mode can be set on the system monitoring module to perform voltage regulation, current limiting, and start-stop operations.
⚙️ Basic Specifications
Parameter Specification Details
Efficiency (Full Load)≥95.5%
Communication ProtocolCAN bus
Dimensions125mm*440mm*380mm
Input Voltage260 Vac~650 Vac, 3 phase+PE
Output voltage200 Vdc~1000 Vdc
Output deratingabove 75ºC
📷 Detailed Photos

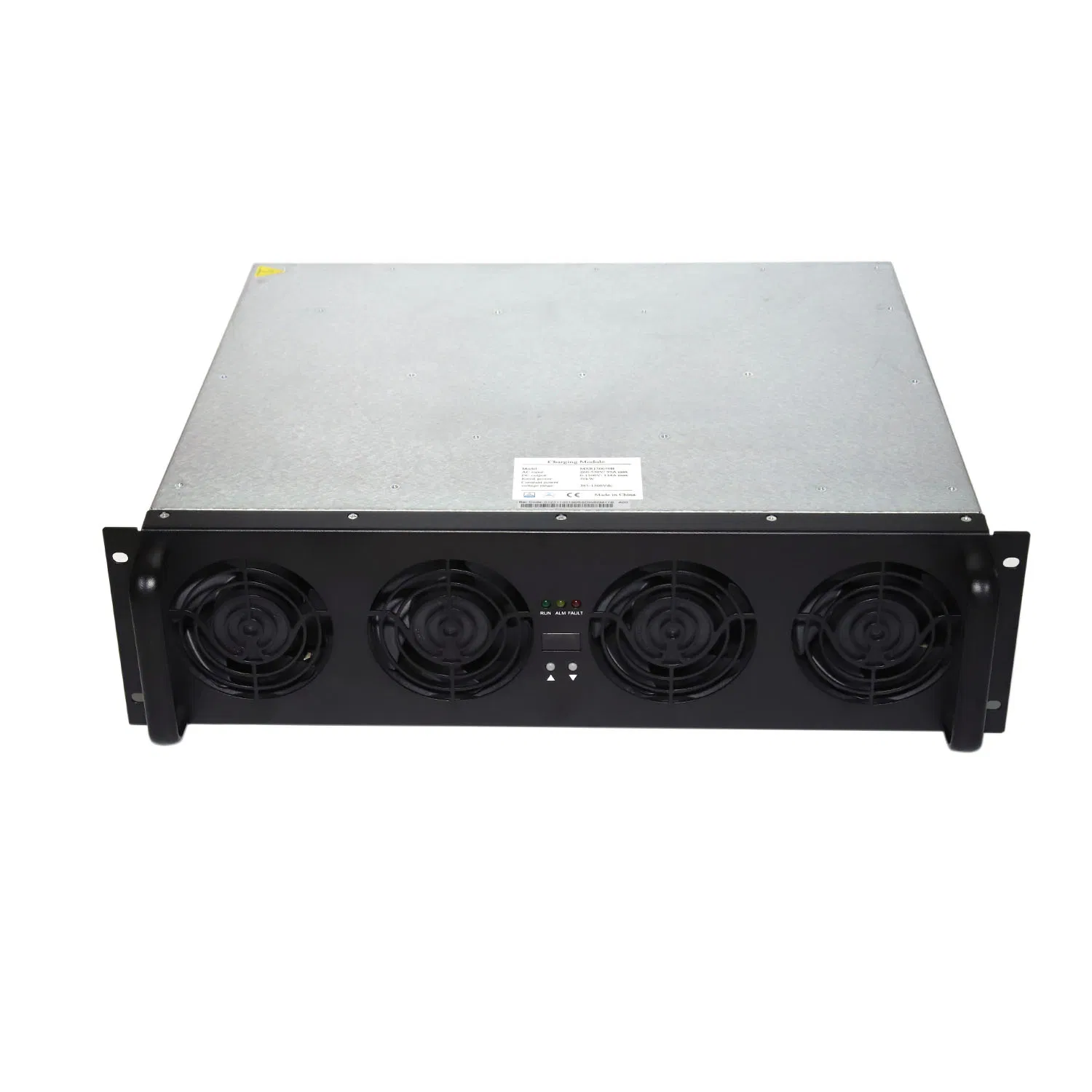

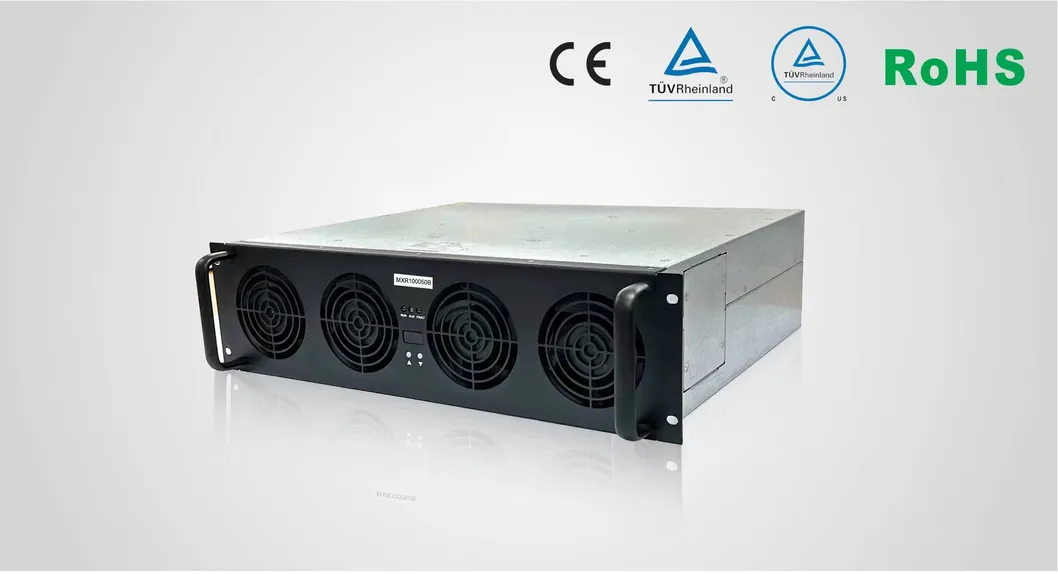

Power Module Acdc Converter

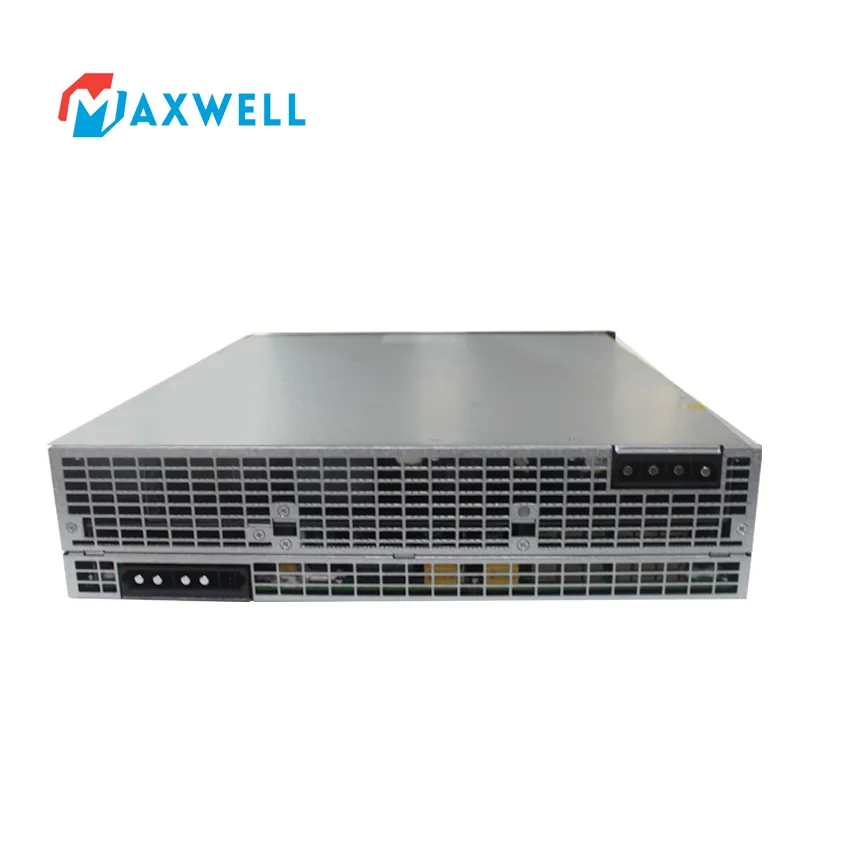

EV Charging Station Component

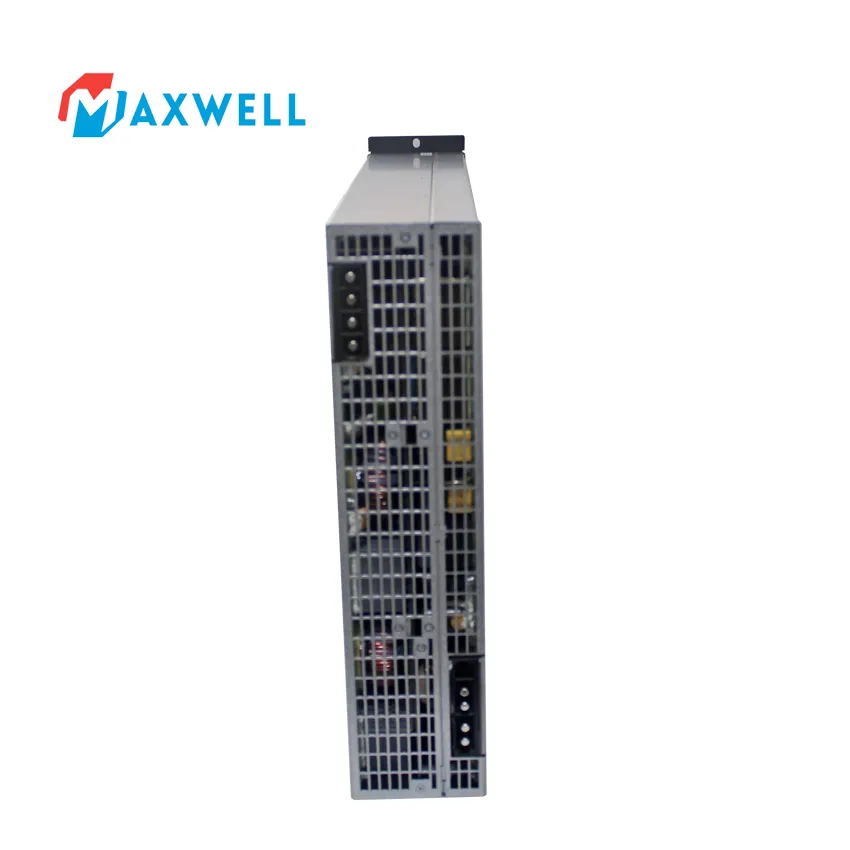

Acdc Converter Unit

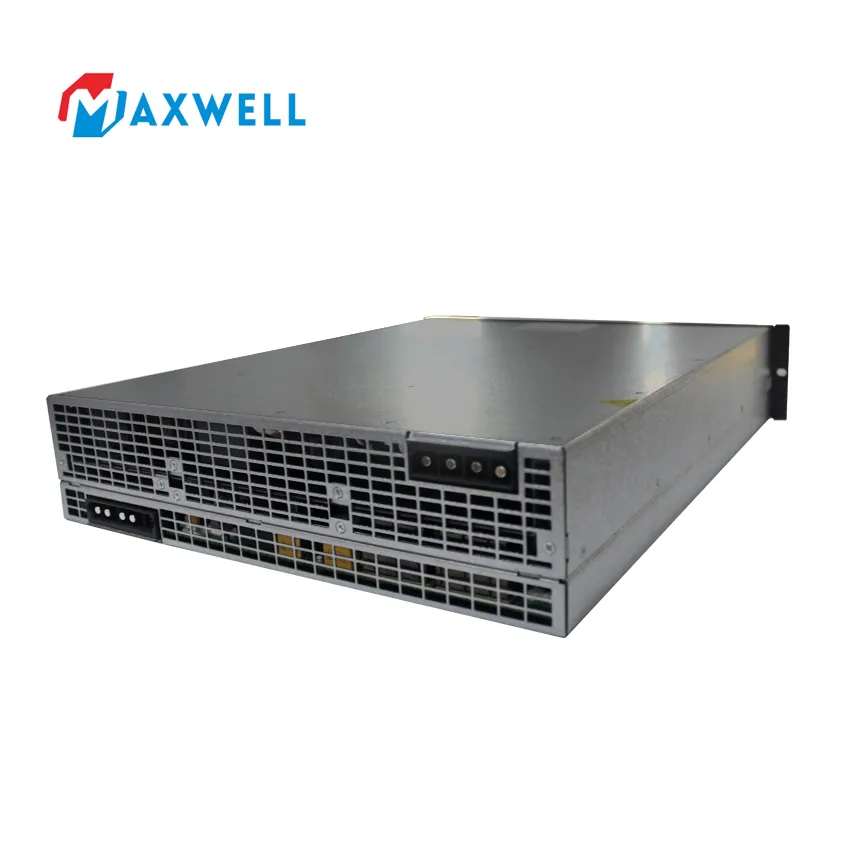

Quick Charge Module

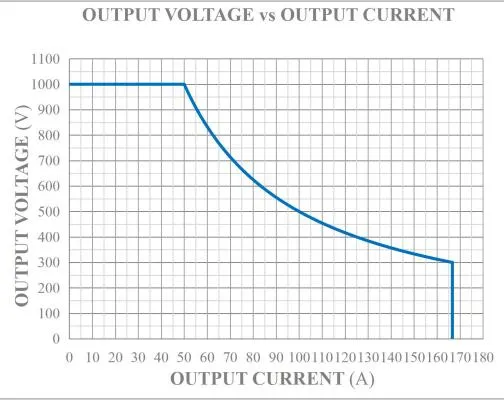

Product Parameter View

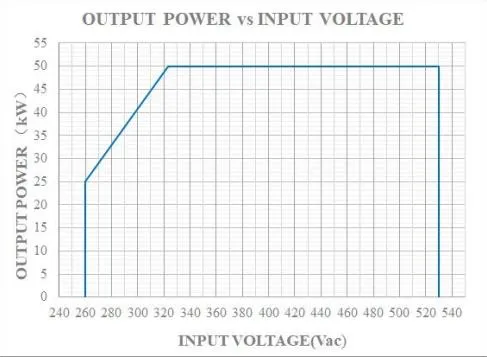

Power Module Specs

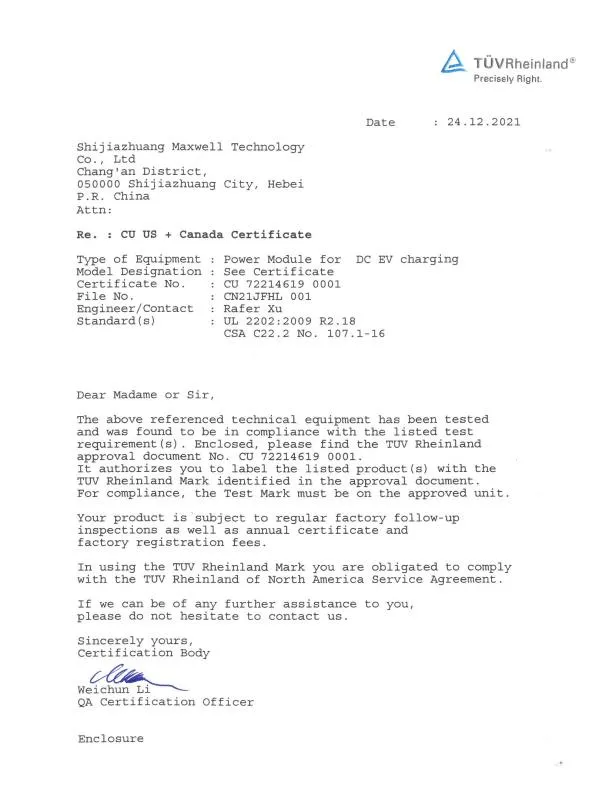

📜 Certifications

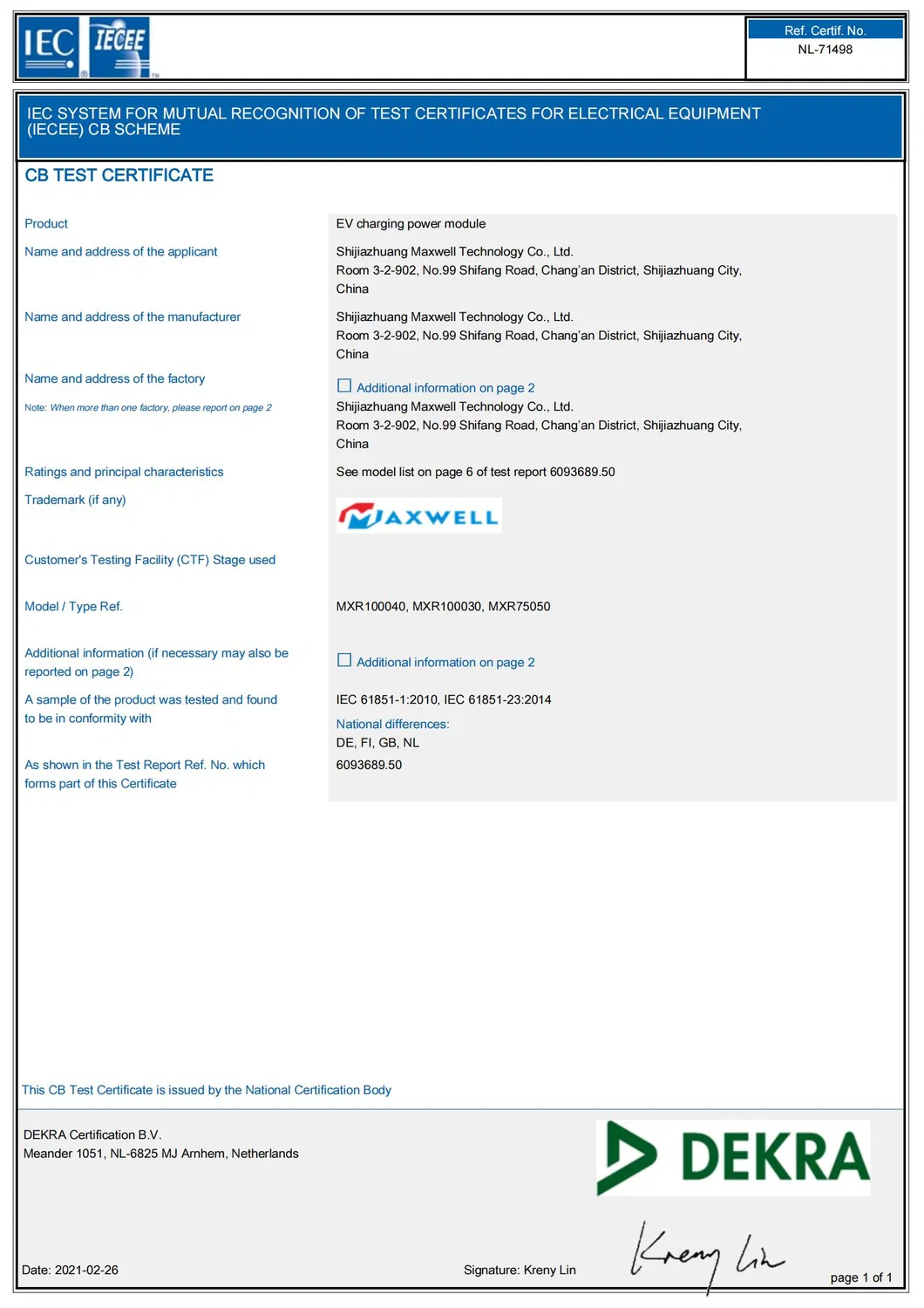

Certification 1

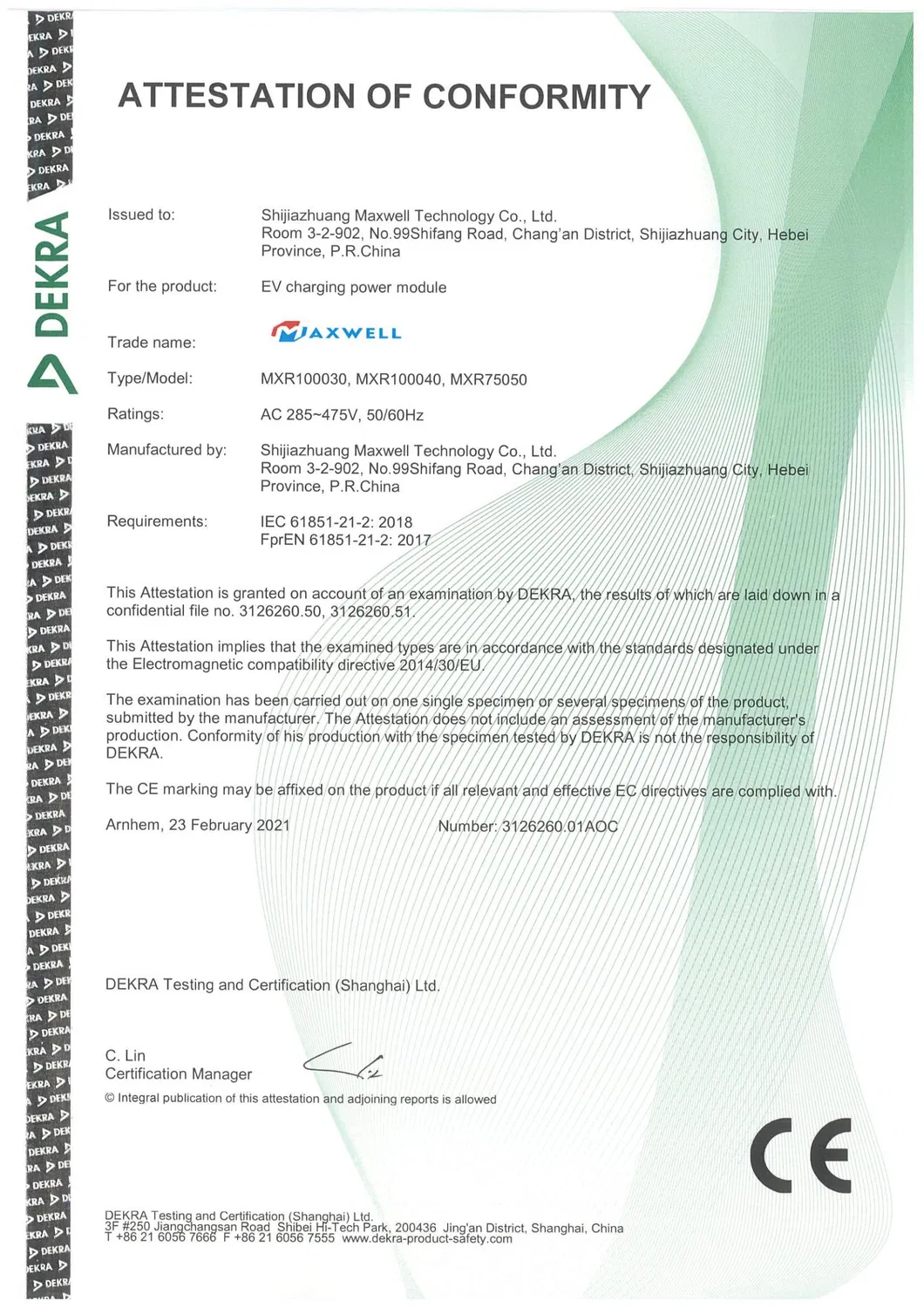

Certification 2

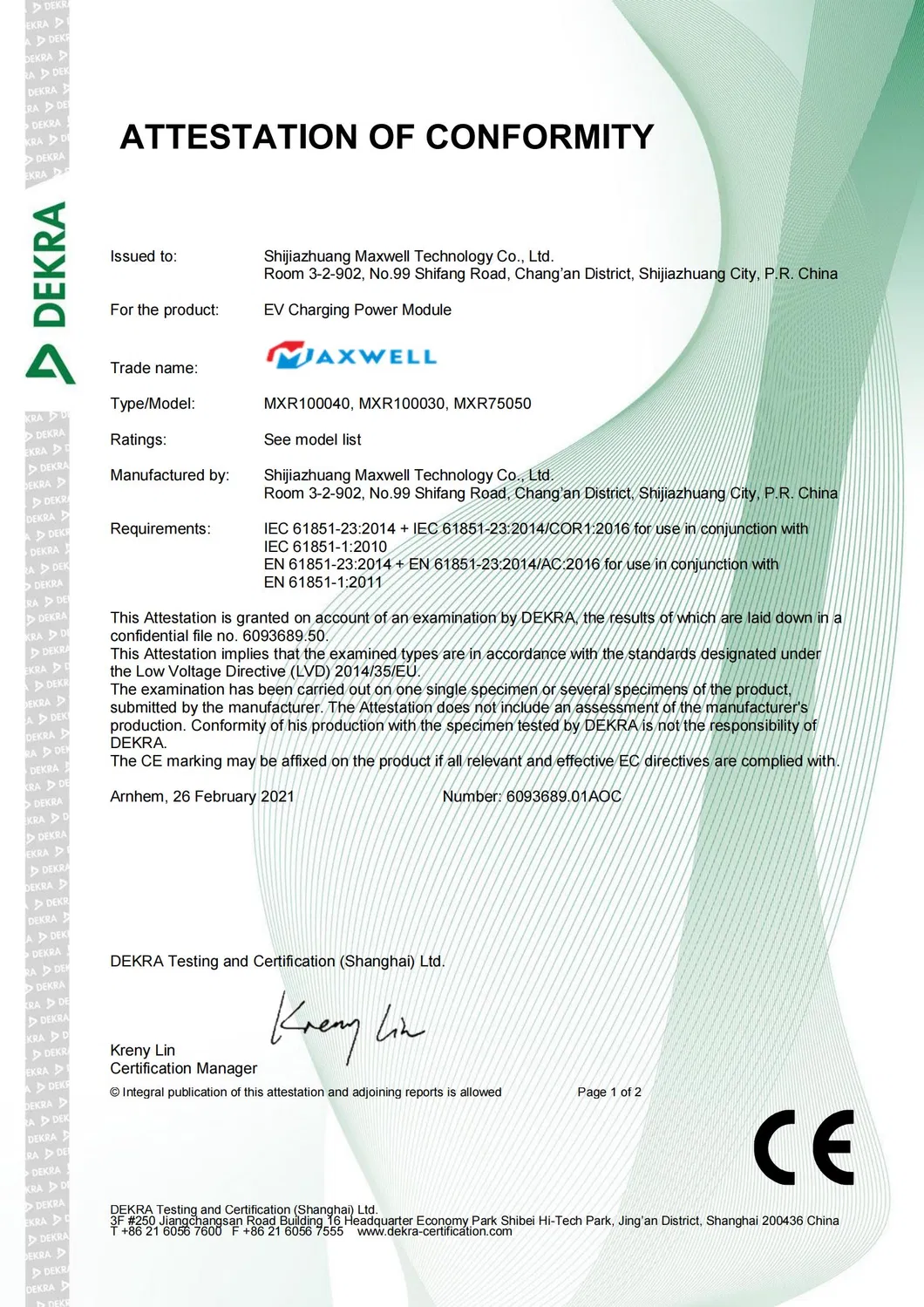

Certification 3

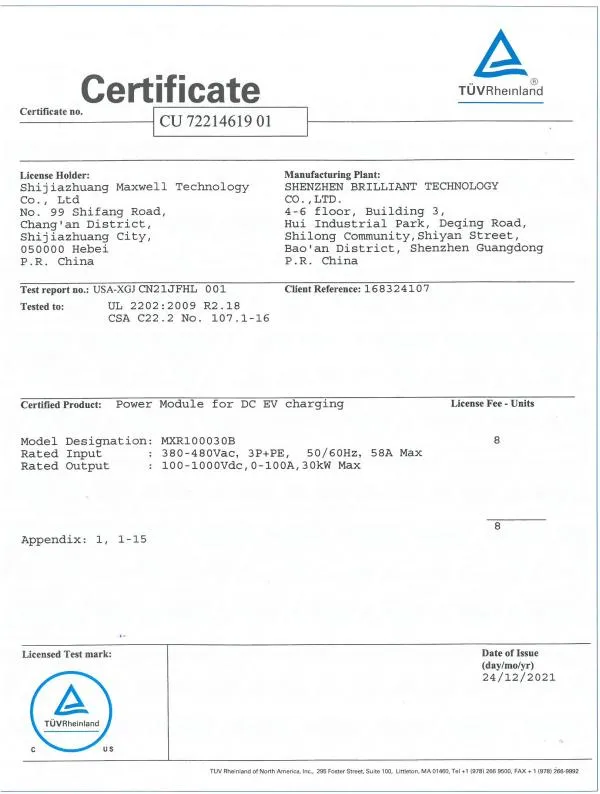

Certification 4

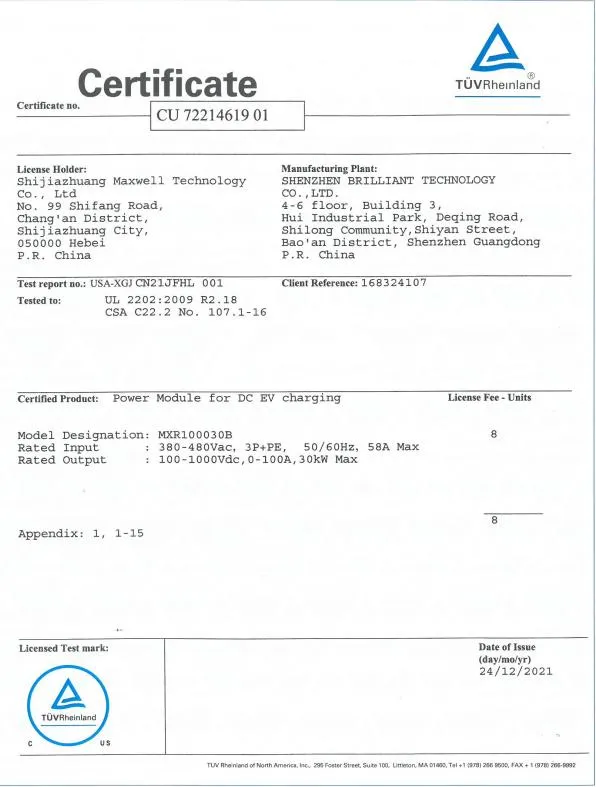

Certification 5
Certification 6
📦 Packaging & Delivery
Package Size
60.00cm * 50.00cm * 40.00cm
Package Gross Weight
35.000kg
Transport Package
Wooden/Kraft Carton
Packaging Detail
Shipping Detail
🛠️ After Sales Service
Warranty Period: 12 months
In the first half of the year for non-human damage, we provide a free replacement of a new unit. In the second half, we provide free repairs for non-human damage. Technical assistance from our engineers is available throughout your testing processes.
❓ Frequently Asked Questions
What is the peak efficiency of the MXR100050B-SE module?
The module achieves a full-load efficiency of ≥95.5%, ensuring minimal energy waste during high-power charging.
What is the output voltage range for this power converter?
The output voltage range is highly flexible, spanning from 200Vdc to 1000Vdc, making it suitable for a wide variety of EV battery architectures.
How many modules can be connected in parallel?
Up to 60 modules can be connected in parallel, allowing for highly scalable charging station configurations.
Does the module support a silent operation mode?
Yes, it features a silent mode setting where the operating noise is reduced to less than 55dB, ideal for noise-sensitive environments.
What communication protocol does the unit use?
The charging module uses an isolated CAN bus protocol for reliable communication with system monitoring modules.
What kind of after-sales support is provided?
We offer a 12-month warranty, including free replacement for the first 6 months and free repairs for the following 6 months for non-human damage, plus full technical support.
