| Model NO. | MXC95050B | Location | Public Use |
| Charging Interfaces | One Pile with Multiple Charges | Start Mode | RFID Authentic |
| Charge Method | Quick Charge | Output Power | 20kw |
| DC Bus Side | 200VDC-950VDC | DC Battery Side | 200VDC-950VDC |
| Current Range | 0A-50A | Specification | 85mm*226mm*376mm |

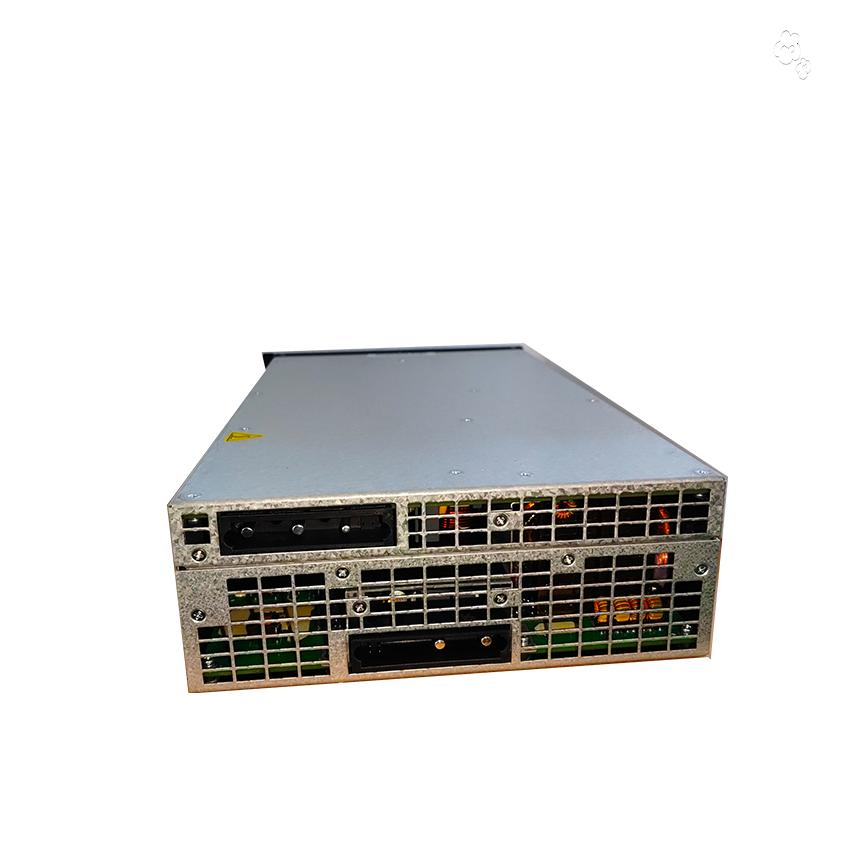

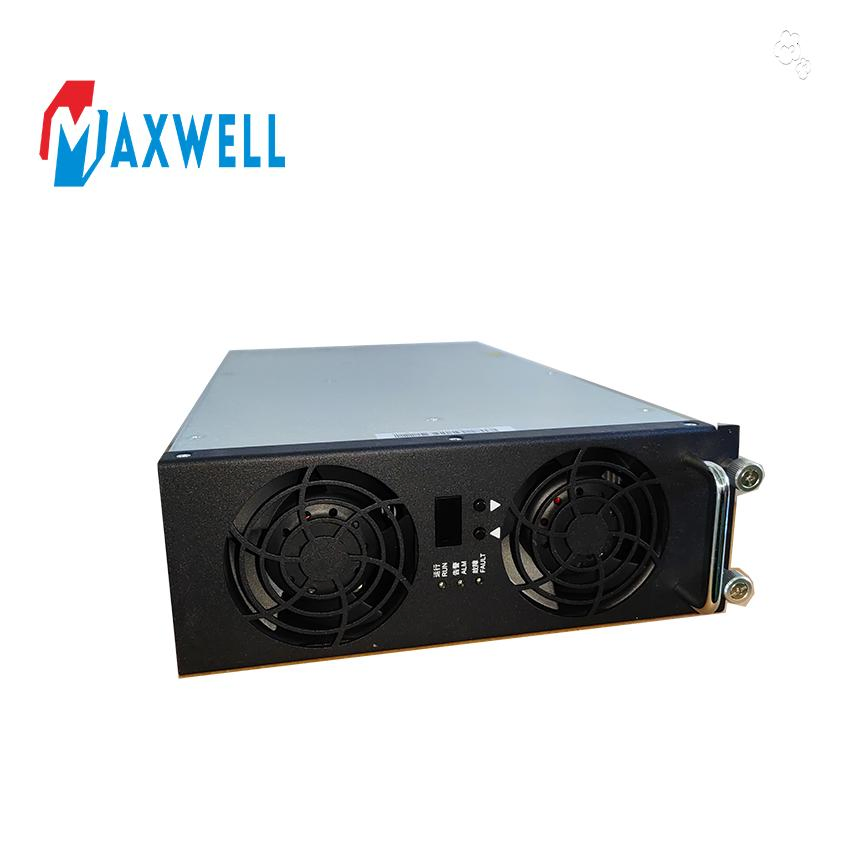

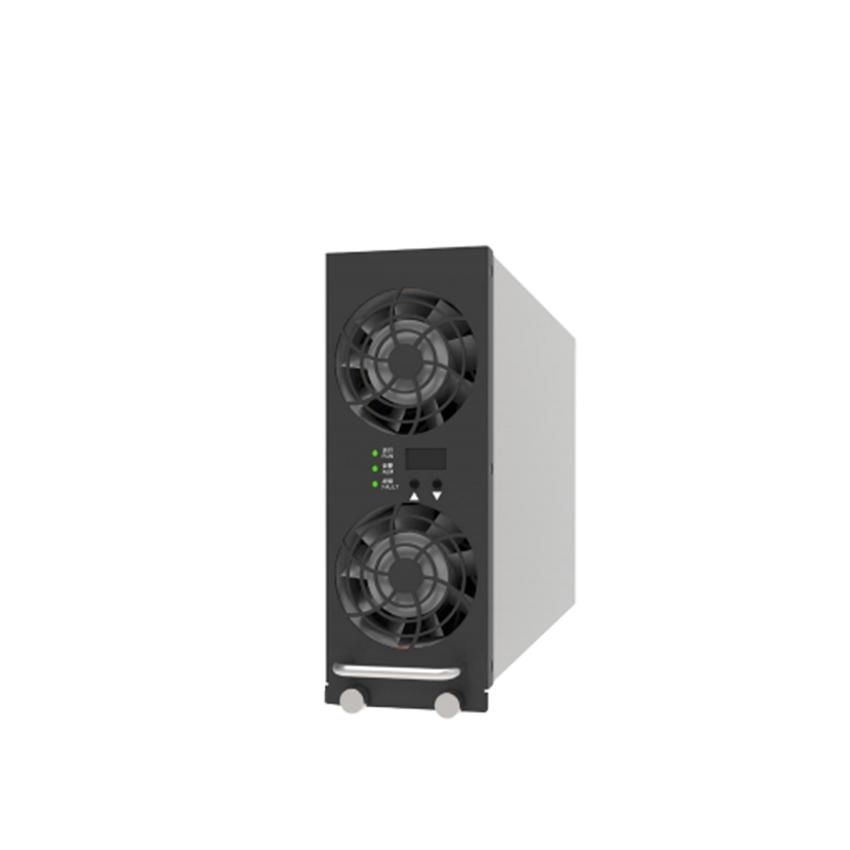

MXC95050B is a high-frequency isolated bi-directional DC-DC module featuring core advantageous performance such as an ultra-wide voltage range, ultra-high full-load operating temperature, and ultra-high efficiency. Strong protection and high power density are key features of this advanced module.
This module is designed for wide application in the interaction between the DC bus side and battery side, including energy storage, Photovoltaic (PV) systems, Energy Storage Systems (ESS), battery cascade utilization, data centers, and various multi-energy complementary scenarios.
| Basic Specifications | |
| Dimensions | 85mm(H) × 226mm(W) × 376mm(D) |
| Weight | ≤9.5kg |
| Efficiency (Full Load) | > 98.5% |
| Cooling Mode | Forced air cooling |
| Communication Bus Protocol | CAN Bus |
| DC Bus Side | |
| Voltage Range | 200Vdc ~ 950Vdc |
| Current Range | 0A ~ 40A |
| Stabilized Voltage Precision | ≤±0.5% |
| Battery Side | |
| Voltage Range | 200Vdc ~ 950Vdc |
| Current Range | 0A ~ 50A |
| Stabilized Current Precision | ≤±1% (20% ~ 100% rated current) |
As a state-level high-tech enterprise, we are a leading provider of new energy and energy internet solutions. We focus on the research, development, production, and sales of power electronic products, positioning our services for mid-to-high-end DC power supply system manufacturers. Based on owning independent intellectual property rights, we insist on technological innovation to realize corporate and customer value together.
With over a decade of experience, we have built a high-quality R&D team and obtained multiple national invention patents and software copyrights. Our products are widely used in automotive, electric power, railway, metallurgy, and communications sectors globally. Since 2011, we have pioneered the development of automotive DC charging modules, now offering series ranging from 15kW to 50kW.
