High-Efficiency AC/DC Power Supply Unit for Industrial Use

Customization:	Available
Certification:	CE, ISO, RoHS, GS
Condition:	New

Send Inquiry

Product Description

ℹ️ Basic Information

Model NO.	RAYTEK-AZX
Net Weight	517 Kg / 1140 Lbs
Accuracy	± 0.1% F.S.
Input Impedance	5 Kohm

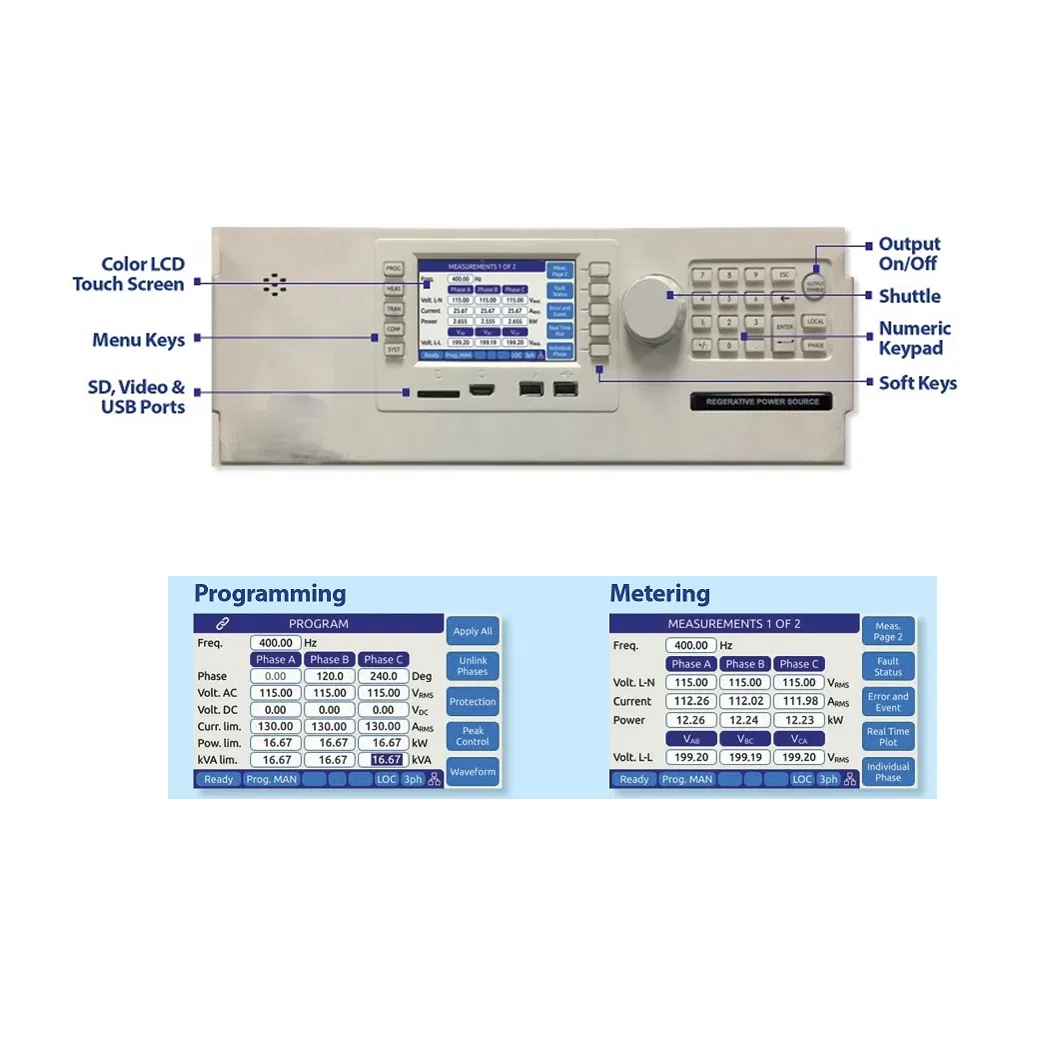

Display Screen	4.3 inch
USB Terminal	2 Ports on The Front Panel & 1 Port on The Back
Transport Package	Wooden
Specification	1520 x 610 x 810 mm
HS Code	8464901900
Production Capacity	500 pieces

📦 Product Description

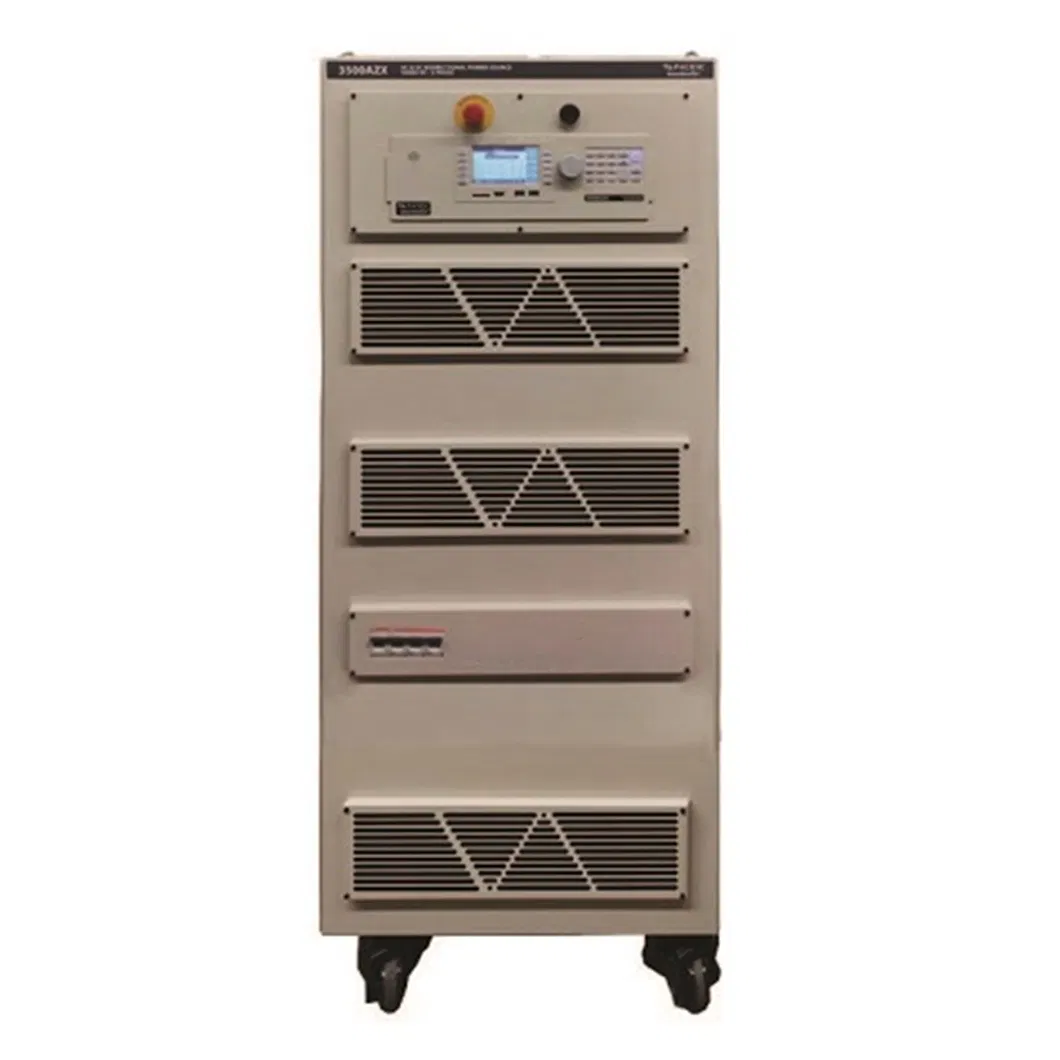

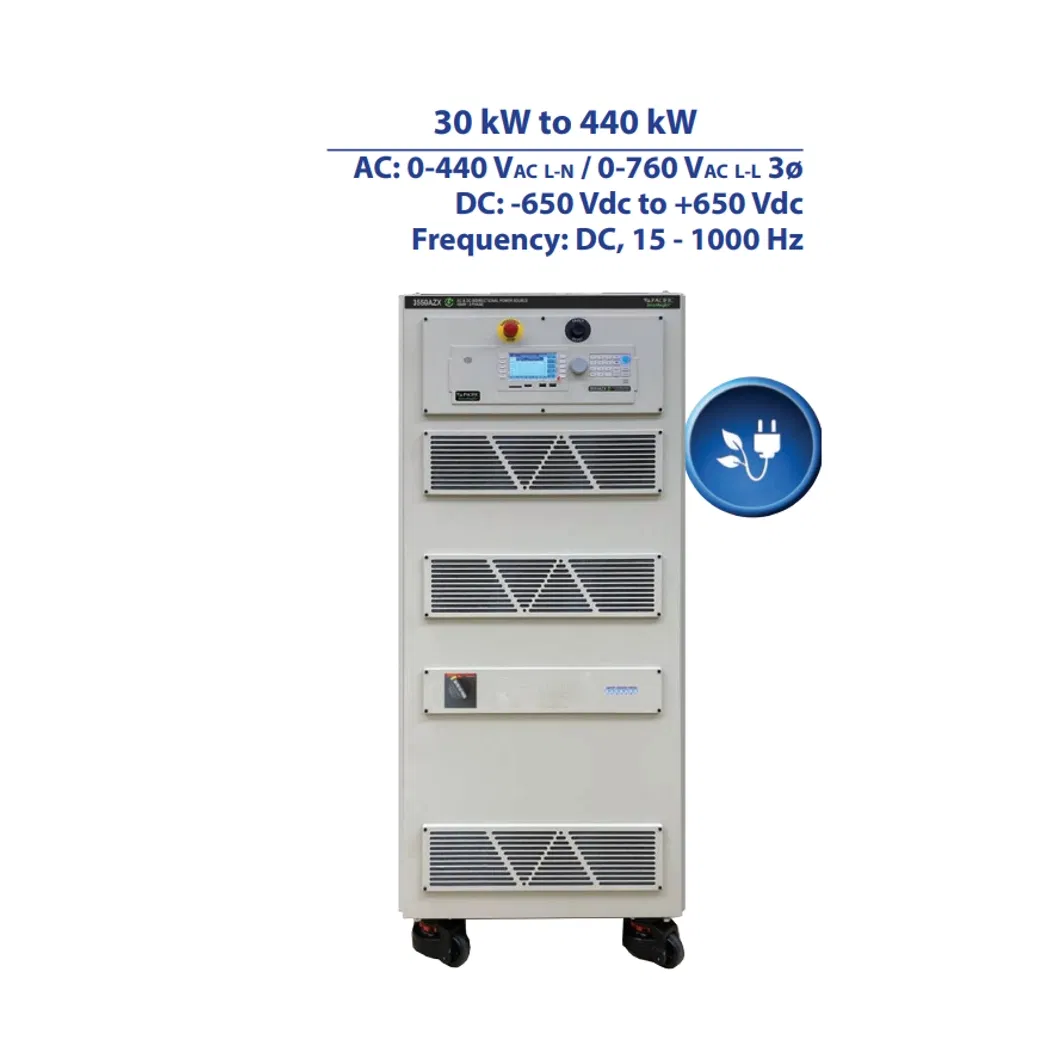

The RAYTEK-AZX series energy feedback AC/DC power supply supports single-phase, phase separation, and three-phase modes using advanced silicon carbide technology. It is specifically designed for simulation applications in renewable power grids.

⭐ Our Advantages

Extensive Features:

Full Power Source and Sink Capability with Energy Recovery to the Utility Grid
Full 100% of Current and Power Rating in both Source and Sink Mode
Available Models: 30kW, 45kW & 55kW (Parallel for higher power)
Three Phase, Split Phase and Single Phase Output Modes
AC, DC, AC+DC or DC+AC Output Capability

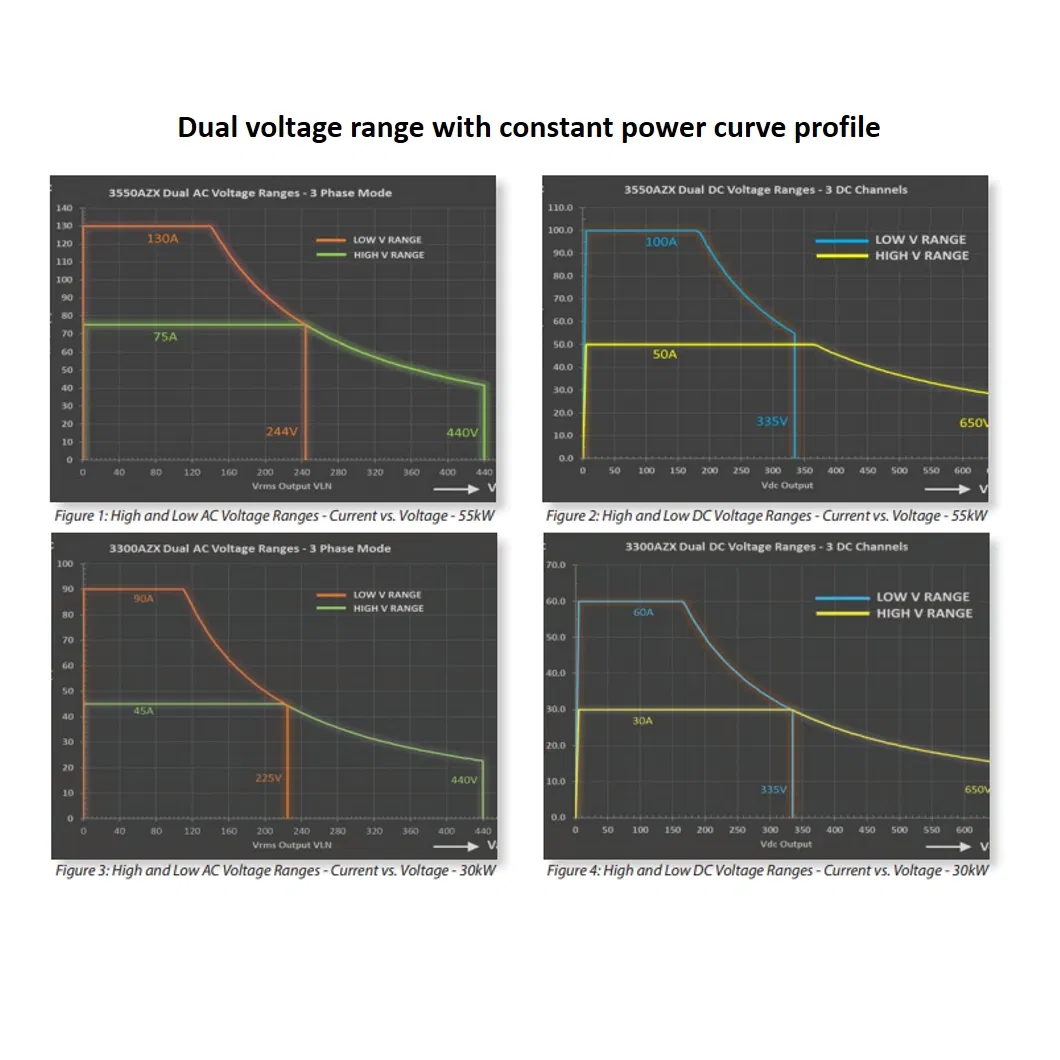

Dual Constant Power Mode Voltage Ranges
Frequency Range: DC, 15 - 1000Hz or 1Hz - 15Hz in VLF mode
Metering of Volts, RMS Current, Peak Current, Apparent Power & True Power
Harmonic Measurements & Digital Scope Function
Standard USB, LAN (LXI), RS232 & GPIB Interfaces

Key Application Areas:
1. Renewable Power Grid Simulation: Supports testing of solar inverters (PV), energy storage systems (ESS), and electric vehicle batteries.
2. Aerospace & Defense: Wide output frequency range (up to 1000Hz) for aviation electronic equipment testing.
3. Electric Vehicle Charger Support: Key role in AC connection and DC testing for V2G and high-power charging stations.
4. EMC Compliance: Full testing support for IEC 61000 standards.
5. Silicon Carbide Technology: Enables regenerative four-quadrant operation for higher efficiency and protection.

📊 Model Specifications

Model	Phase Mode	Power (AC/DC)	High Voltage Range (Vac L-N / Vdc)	Max Current (High Range)	Low Voltage Range (Vac L-N / Vdc)	Max Current (Low Range)	Configuration
3300AZX	3, 2 & 1	30 kVA / 30 kW	0-440 Vac 0-±650 Vdc	45/50 Arms 30/45 Adc	0-225 Vac 0-±335 Vdc	90/117 Arms 60/90 Adc	1 Cabinet
3500AZX	3, 2 & 1	50 kVA / 50 kW		75 Arms 50 Adc		130 Arms 100 Adc	1 Cabinet
31000AZX	3, 2 & 1	100 kVA / 100 kW		150 Arms 100 Adc		260 Arms 200 Adc	2 Cabinets
31500AZX	3, 2 & 1	150 kVA / 150 kW		225 Arms 138.4 Adc		390 Arms 300 Adc	3 Cabinets
32000AZX	3, 2 & 1	200 kVA / 200 kW		300 Arms 200 Adc		520 Arms 400 Adc	4 Cabinets

Note: Rated power shown is for Three Phase or Single Phase mode. Parallel systems available up to 400kVA/kW.

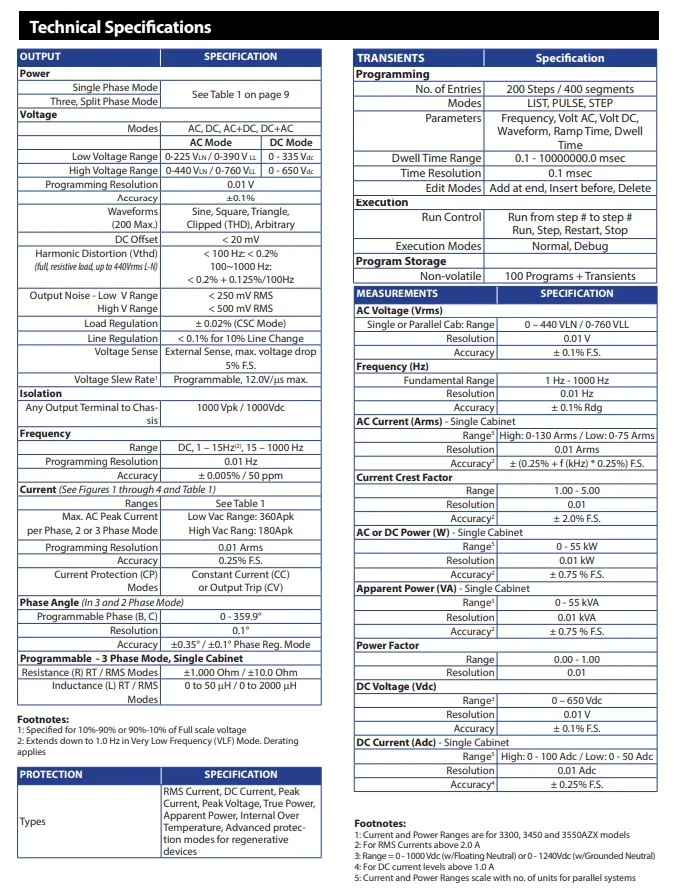

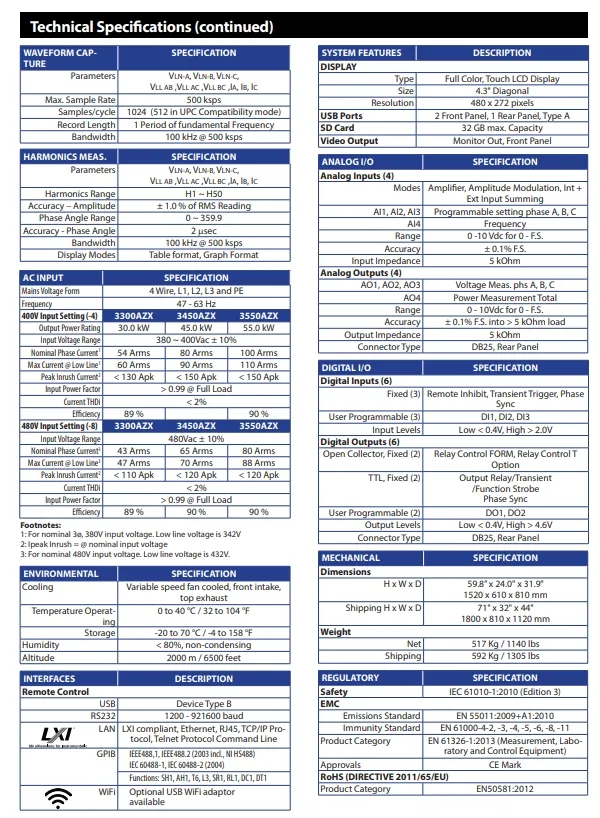

🛠️ Product Parameters

🛠️ Service & Warranty

Main Export Regions: USA, UK, Japan, Germany, Spain, France, Korea, India, Canada, etc.
Payment Methods: T/T, Western Union, or L/C.
Delivery Time: Standard shipping within 7-10 days.
Quality Warranty: We offer a "3R" policy (Return, Replacement, Refund) for quality issues.
Technical Support: One-year equipment guarantee. Life-long maintenance and optimization services provided.

Frequently Asked Questions

What makes the AZX series suitable for renewable energy testing?

The AZX series features a regenerative design that allows energy to be fed back into the grid, making it ideal for testing solar inverters, energy storage systems, and EV chargers.

Does the power supply support both AC and DC output?

Yes, it supports AC, DC, AC+DC, and DC+AC output modes, providing maximum flexibility for diverse industrial and laboratory applications.

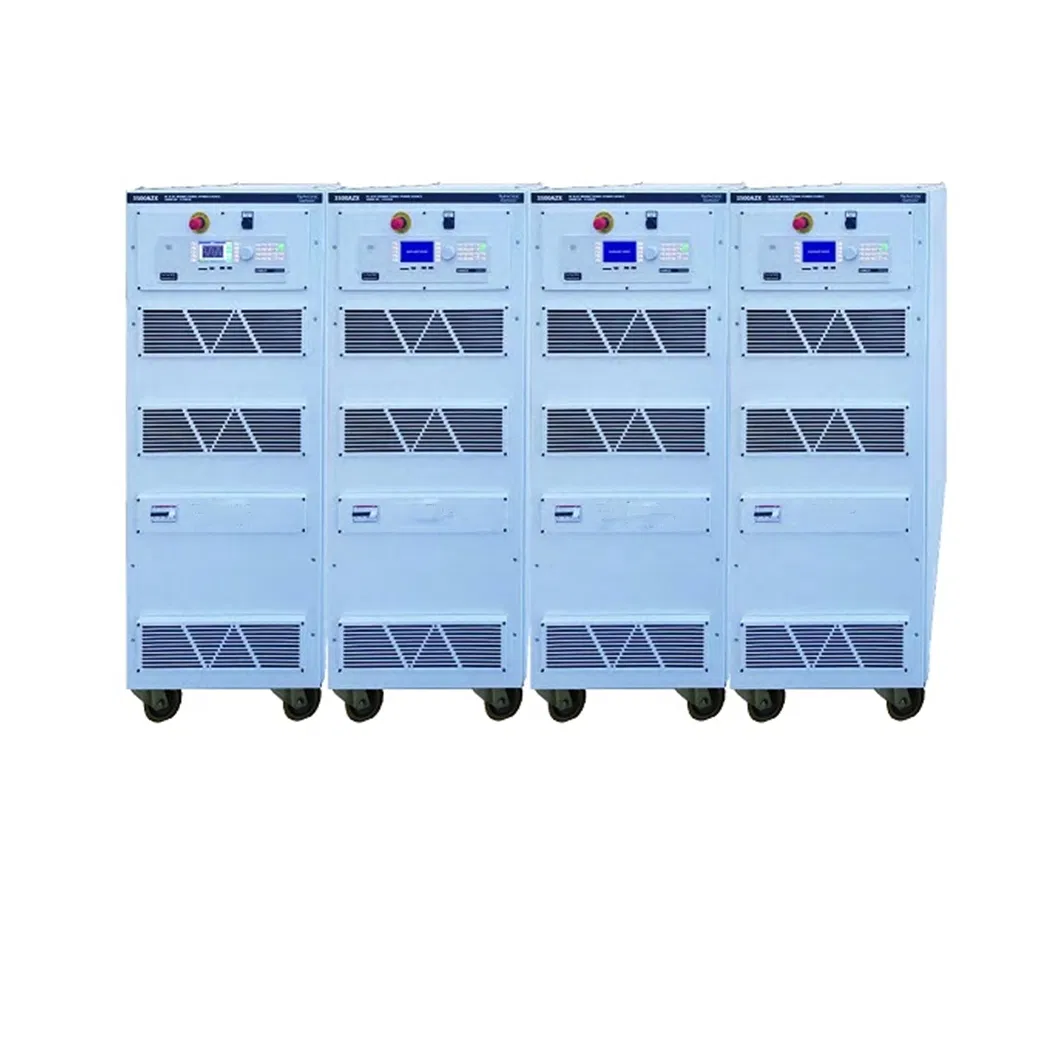

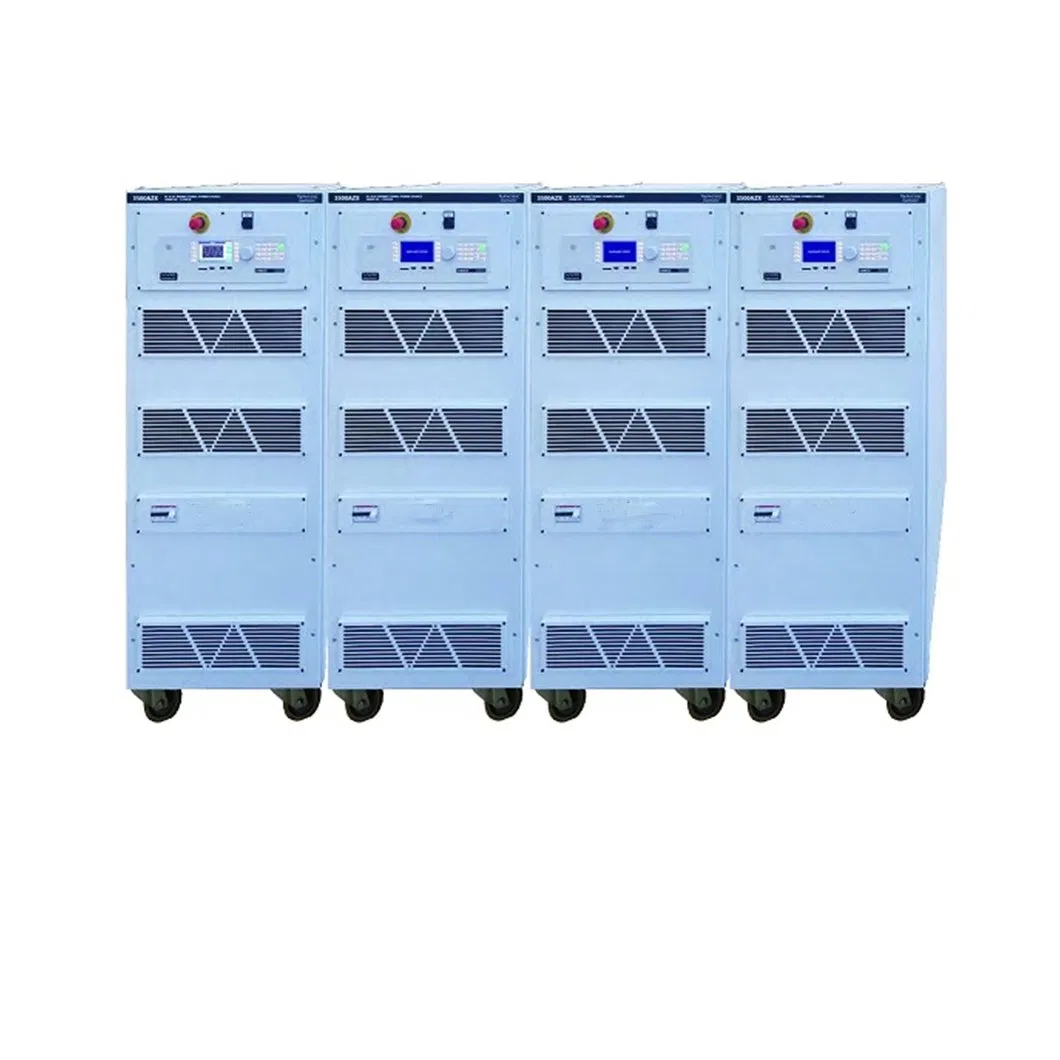

Can multiple units be connected for higher power requirements?

Absolutely. The AZX series supports parallel configurations, allowing you to scale power from 30kW up to 400kW as your testing needs grow.

What protection features are included?

The system includes programmable current limiting, actual power protection, apparent power protection, overvoltage protection, and overtemperature protection.

How can I control the device remotely?

The device comes standard with USB, LAN (LXI), RS232, and GPIB interfaces, allowing for seamless remote monitoring and control via computer or mobile web browser.

Does it support arbitrary waveform generation?

Yes, it offers 200 selectable arbitrary waveforms, including clipped sine, square, triangle, and custom waveforms via the built-in software or web interface.
